| Article number: | 10.15.010 |
Specifications :
|
Drawing number |
10.15.010 |
|
Author |
Th.J. de Klerk |
|
Description |

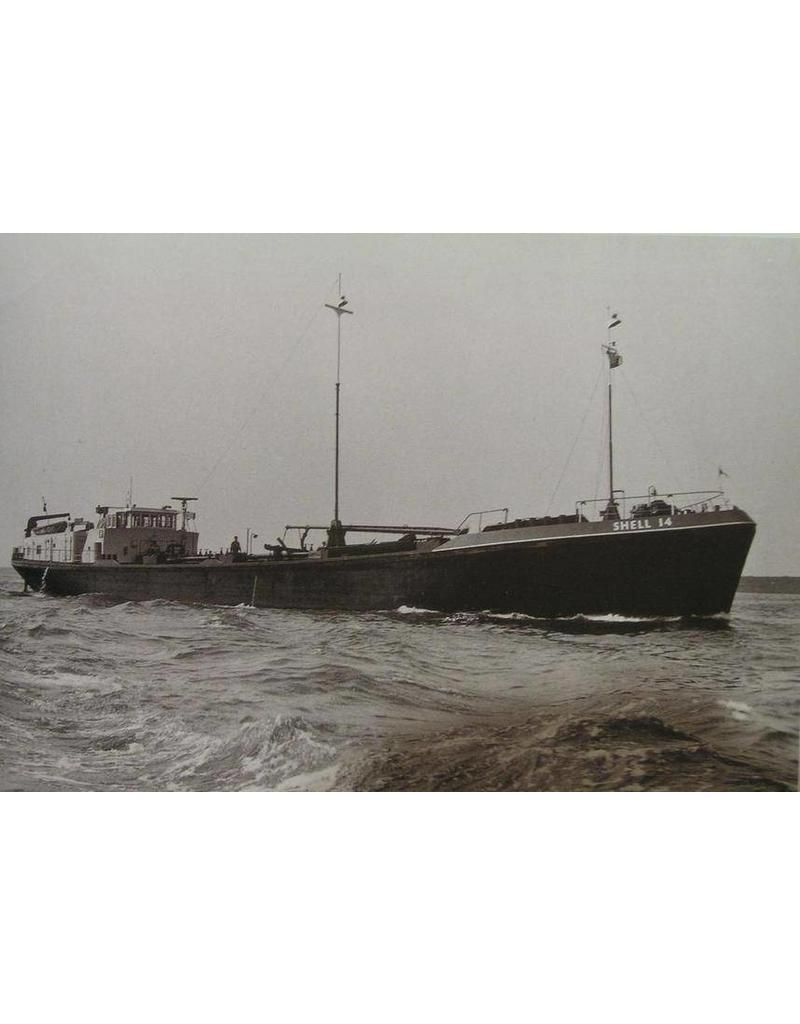

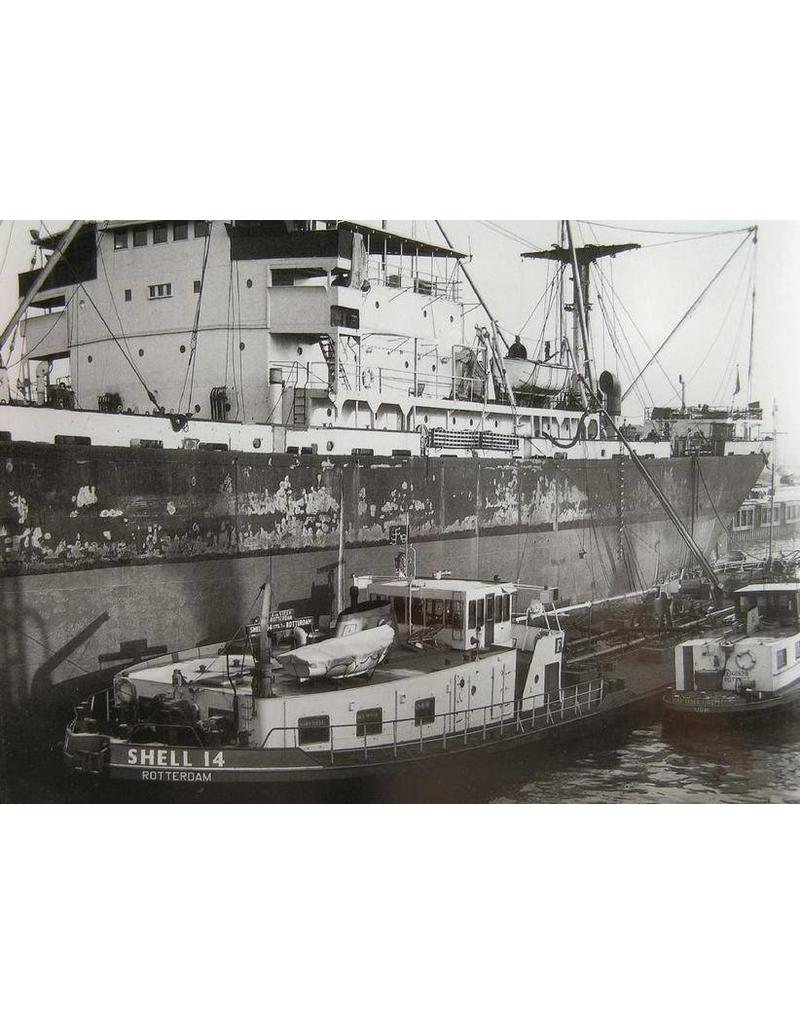

Rhine tanker ms "Shell 14" (1965) - Shell Sales Co. |
|
Quality |

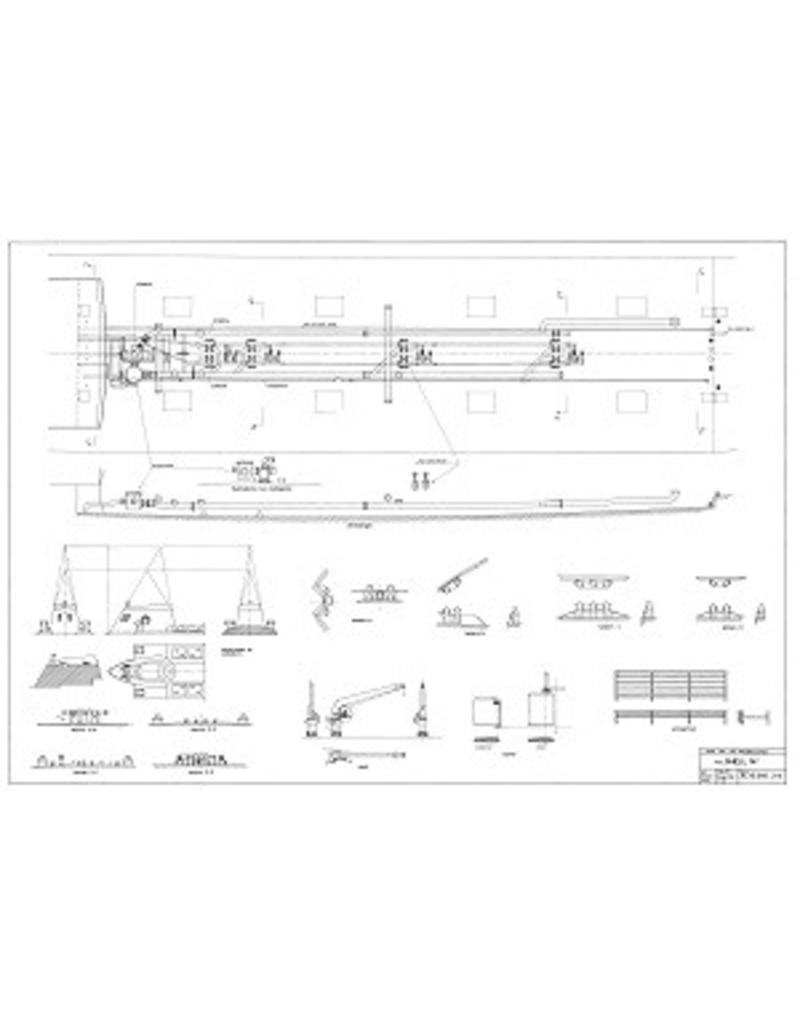

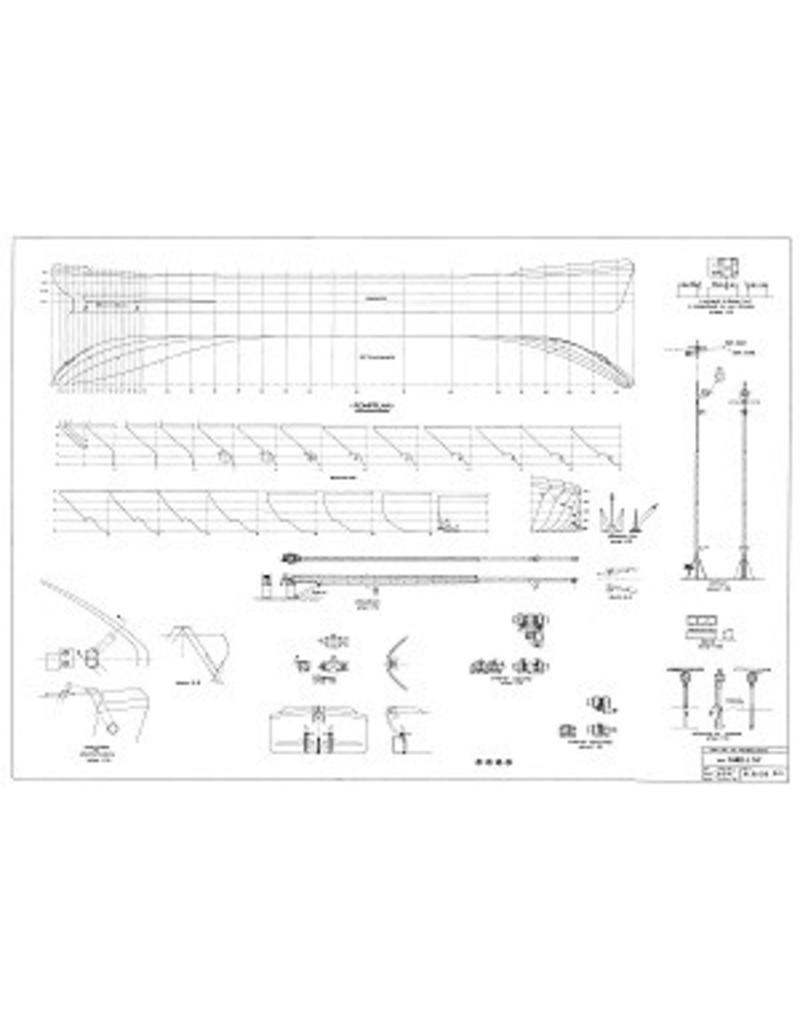

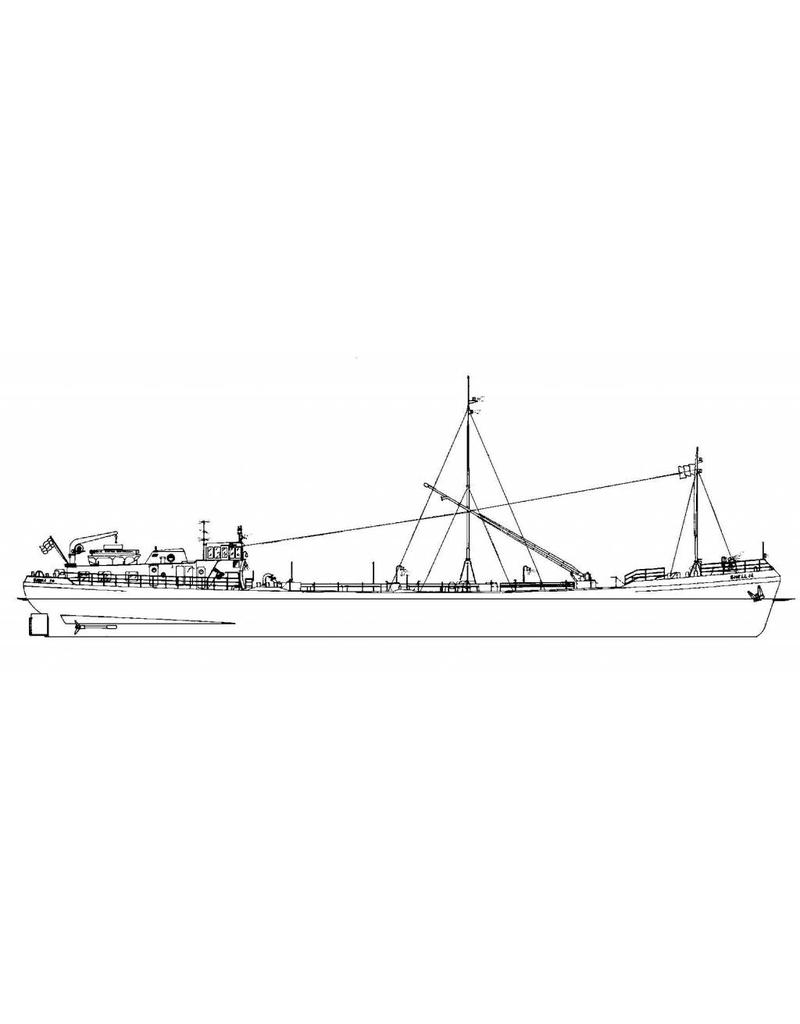

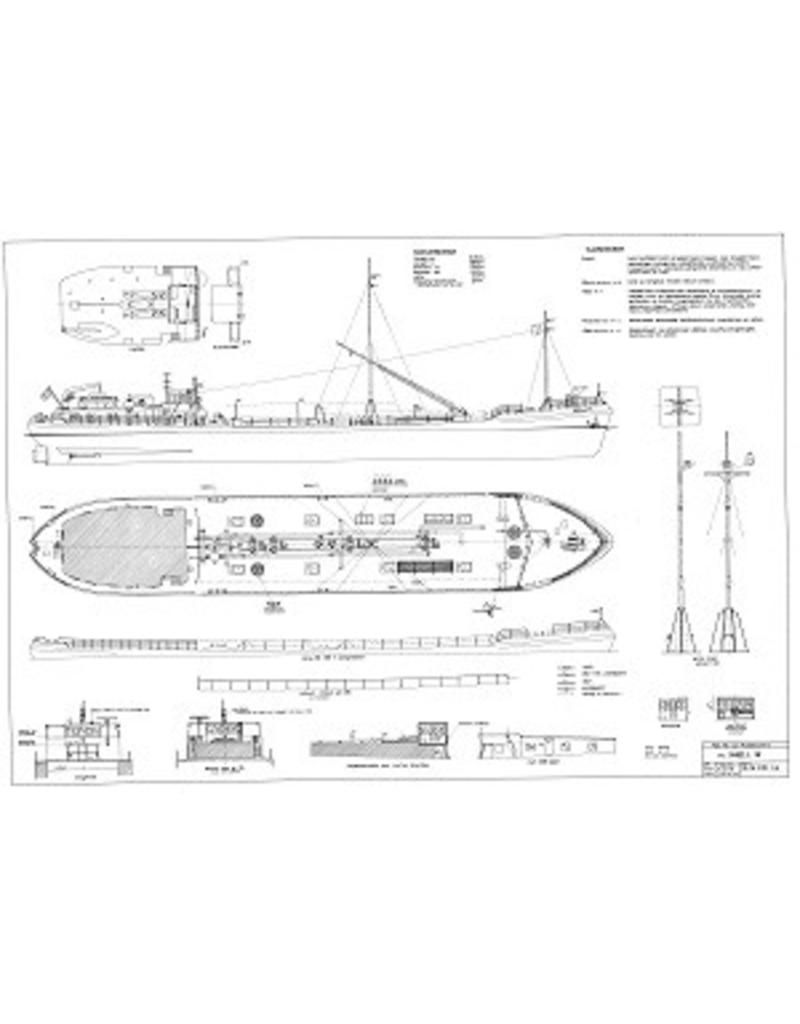

sp/lines; construction frames; side view; deck plan; details 1:50 |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
3 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
145 |
|
Particulars |
l.o.a. 61 cm |
|
Remarks |
