| Article number: | 10.15.016 |
Specifications :
|
Drawing number |
10.15.016 |
|
Description |

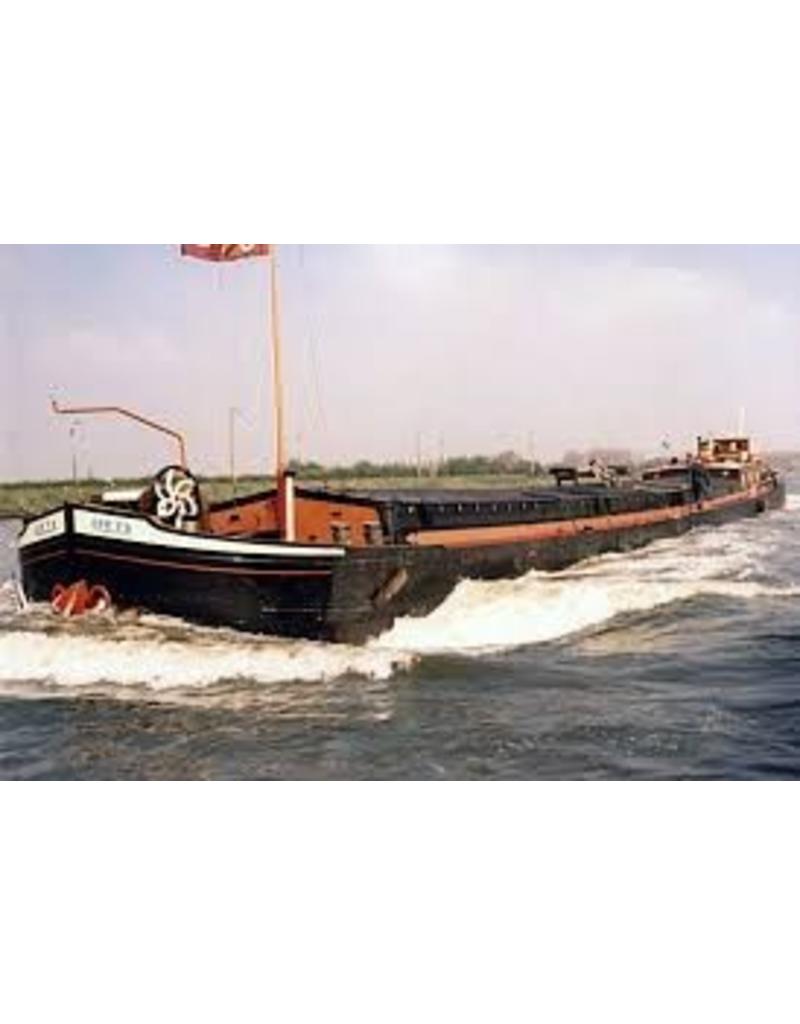

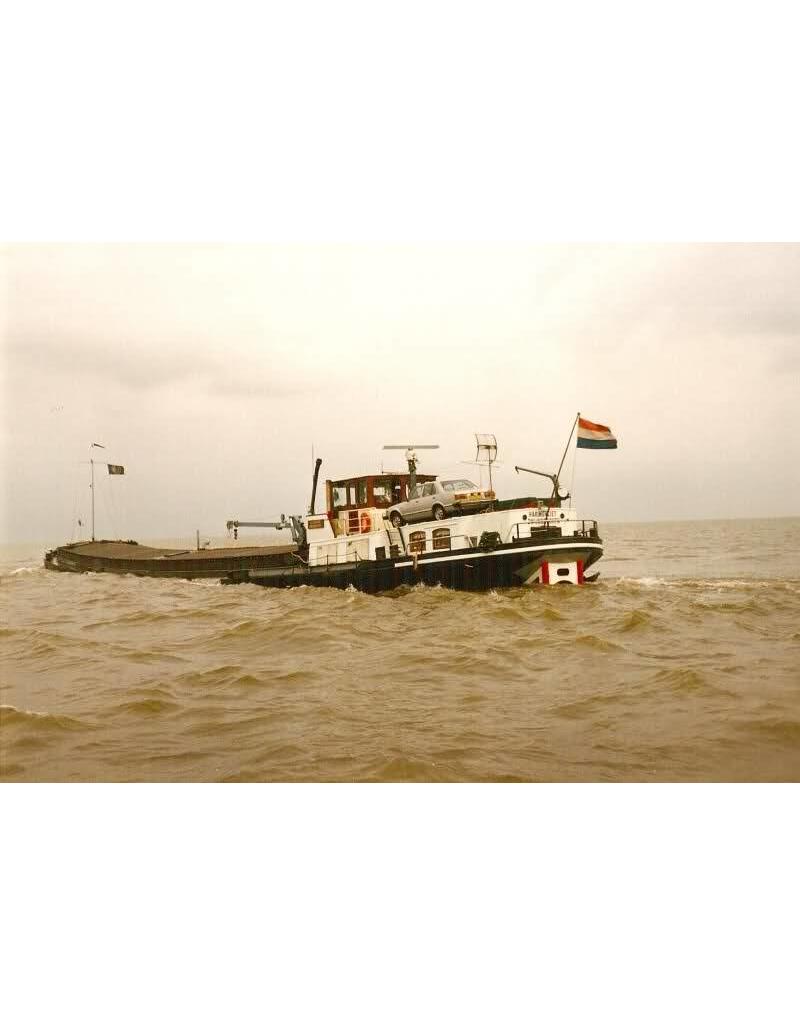

motor barge ms "Elma" (1963) - C.J. de Graaf |
|
Quality |

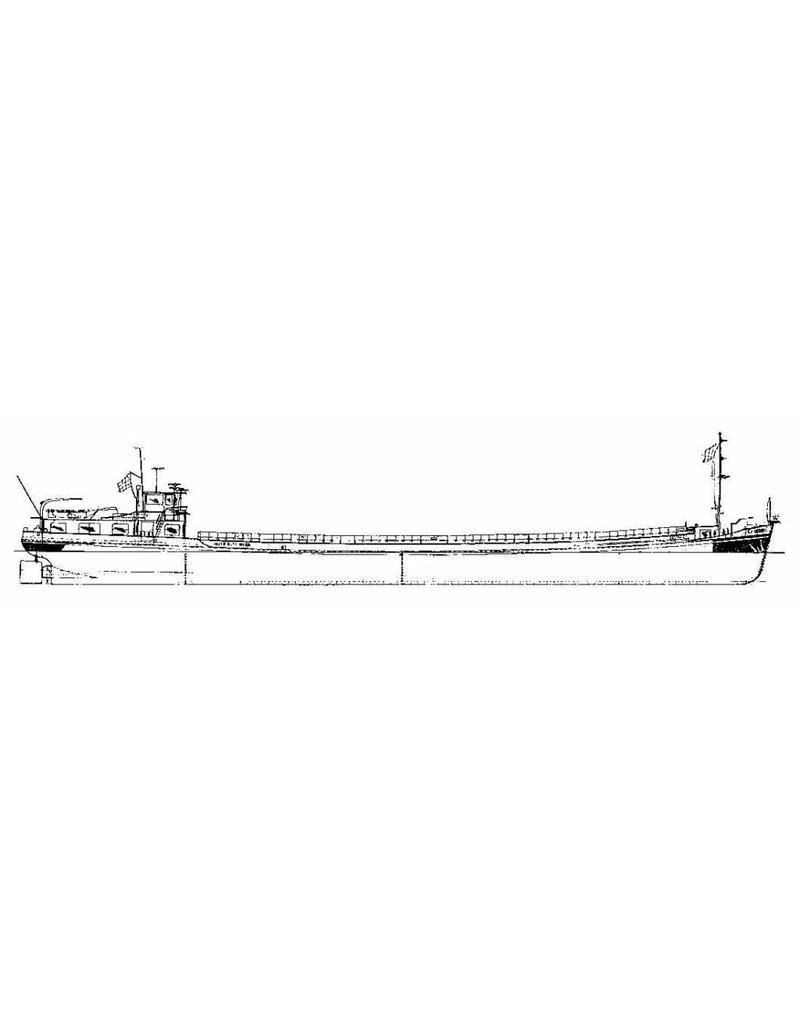

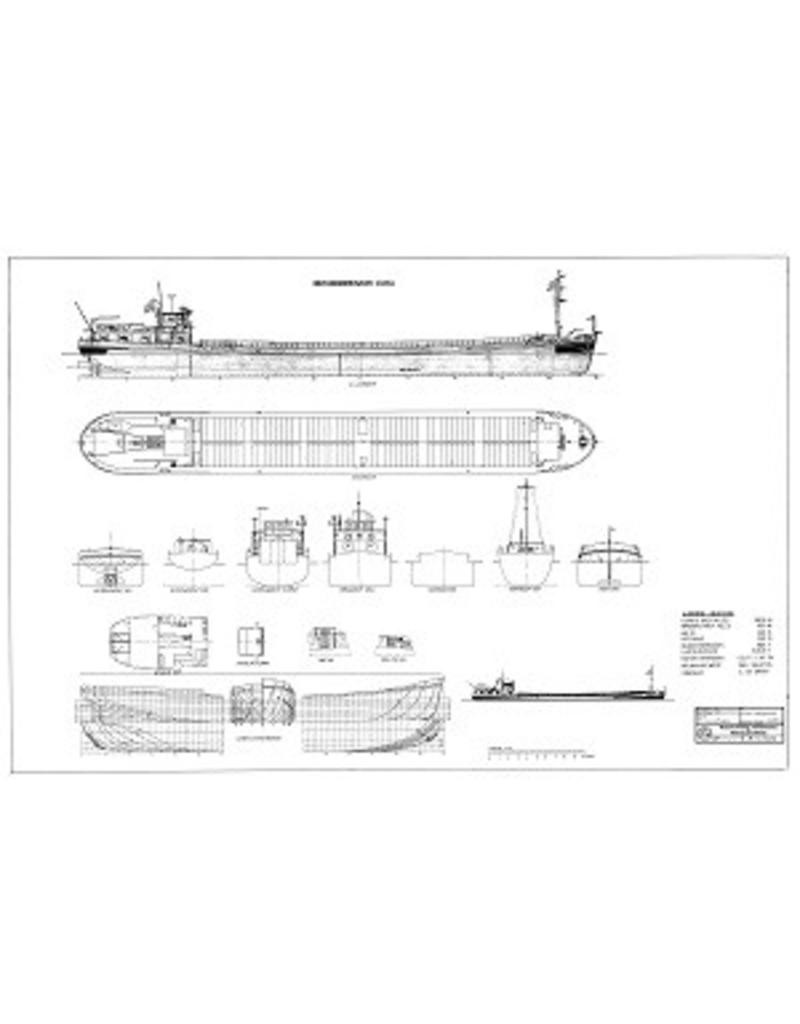

sp/lines; side view; deck plan; various views |
|
Scale |
1 : 75 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Particulars |
l.o.a. 73 cm |
|
Remarks |
