| Article number: | 16.06.005 |
Specifications :
|
Drawing number |
16.06.005 |
|
Author |
formerly Nauta Shipyard |
|
Description |

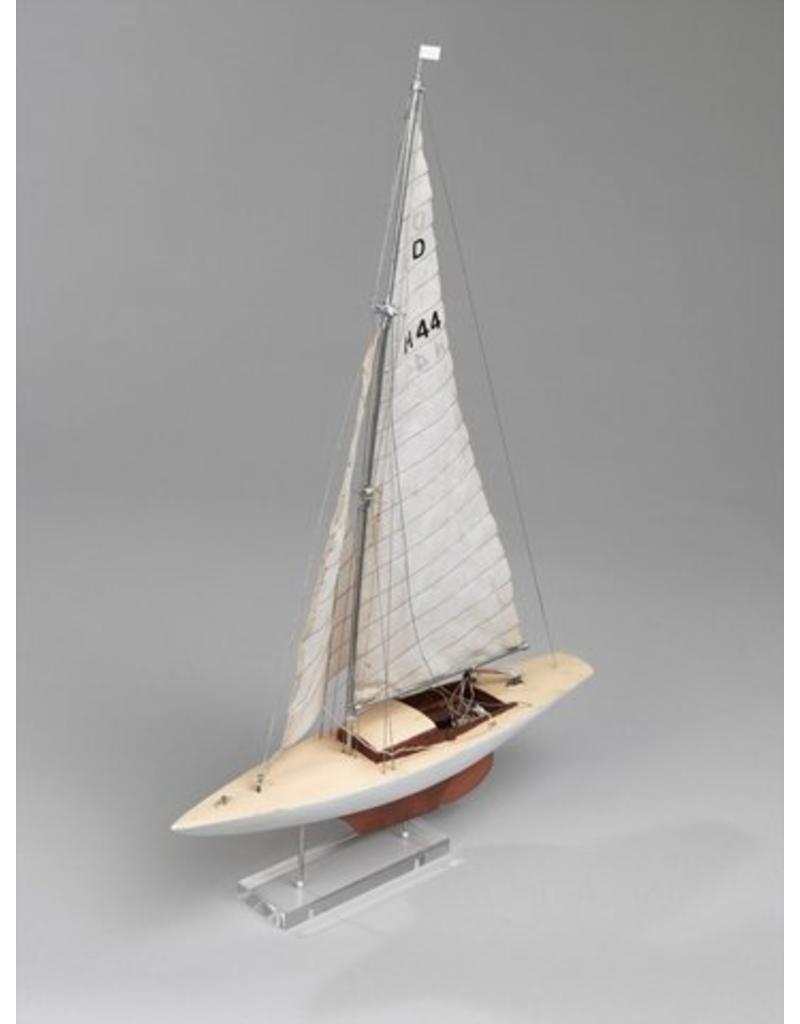

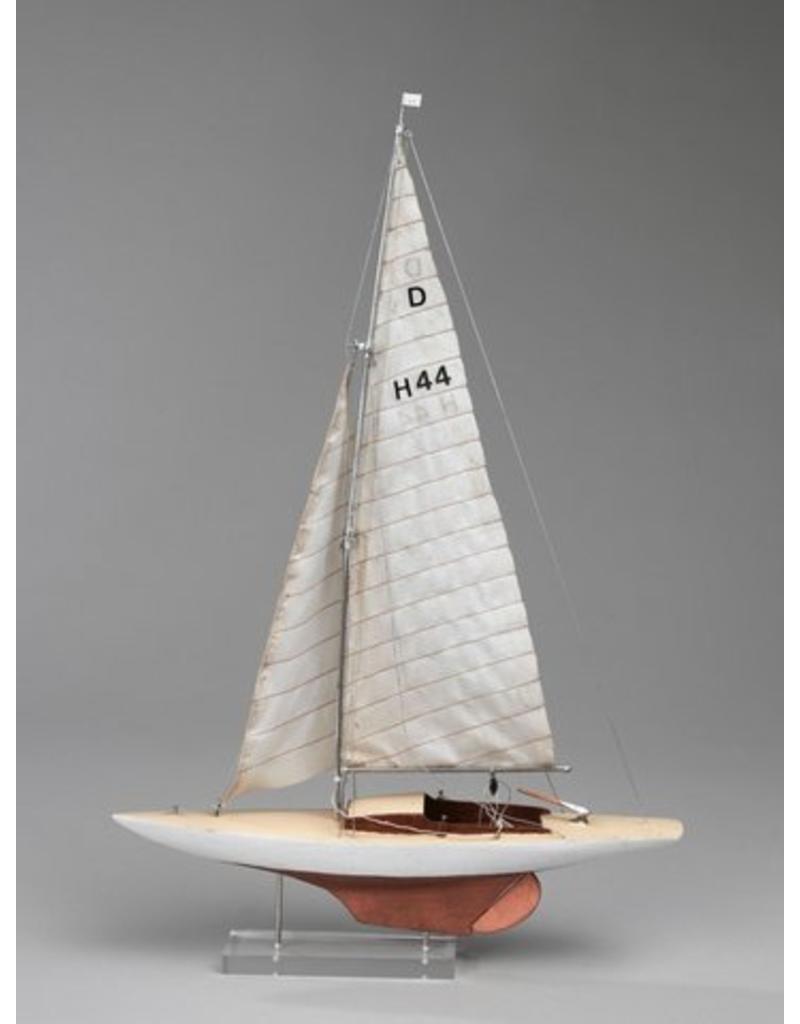

Sailing Yacht Dragon Class |
|
Quality |

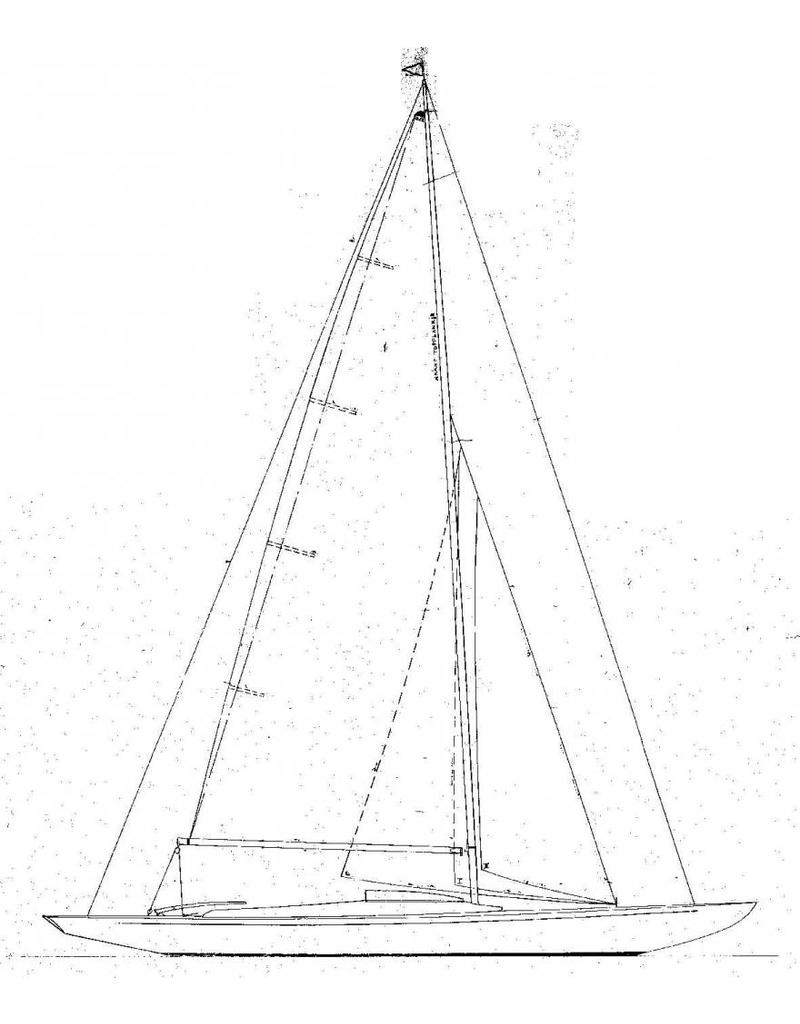

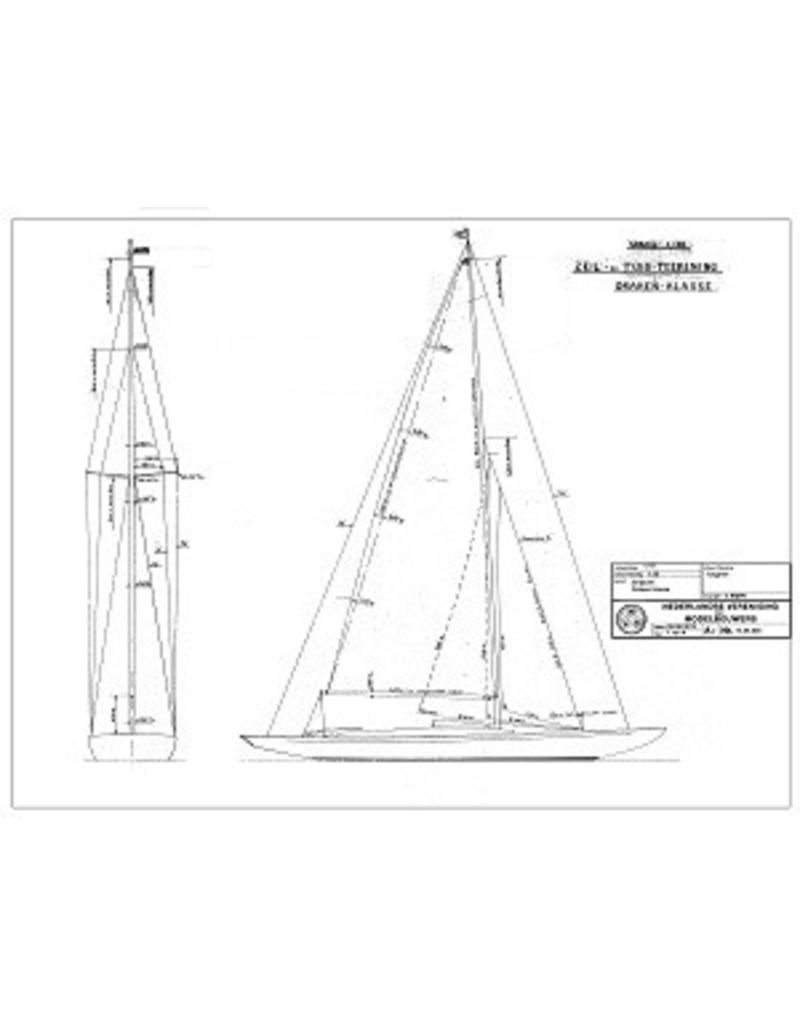

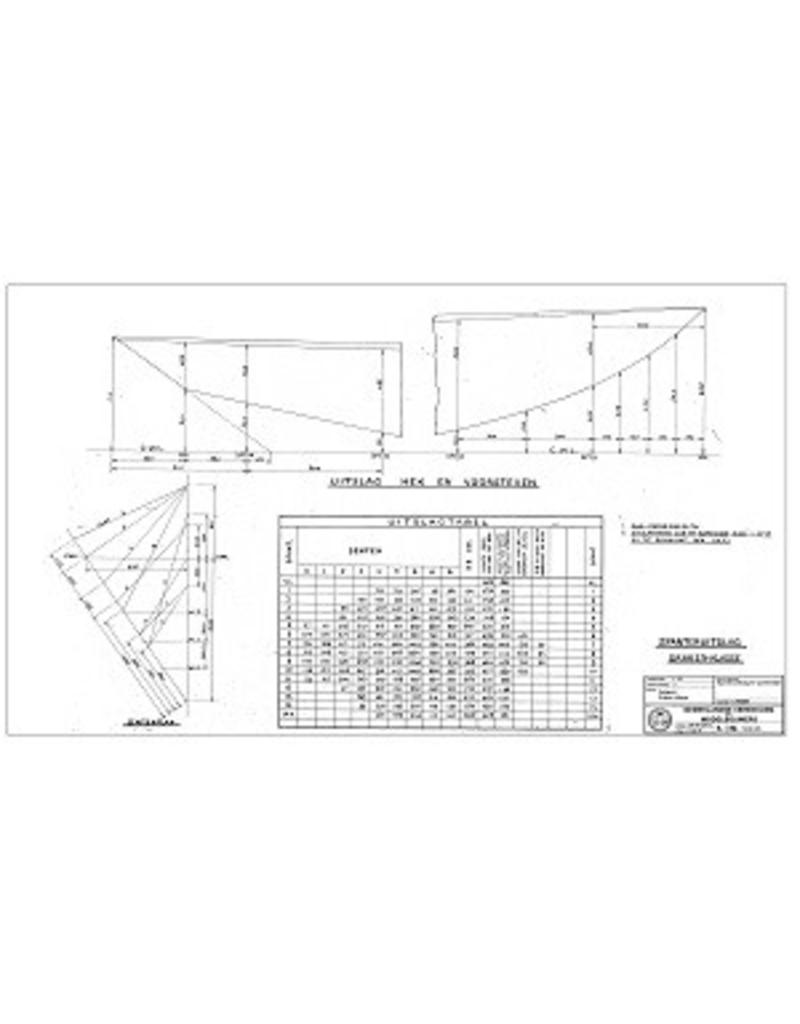

frame list; construction plan; rigging plan; keel details. |
|
Difficulty level |
D |
|
Scale |
1 : 10 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
265 |
|
Special features |
A set of drawings for a model of a classic racing class. The frame list, from which the builder must construct the frame plan themselves, makes it a model for the more experienced builder |
|
Remarks |
