| Article number: | 16.06.007 |
Specifications :
|
Drawing number |
16.06.007 |
|
Author |
formerly Nauta Shipyard |
|
Description |

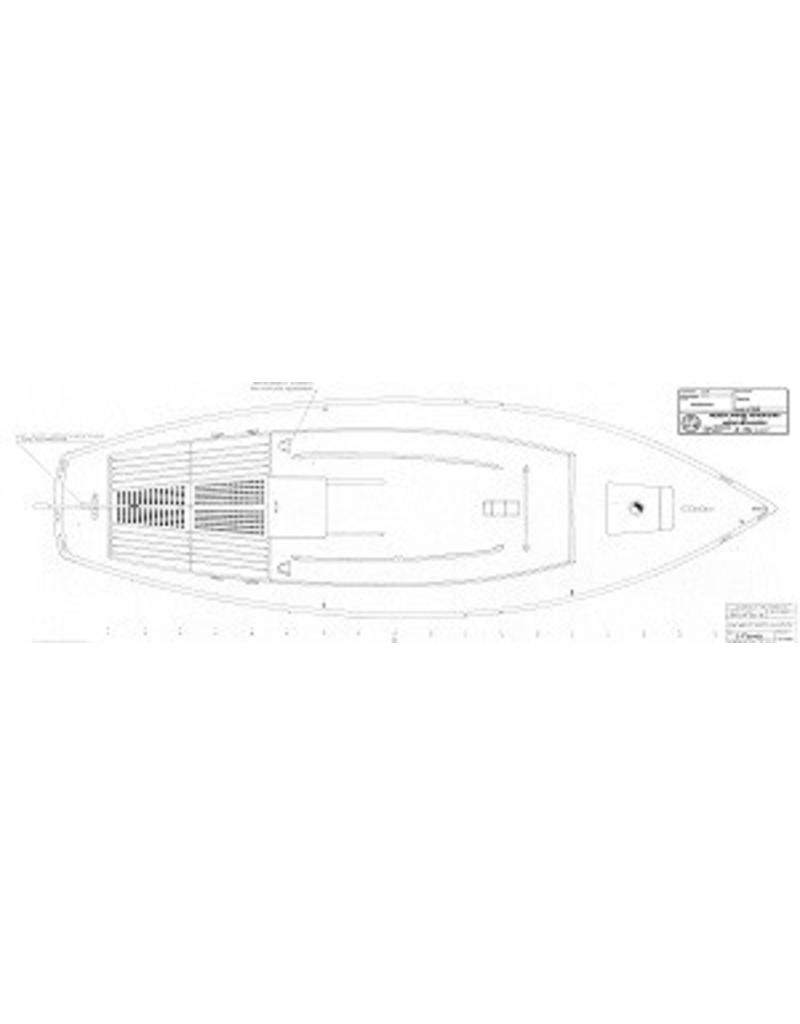

Cabin sailing yacht |
|
Quality |

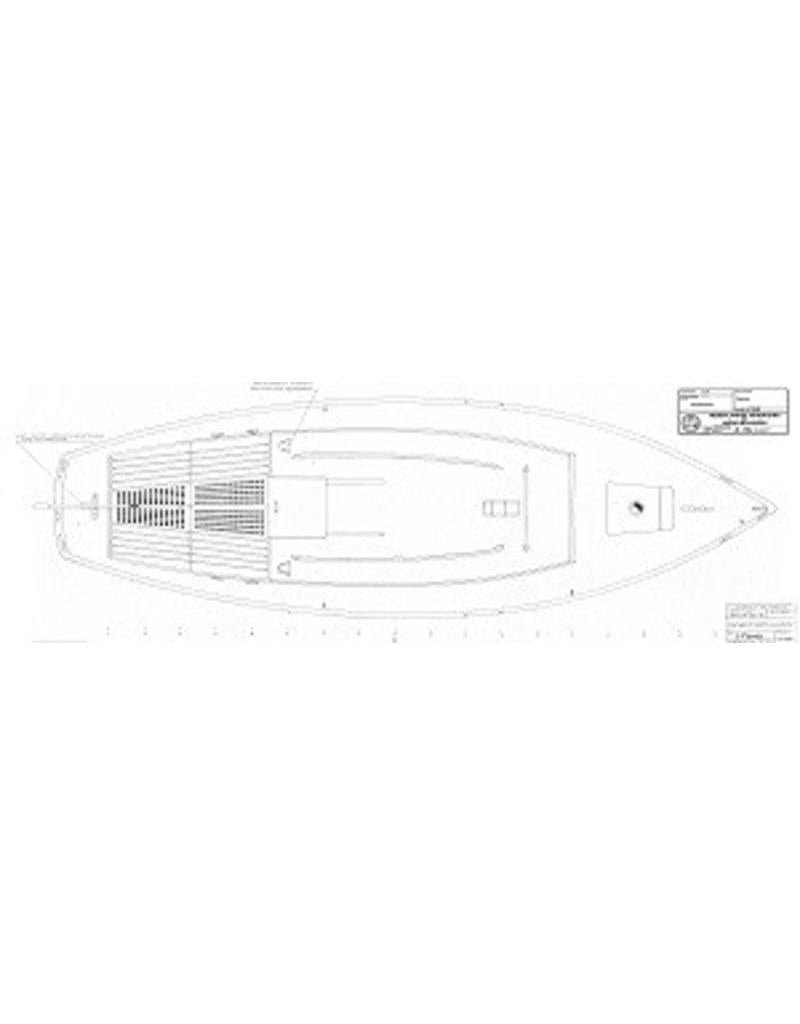

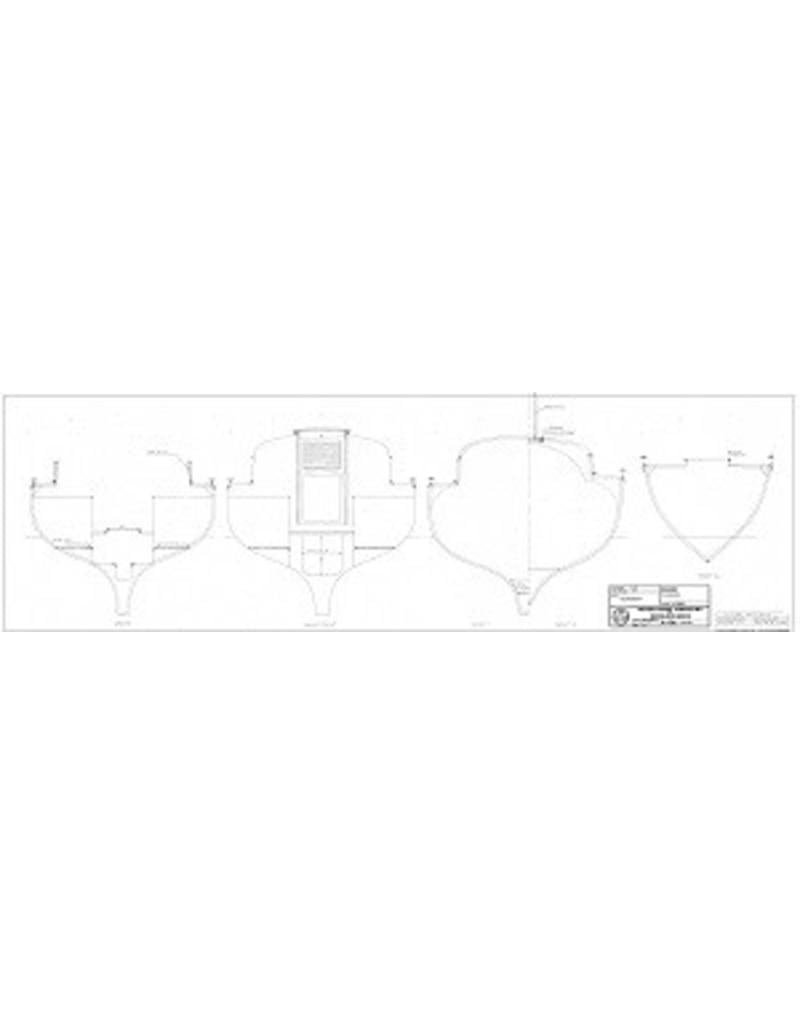

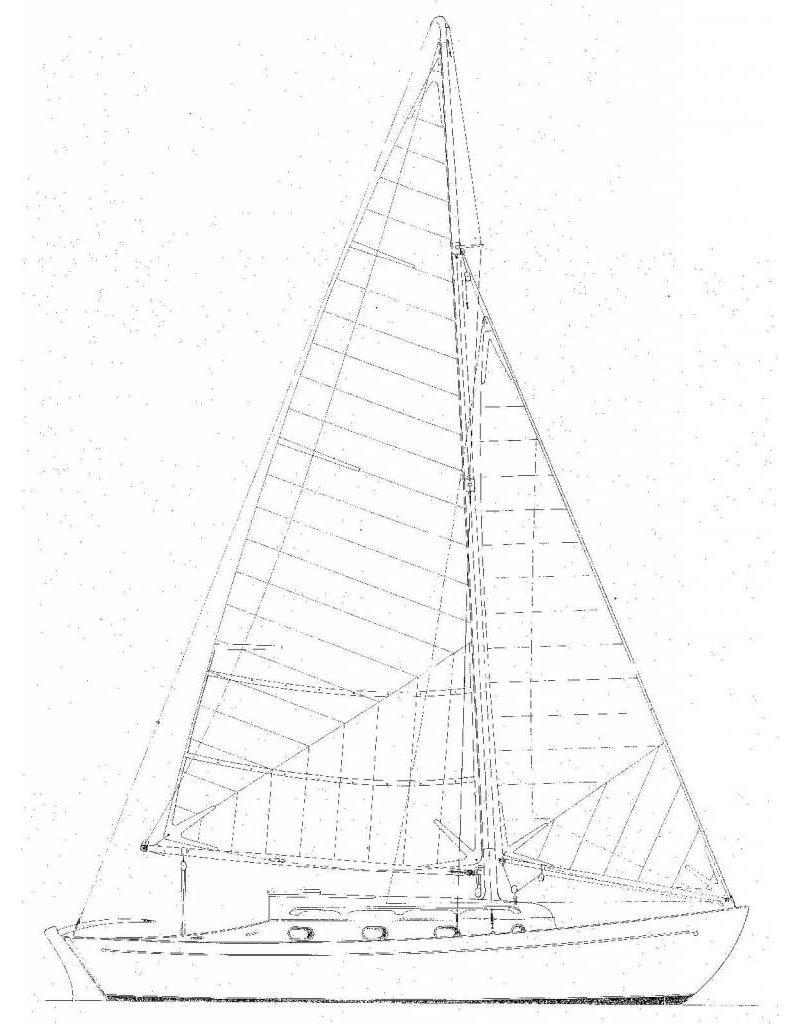

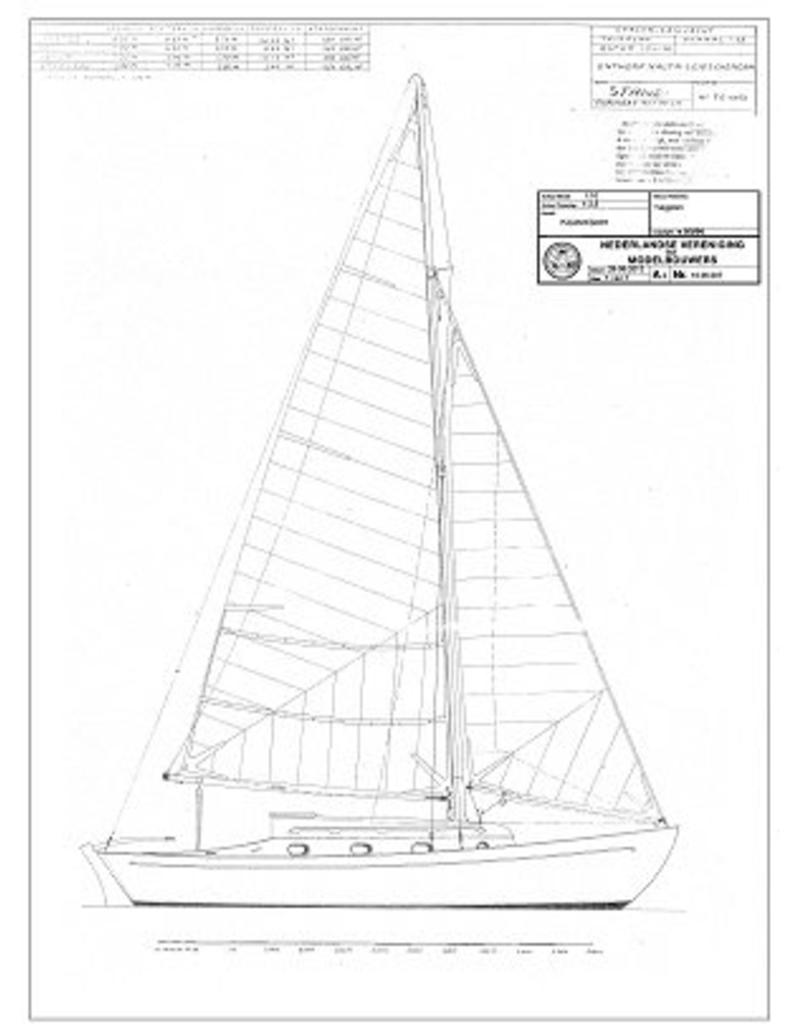

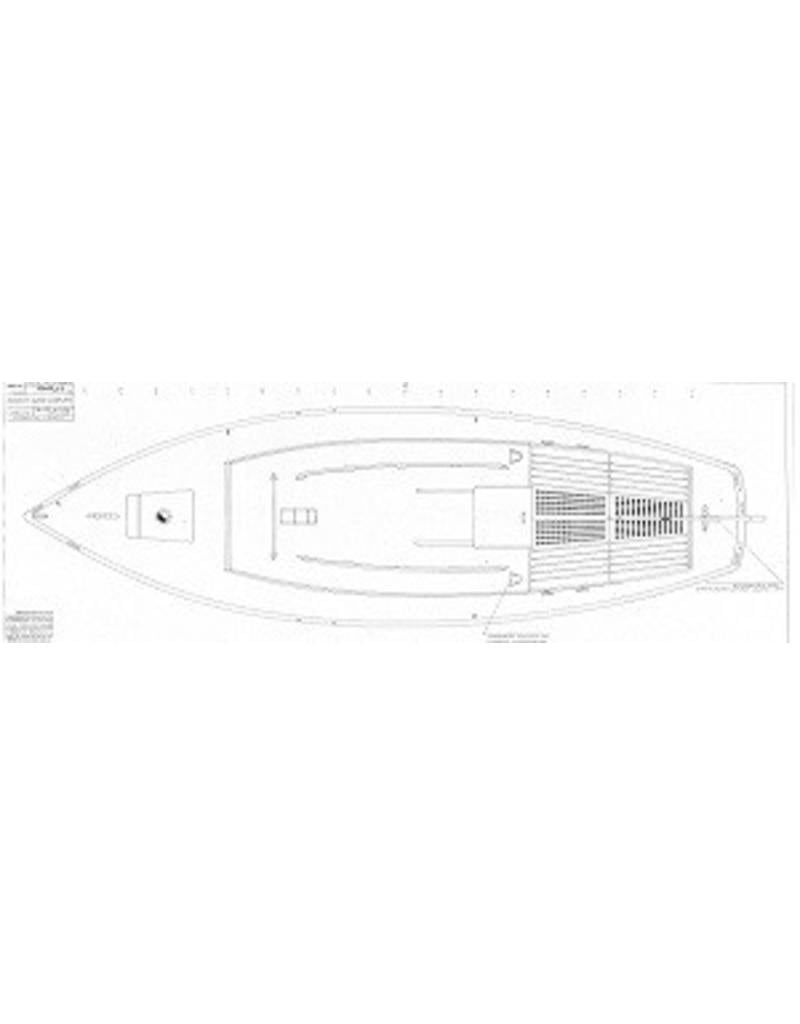

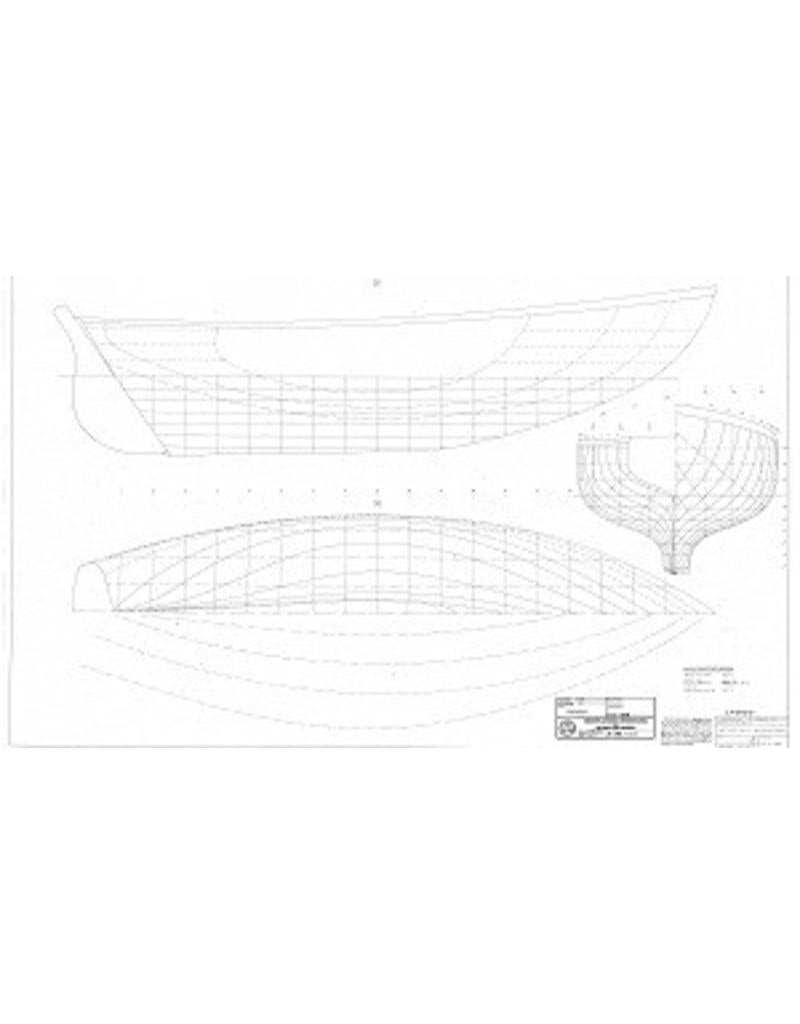

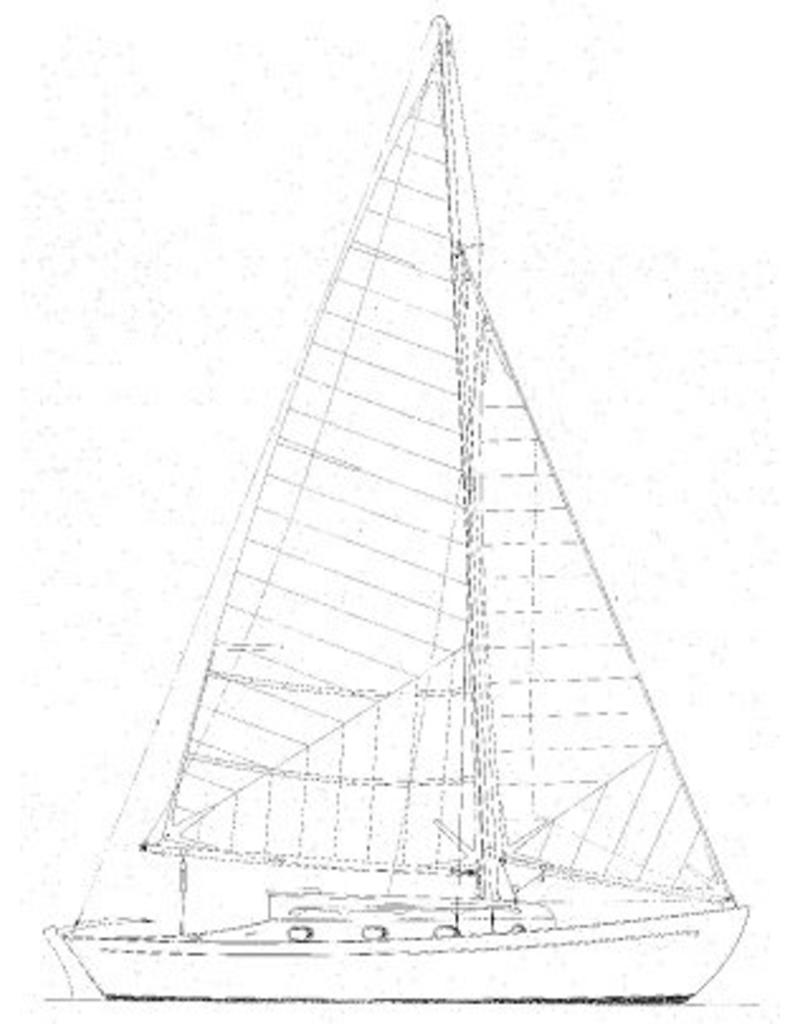

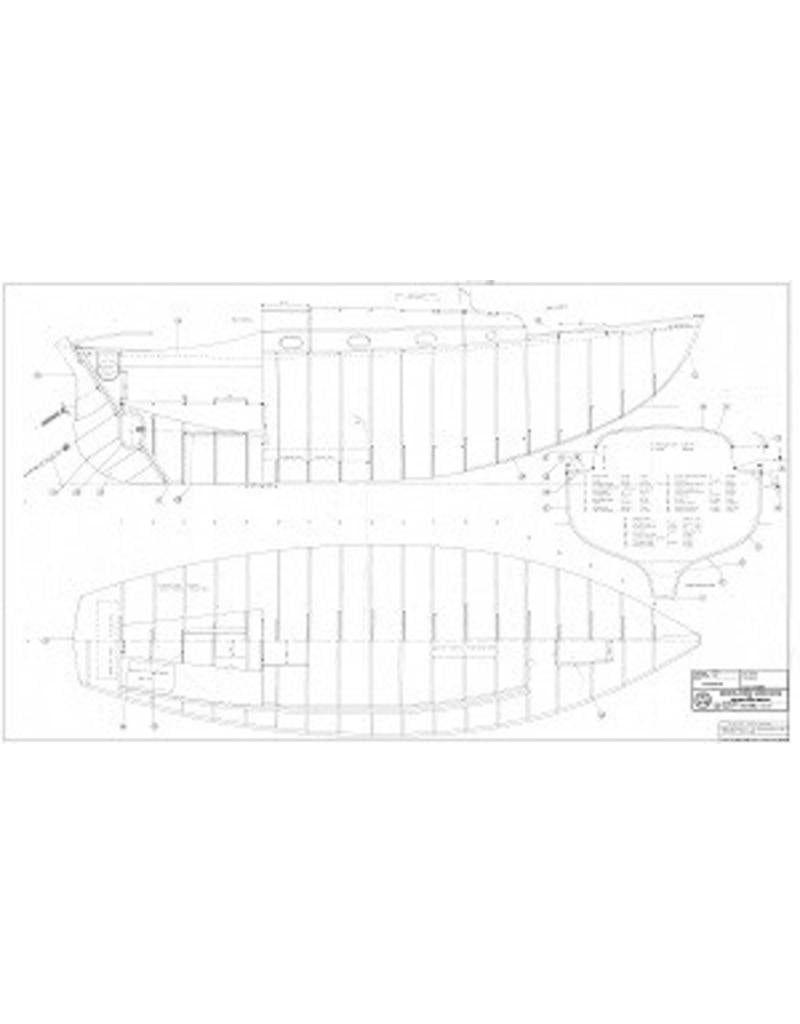

construction plan; frames/lines; layout; sections; rigging plan; mast construction details |
|
Difficulty level |
C |
|
Scale |
1 : 10 |
|
Number of A00 sheets |
2 |
|
Number of A0 sheets |
1 |
|
Number of A1 sheets |
3 |
|
Number of A2 sheets |
1 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
7 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
565 |
|
Special features |
a cabin sailing yacht with traditional lines |
|
Remarks |
