| Article number: | 16.10.017 |
Specifications :
|
Drawing number |
16.10.017 |
|
Description |

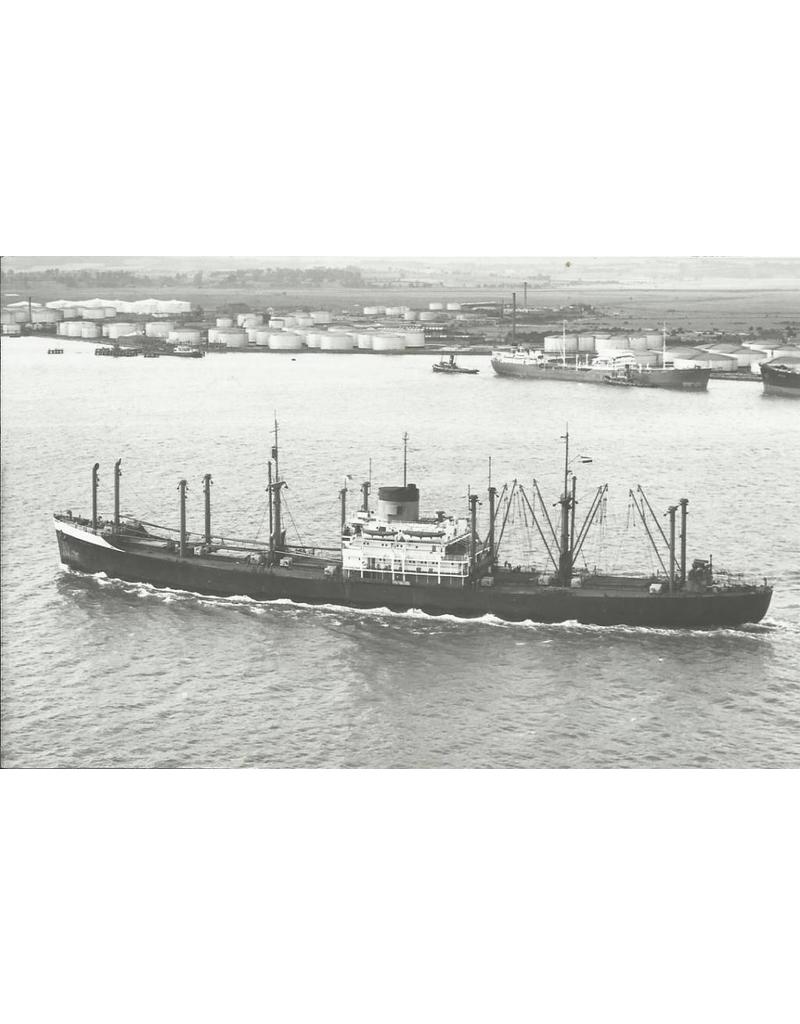

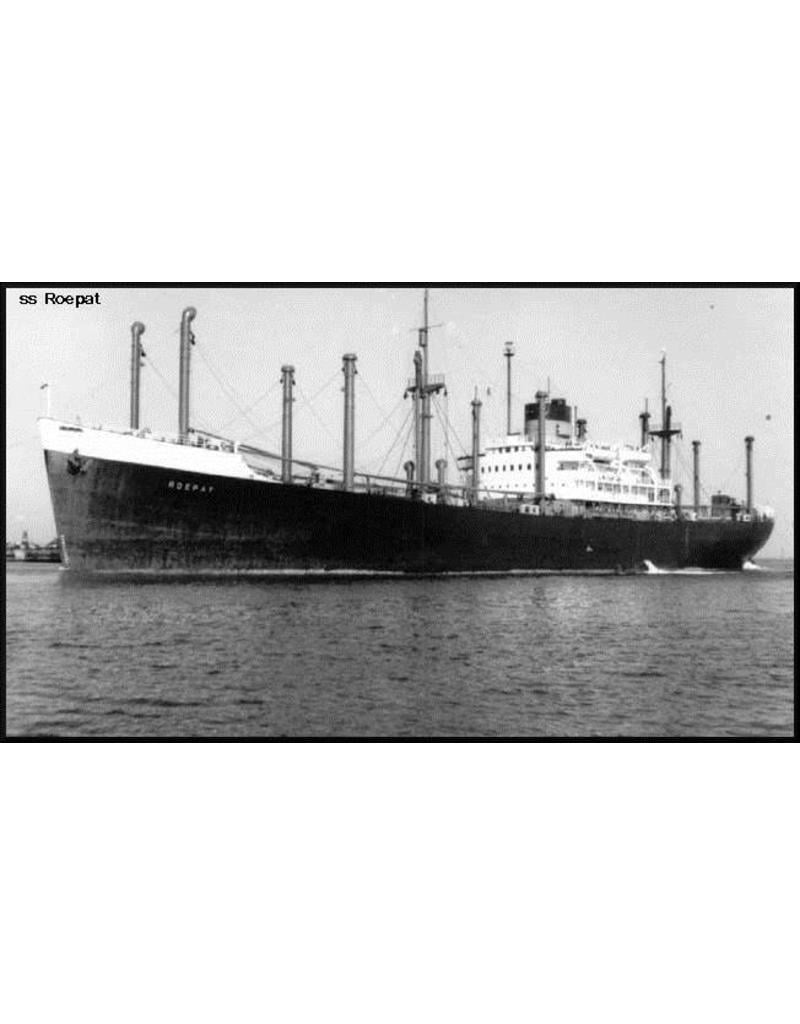

cargo ship ss "Radja", "Roepat", "Rondo", "Rotti" (1946) - SMN - Nedlloyd (C3 type) |
|
Quality |

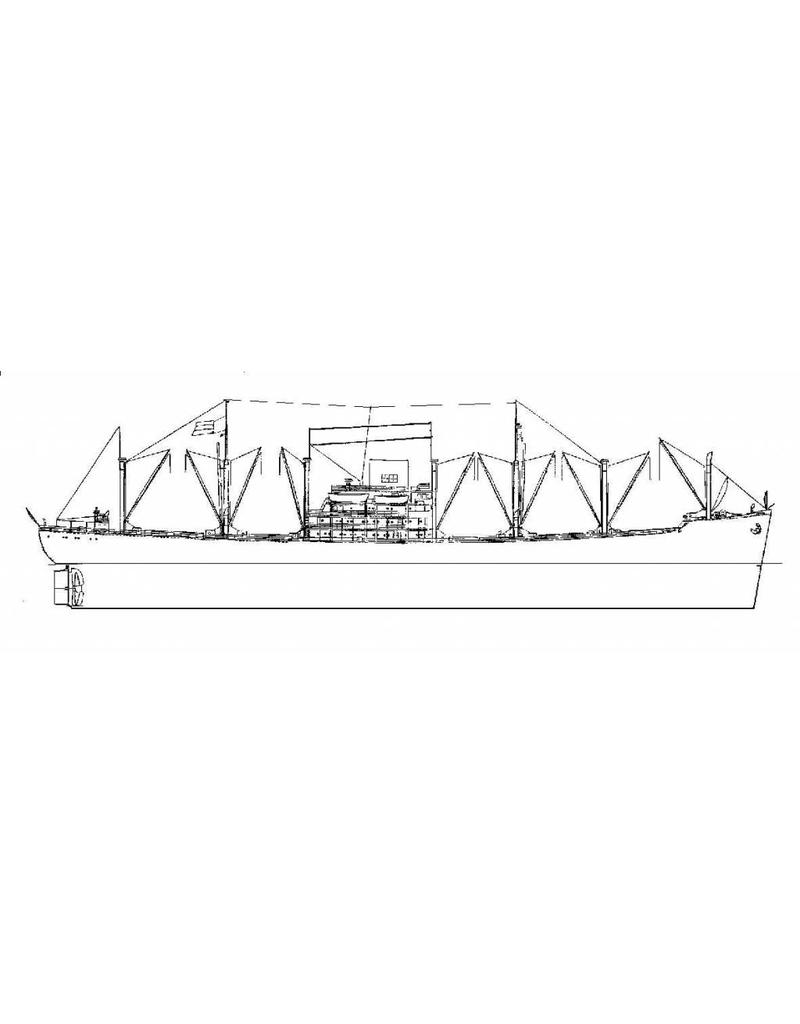

sp/lines 1:100; general plan |
|
Difficulty level |
D |
|
Scale |
1 : 192 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
1 |
|
Weight in grams |
85 |
|
Particulars |
l.o.a. 76 cm |
|
Remarks |
check C3 type?? Ì´Ì_
|
