| Article number: | 16.10.026 |
Specifications :
|
Drawing number |
16.10.026 |
|
Description |

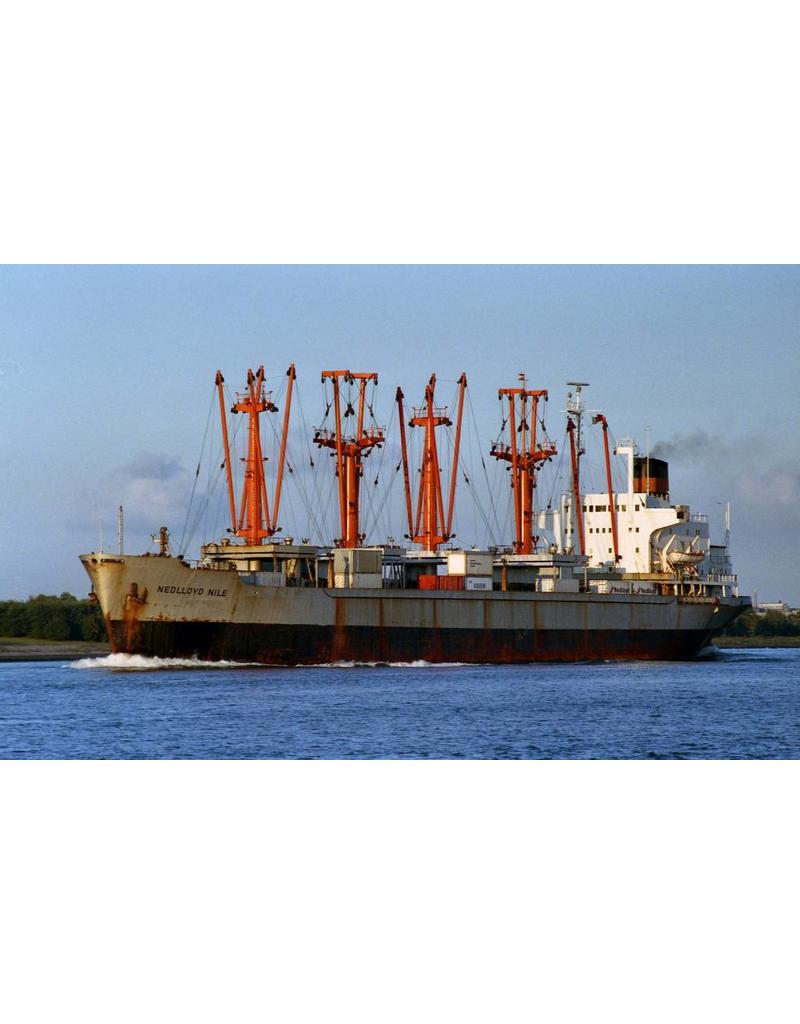

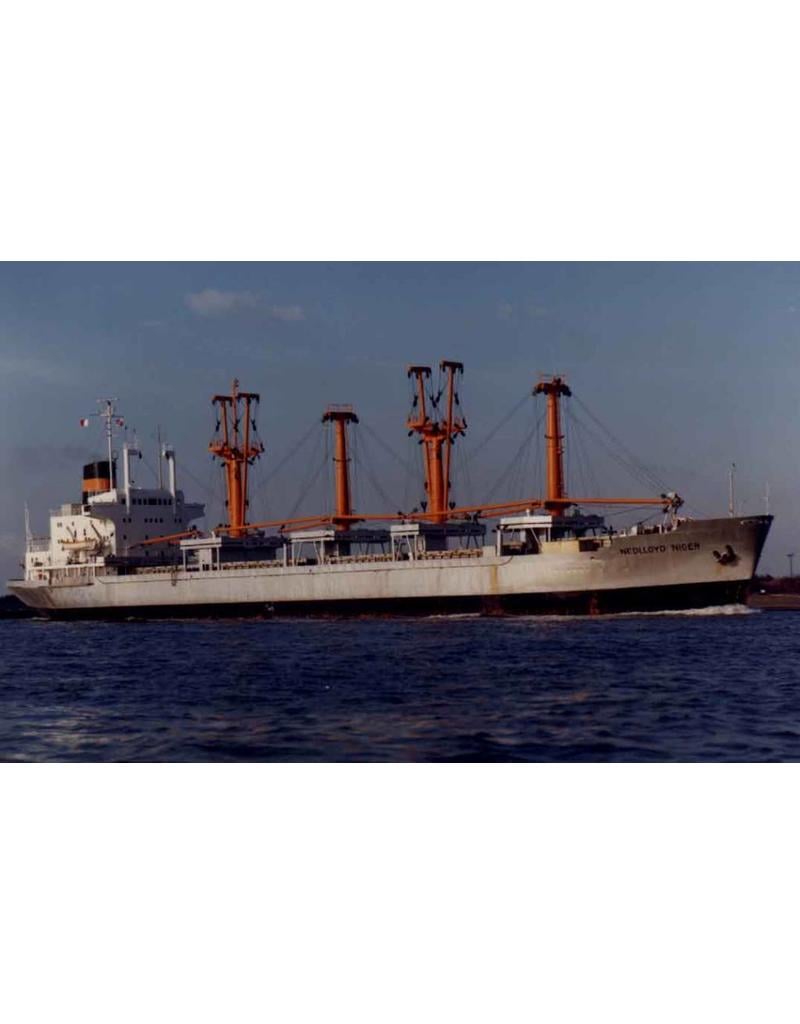

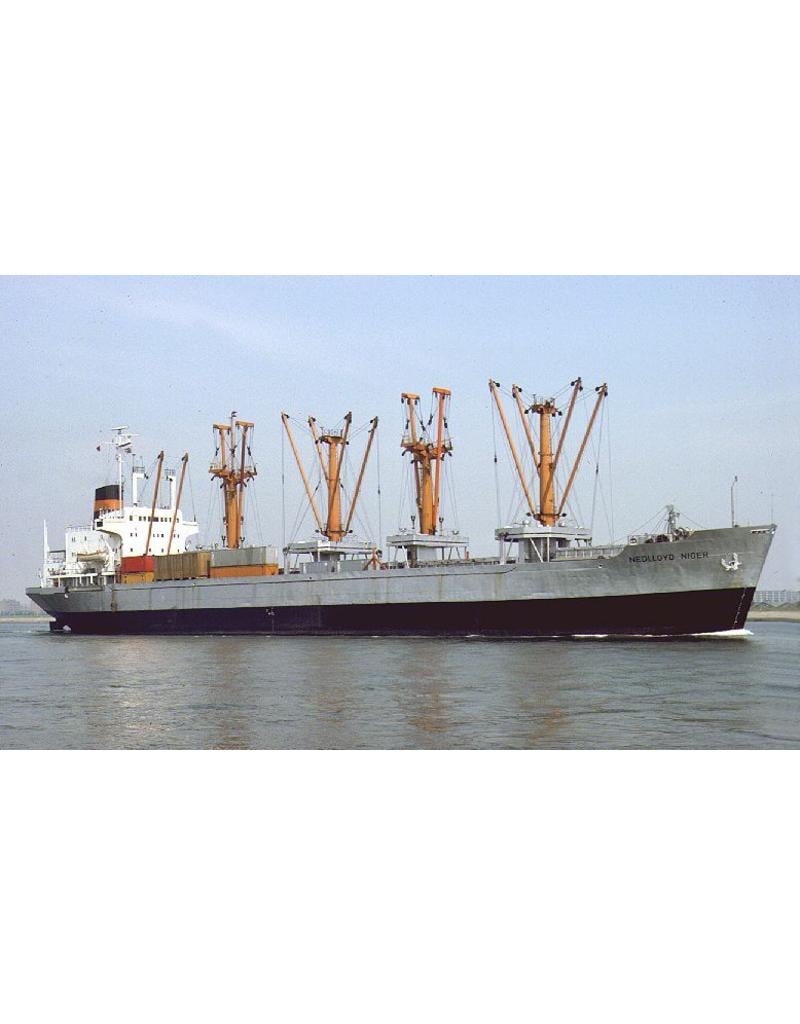

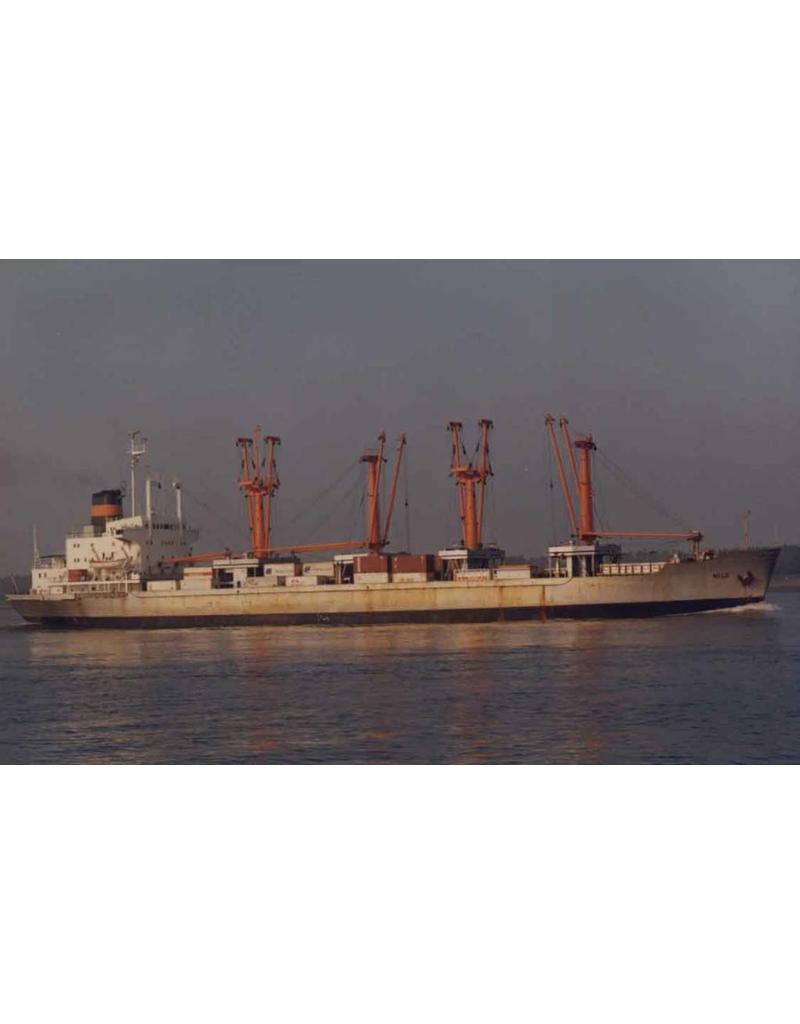

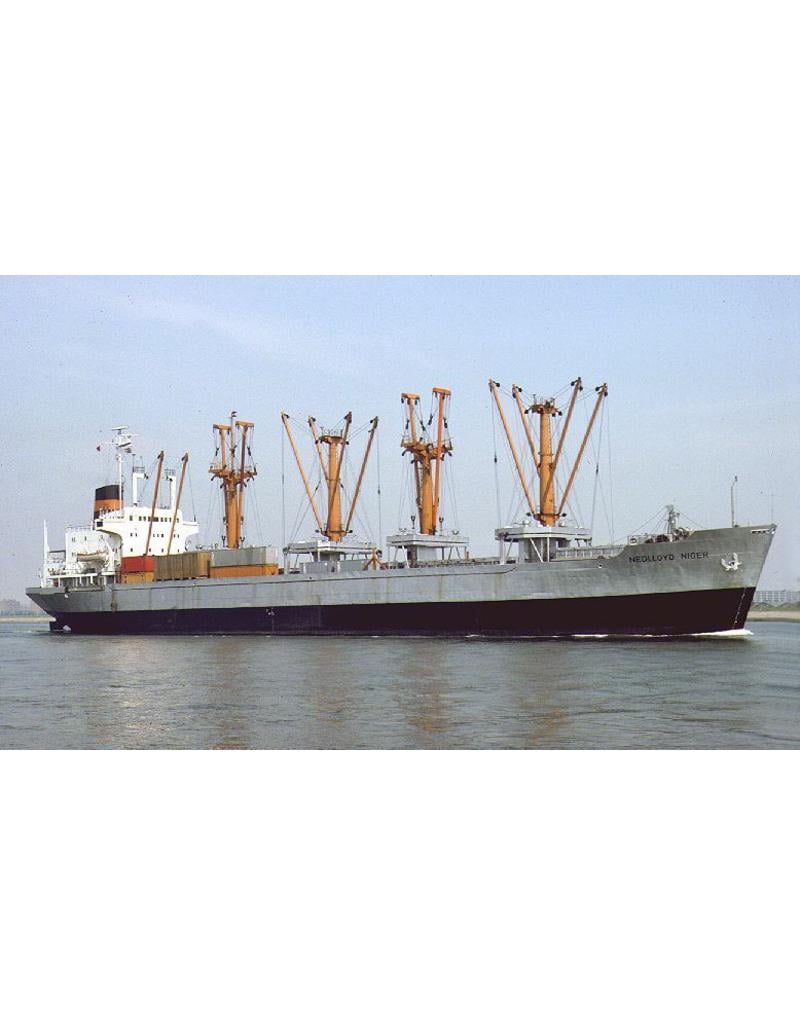

cargo ship ms "Nedlloyd Niger", "Nile" (1971/1972) - Nedlloyd |
|
Quality |

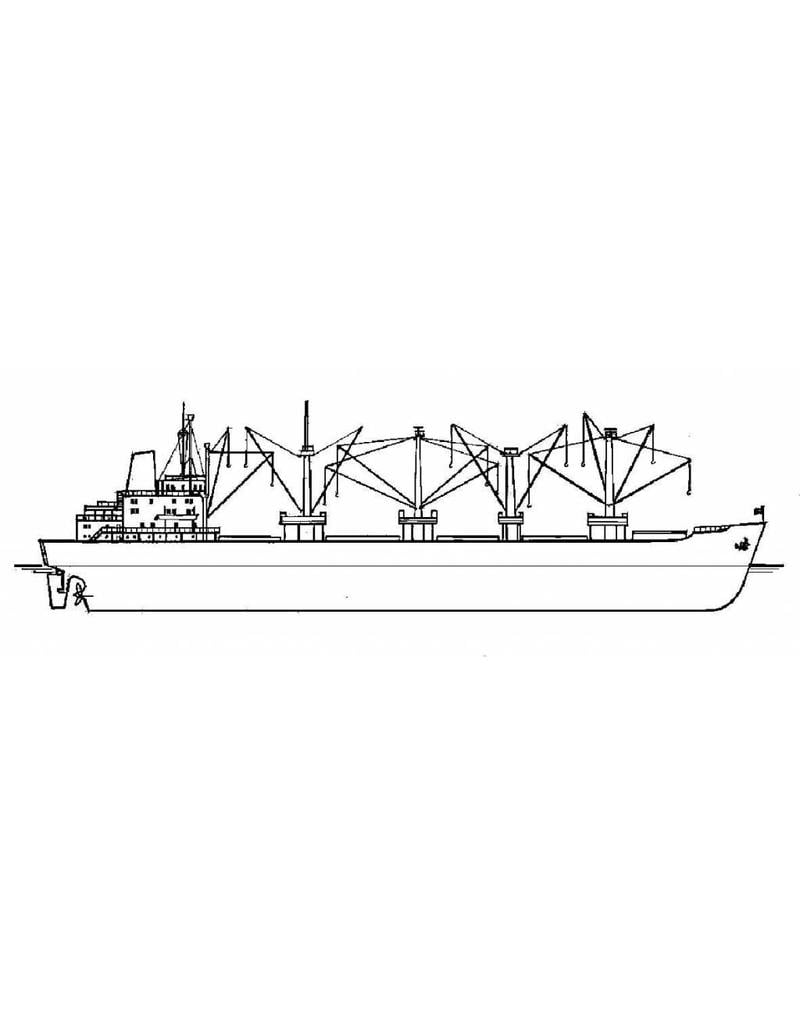

sections/lines 1:100; frames 1:1:50; general plan; colour scheme |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
4 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
7 |
|
Number of A4 text sheets |
2 |
|
Weight in grams |
|
|
Particulars |
loa 139 |
|
Remarks |
artek 4028 |
