| Article number: | 16.10.027 |
Specifications :
|
Drawing number |
16.10.027 |
|
Description |

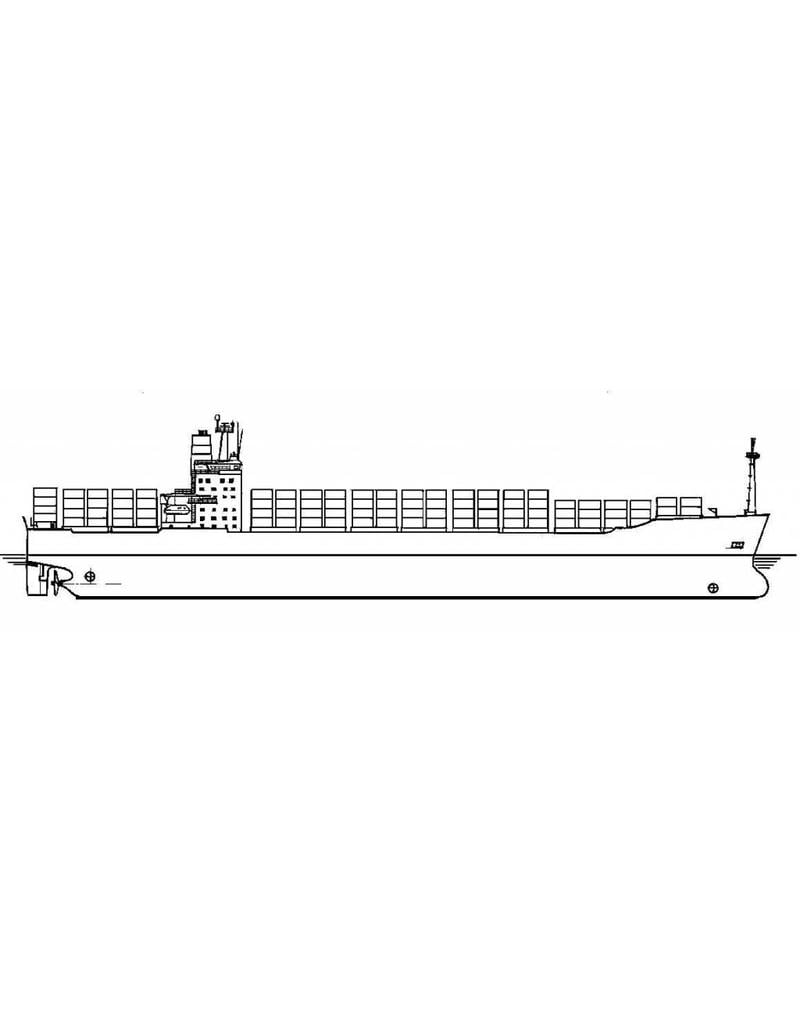

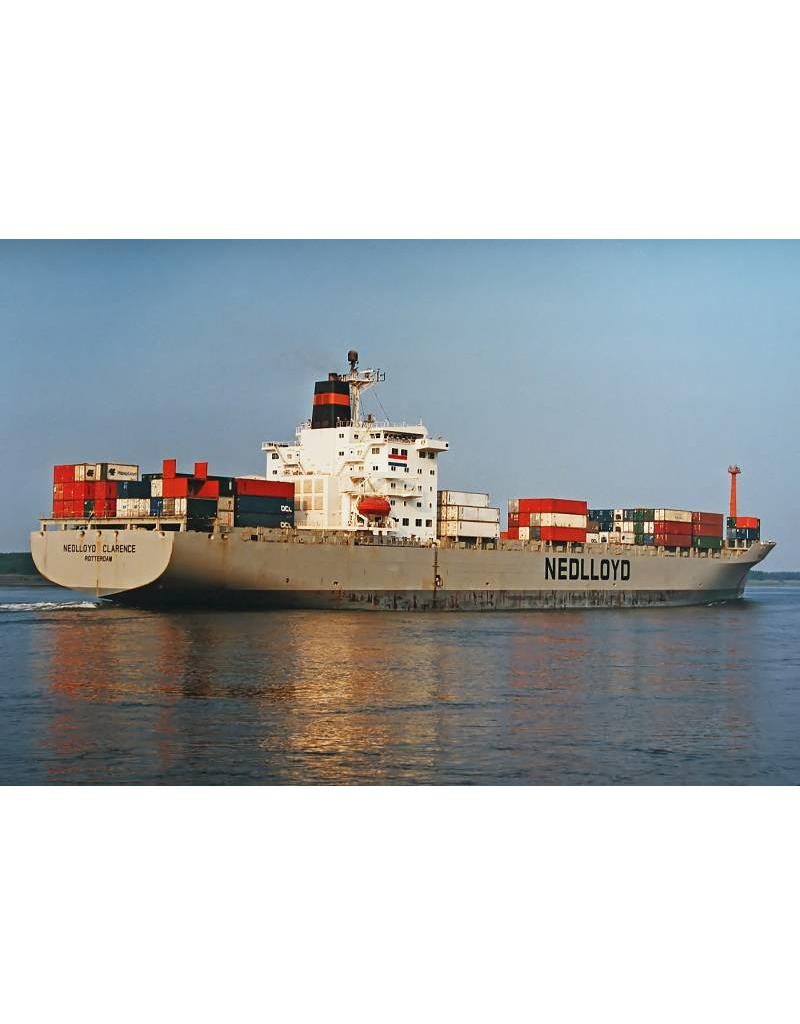

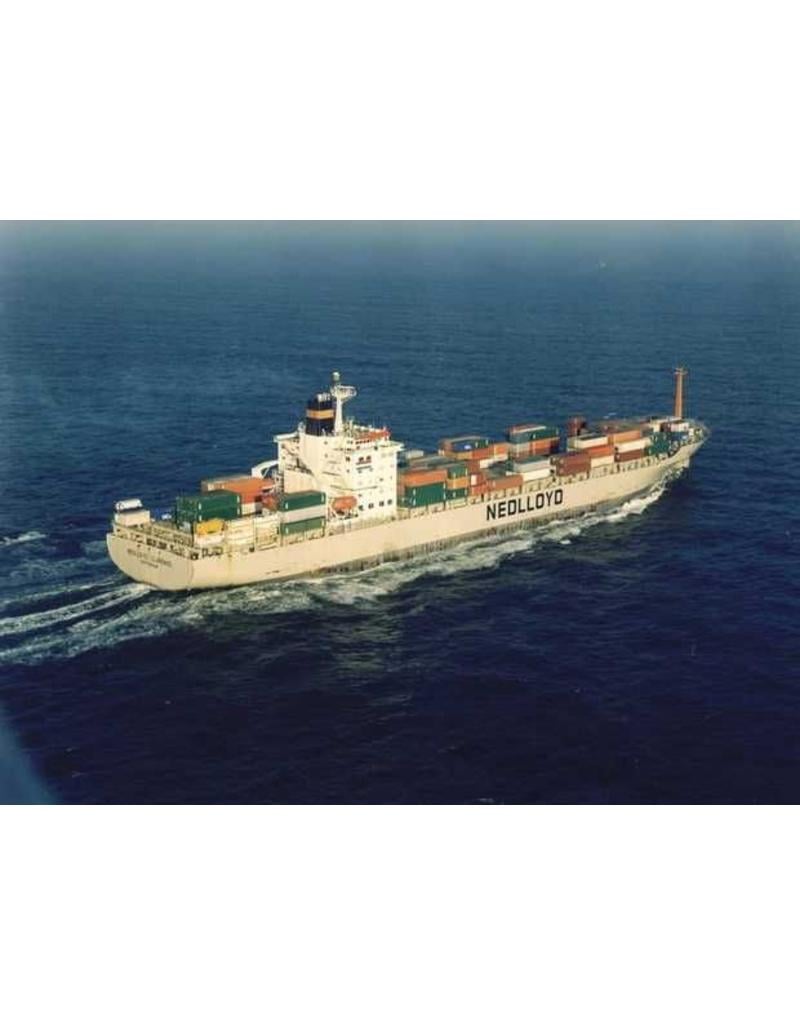

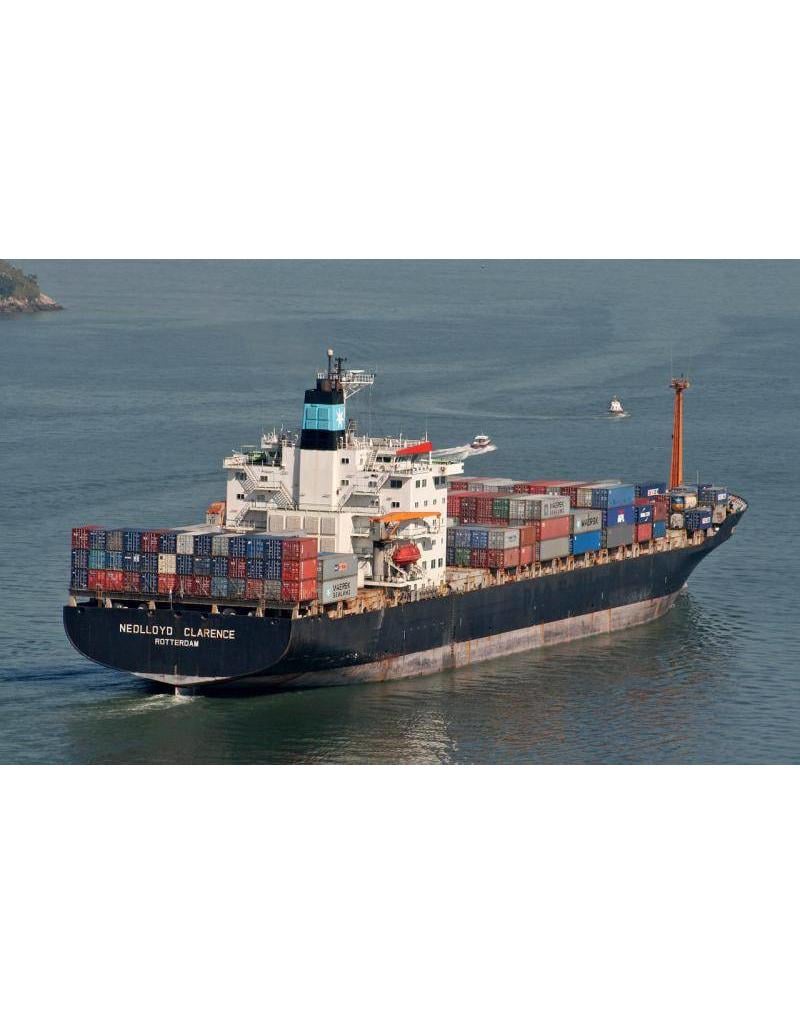

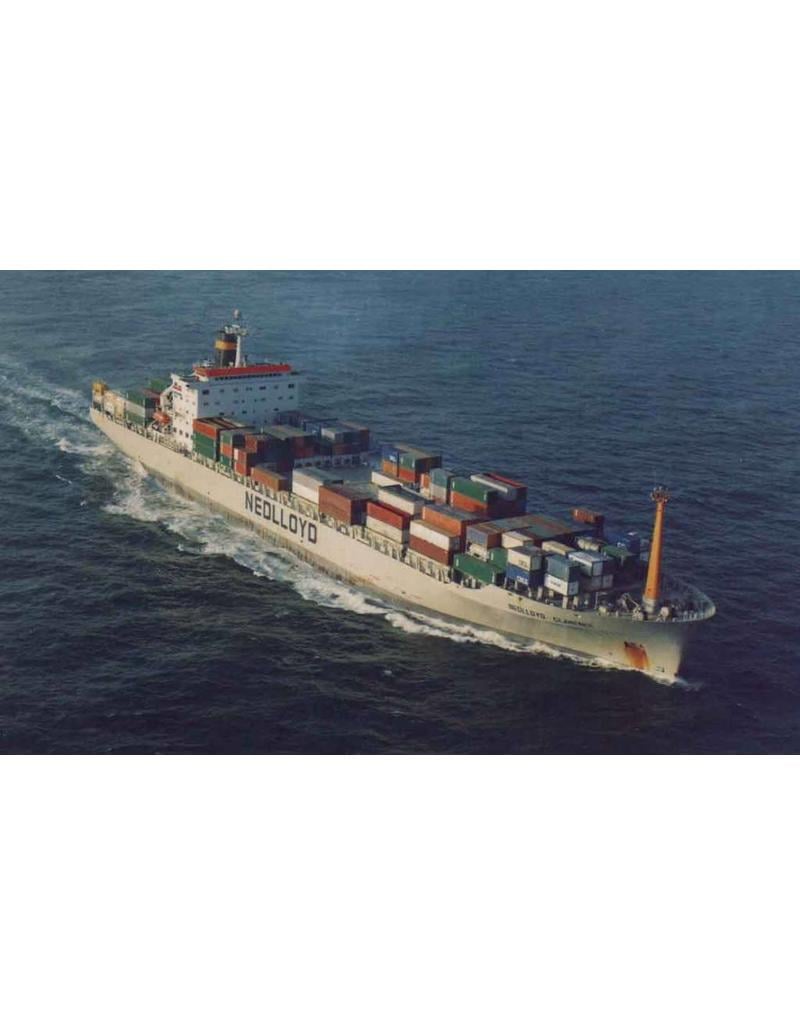

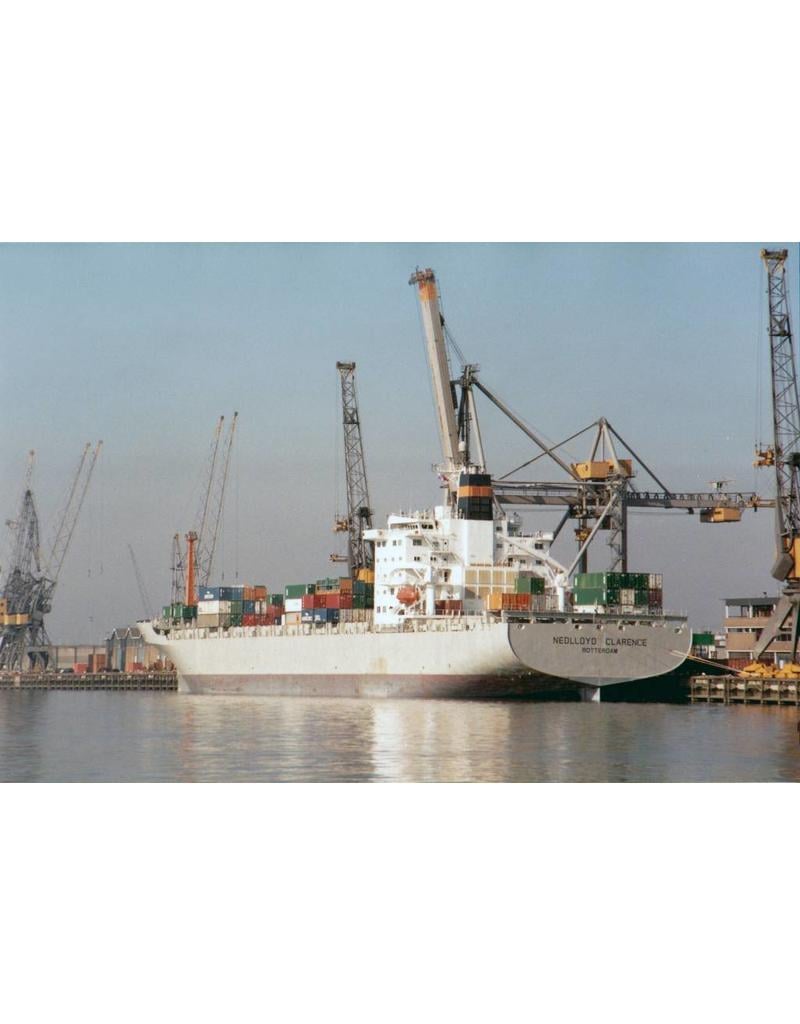

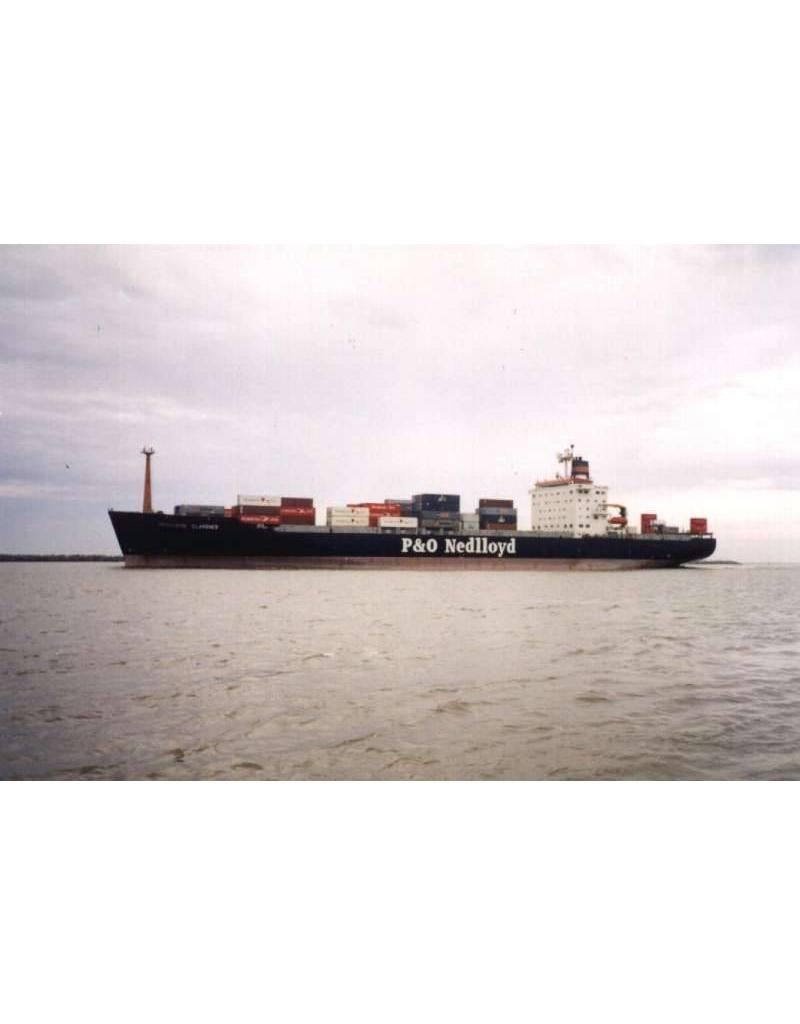

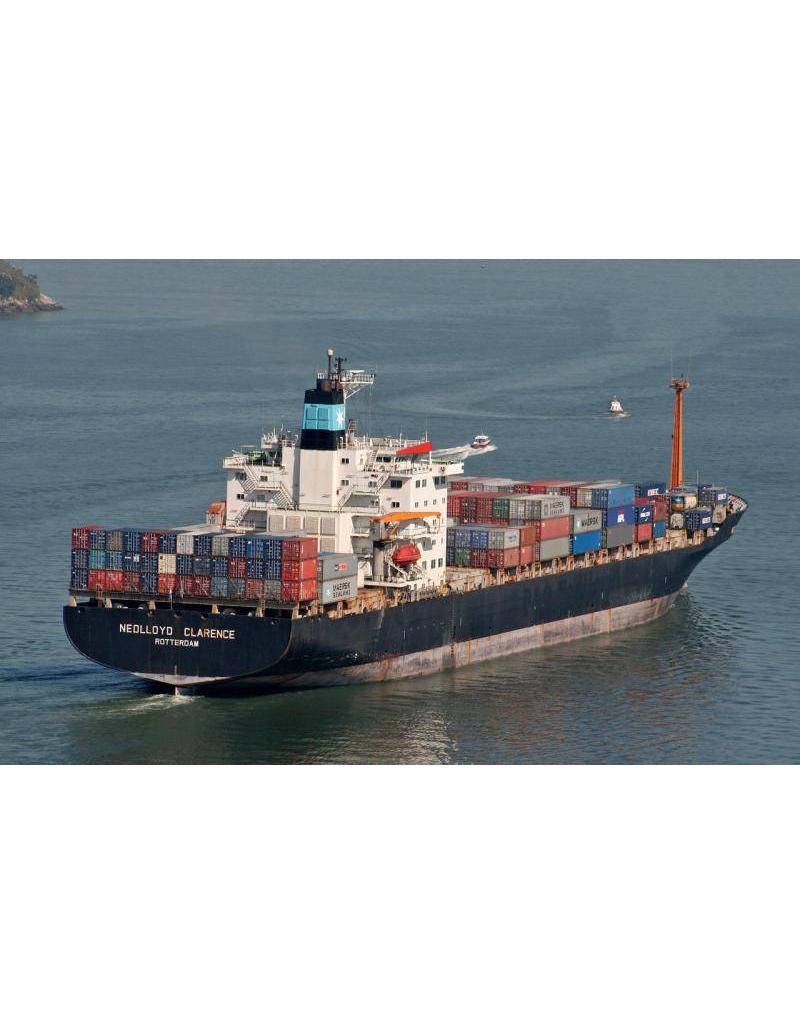

container ship ms "Nedlloyd Clarence", "Clement" (1983) - Nedlloyd |
|
Quality |
sp/lines; general plan |
|
Difficulty level |
D |
|
Scale |
1 : 200 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
4 |
|
Total number of drawing sheets |
6 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
Ì´Ì_ |
|
Particulars |
loa 104 cm |
|
Remarks |
frames 1:100??? Ì´Ì_
|
