| Article number: | 16.10.034 |
Specifications :
|
Drawing number |
16.10.034 |
|
Description |
cargo ship m.v. "Gooiland" (1969) - KHL |
|
Quality |

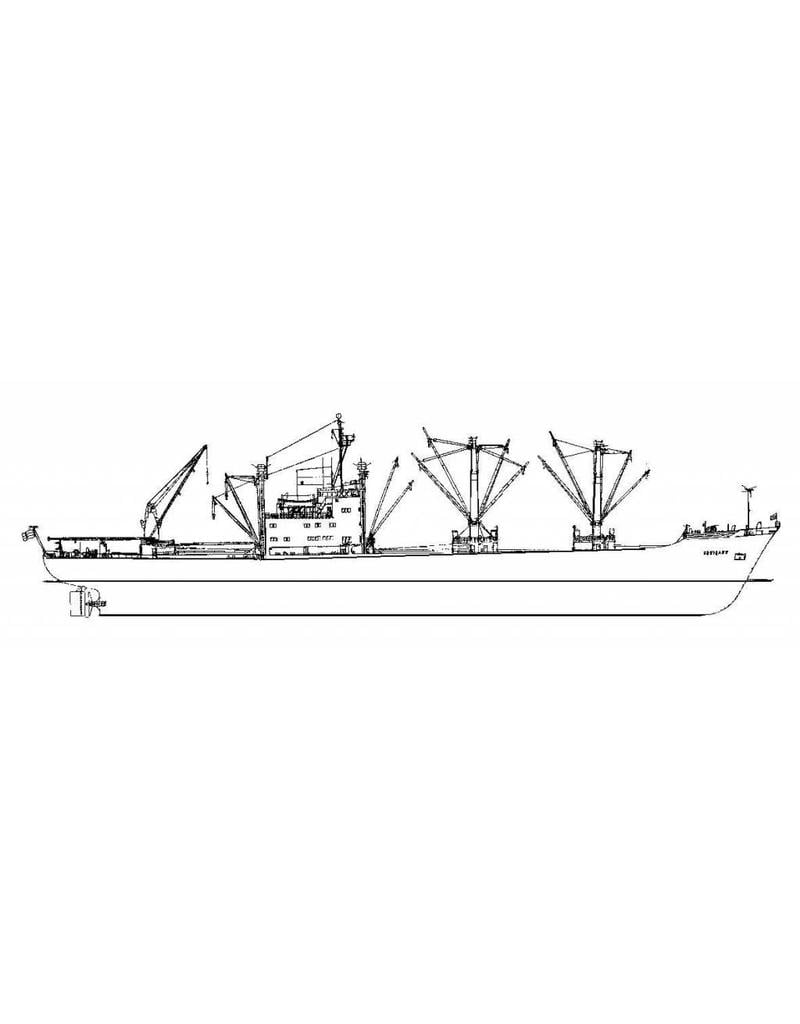

sp/lines; general plan; rigging plan; info text |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
5 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
1 |
|
Weight in grams |
385 |
|
Particulars |
l.o.a. 145 cm |
|
Remarks |
sister ships? |
