| Article number: | 16.10.047 |
Specifications :
|
Drawing number |
16.10.047 |
|
Description |

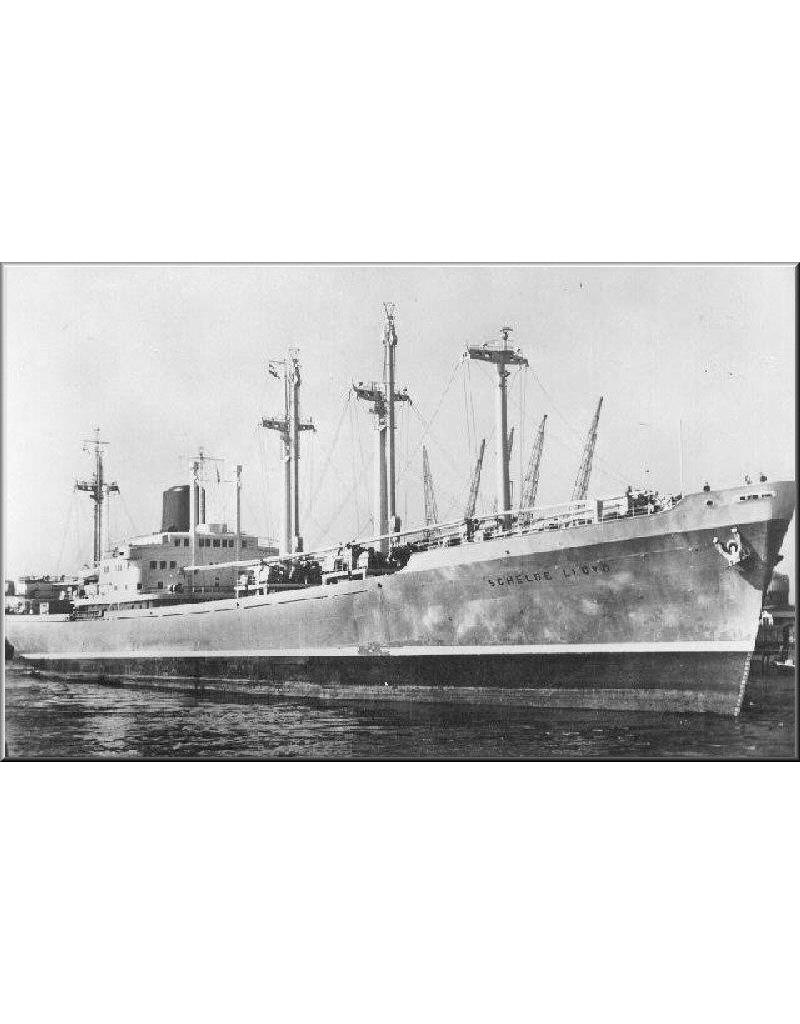

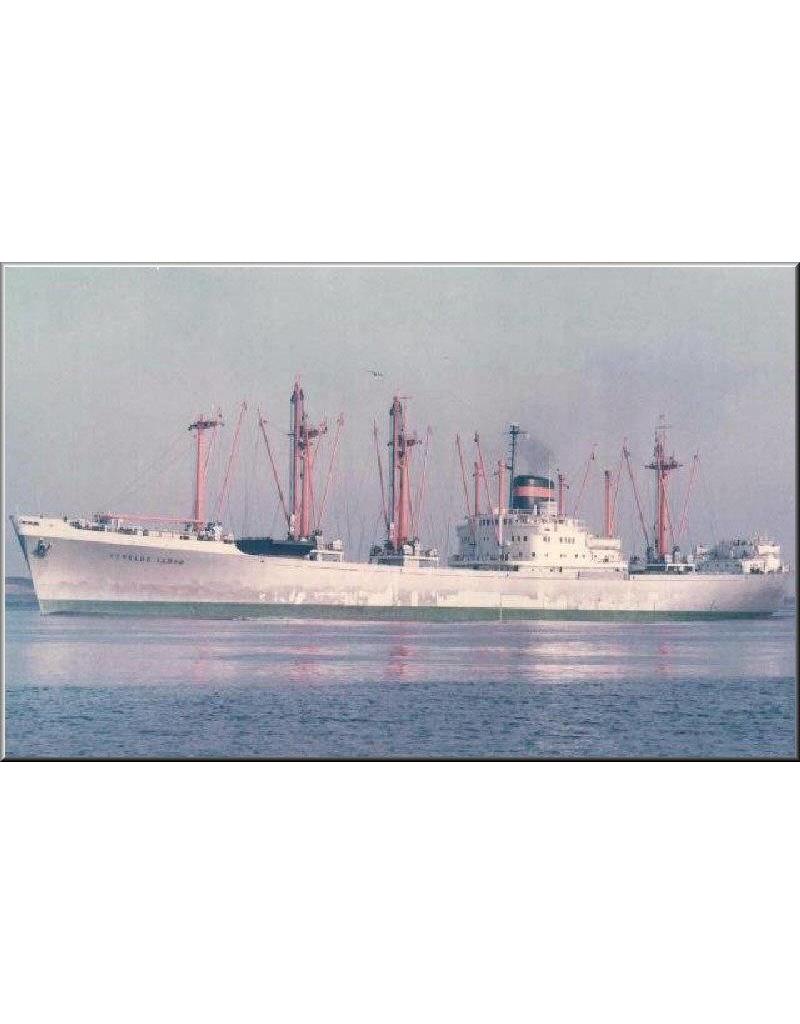

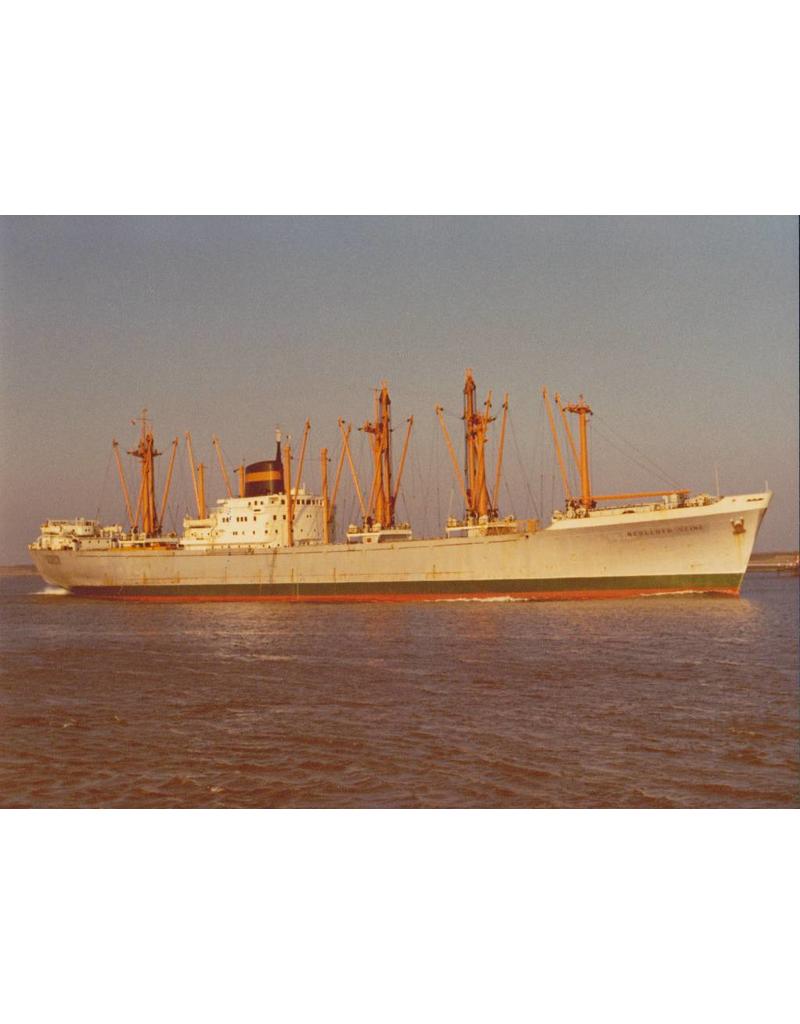

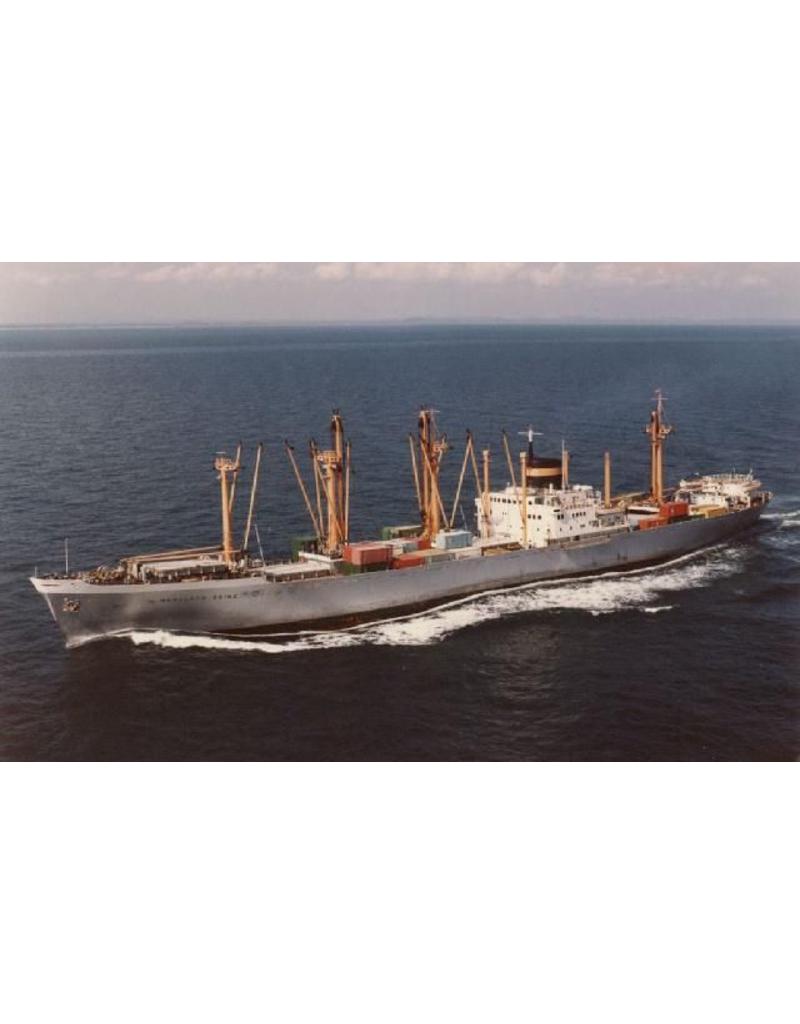

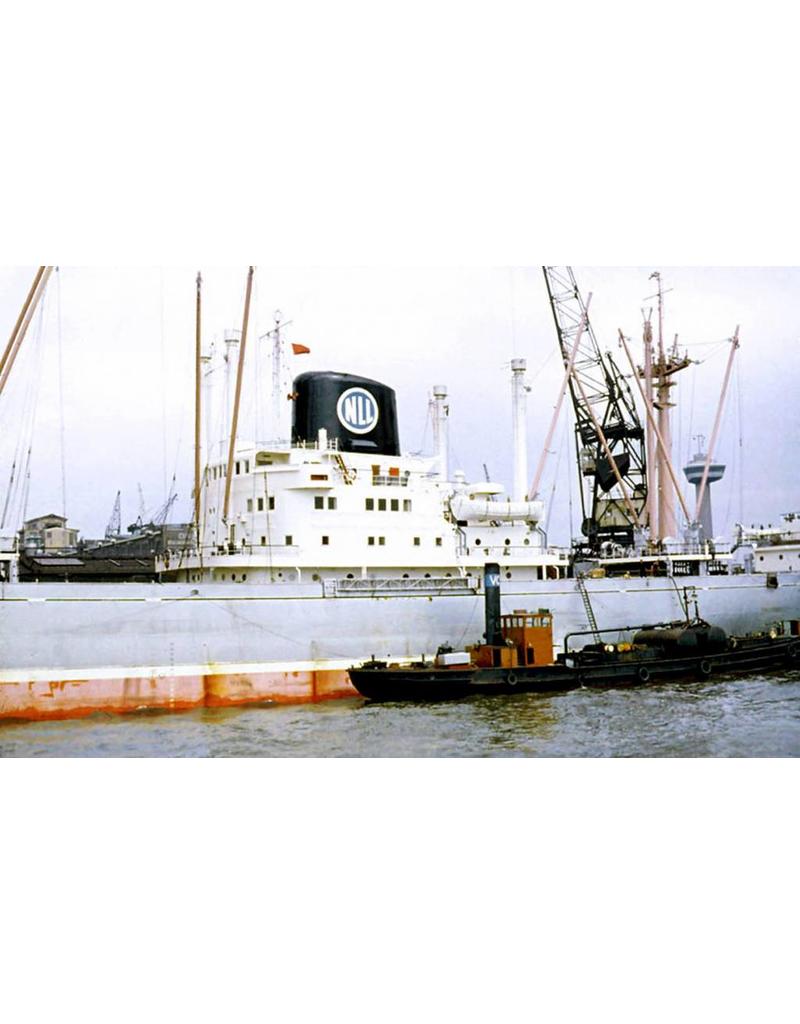

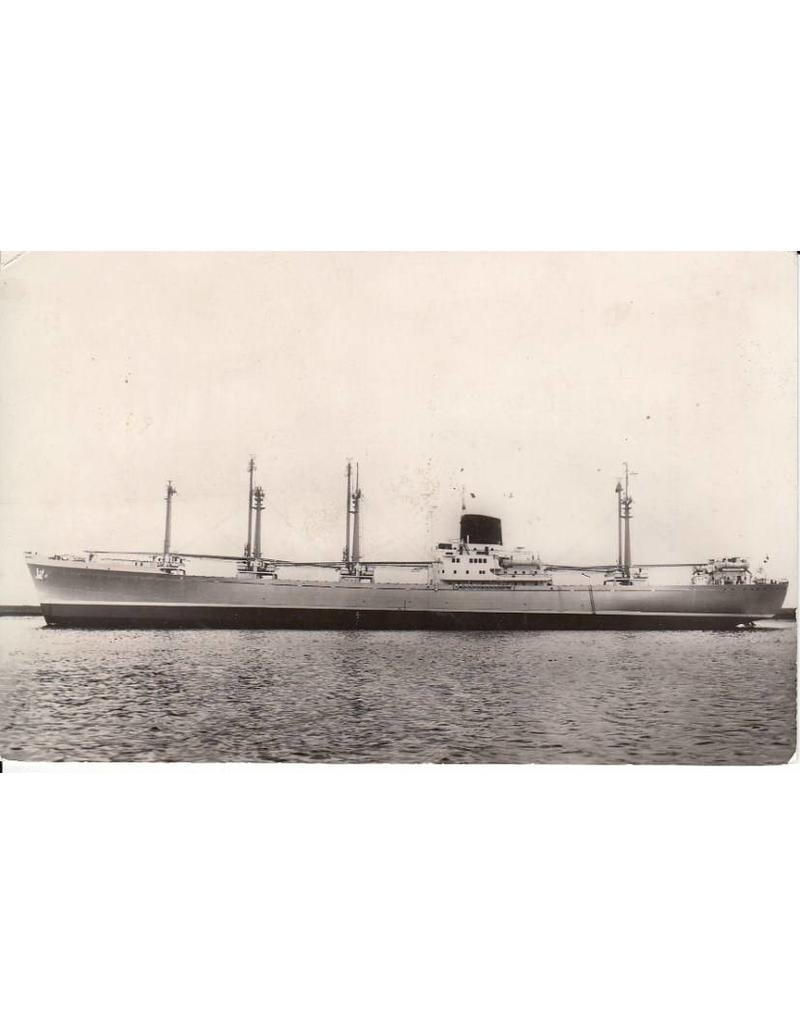

cargo ship ms "Seinelloyd" (1961) - KRL |
|
Quality |

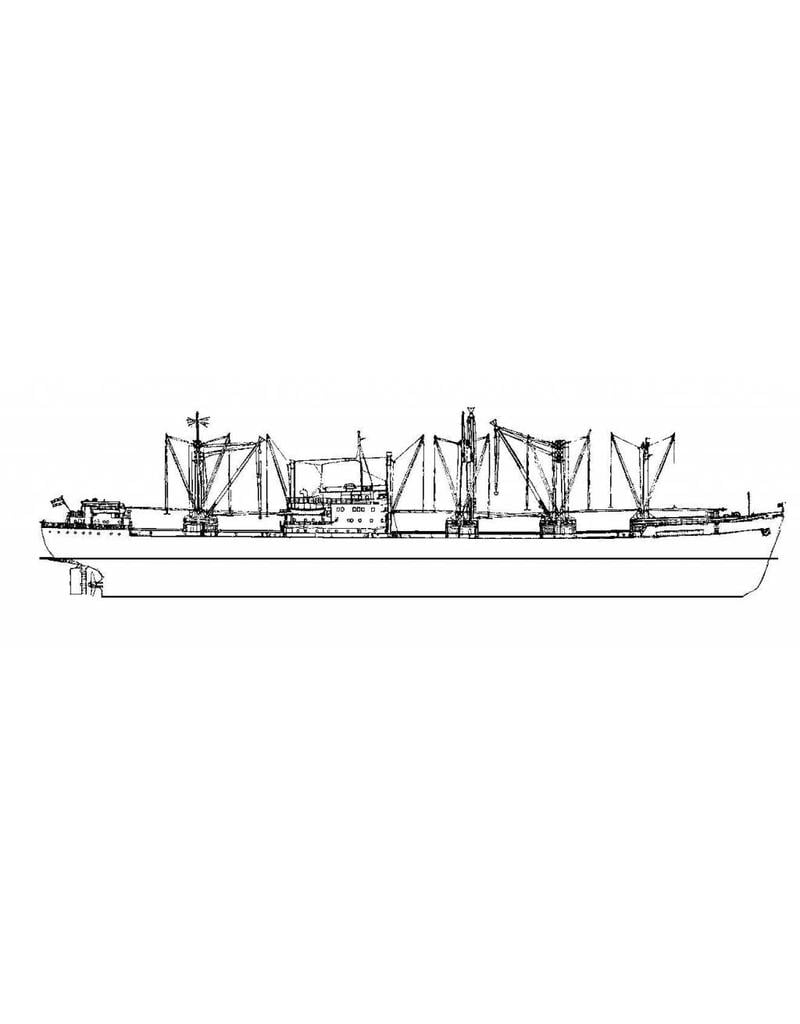

general plan, sp/lines; cross-section, details, rigging plan, colour scheme |
|
Difficulty |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
7 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
7 |
|
Number of A4 text sheets |
1 |
|
Weight in grams |
590 |
|
Particulars |
l.o.a. 166 cm |
|
Remarks |
artek 4059 |
