| Article number: | 16.10.049/A |
Specifications :
|
Drawing number |
16.10.049/A |
|
Description |

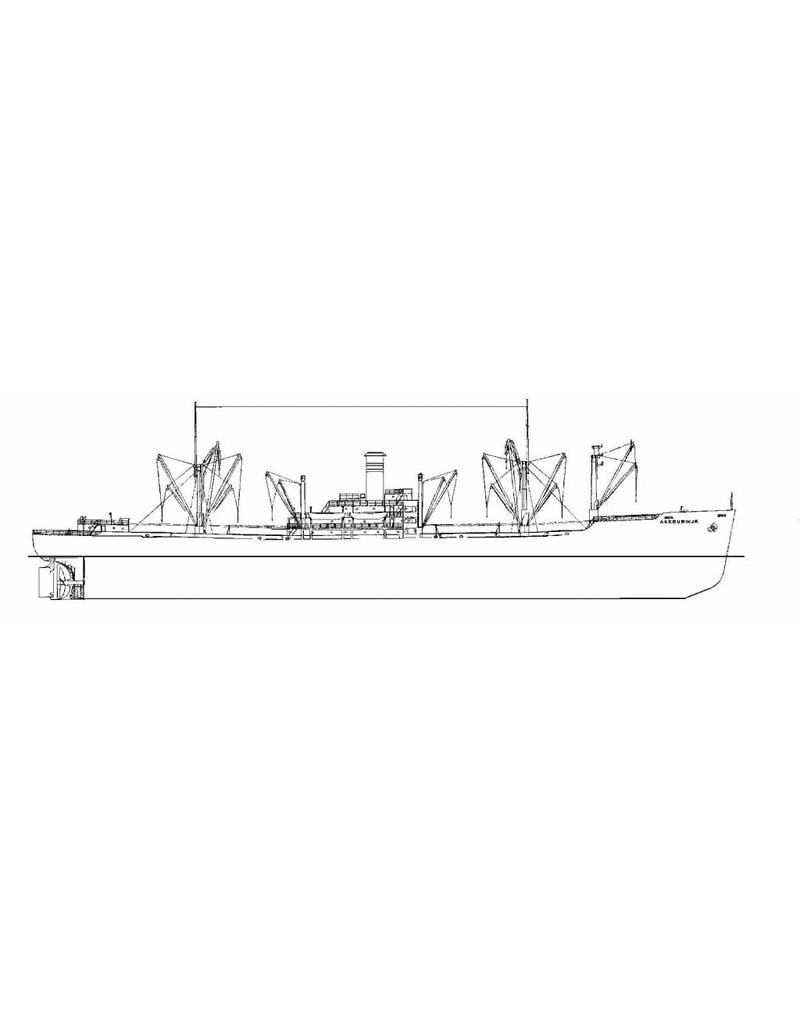

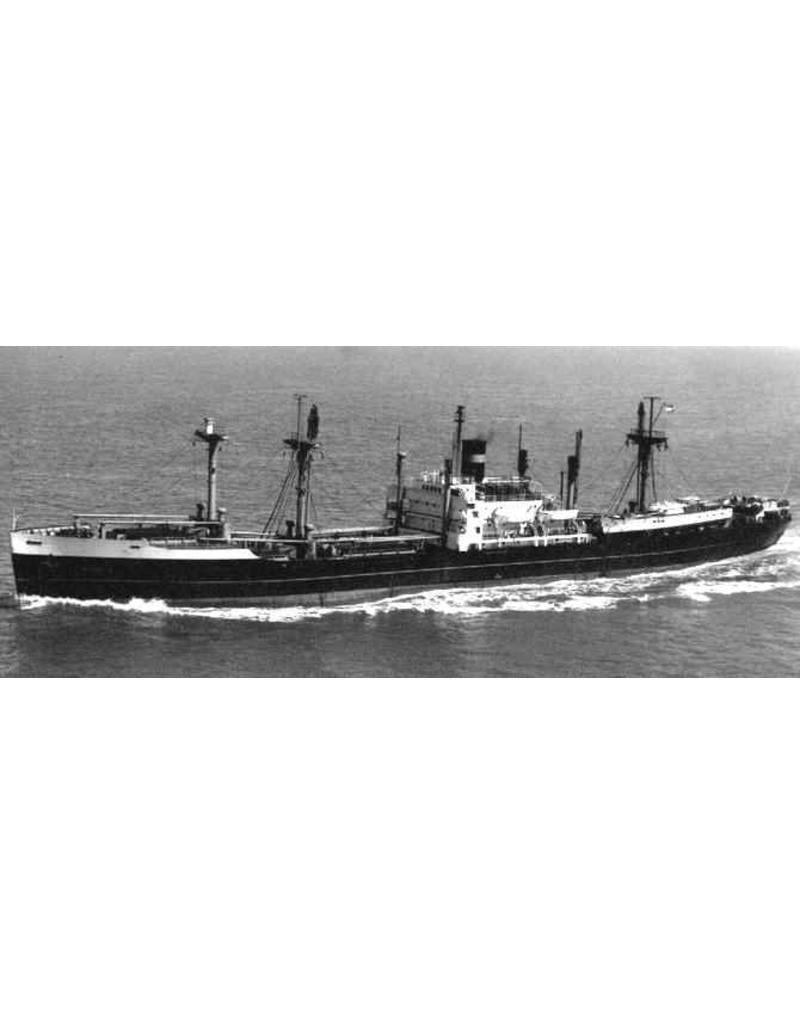

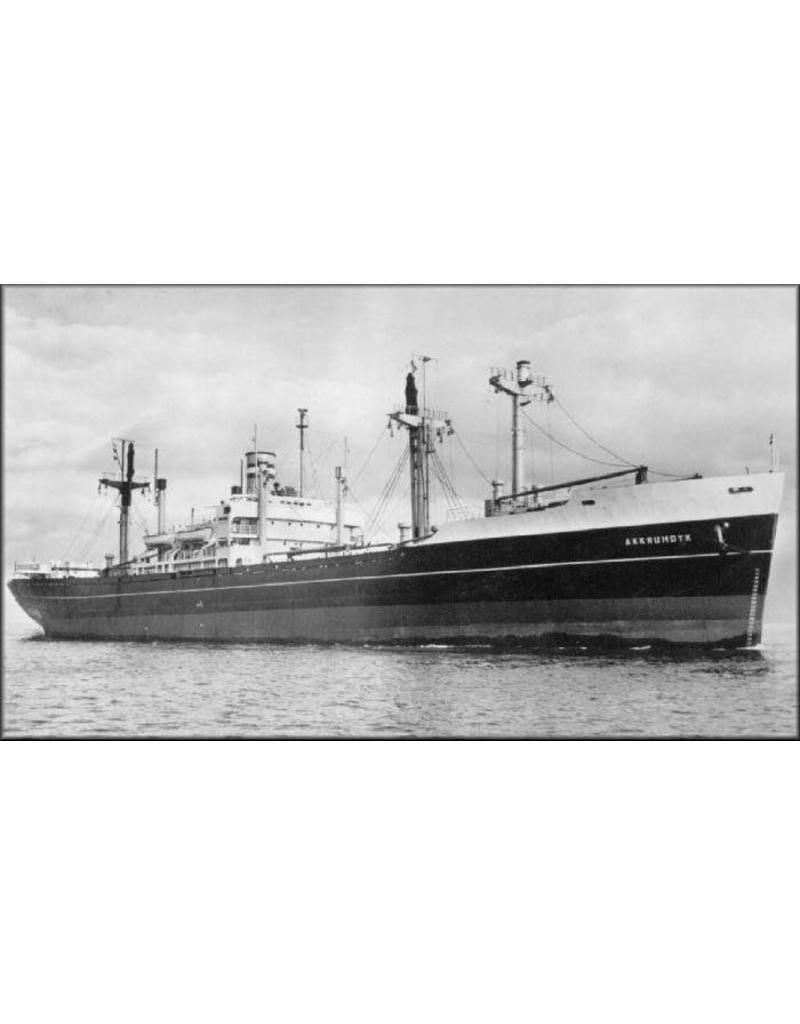

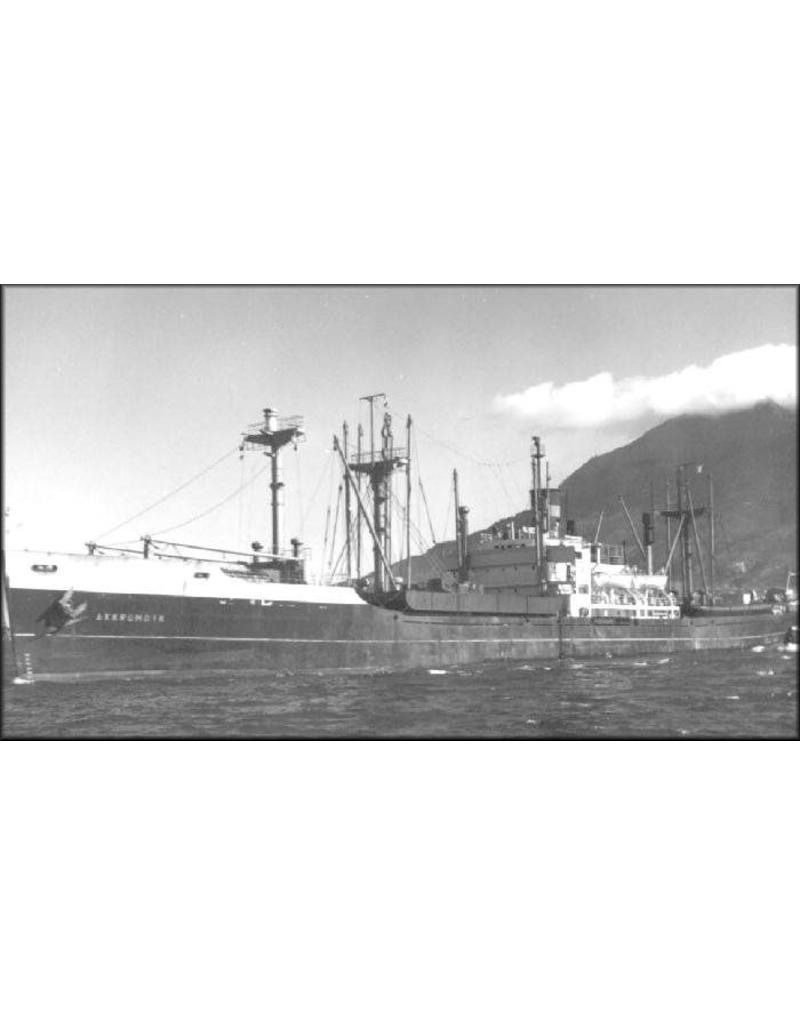

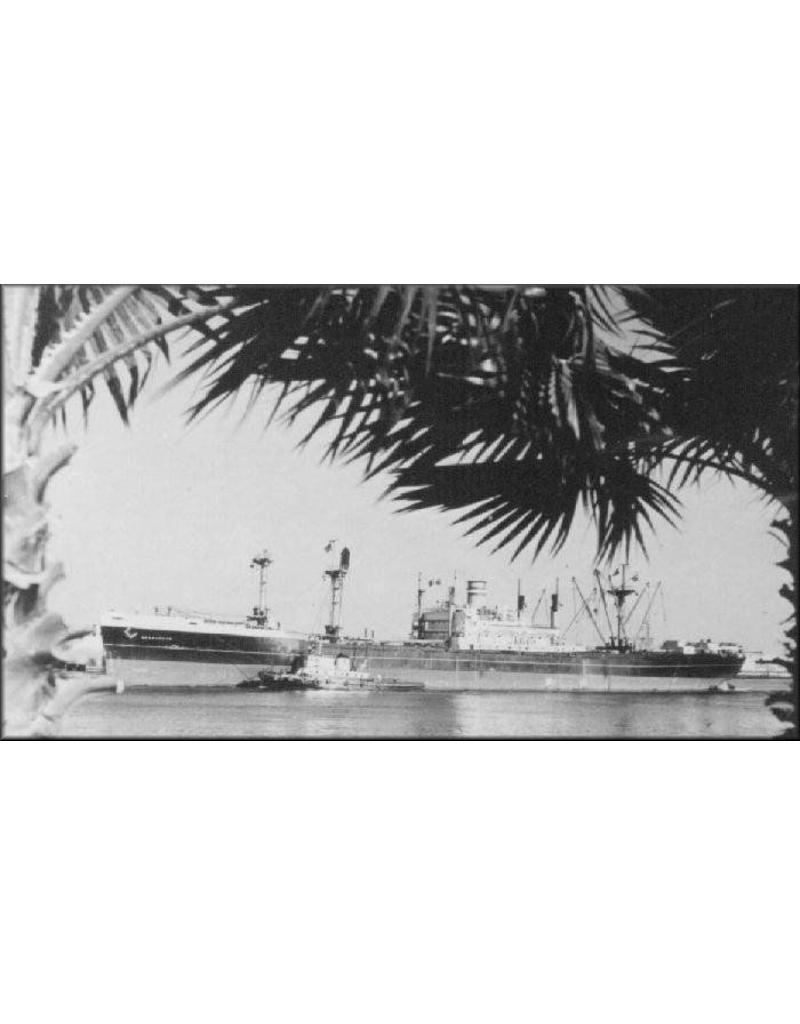

cargo ship ss "Akkrumdijk" (1945, Victory ship) - HAL (1948) |
|
Quality |
general plan; frame plan 1:1:96; info |
|
Difficulty level |
D |
|
Scale |
1 : 192 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
1 |
|
Weight in grams |
11:20 |
|
Particulars |
l.o.a. 72 cm |
|
Remarks |
artek 4090A |
