| Article number: | 16.10.069 |
Specifications :
|
Drawing number |
16.10.069 |
|
Description |

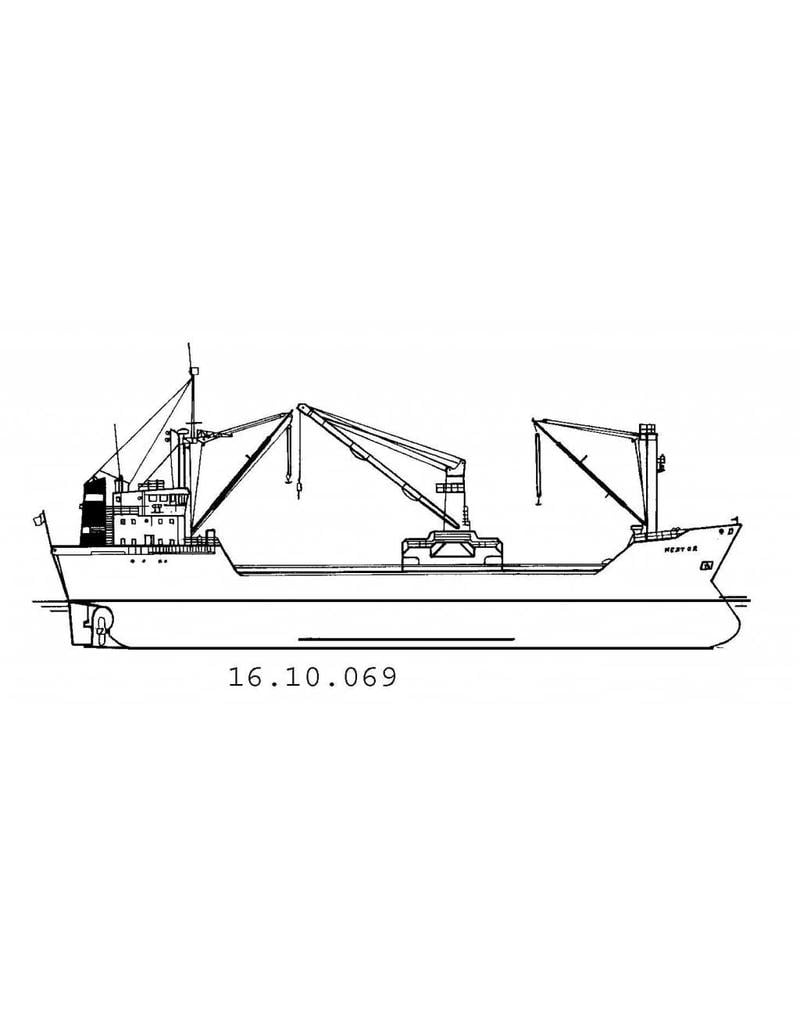

cargo ship ms "Nestor", "Mentor" (1979) - KNSM |
|
Quality |
general plan; sp/lines plan; longitudinal section with frame positions |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
145 |
|
Particulars |
l.o.a. 82 cm |
|
Remarks |
artek 4073 Ì´Ì_
|
