| Article number: | 16.10.076 |
Specifications :
|
Drawing number |
16.10.076 |
|
Description |

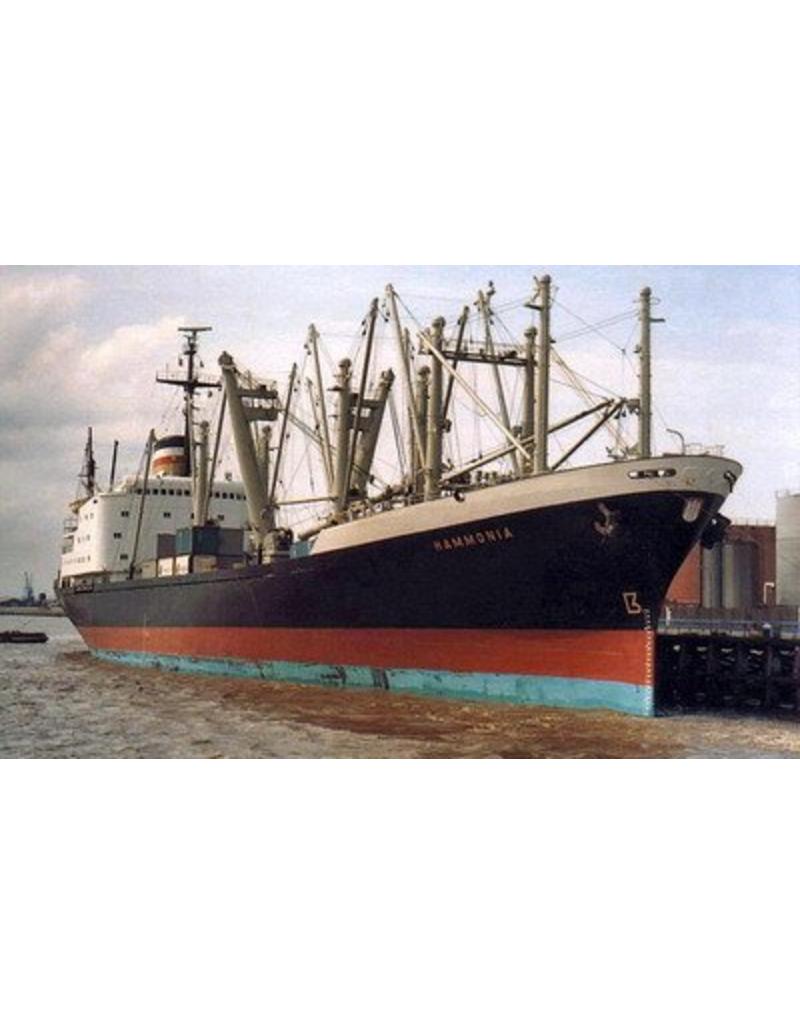

cargo ship ms "Hammonia" (1965) - HAPAG/Hapag-Lloyd |
|
Quality |

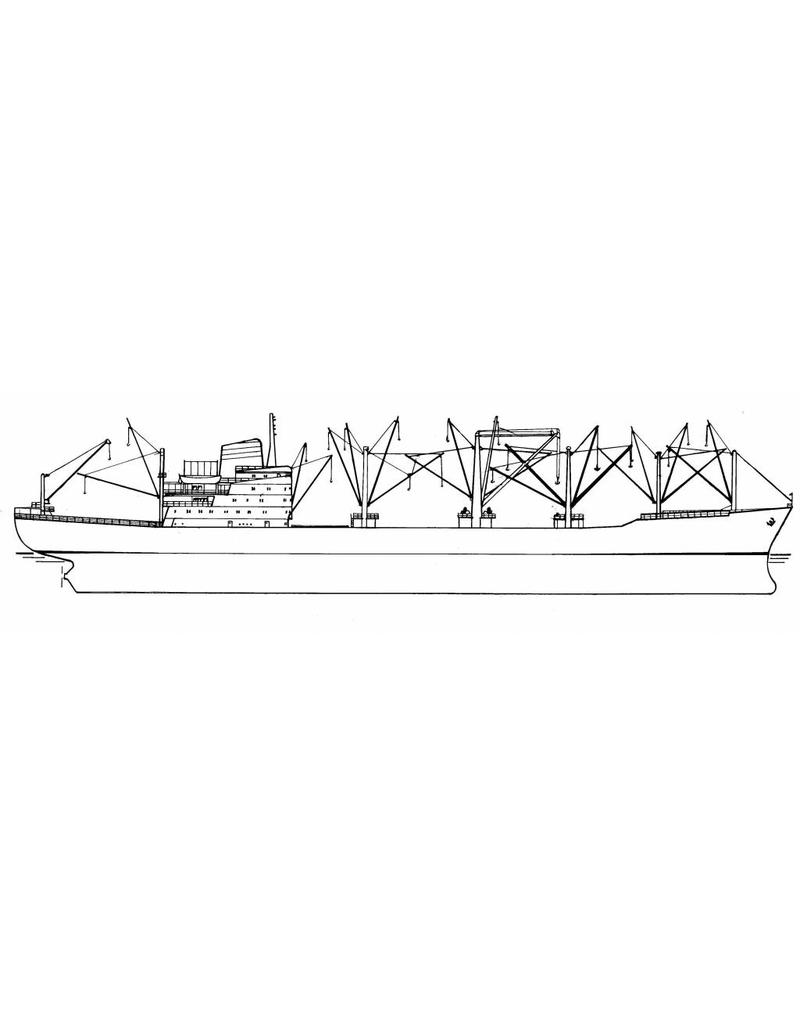

general plan; sp/lines; loading gear 1:50; details |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
4 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
285 |
|
Particulars |
l.o.a. 163 cm |
|
Remarks |
artek 4151 Ì´Ì_
|
