| Article number: | 16.10.092 |
Specifications :
|
Drawing number |
16.10.092 |
|
Description |

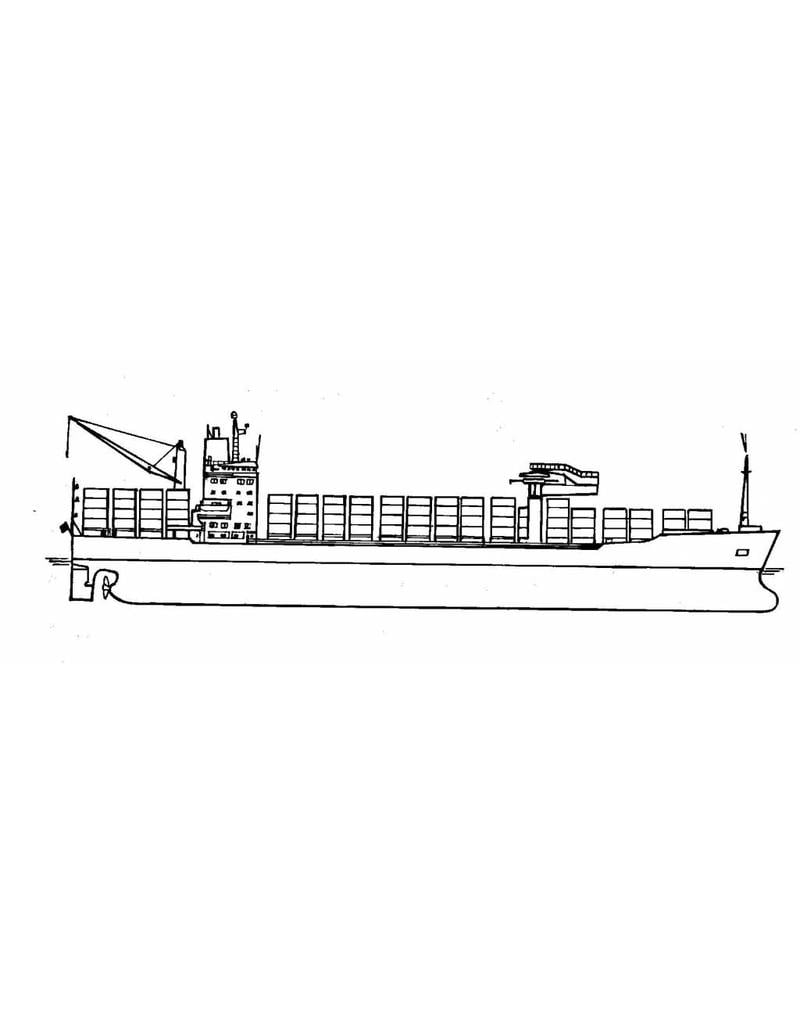

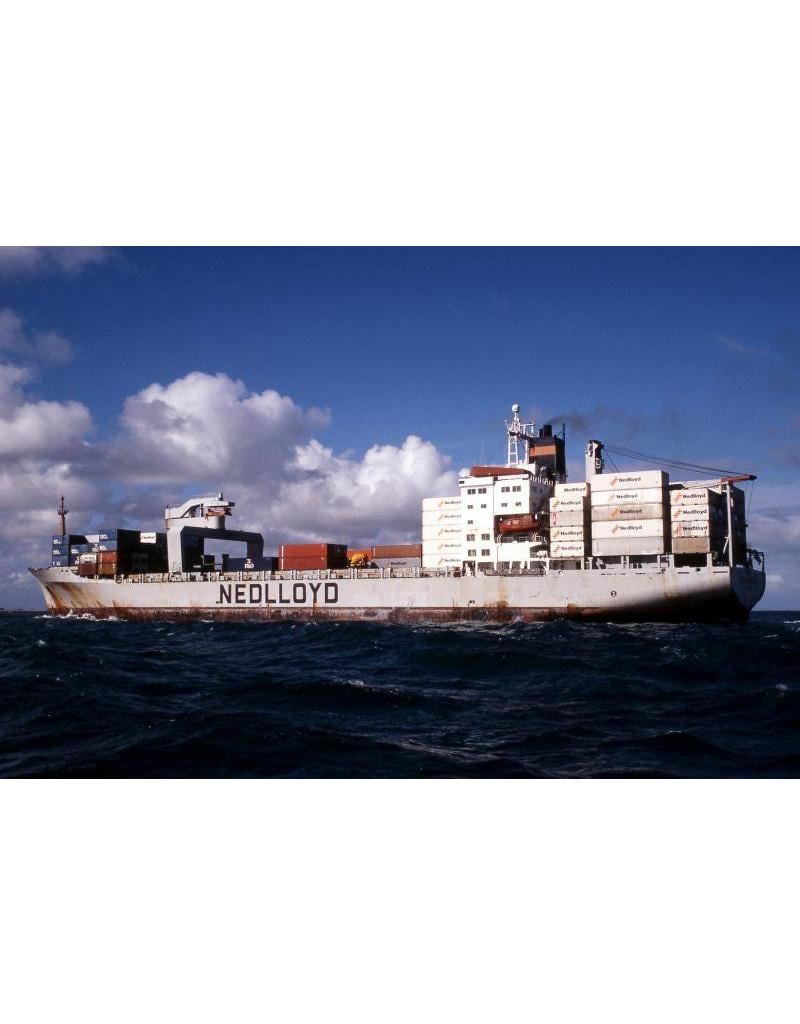

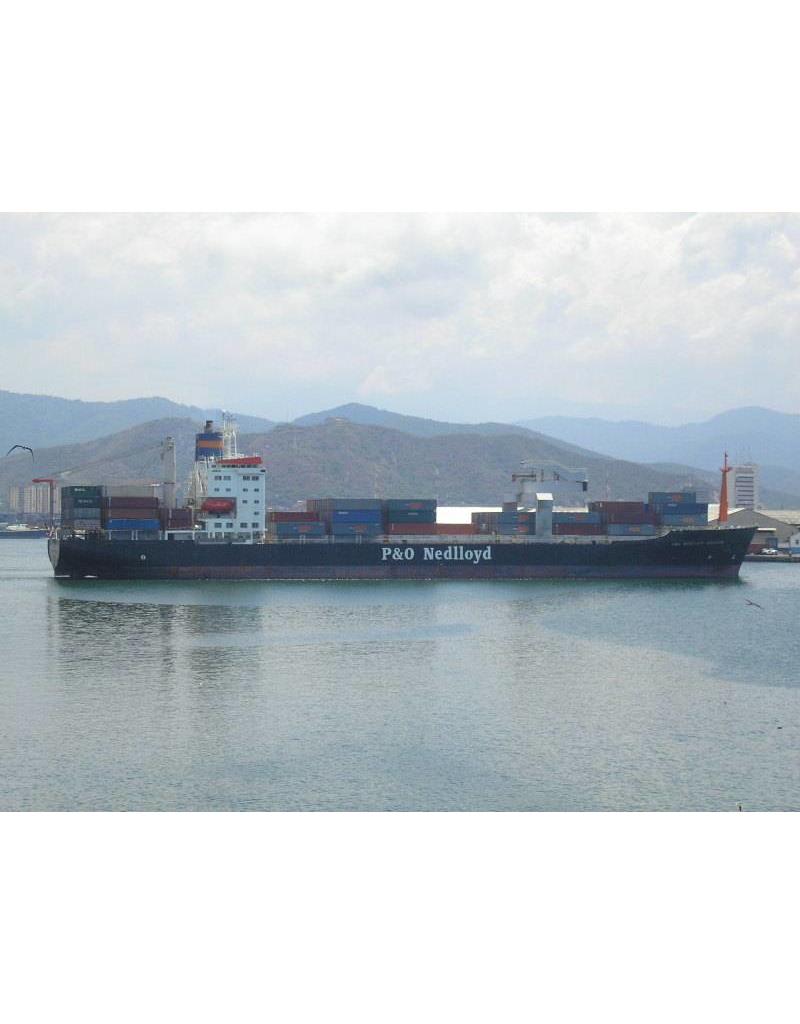

container ship ms "Nedlloyd van Neck" (1983), "van Noort", "van Diemen" (1984) - Nedlloyd |
|
Quality |
general plan; body plan; colour scheme |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
4 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
1 |
|
Weight in grams |
510 |
|
Particulars |
l.o.a. 180 cm |
|
Remarks |
artek 4077 Ì´Ì_
|
