| Article number: | 16.10.101 |
Specifications :
|
Drawing number |
16.10.101 |
|
Description |

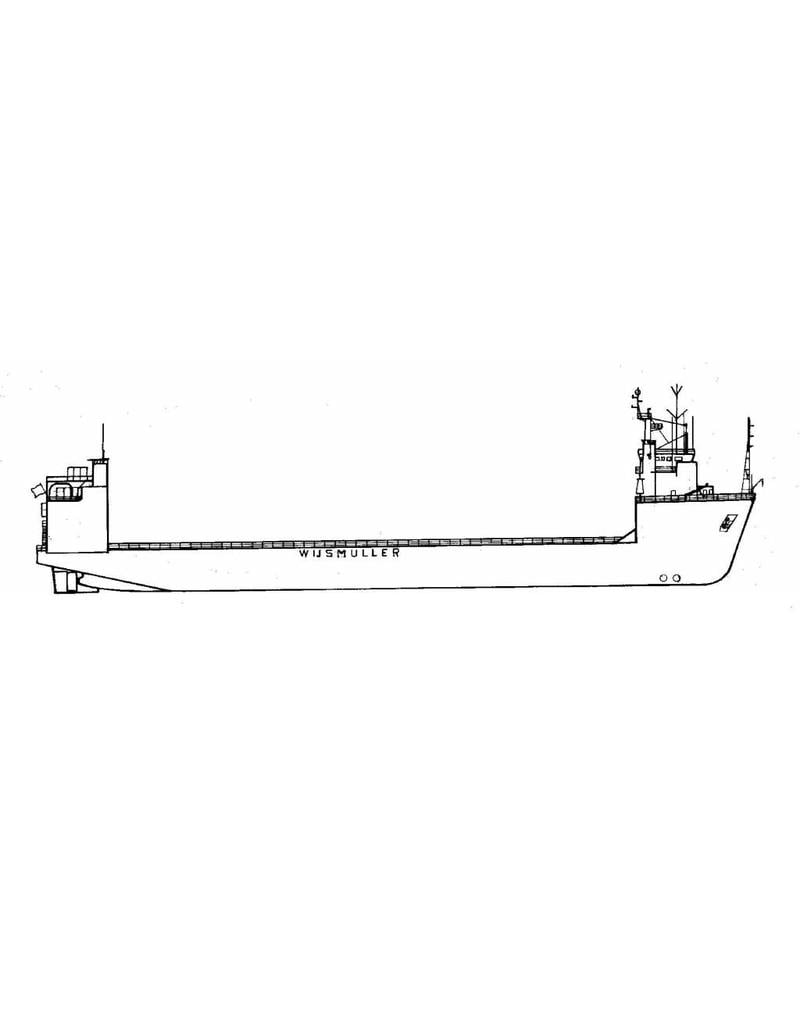

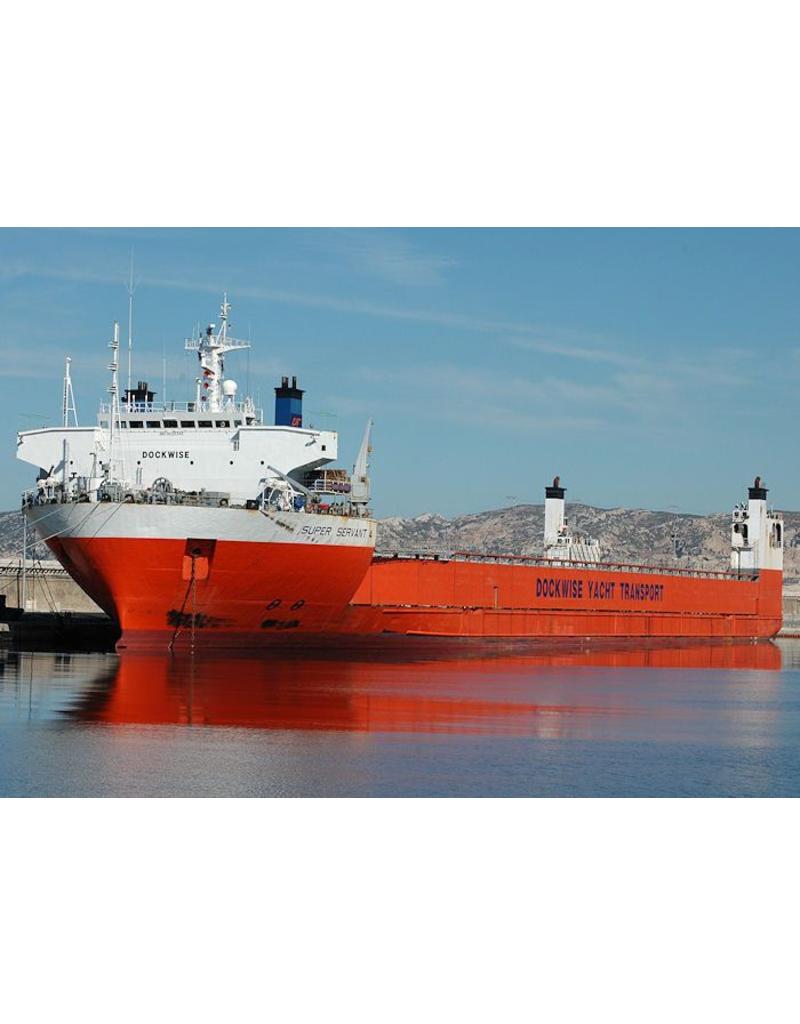

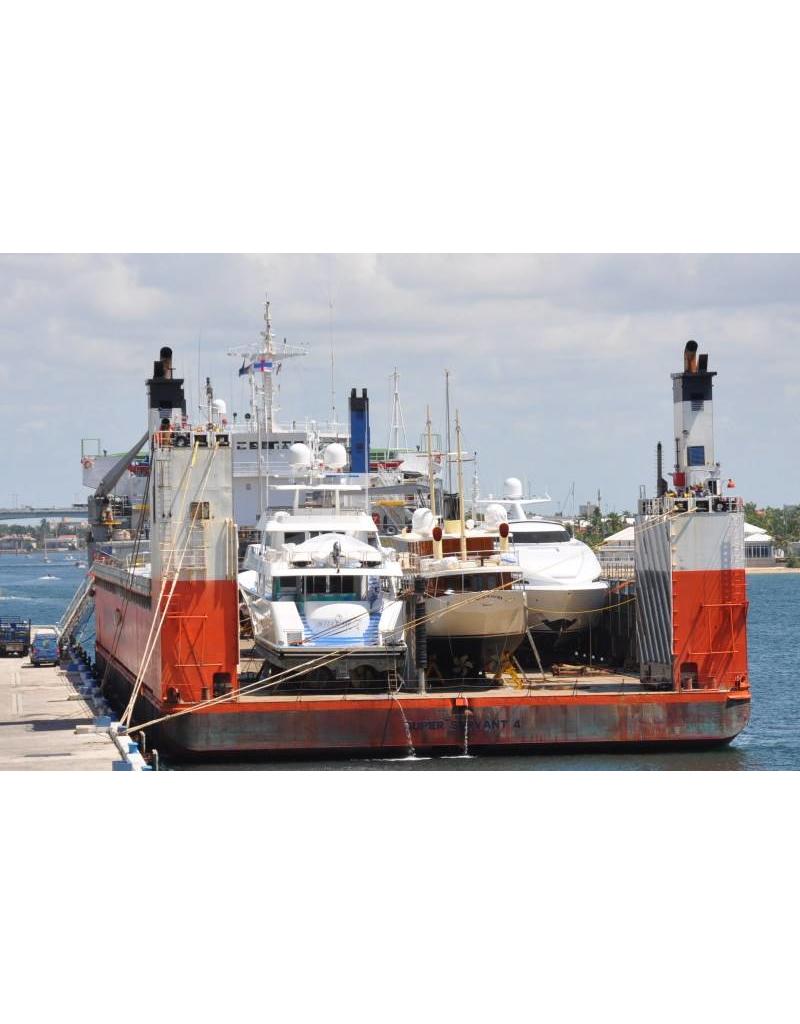

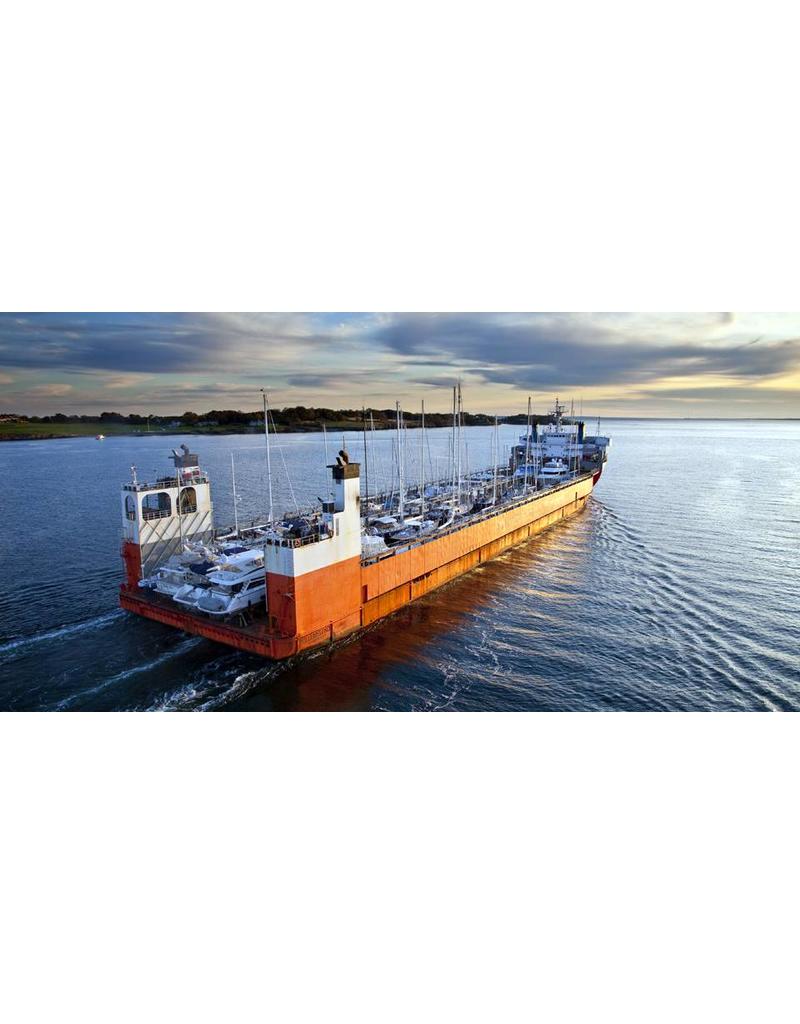

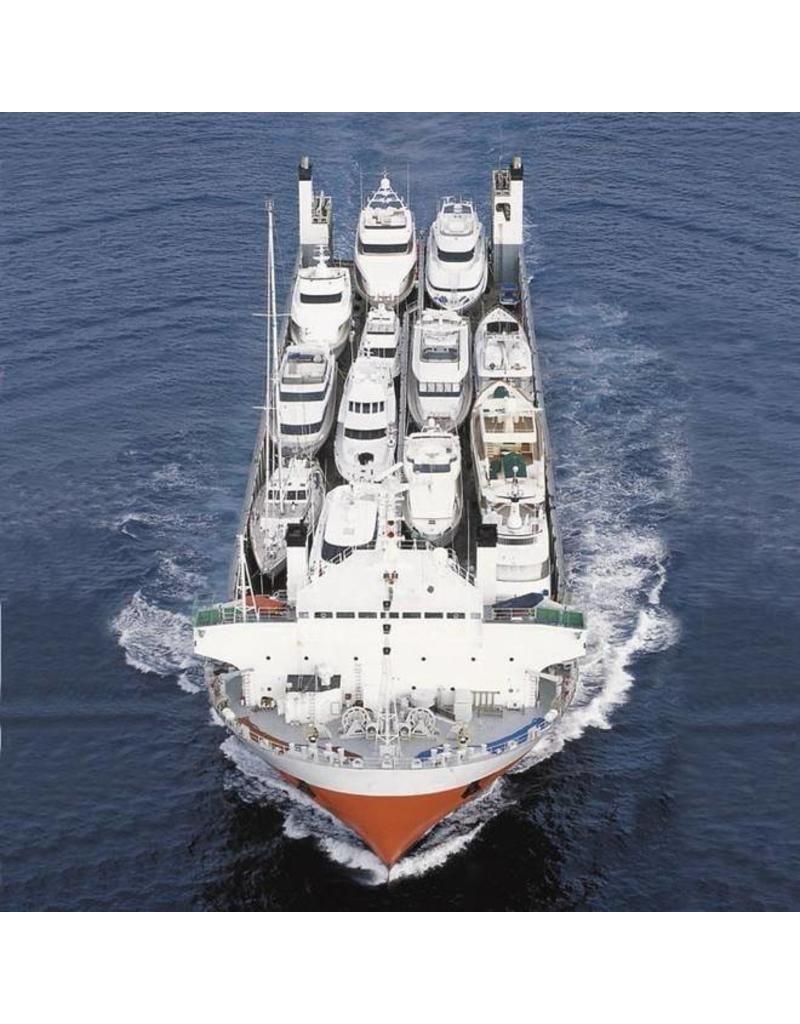

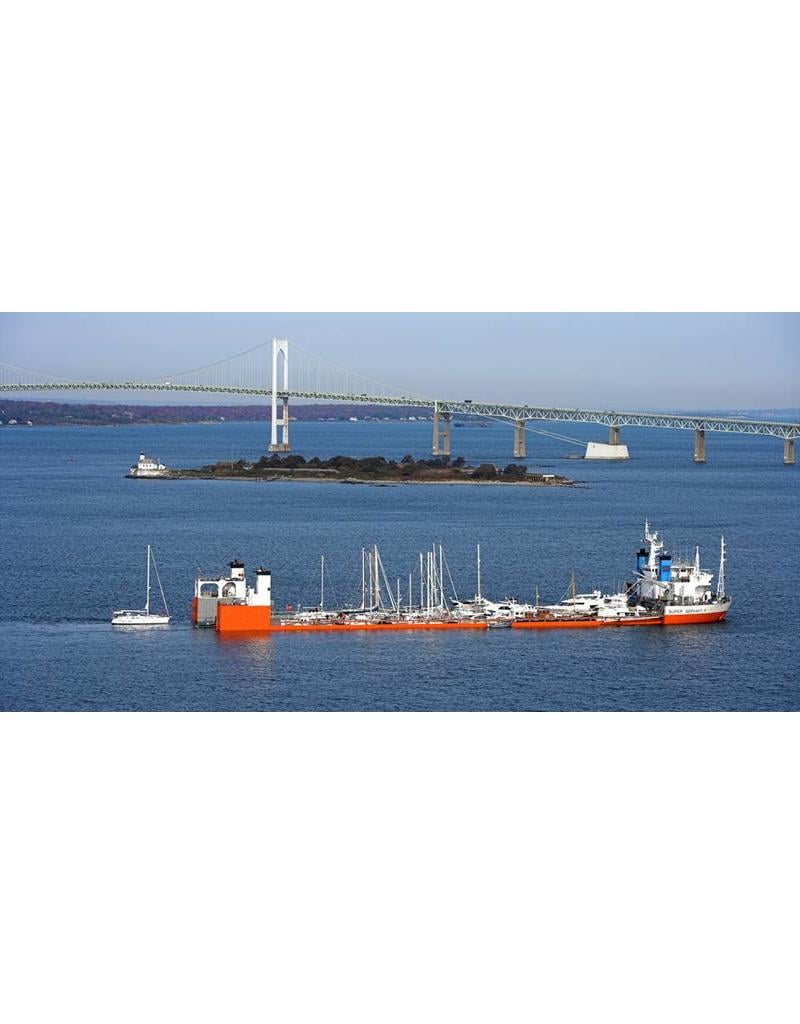

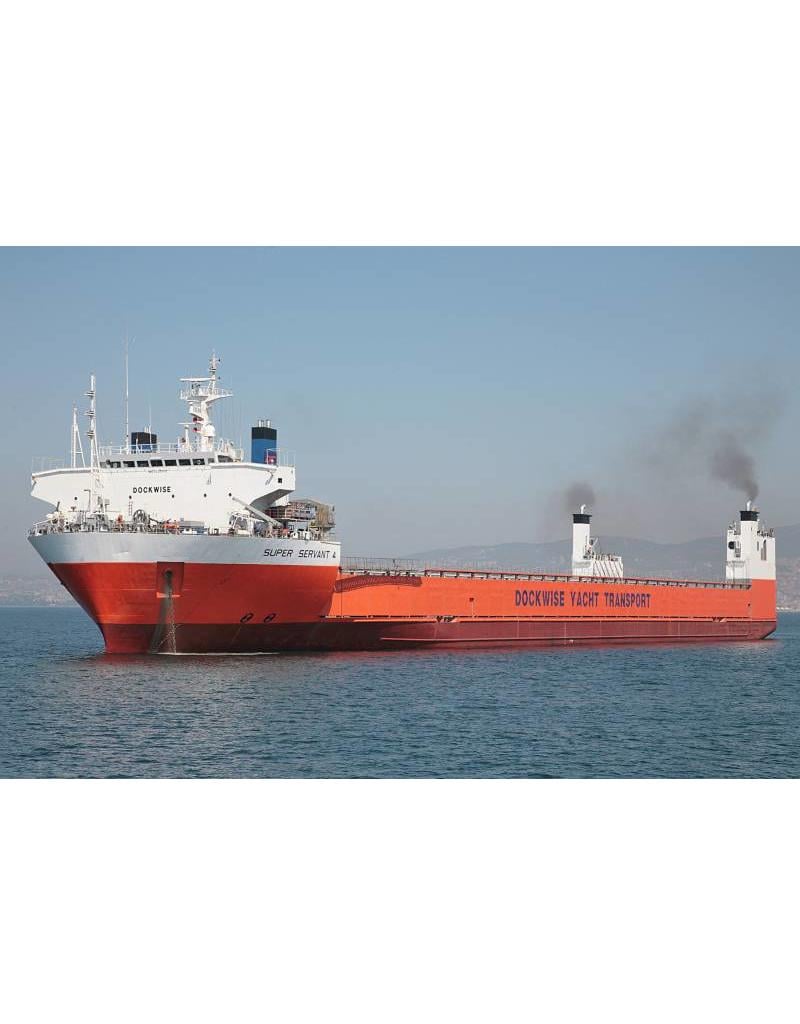

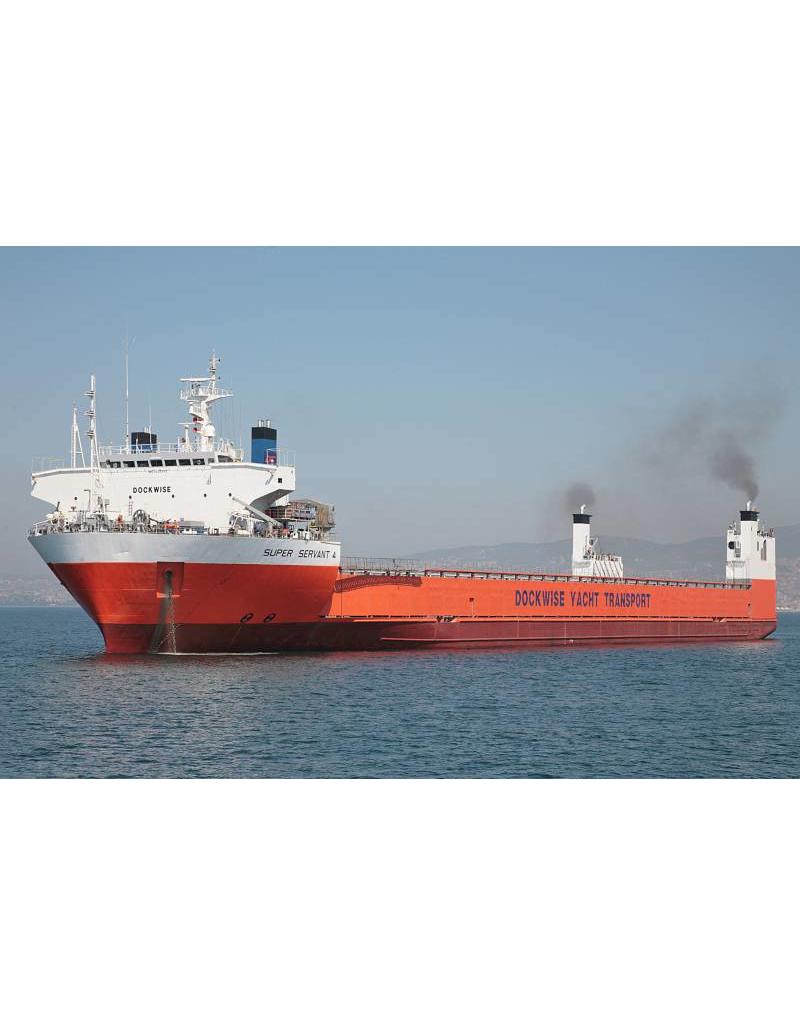

submersible heavy-lift vessel ms Super Servant 4/5 (1982) - Bureau Wijsmuller |
|
Quality |

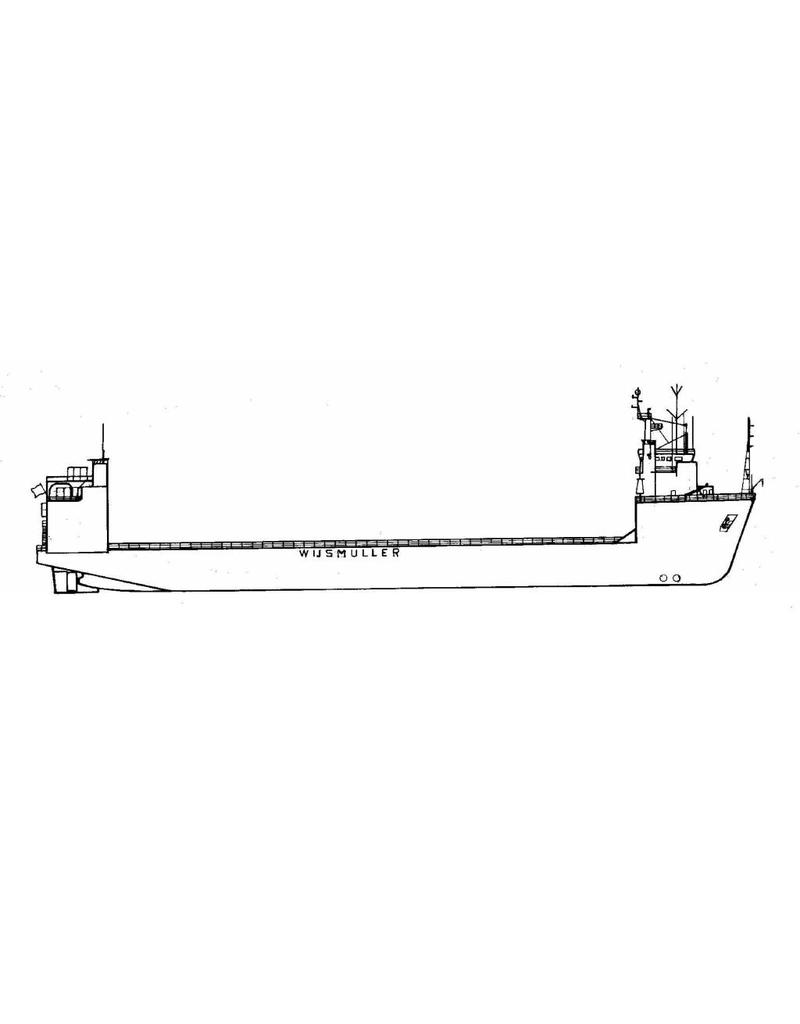

general arrangement plan; body plan/lines plan 1:50 |
|
Difficulty level |
D |
|
Scale |
1 : 200 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
2 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
225 |
|
Particulars |
l.o.a. 70 cm |
|
Remarks |
artek 4337-2 Ì´Ì_
|
