| Article number: | 16.14.023 |
Specifications :
|
Drawing number |
16.14.023 |
|
Description |

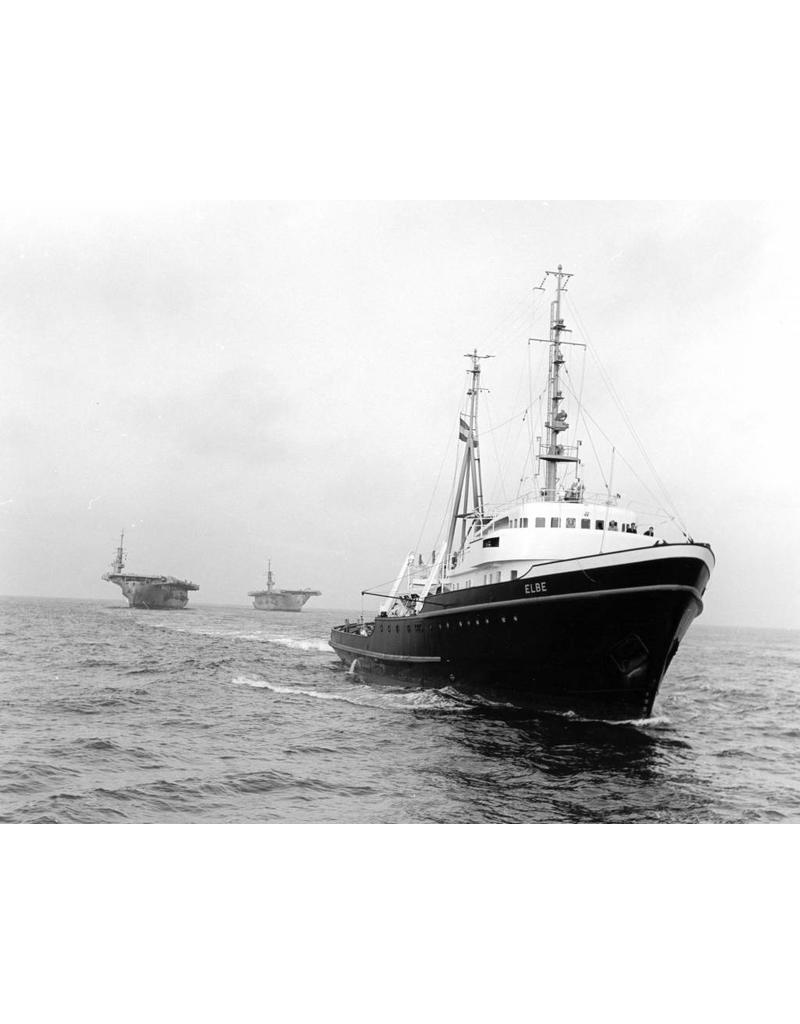

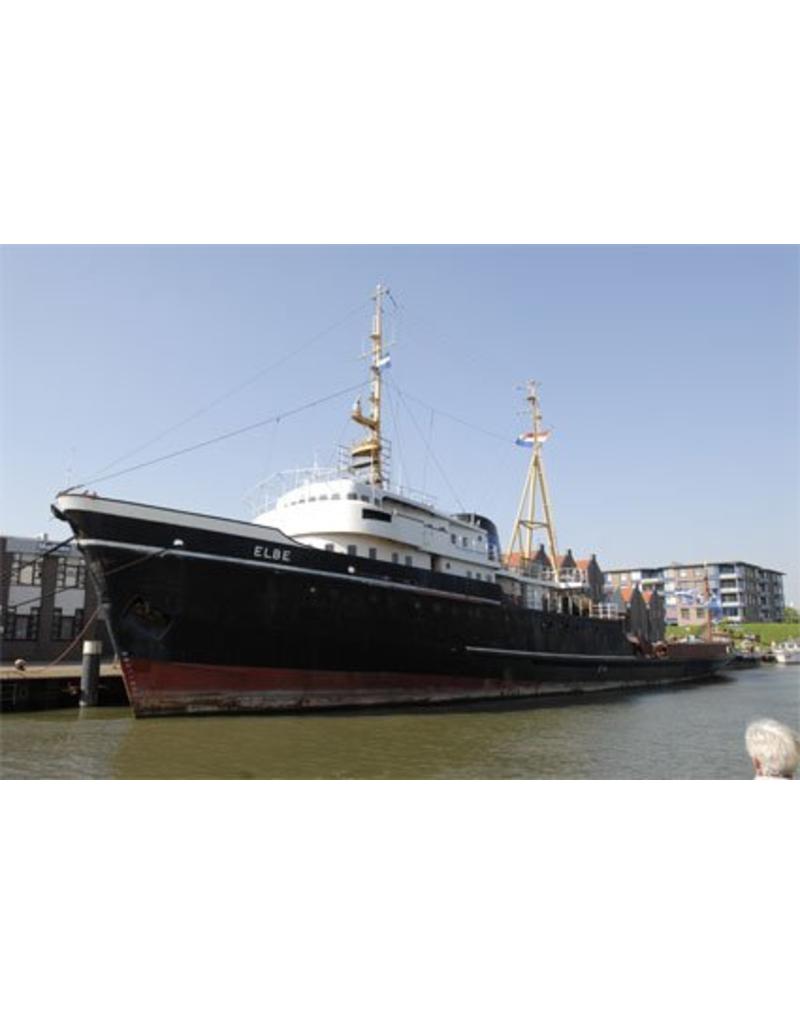

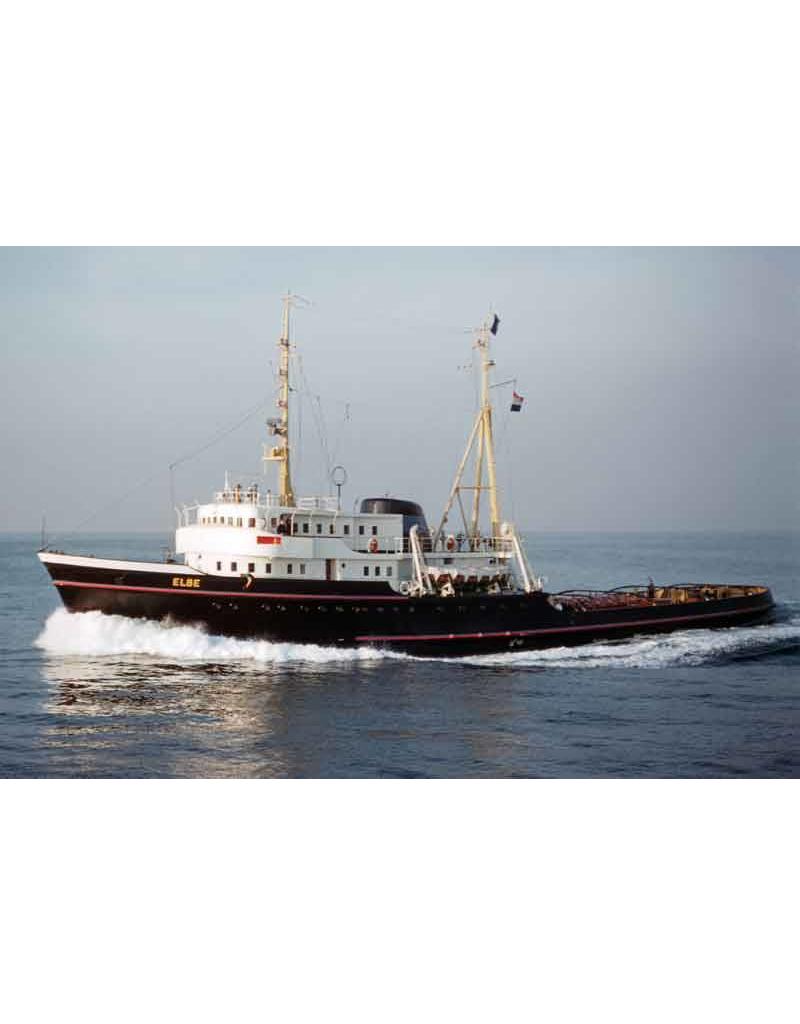

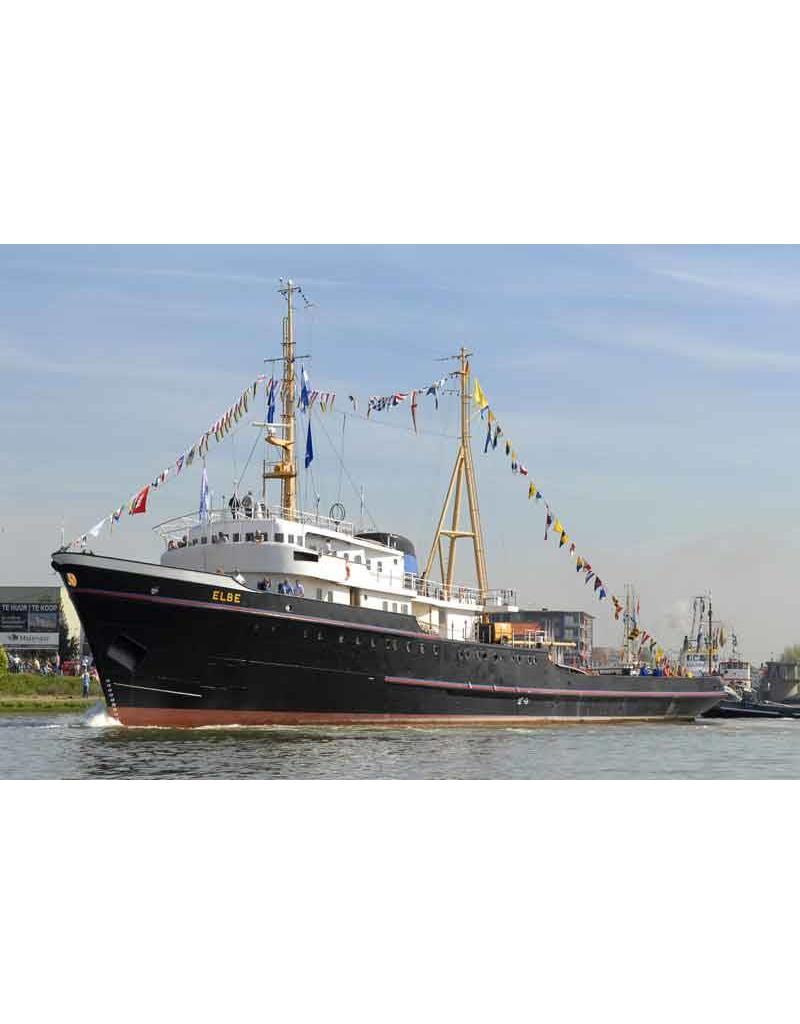

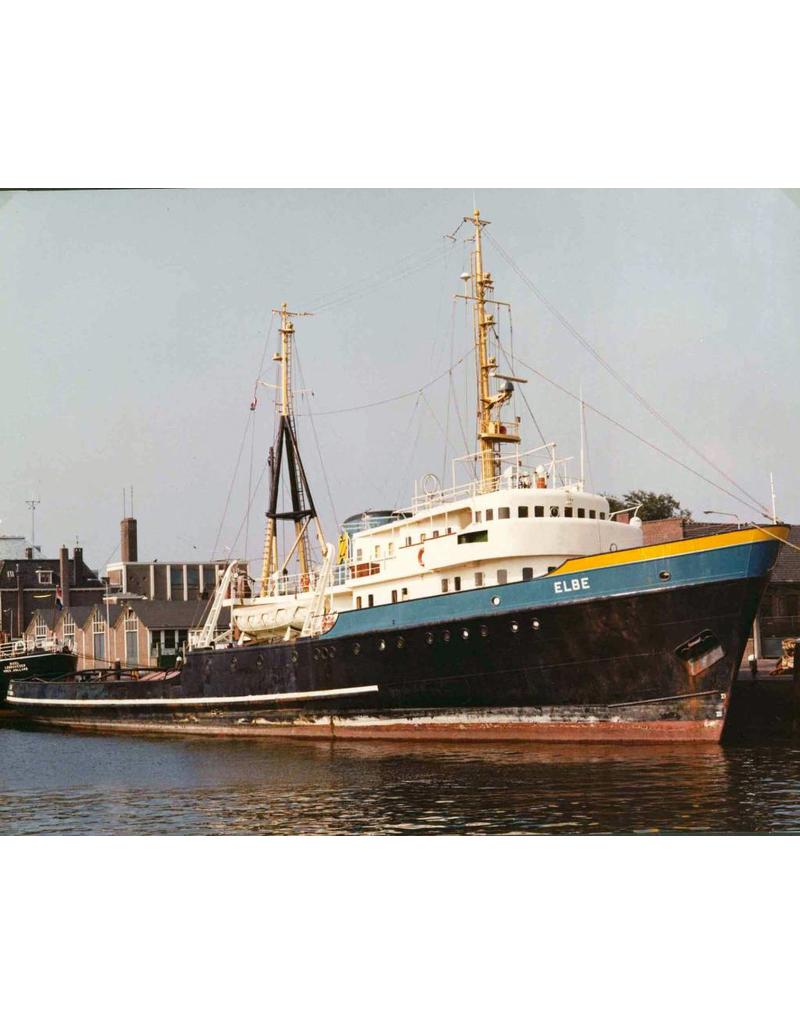

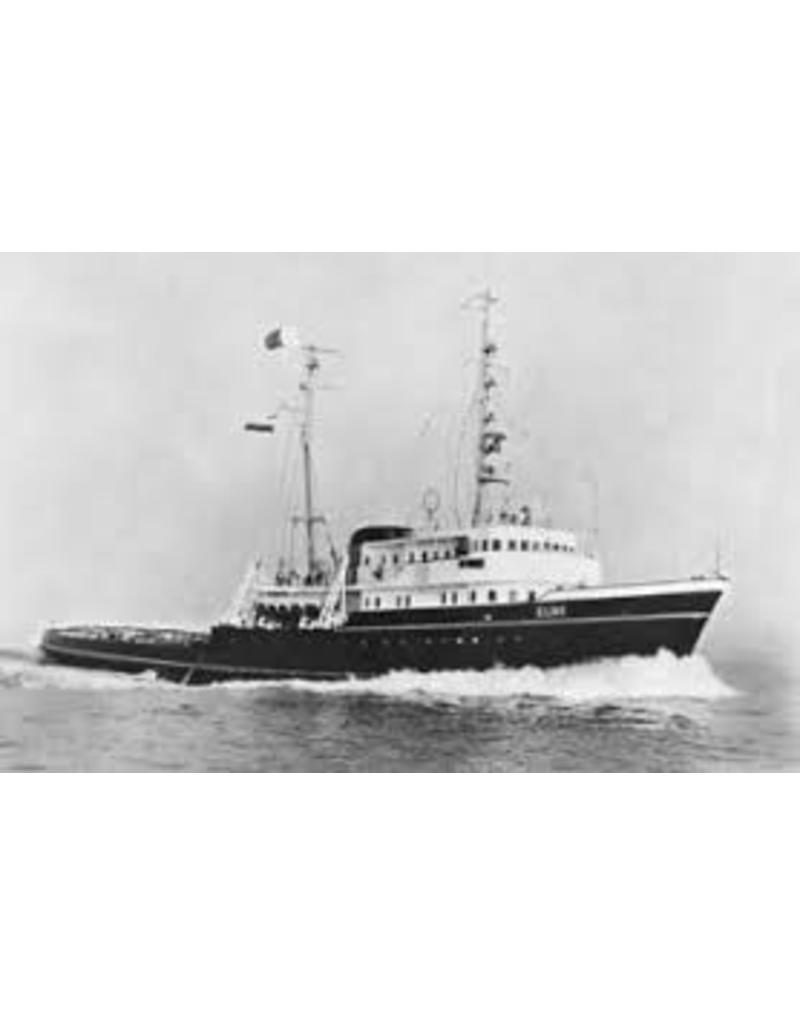

ocean-going tug ms Elbe (1958) - Smit Int. |
|
Quality |

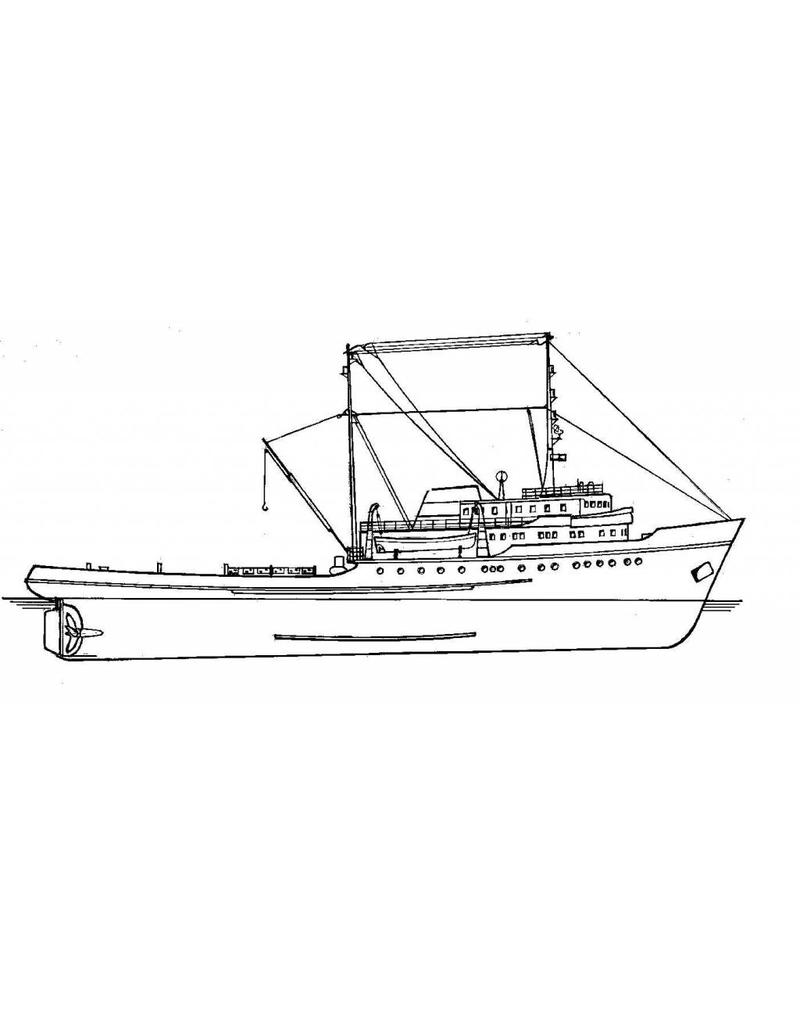

general arrangement; body plan/lines |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of A00 sheets |
2 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
145 |
|
Particulars |
l.o.a. 105 cm |
|
Remarks |
artek 4255 Ì´Ì_
|
