MBT 16.14.038 push boat Jacob van Heemskerk (1961) - Dutch Rhine Shipping Association

Drawing number

16.14.038

Description

push boat Jacob van Heemskerk (1961) - Dutch Rhine Shipping Association

Quality

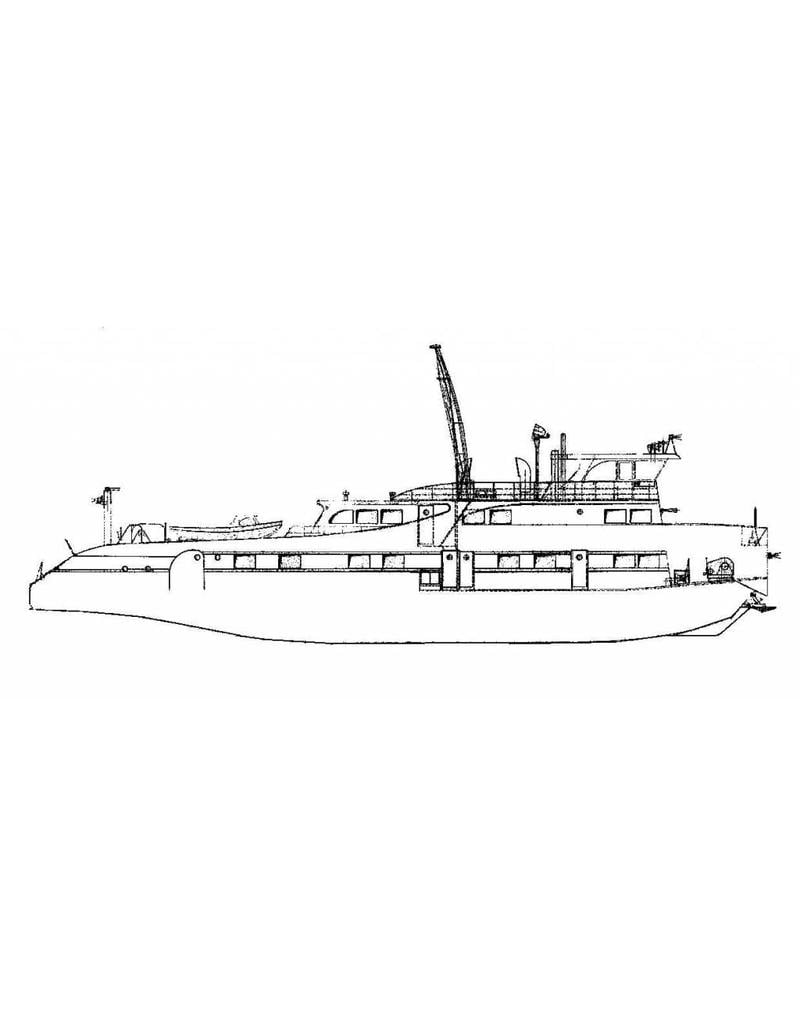

general plan; sp/lines

Difficulty level

D

Scale

1 : 40

Number of sheets A00

1

Number of sheets A0

1

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

2

Number of A4 text sheets

0

Weight in grams

145

Particulars

LOA 90 cm

1968 EWT 1:102 - Jacob van Heemskerck, scrapped in 1991 as Euroduw.

Remarks

artek 1:4374
