| Article number: | 16.14.045 |
Specifications :
|
Drawing number |
16.14.045 |
|
Description |

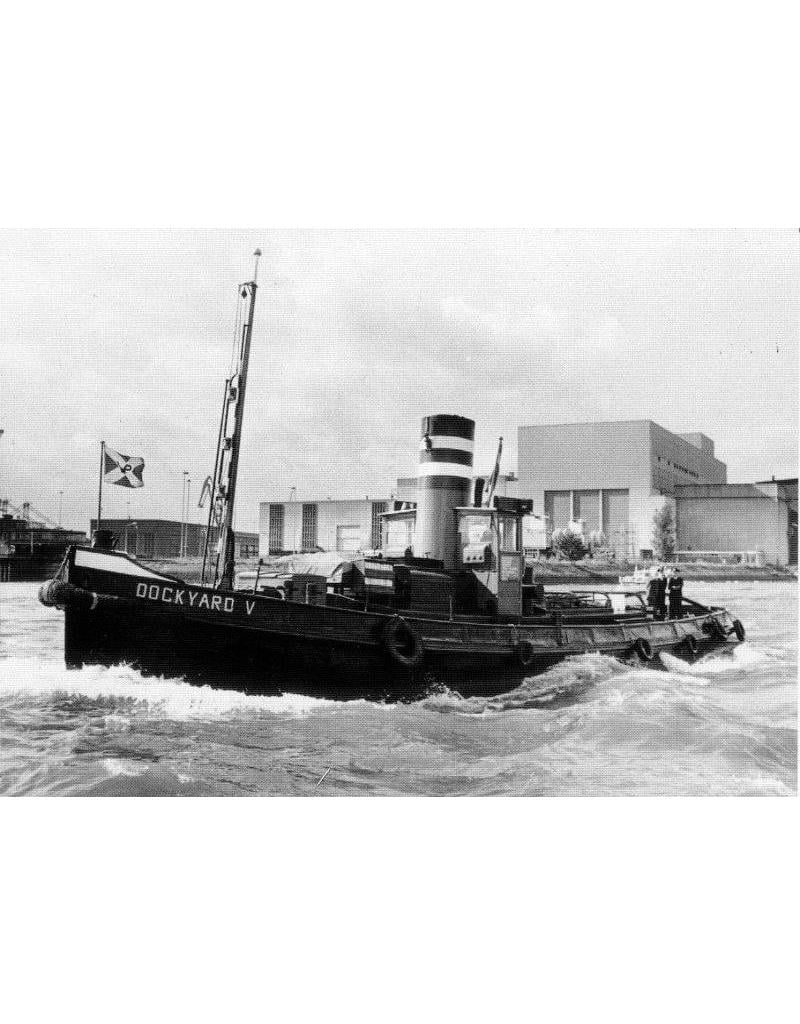

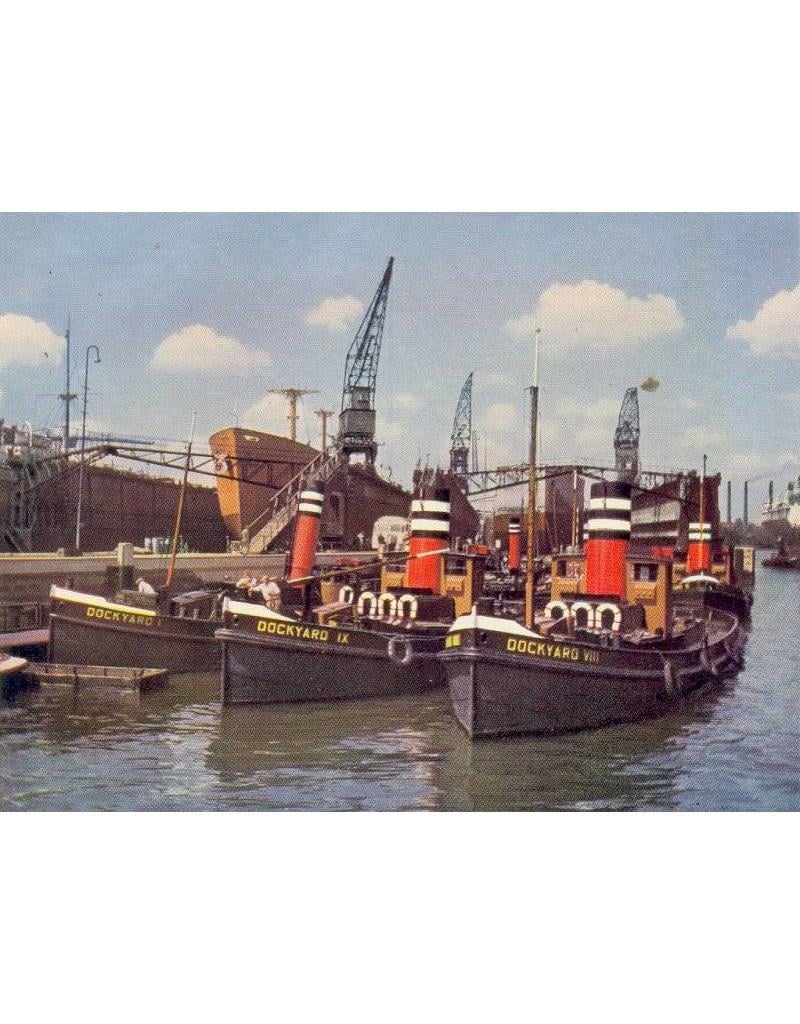

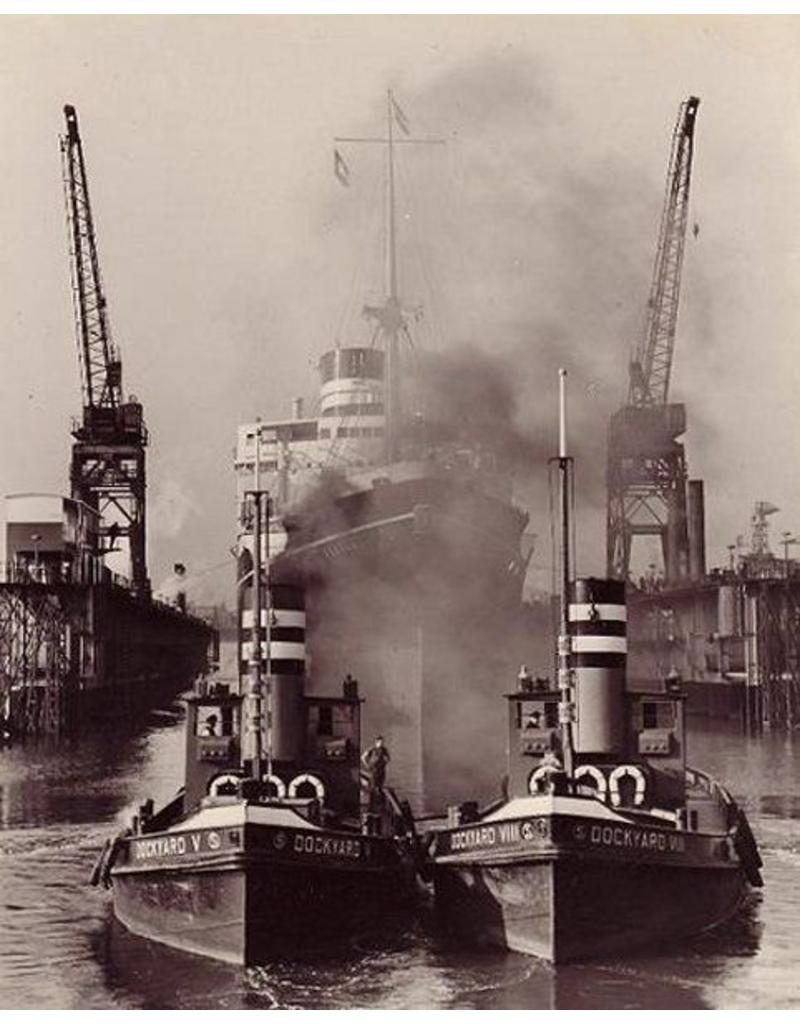

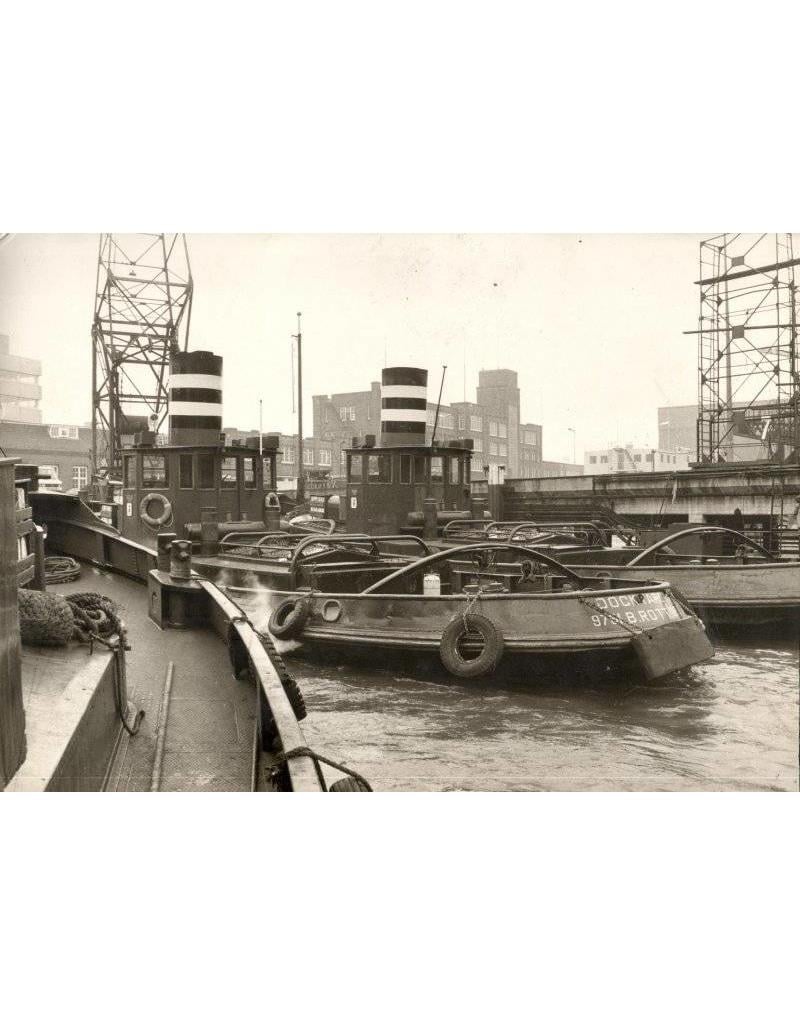

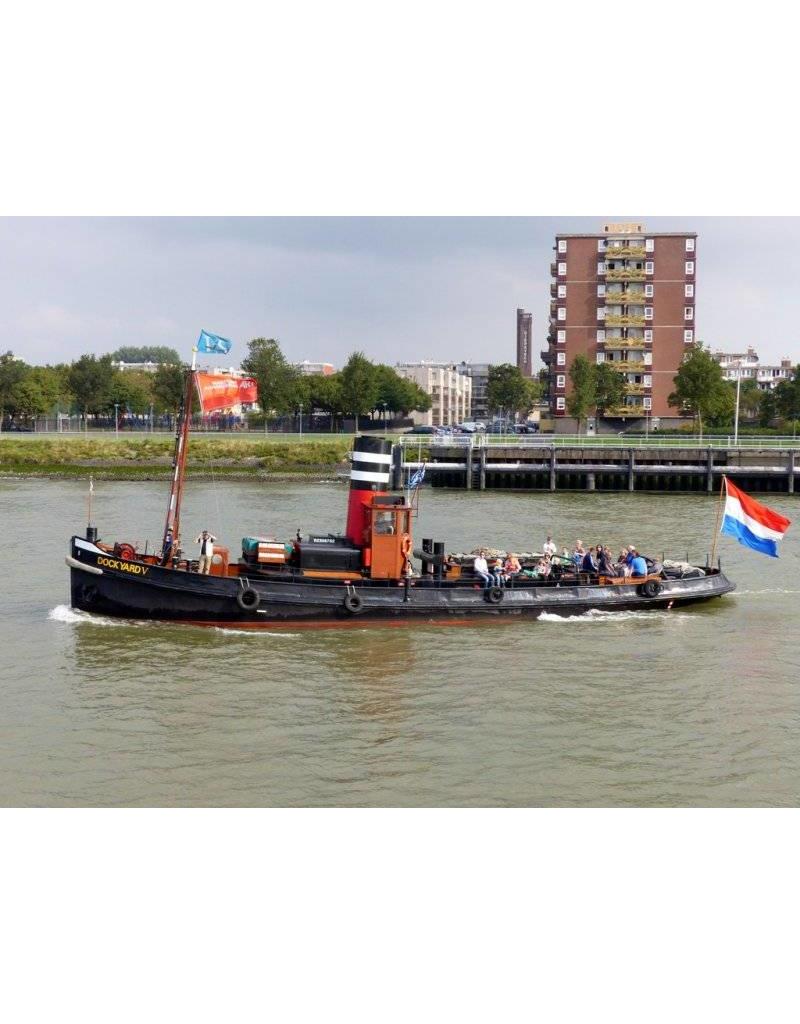

harbour tugboat ss Dockyard (191:40) - RDM |
|
Quality |

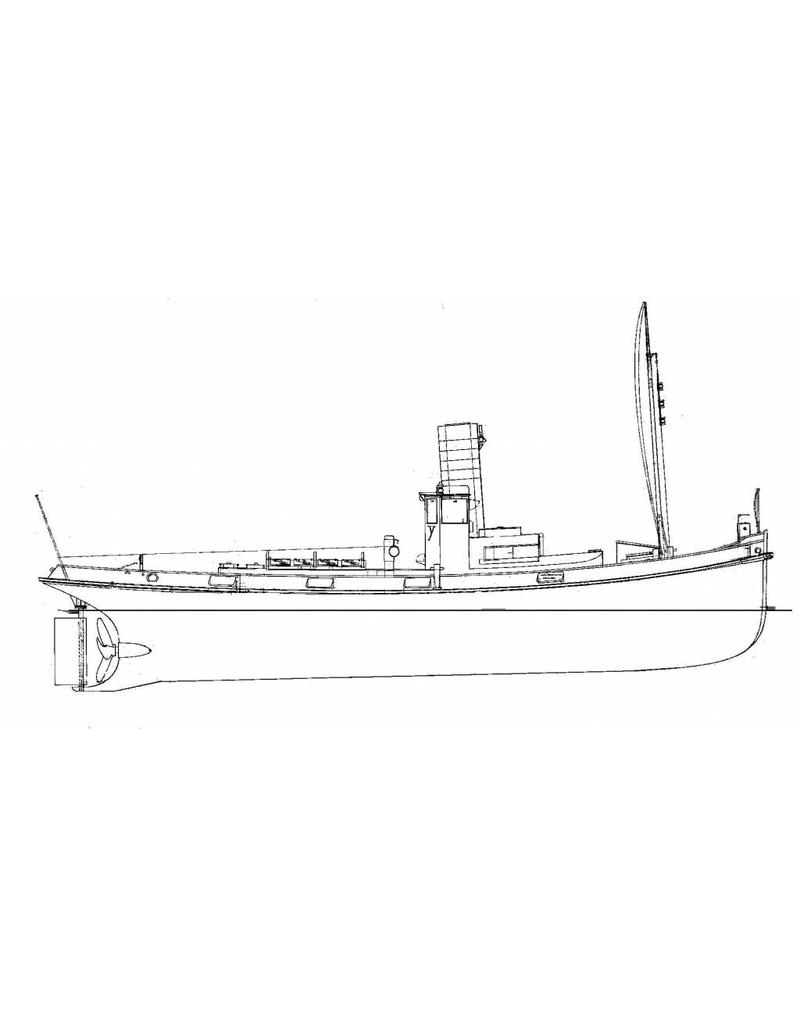

general plan; frame plan; construction plan (of moderate quality); info; |
|
Difficulty level |
D |
|
Scale |
1 : 25 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
1 |
|
Weight in grams |
|
|
Particulars |
l.o.a. 99 cm |
|
Remarks |
artek 4232 |
