| Article number: | 16.14.064 |
Specifications :
|
Drawing number |
16.14.064 |
|
Description |

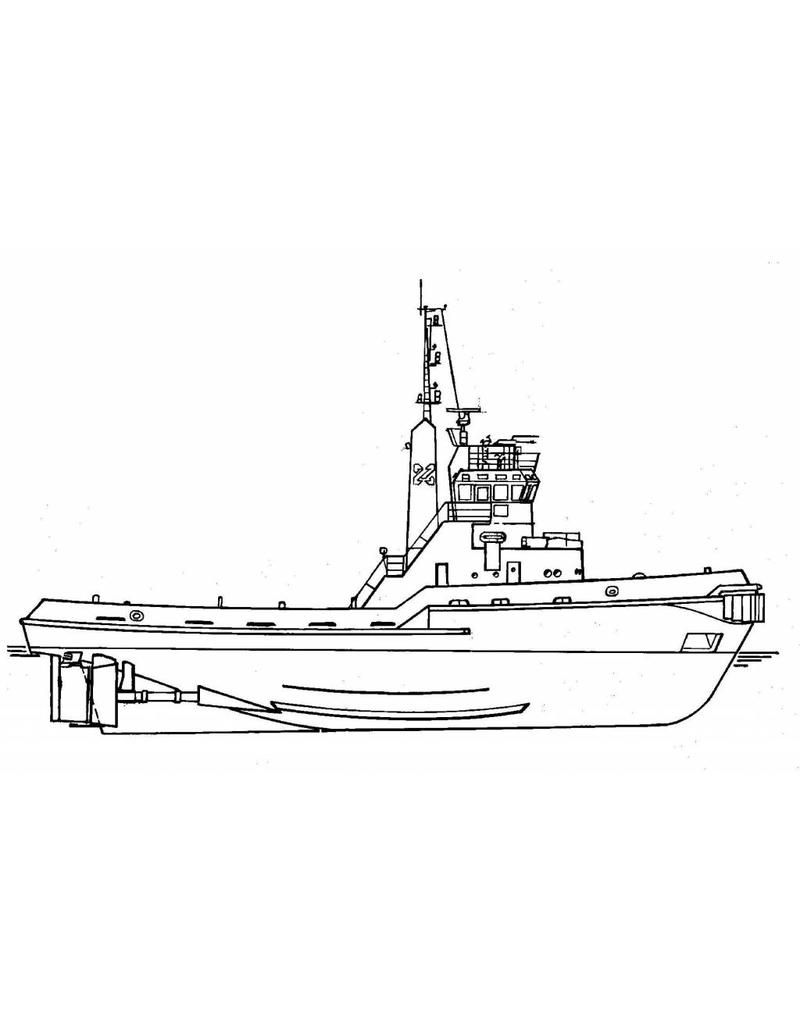

harbour/coastal tug ms Piku (1974) - Smit Int |
|
Quality |
general arrangement plan; body plan/lines plan |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
195 |
|
Particulars |
l.o.a. 71 cm |
|
Remarks |
artek 4314-2 |
