| Article number: | 16.19.005 |
Specifications :
|
Drawing number |
16.19.005 |
|
Description |

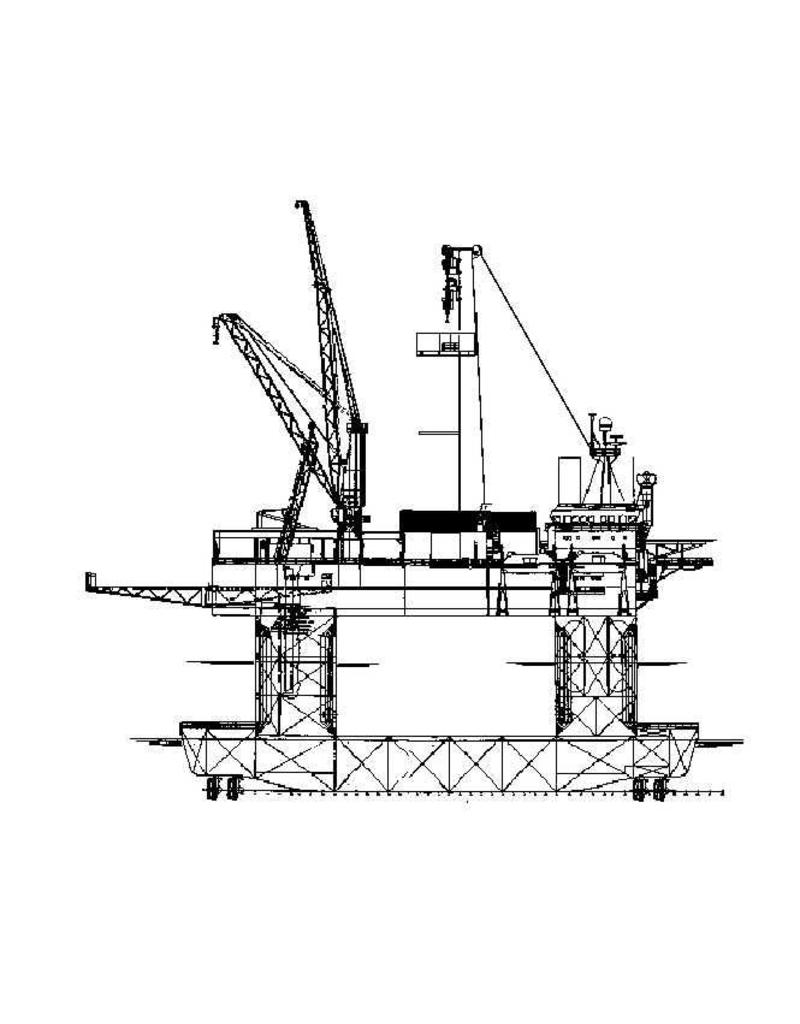

drilling rig "Amethyst 2" (1997) |
|
Quality |
side view; front view; deck plans; sections of pontoons and legs |
|
Difficulty level |
D |
|
Scale |
1 : 200 |
|
Number of A00 sheets |
1 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
Ì´Ì_loa 38 |
|
Remarks |
artek 4324-2 |
