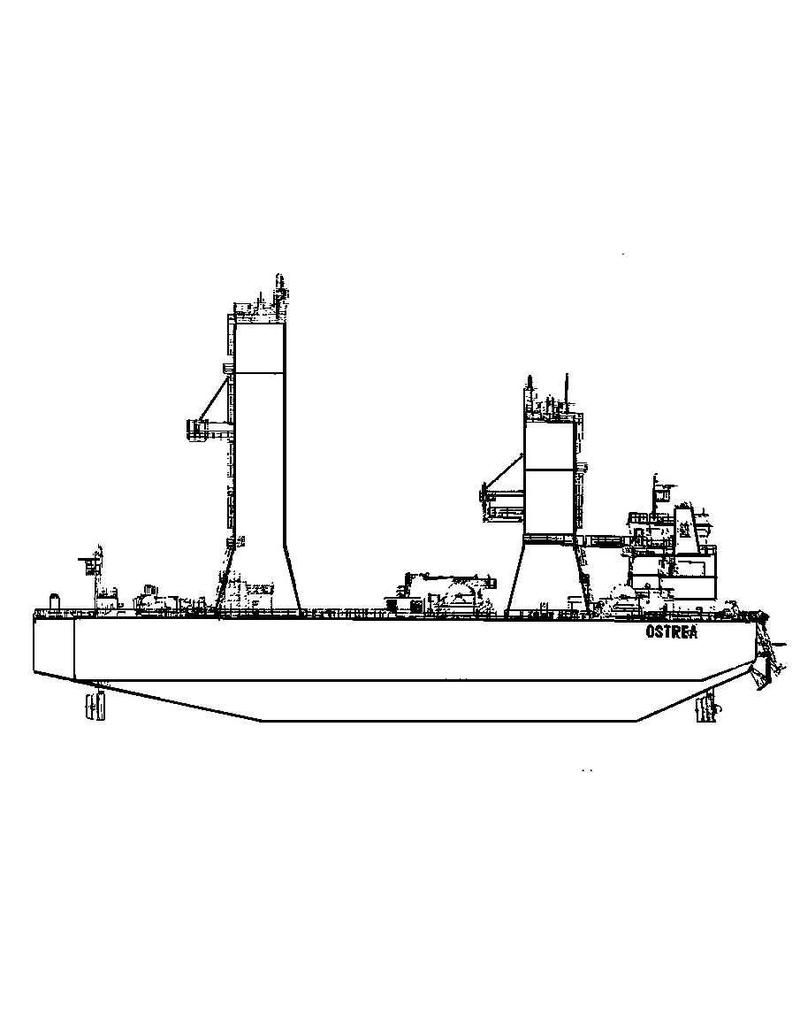

MBT 16.19.009 lifting vessel "Ostrea" (1976) -

Drawing number

16.19.009

Description

lifting vessel "Ostrea" (1976) -

Quality

frames; general plan; all-round views; details

Difficulty level

D

Scale

1 : 100

Number of sheets A00

2

Number of sheets A0

4

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

6

Number of A4 text sheets

0

Weight in grams

31:25:00

Particulars

l.o.a. 1:96 cm

dM 1:2006/1

Copy article: see 72.10.020, CD with photos and construction report

Remarks

check owner
