| Article number: | 20.01.001 |
Specifications :
|
Drawing number |
20.01.001 |
|
Author |
W.J.Dijkshoorn |
|
Description |

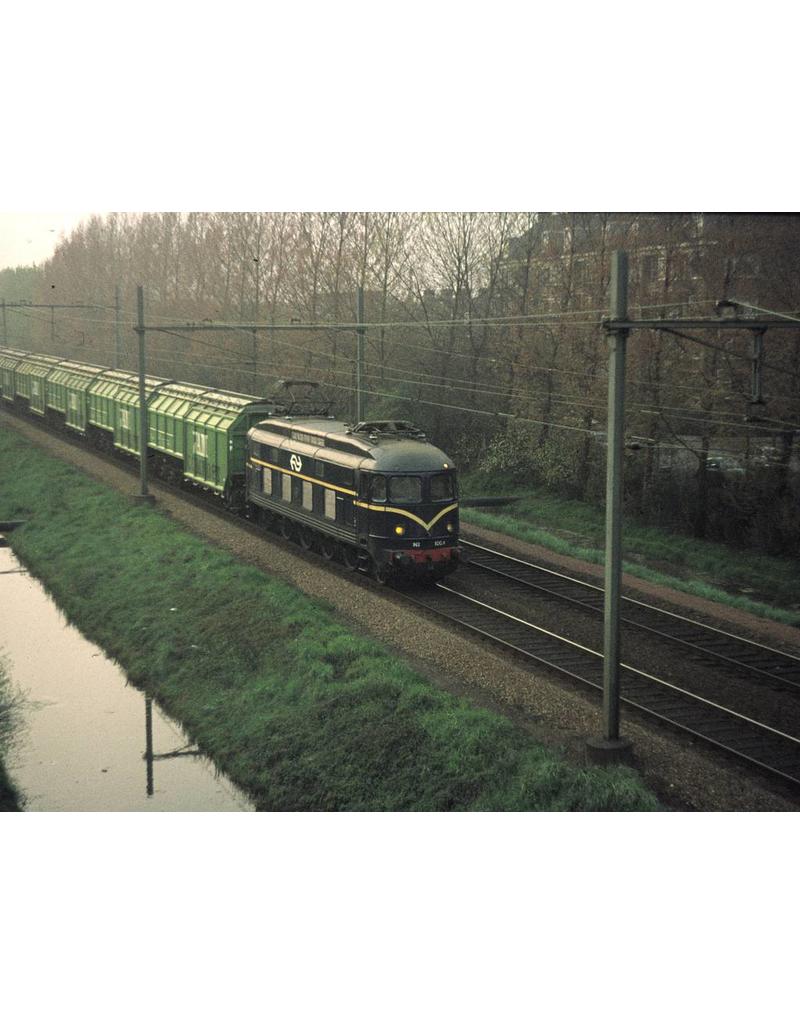

Electric locomotive NS 1000 for gauge 0 |
|
Quality |

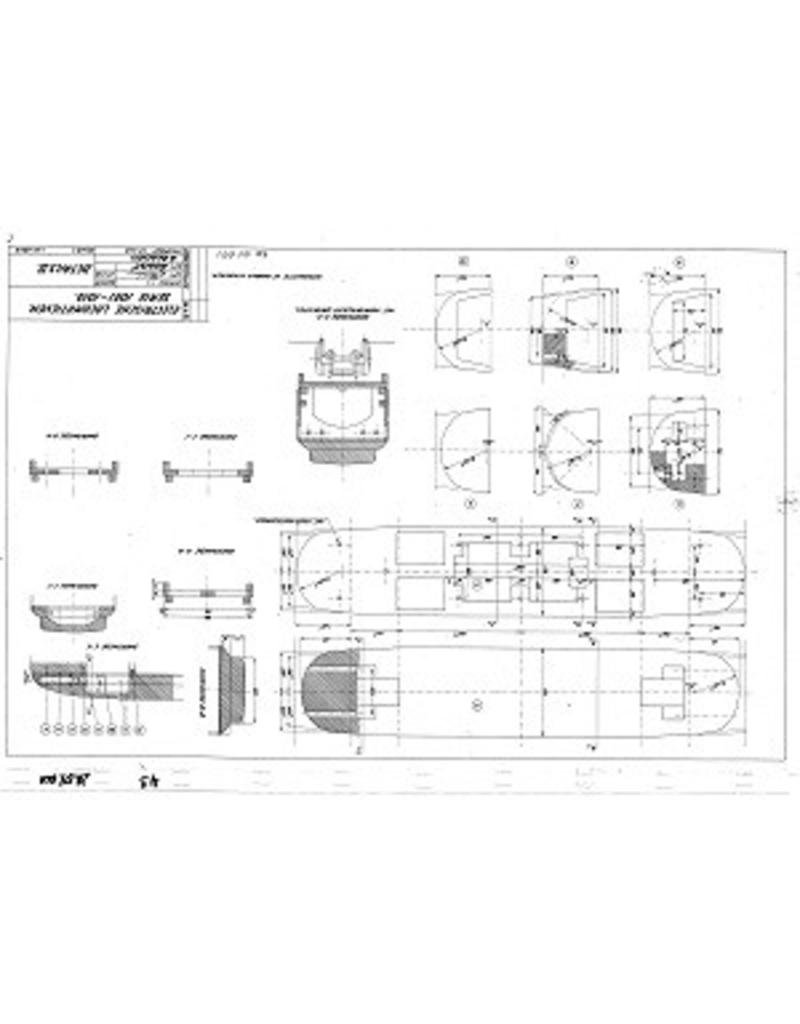

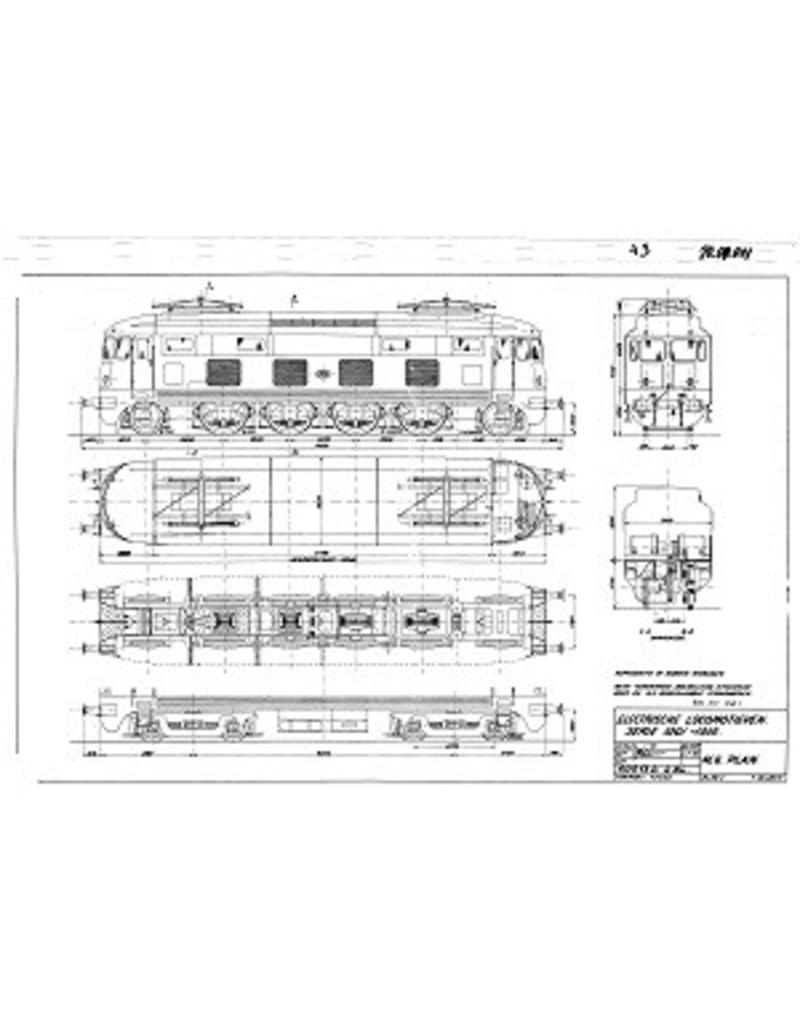

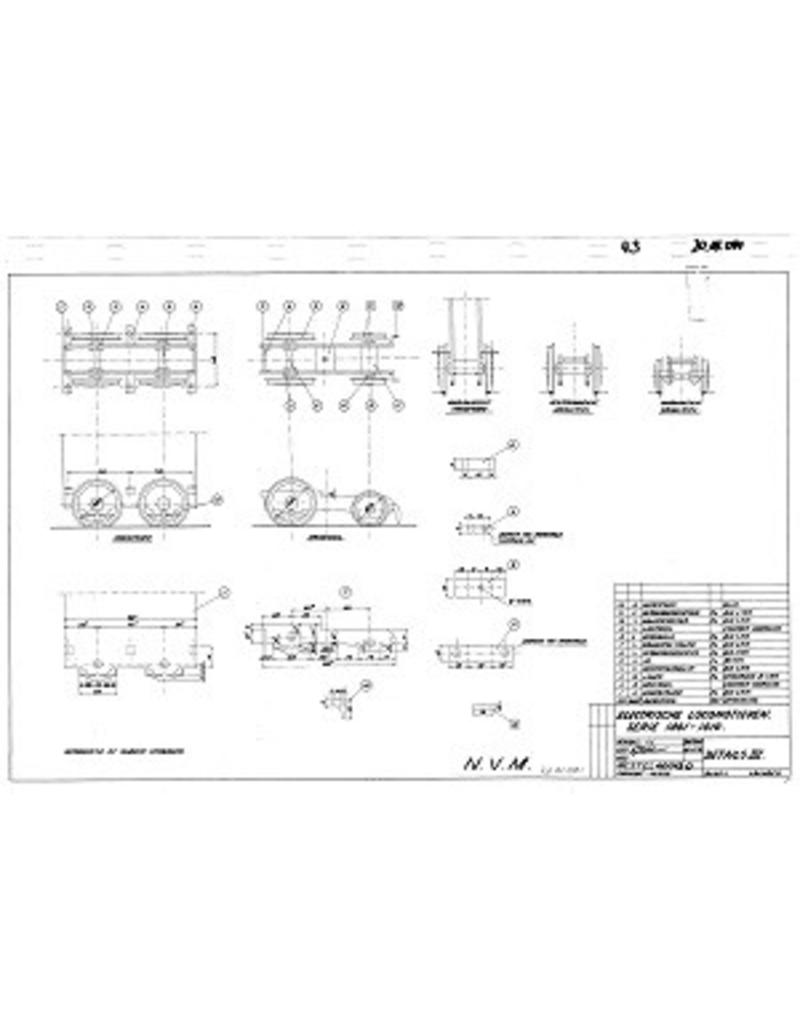

complete construction drawing with details; parts largely dimensioned; general plan with prototype dimensions |
|
Difficulty level |
D |
|
Scale |
1 : 45 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
4 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Special features |
dM 1952/7,8,10 |
|
Remarks |
Ì´Ì_ |
