| Article number: | 20.01.004 |
Specifications :
|
Drawing number |
20.01.004 |
|
Author |
J.F. Smit |
|
Description |

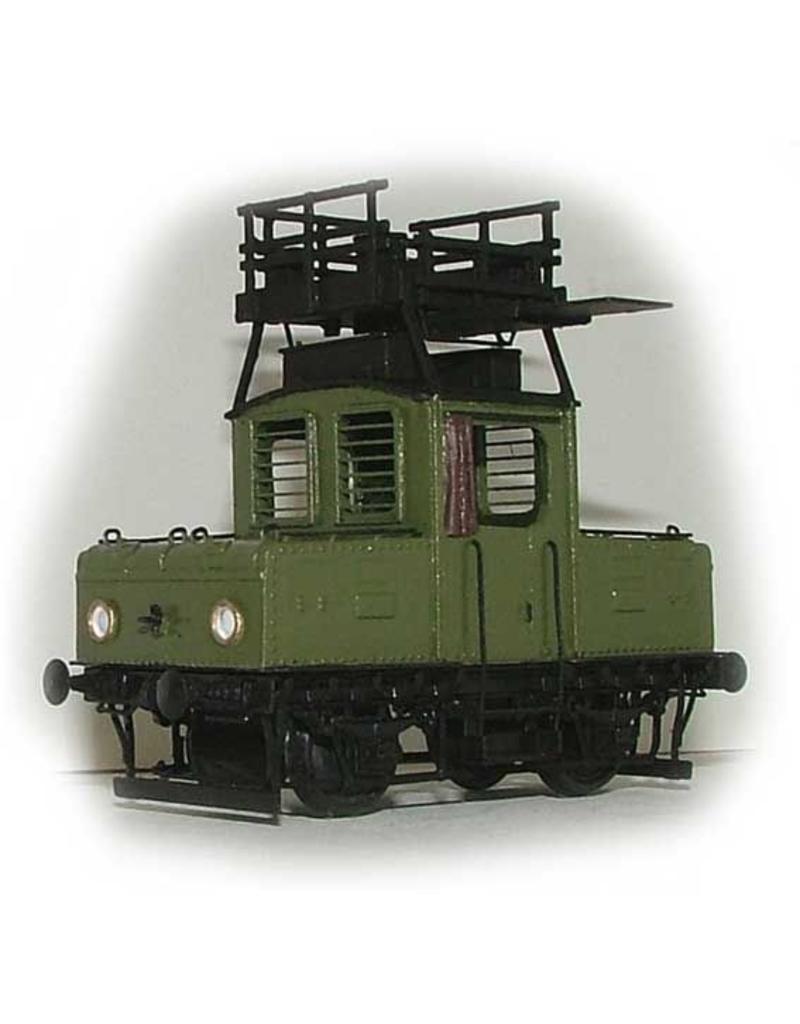

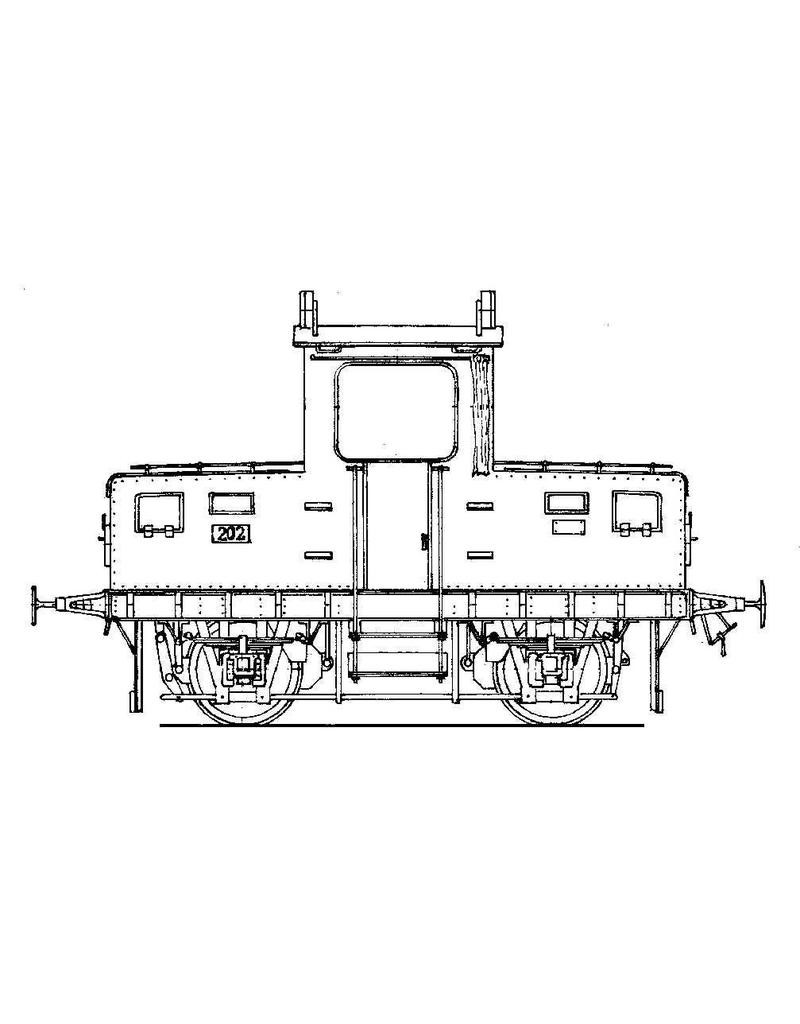

HSM battery locomotive. 201-202 - later NS 81-82 for gauge 0 |
|
Quality |

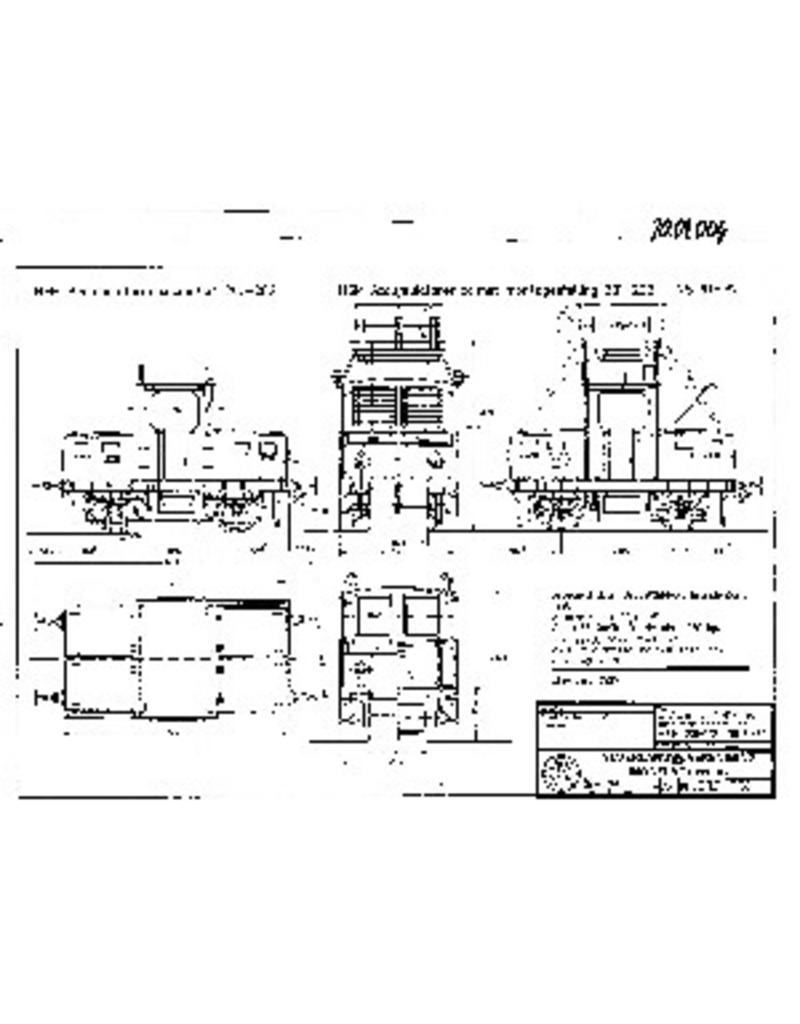

a detailed scale sketch with dimensions of the prototype |
|
Difficulty level |
D |
|
Scale |
1 : 45 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
1 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Special features |
with assembly jig |
|
Remarks |
