| Article number: | 20.04.001 |
Specifications :
|
Drawing number |
20.04.001 |
|
Author |
H.F. Enter |
|
Description |

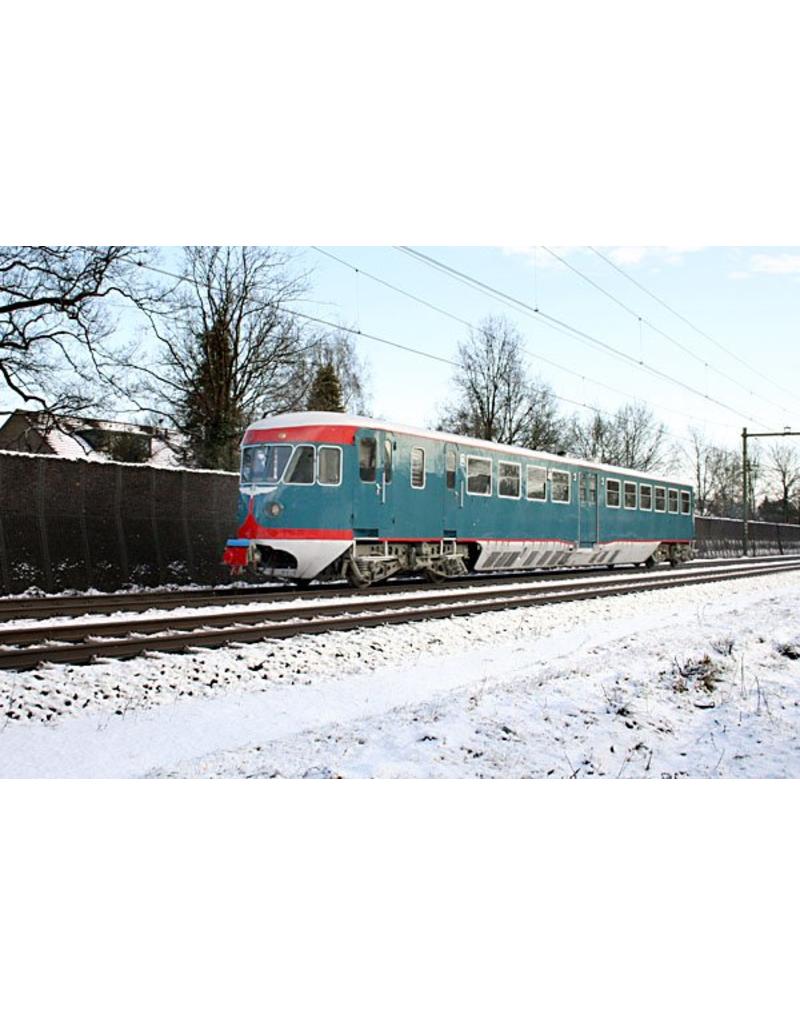

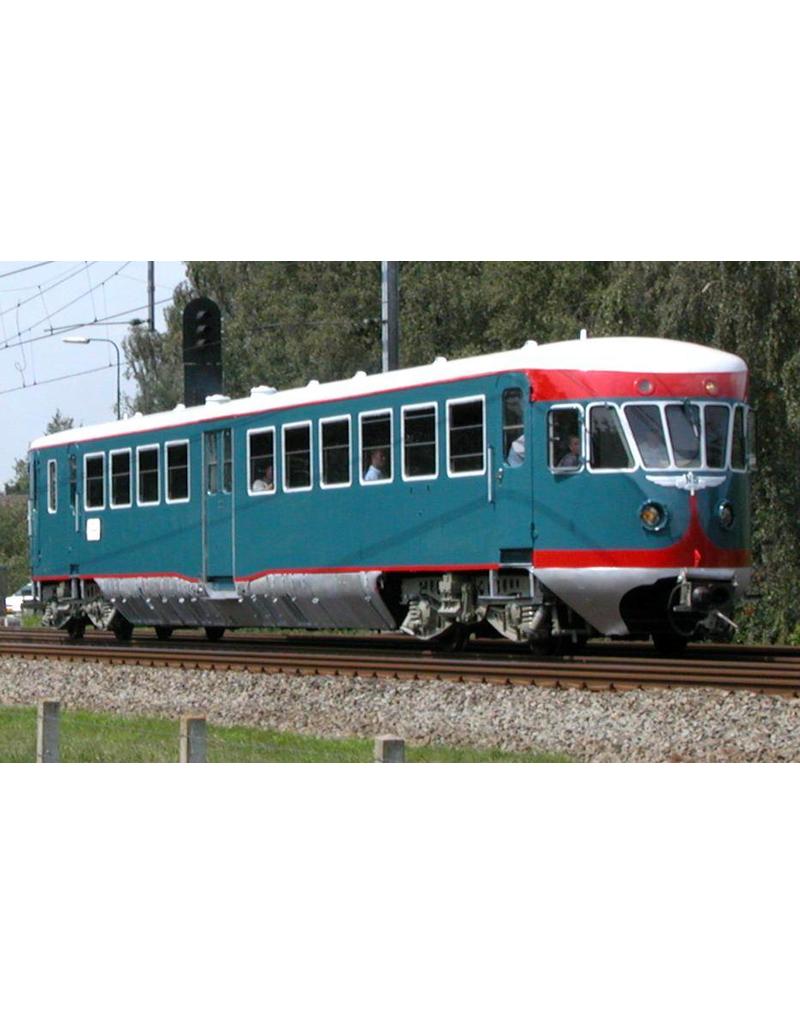

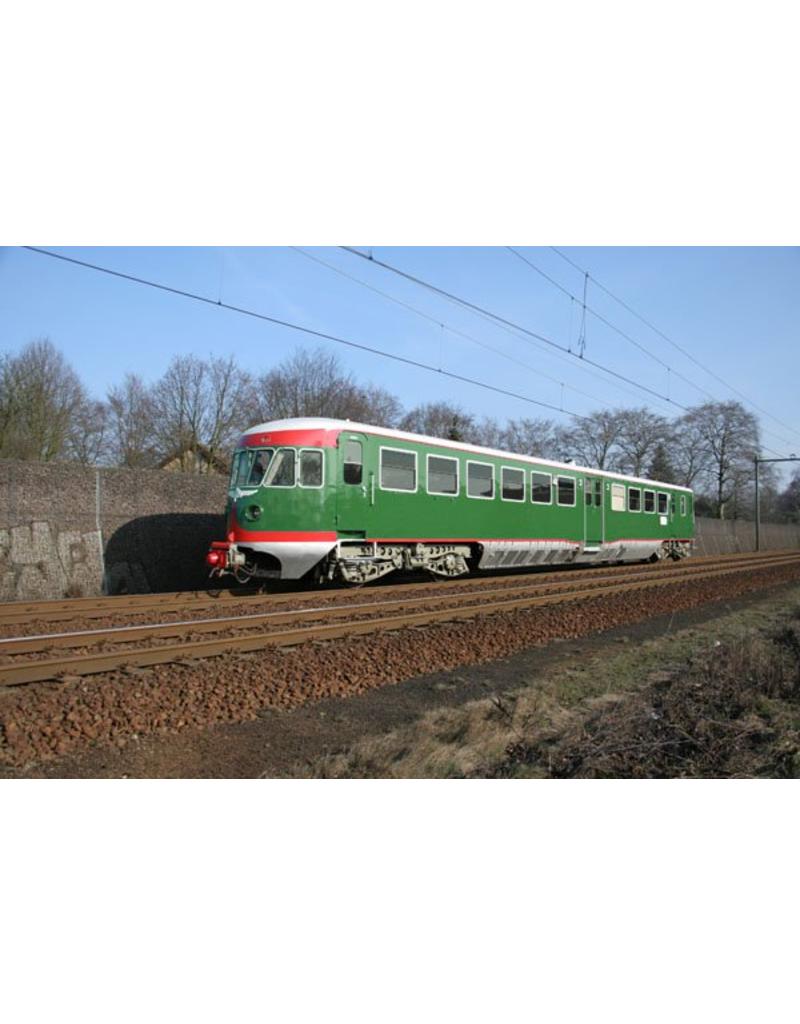

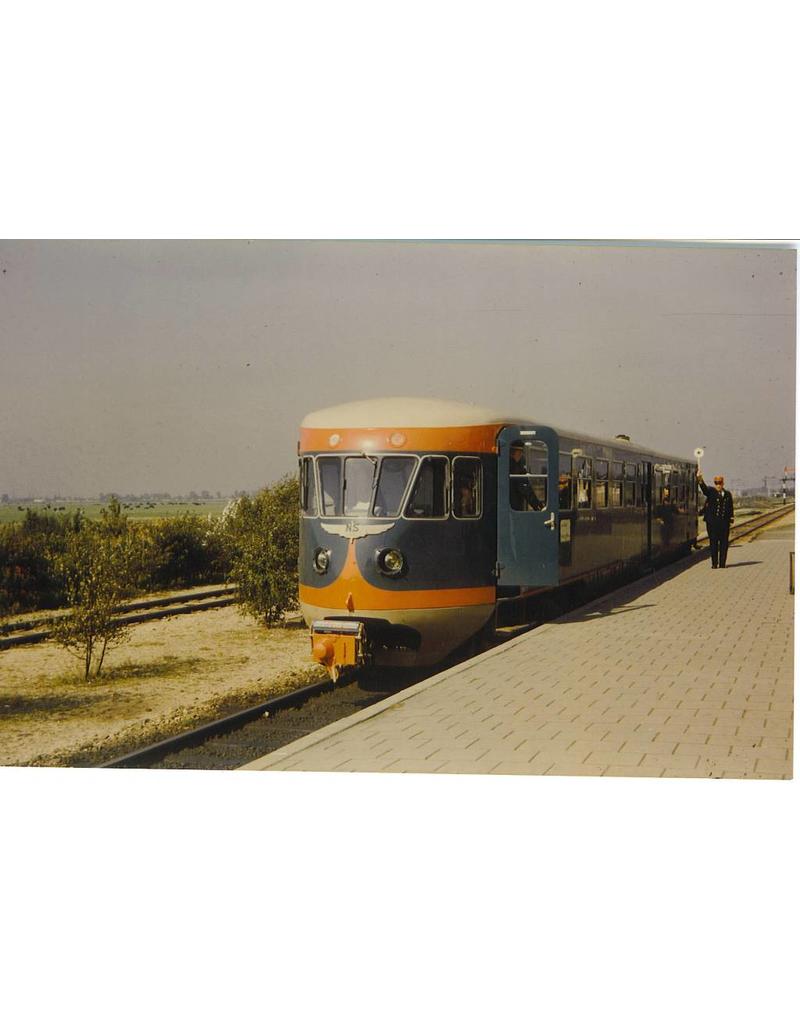

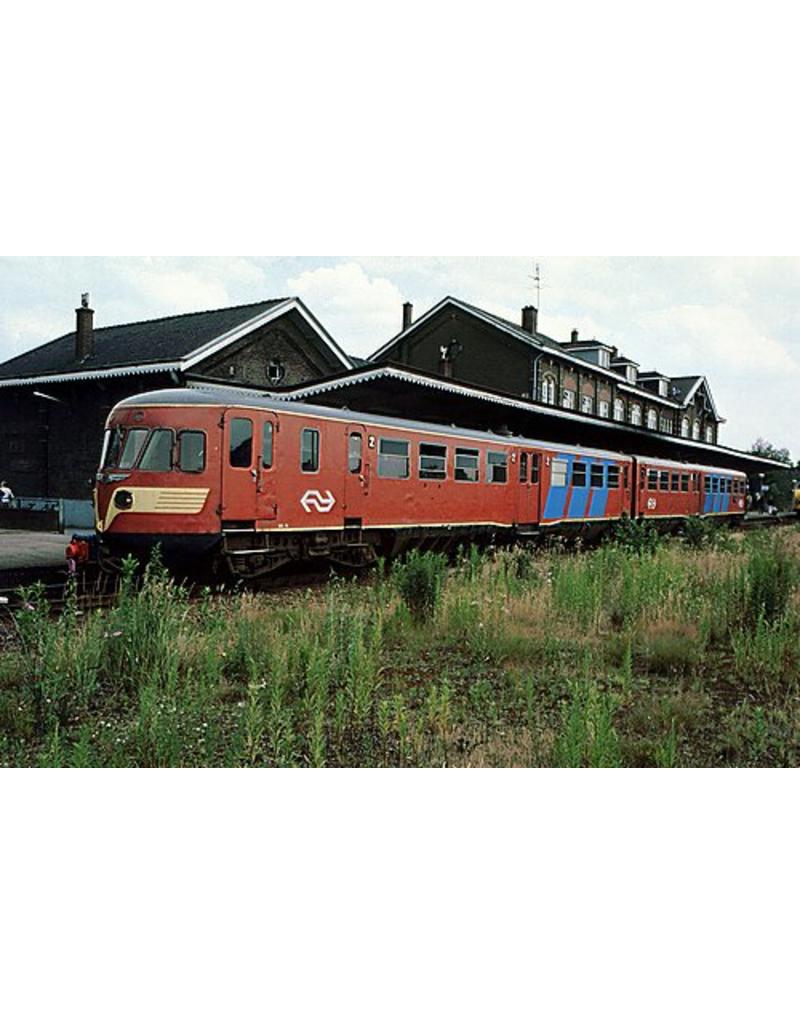

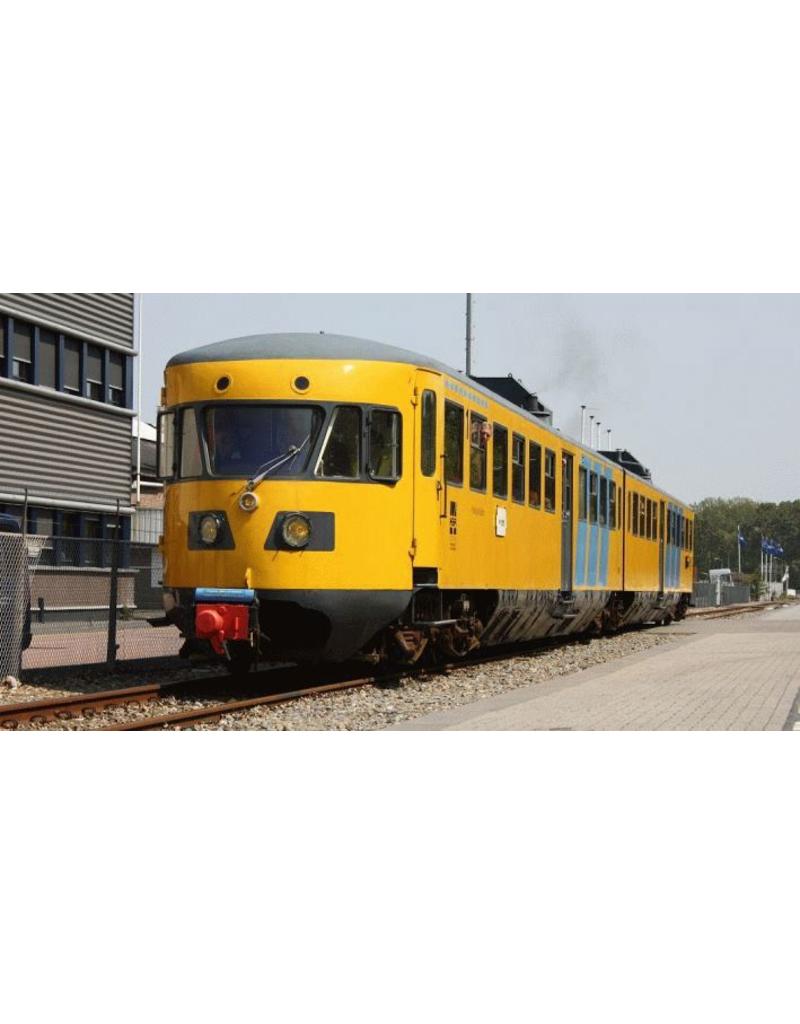

DE-train set 21-60 - ("Blue Angel") for gauge 0 |
|
Quality |

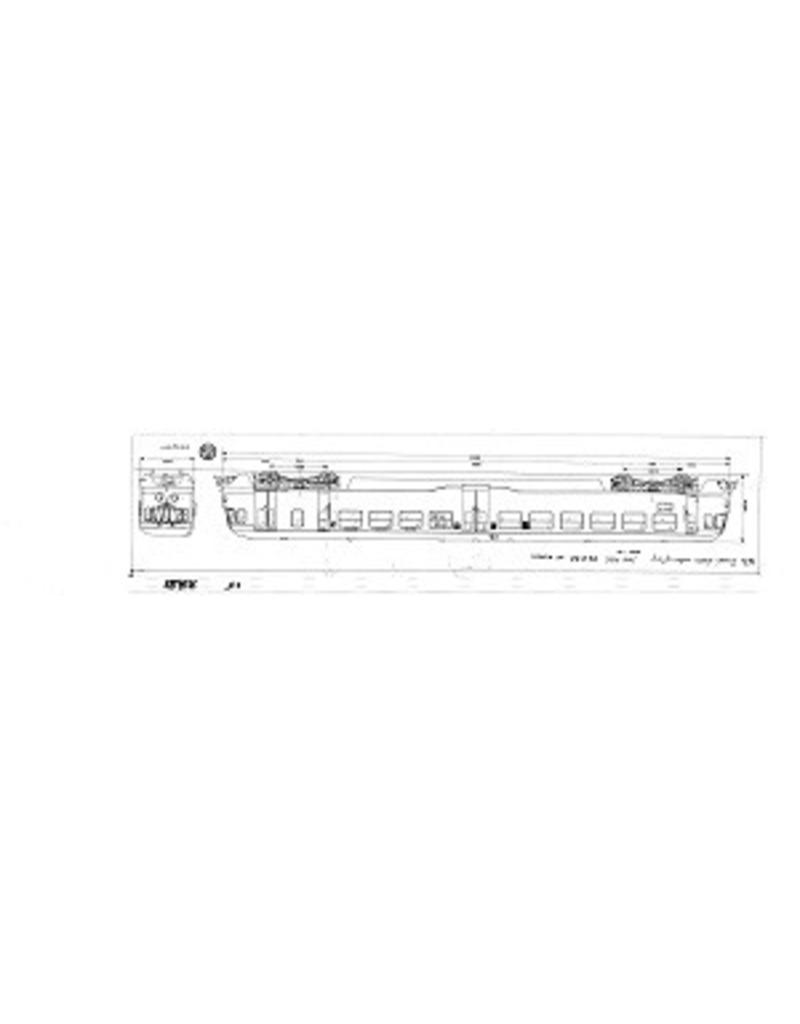

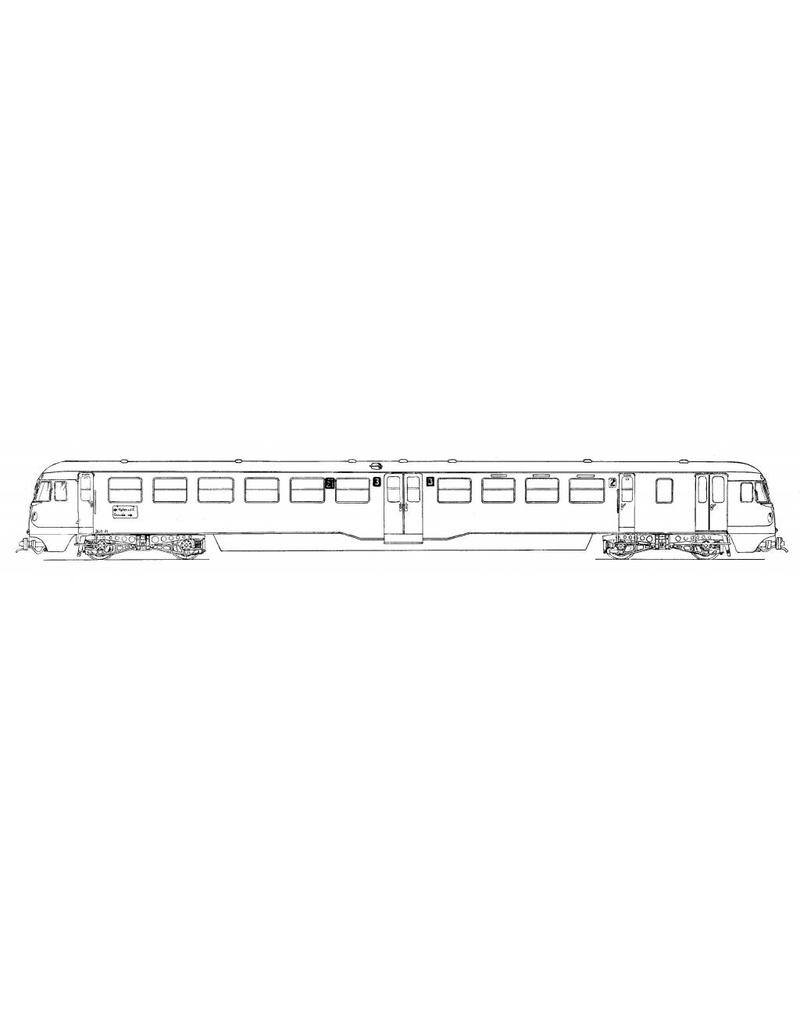

very simple dimension sketch with main dimensions prototype |
|
Difficulty level |
C |
|
Scale |
1 : 45 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Details |
dM 1953/8 |
|
Remarks |
Ì´Ì_ |
