MBT 20.04.002 DE-2 multiple unit 61-106 - ("Blue Angel") for gauge 0 and H0

Drawing number

20.04.002

Author

C.H.Ì´Ì_Bongers

Description

DE-2 multiple unit 61-106 - ("Blue Angel") for gauge 0 and H0

Quality

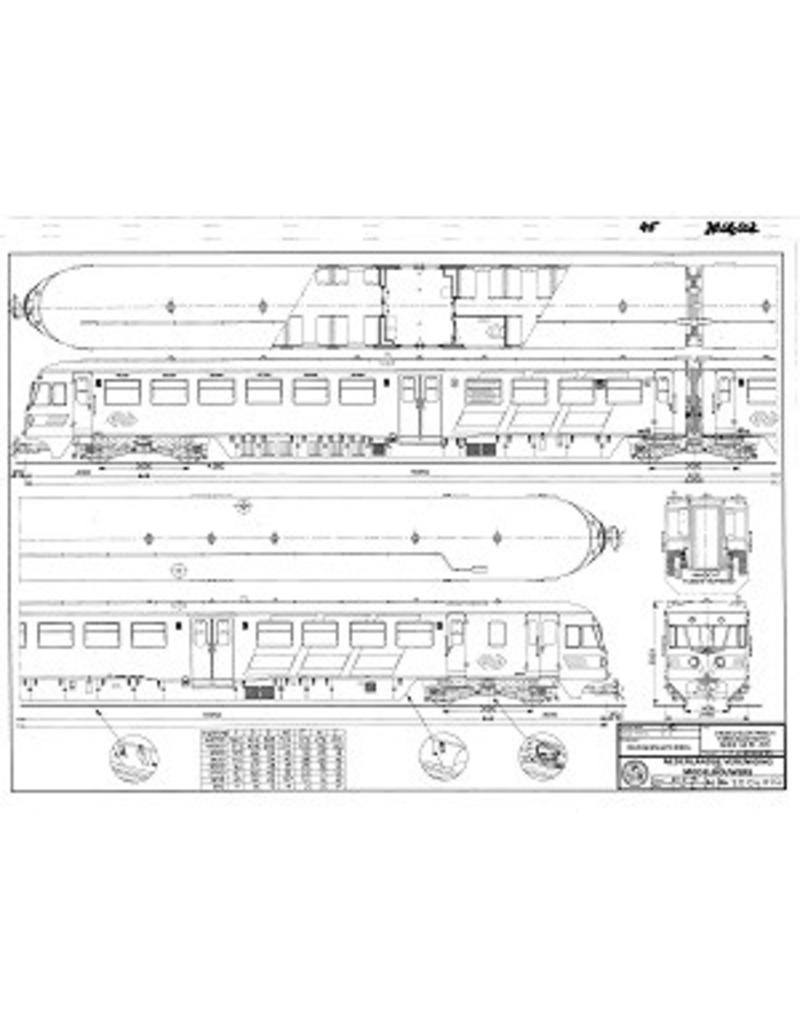

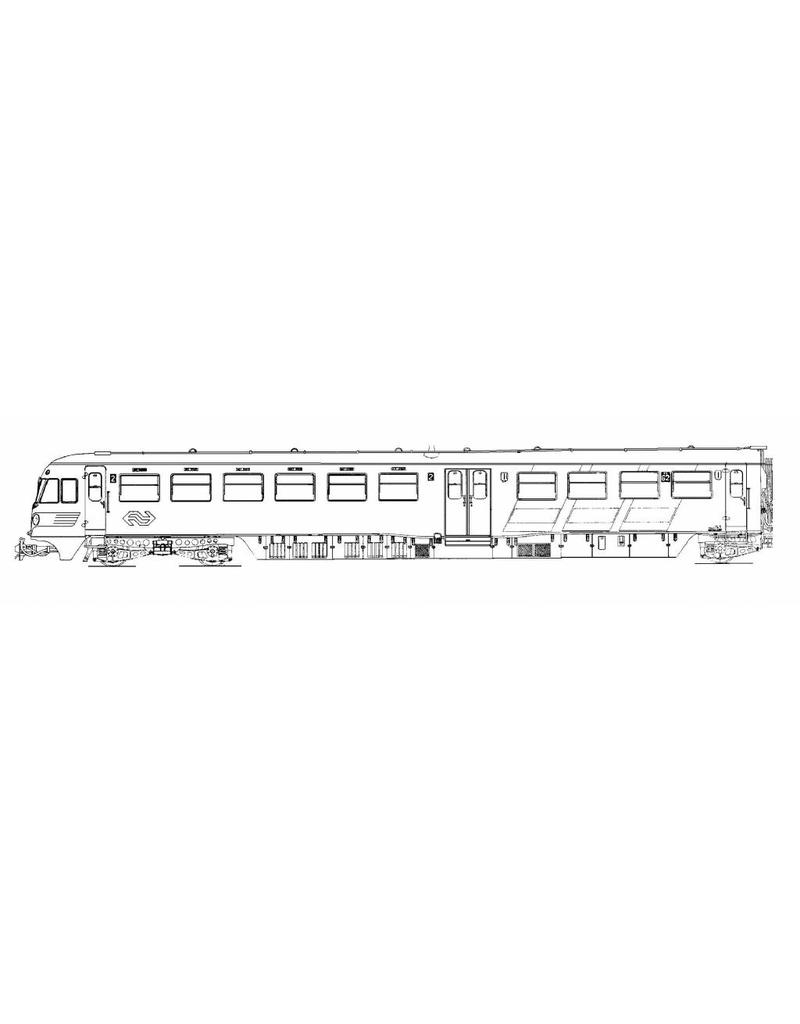

detailed dimensioned sketch 1:45 with prototype dimensions; parts with dimensions for H0

Difficulty level

D

Scale

1 : 45

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

2

Number of A3 sheets

0

Number of A4 sheets

0

Total number of drawing sheets

2

Number of A4 text sheets

0

Weight in grams

65

Details

dM 1979/2-12, 1980/1-3, 5-8

Article copy: 22.04.002 (36 pages)

Sheet 1 contains a conversion table for dimensions of gauges I to TT

Remarks
