| Article number: | 20.05.015 |
Specifications :
|
Drawing number |
20.05.015 |
|
Author |
W.C. Verboom |
|
Description |

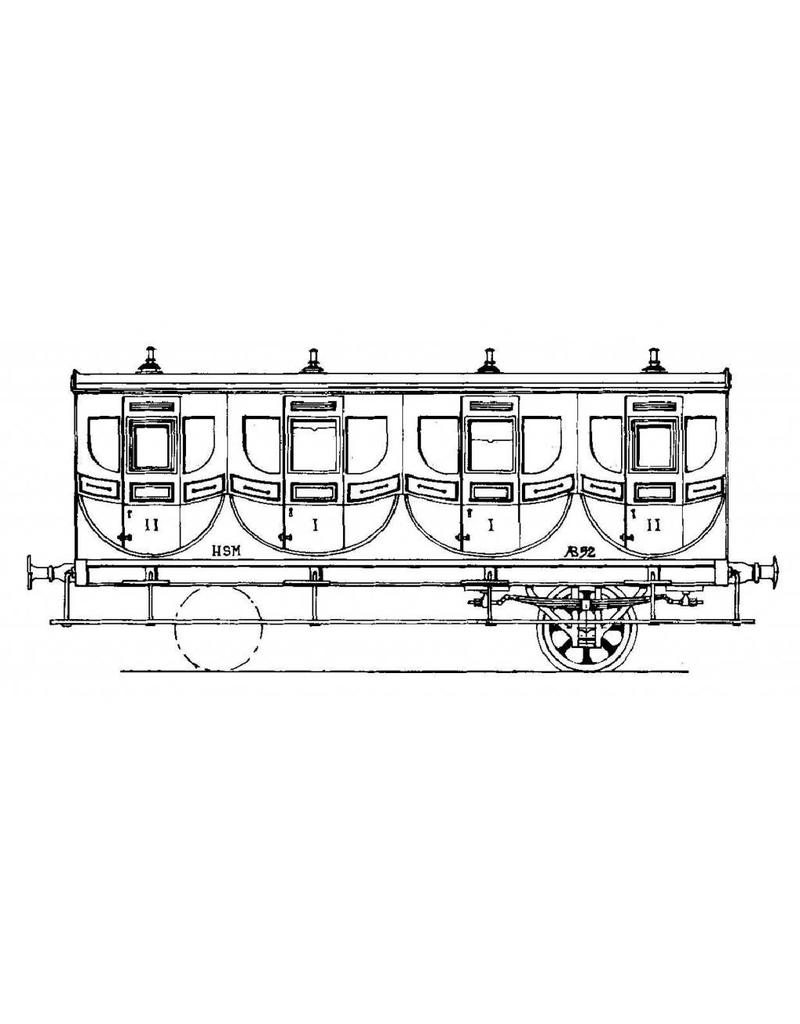

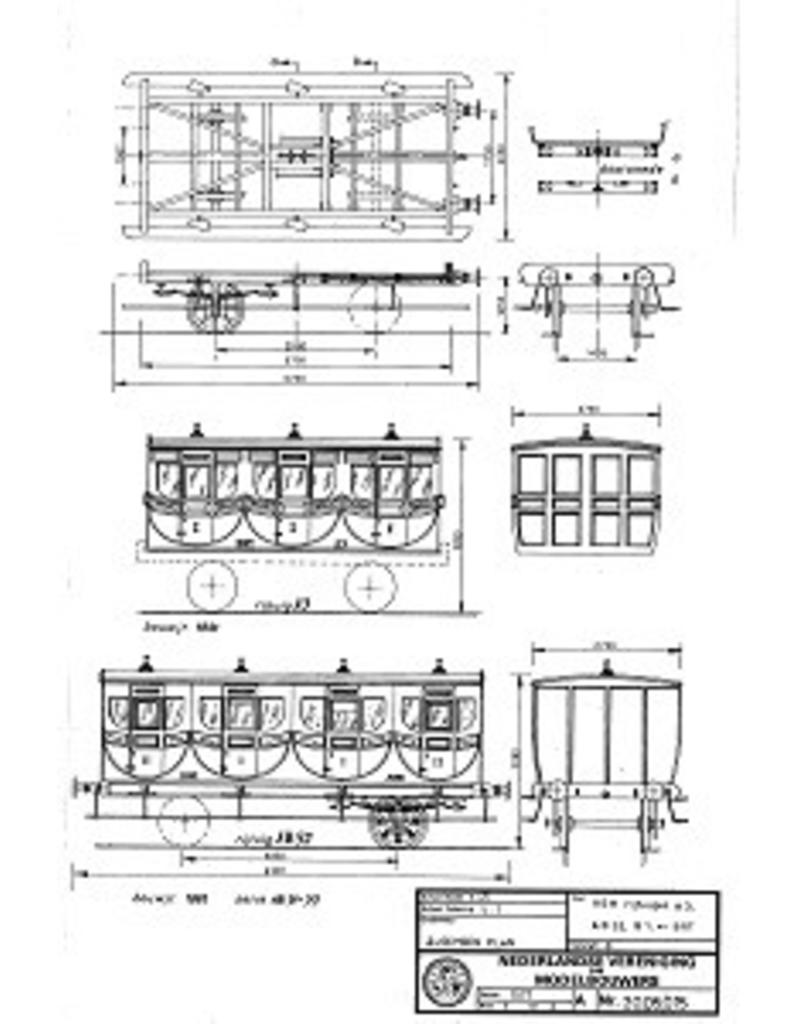

HSM carriages A3, AB52, B1, B67 for gauge 0 |
|
Quality |
detailed dimensioned sketches with prototype dimensions |
|
Difficulty level |
C |
|
Scale |
1 : 45 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
2 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Particulars |
dM 1979/4,5, 1986/9 |
|
Remarks |
