| Article number: | 20.05.020 |
Specifications :
|
Drawing number |
20.05.020 |
|
Author |
W.C. Verboom |
|
Description |

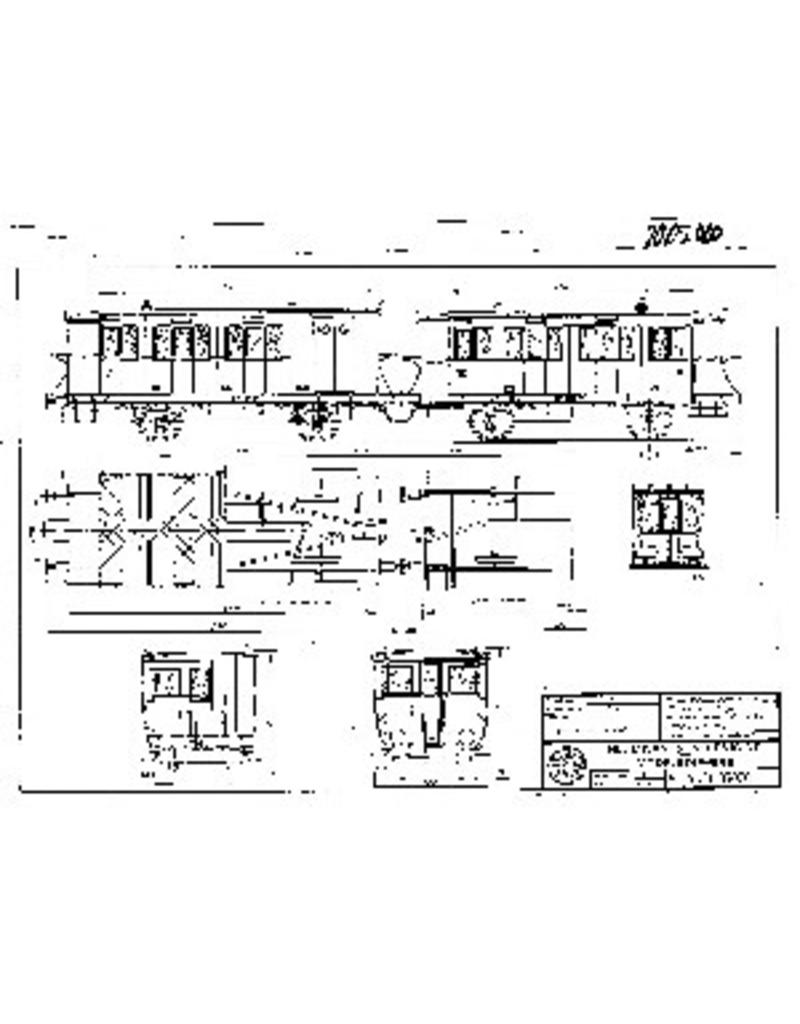

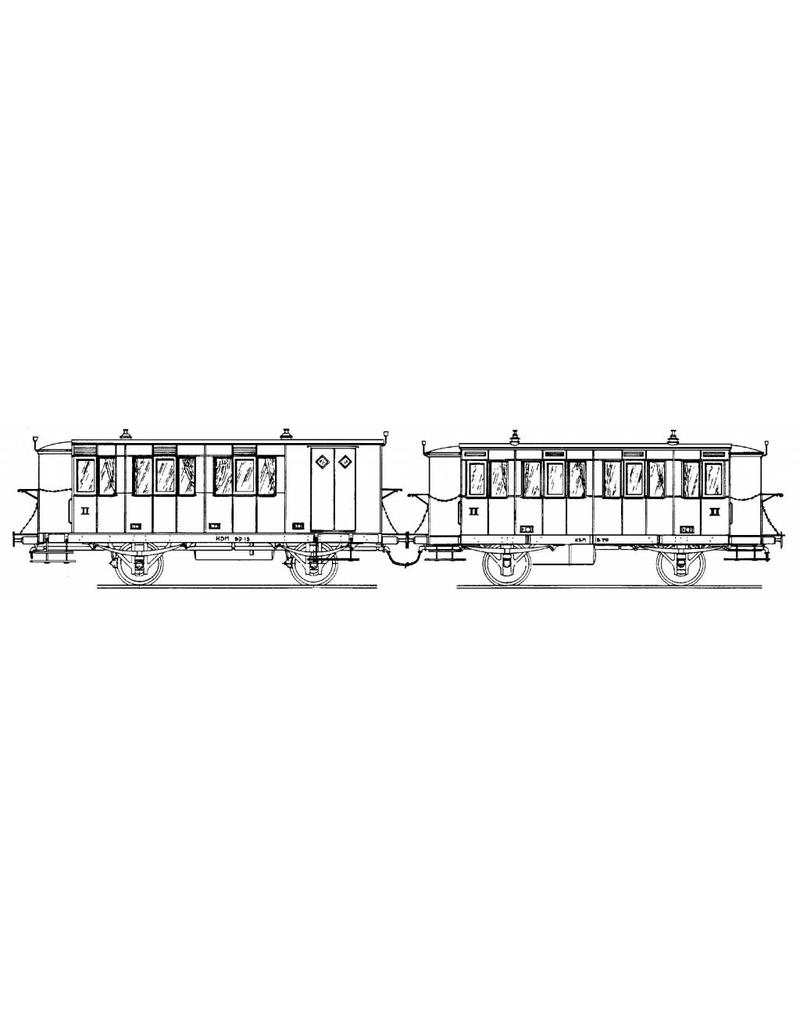

HIJSM local railway carriages BD 13, B 70 for gauge 0 |
|
Quality |
detailed dimensioned sketch with frame details and prototype dimensions |
|
Difficulty level |
C |
|
Scale |
1 : 49 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
1 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Particulars |
dM 1981/10 |
|
Remarks |
