| Article number: | 20.05.028 |
Specifications :
|
Drawing number |
20.05.028 |
|
Author |
L. Derens |
|
Description |

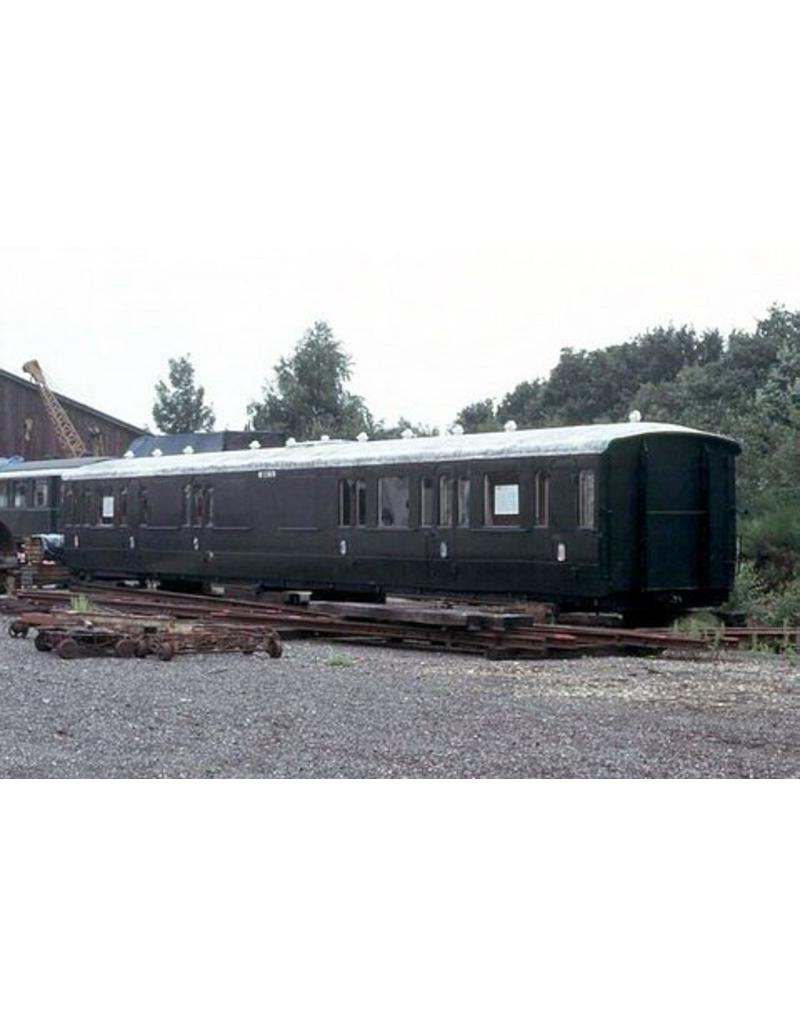

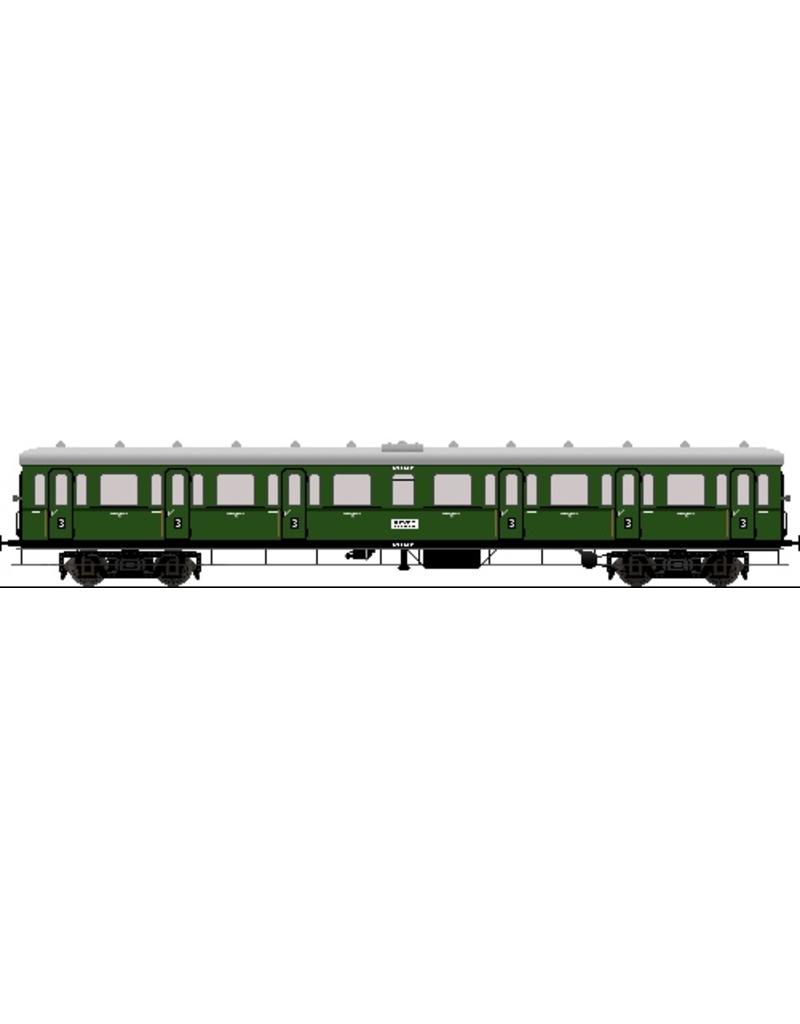

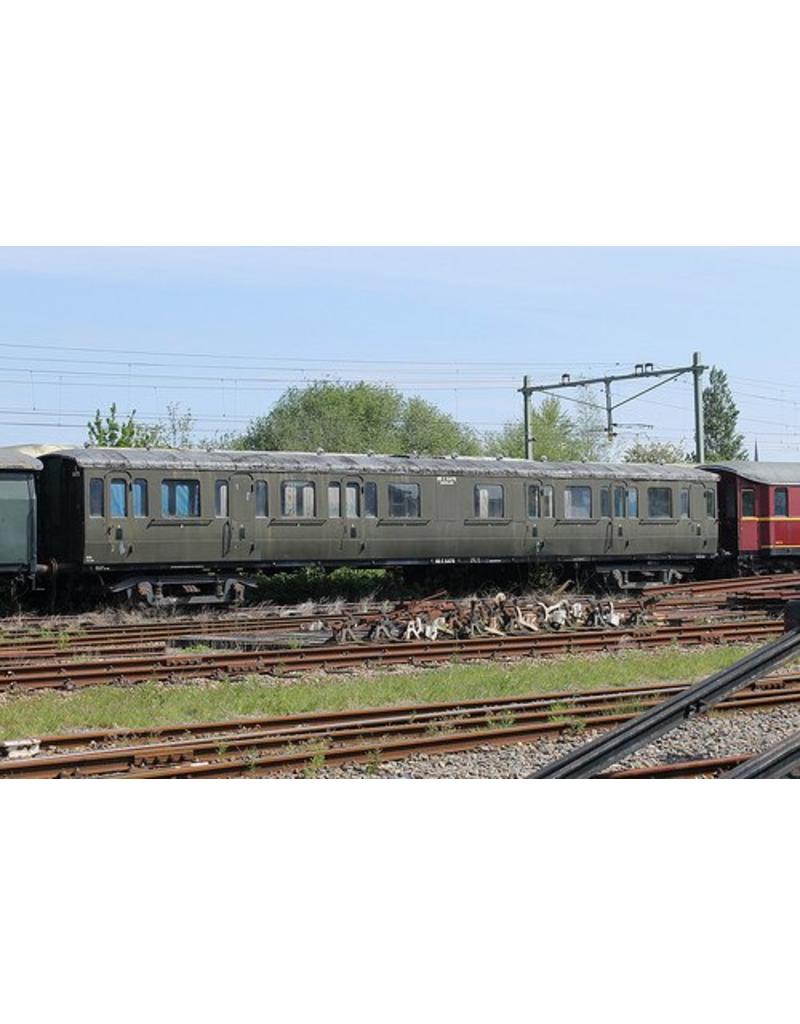

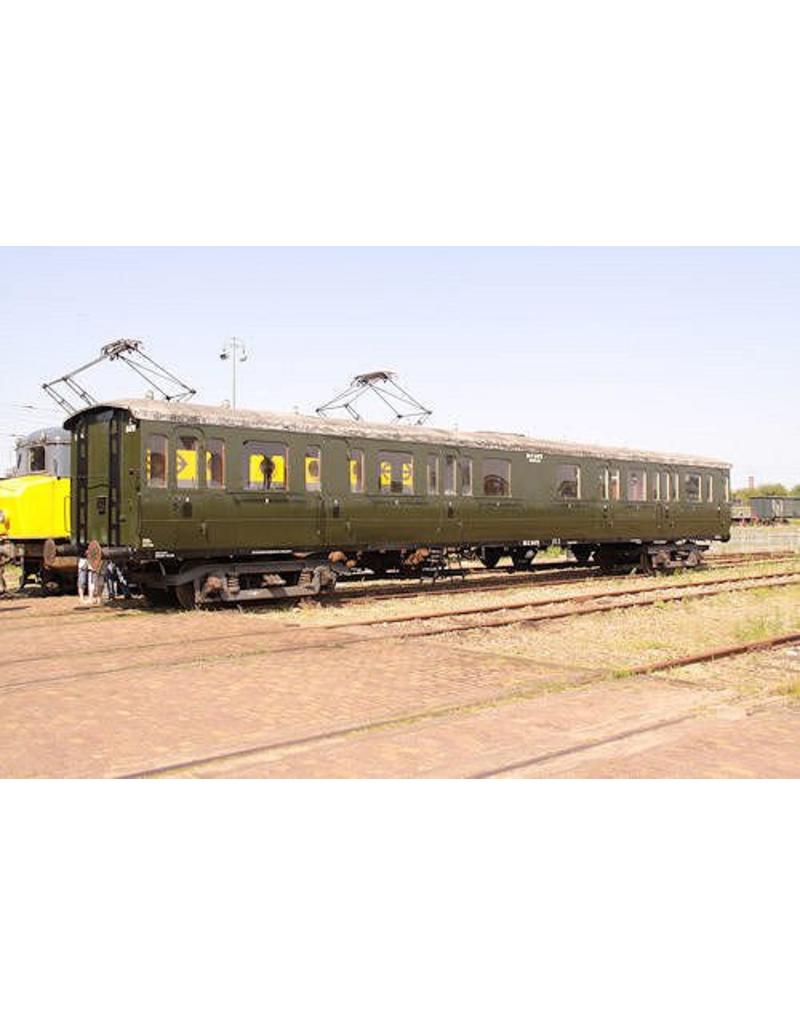

3rd class carriage type C12c Series 6400 for gauge 0 |
|
Quality |

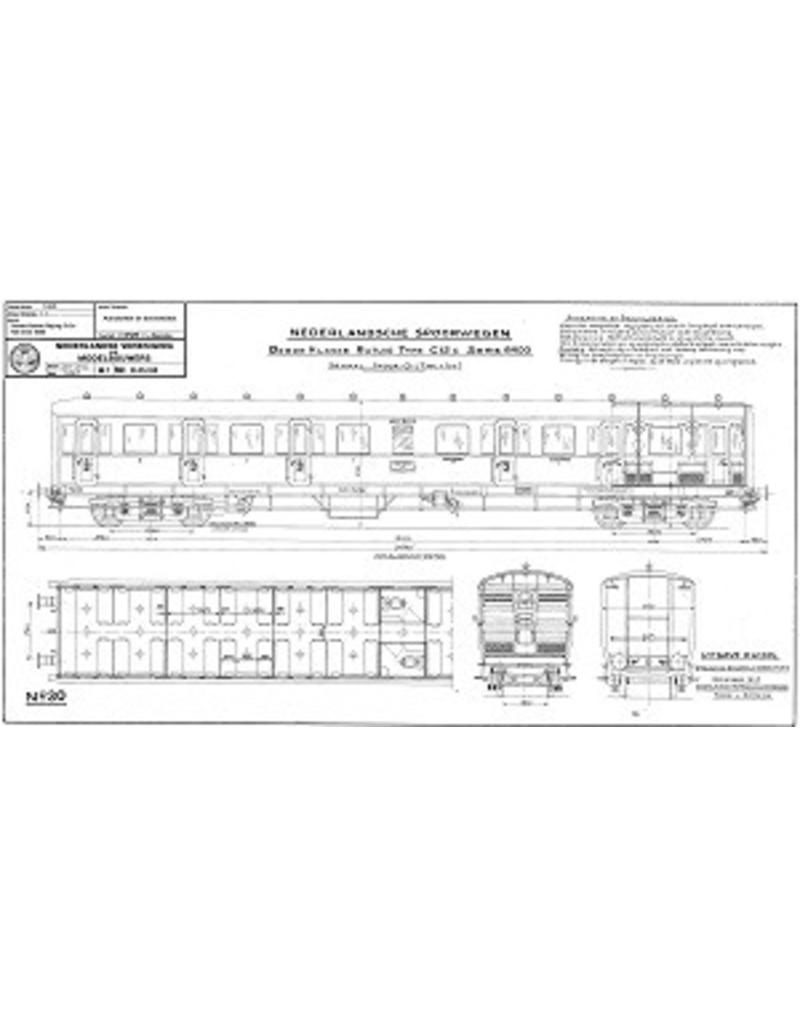

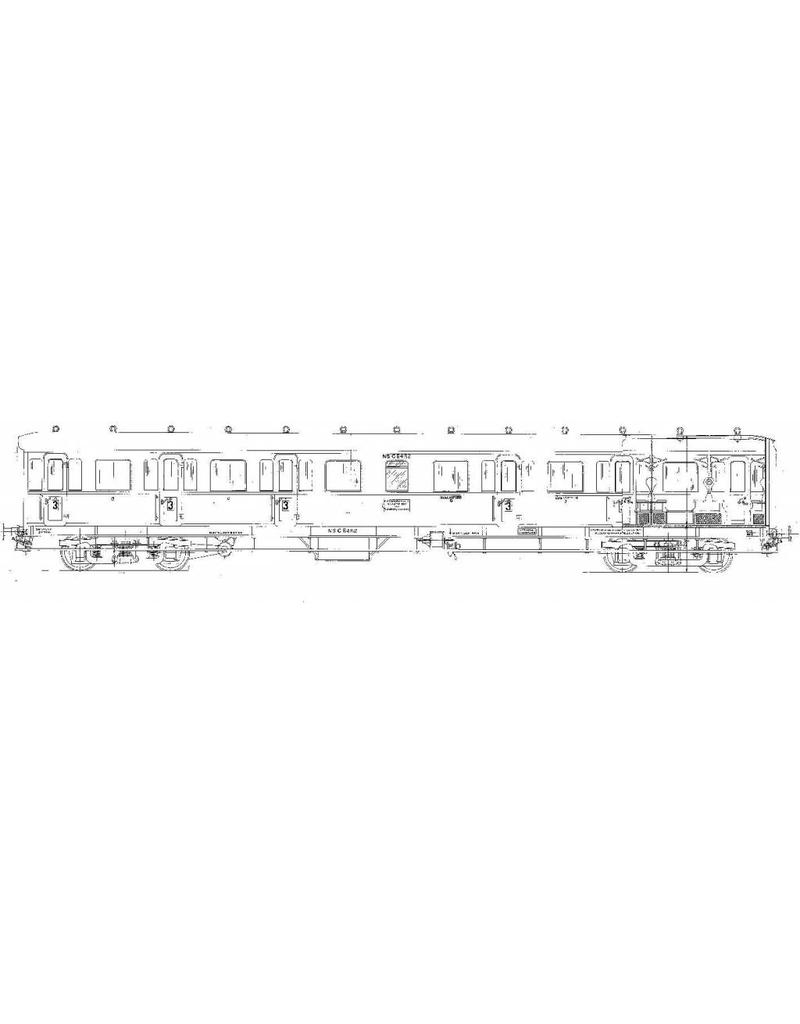

detailed dimensioned sketch with all-round views and prototype dimensions |
|
Difficulty level |
B |
|
Scale |
1 : 43,5 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
1 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Particulars |
original drawing no. Derens no. 30 |
|
Remarks |
