| Article number: | 20.09.001 |
Specifications :
|
Drawing number |
20.09.001 |
|
Author |
J.H.M.Nahon |
|
Description |

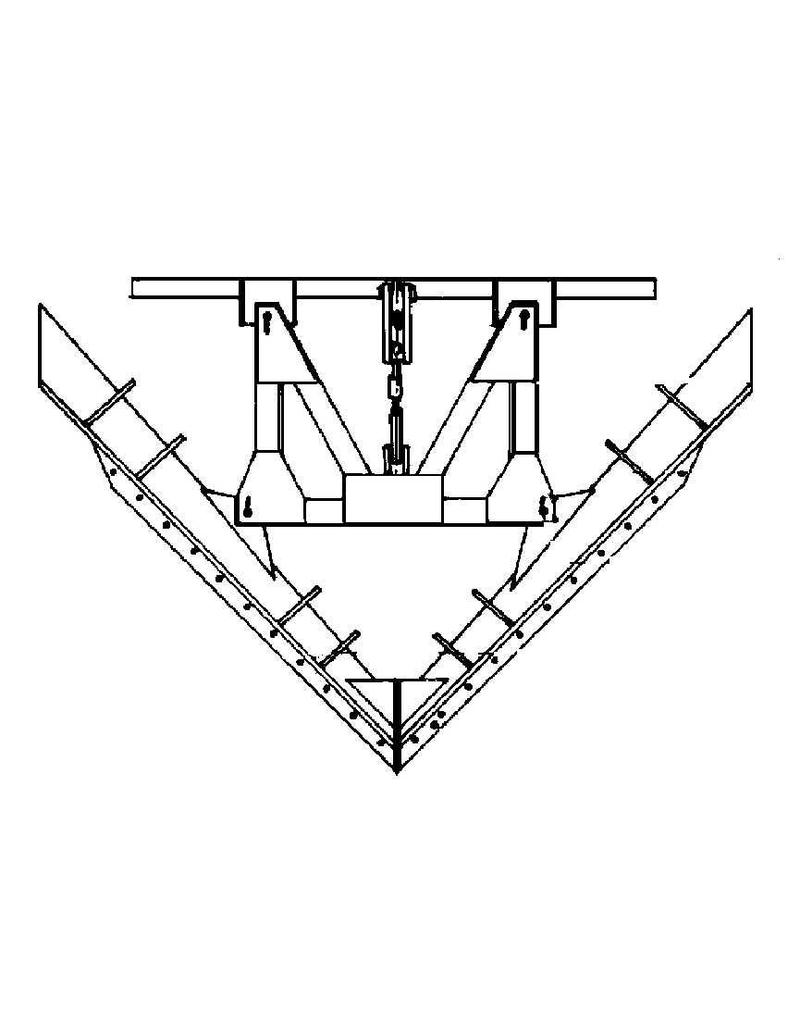

snow plough for NS 2200/2300 for gauge I |
|
Quality |
construction drawing with prototype dimensions |
|
Difficulty level |
B |
|
Scale |
1 : 32 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
1 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Particulars |
dM 1982/2 |
|
Remarks |
fill in number of pages |
