| Article number: | 20.09.002 |
Specifications :
|
Drawing number |
20.09.002 |
|
Author |
W.A. van Schaik |
|
Description |

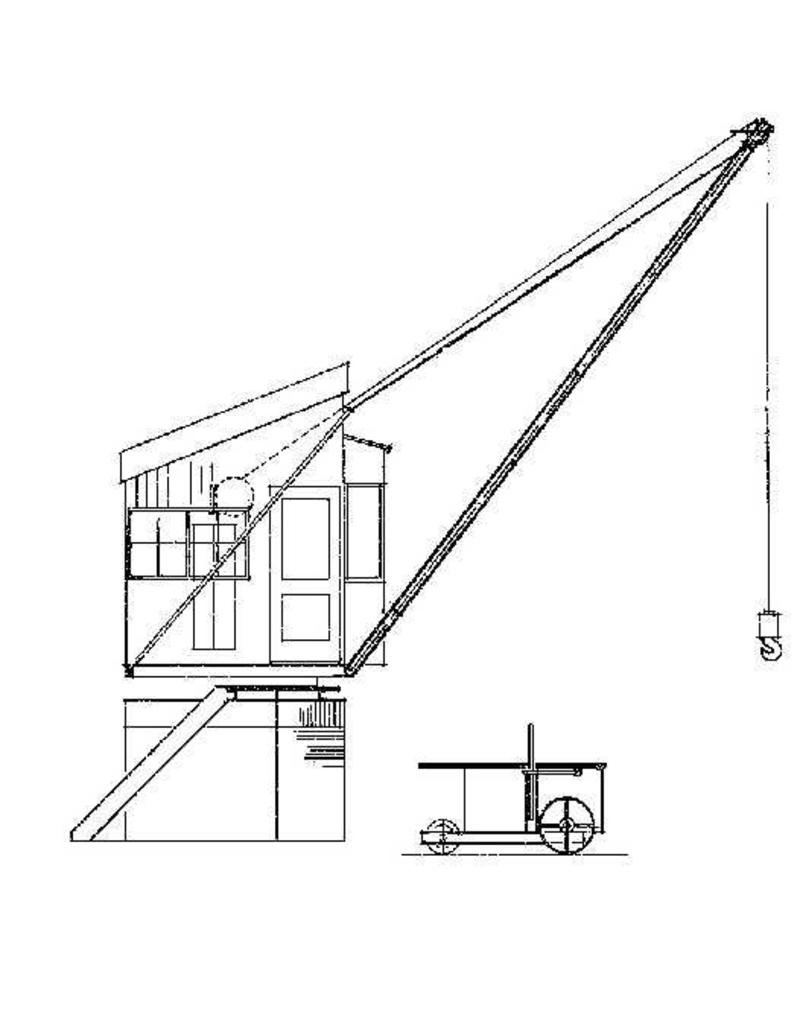

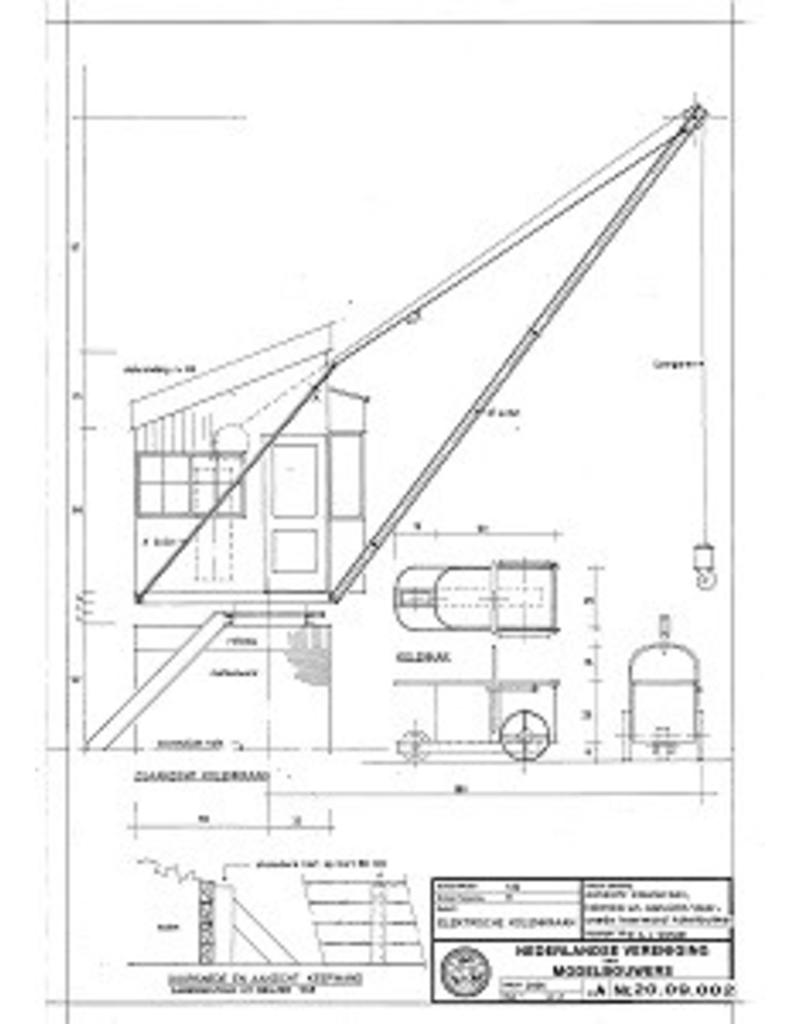

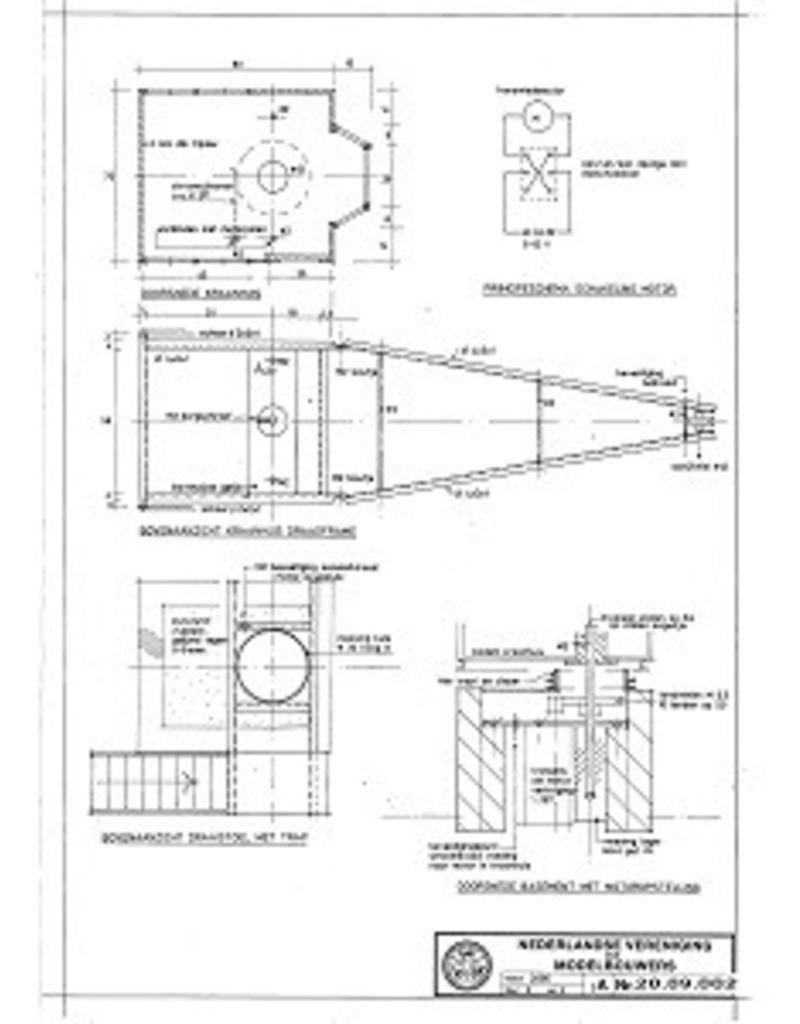

Electric coal crane for gauge 0 |
|
Quality |
construction drawing with model dimensions |
|
Difficulty level |
C |
|
Scale |
1 : 32 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
2 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Special features |
dM 2007/1 |
|
Remarks |
