| Article number: | 20.79.005 |
Specifications :
|
Drawing number |
20.79.005 |
|
Author |
J.H.M. Nahon |
|
Description |

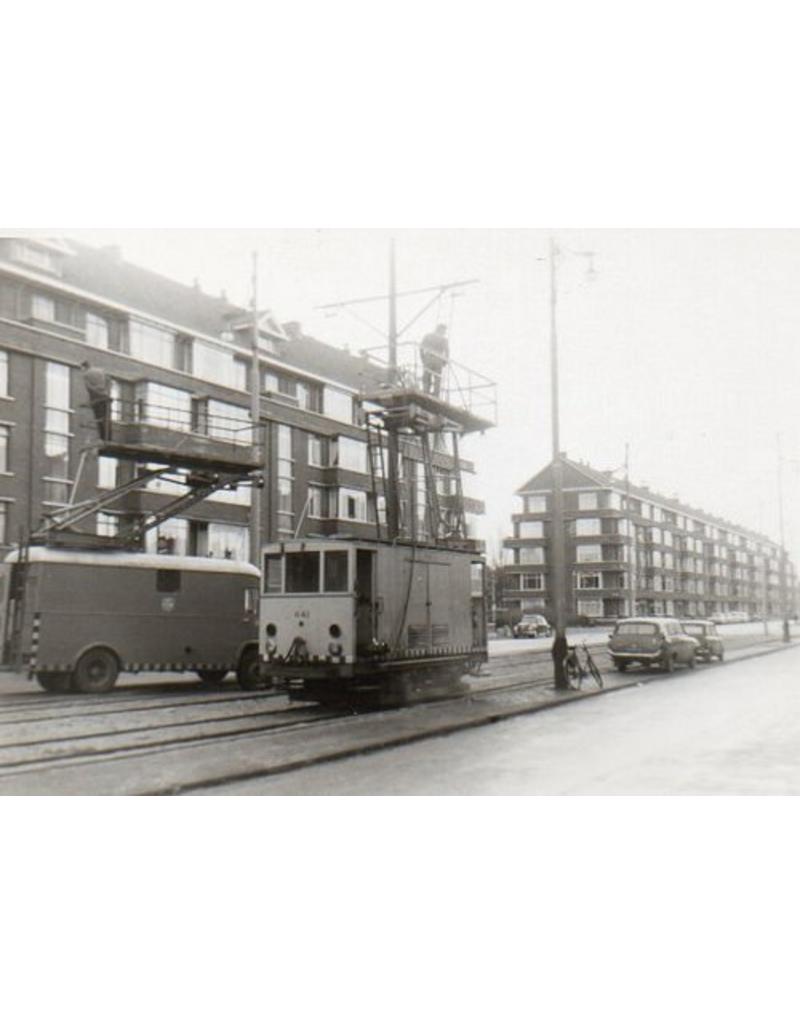

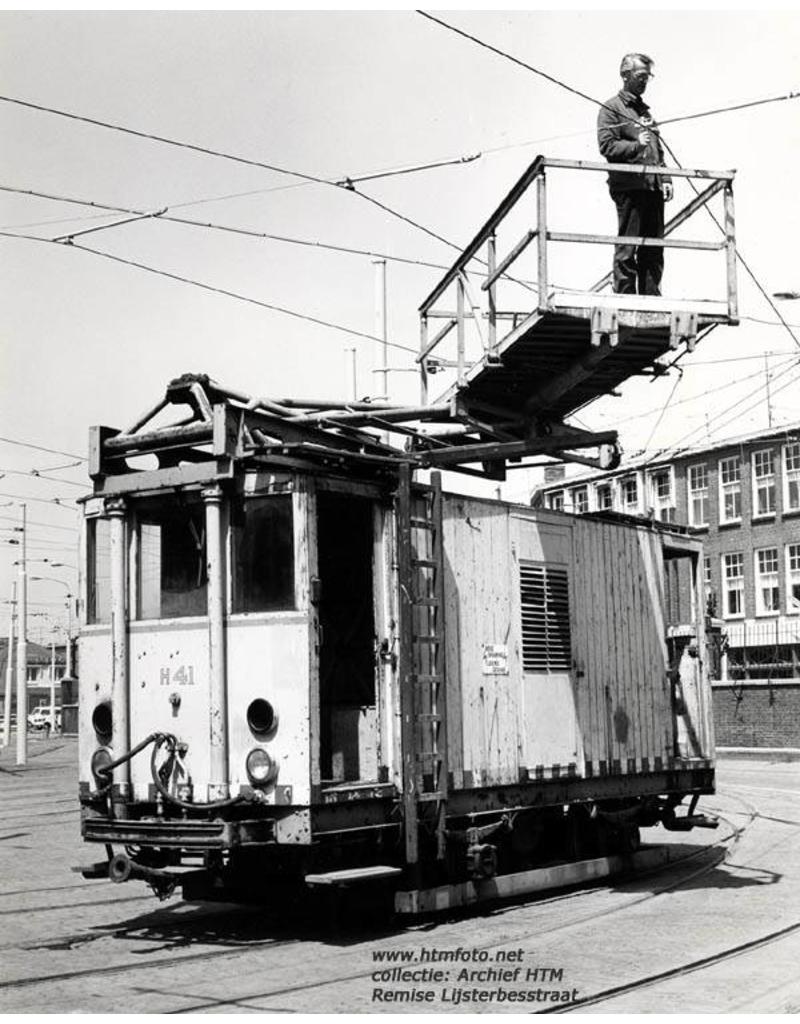

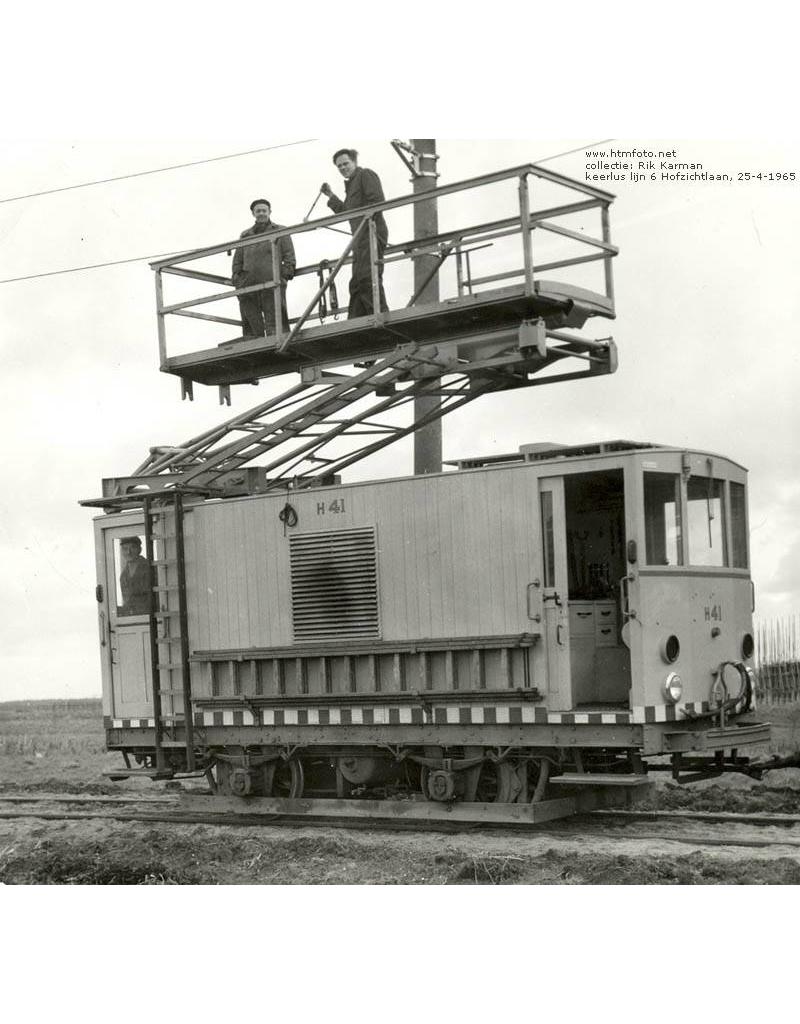

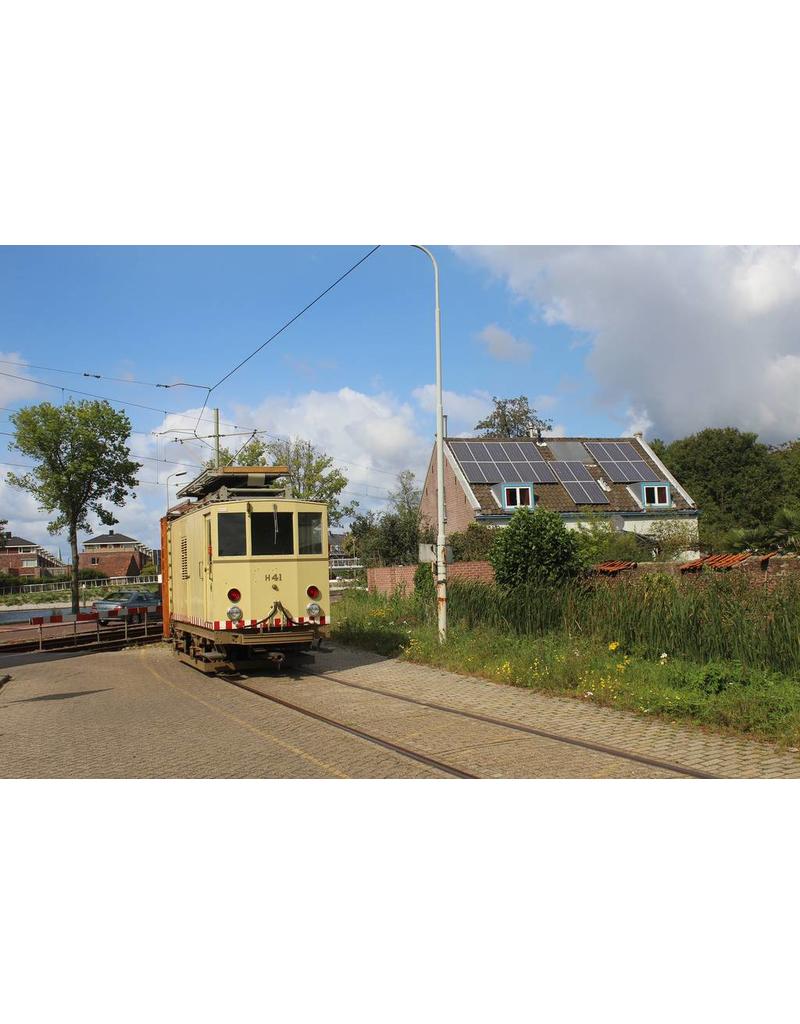

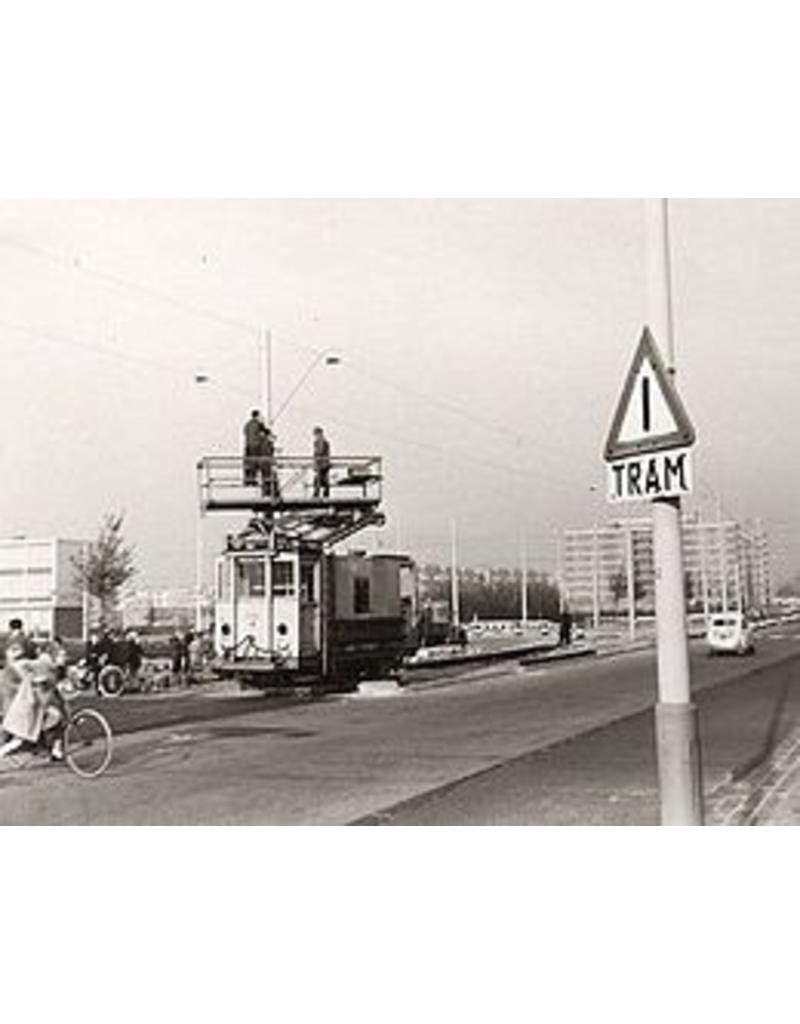

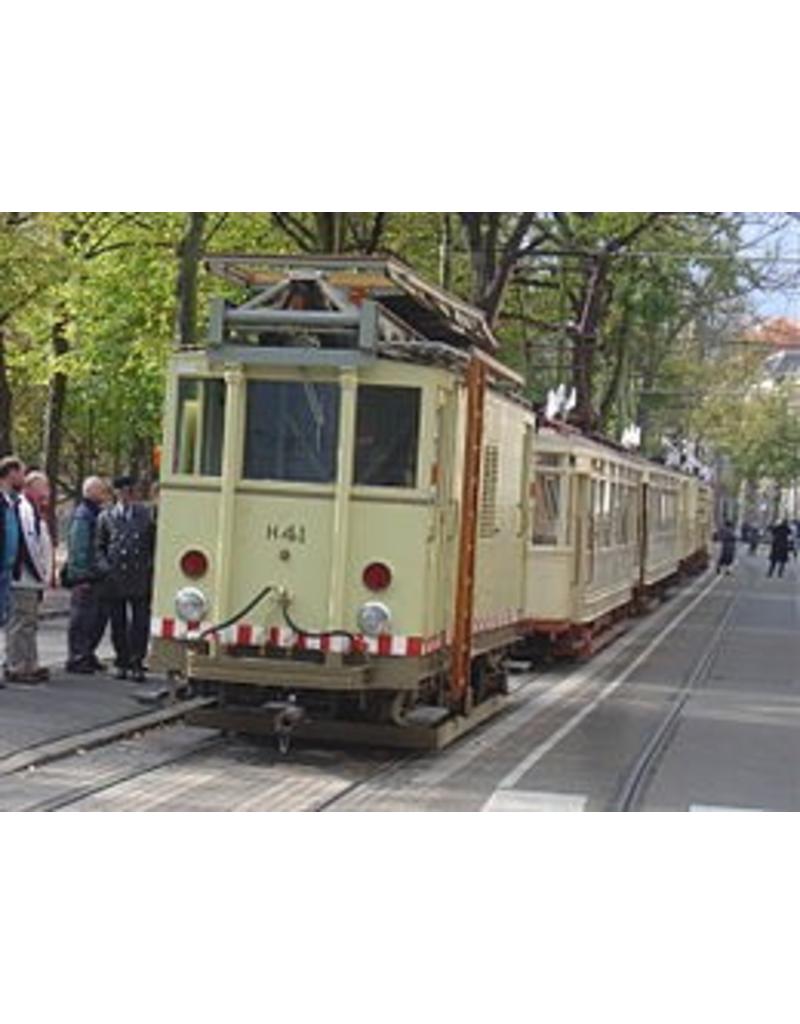

HTM overhead line maintenance vehicle H4; "Dieseltinus"; for gauge I |
|
Quality |

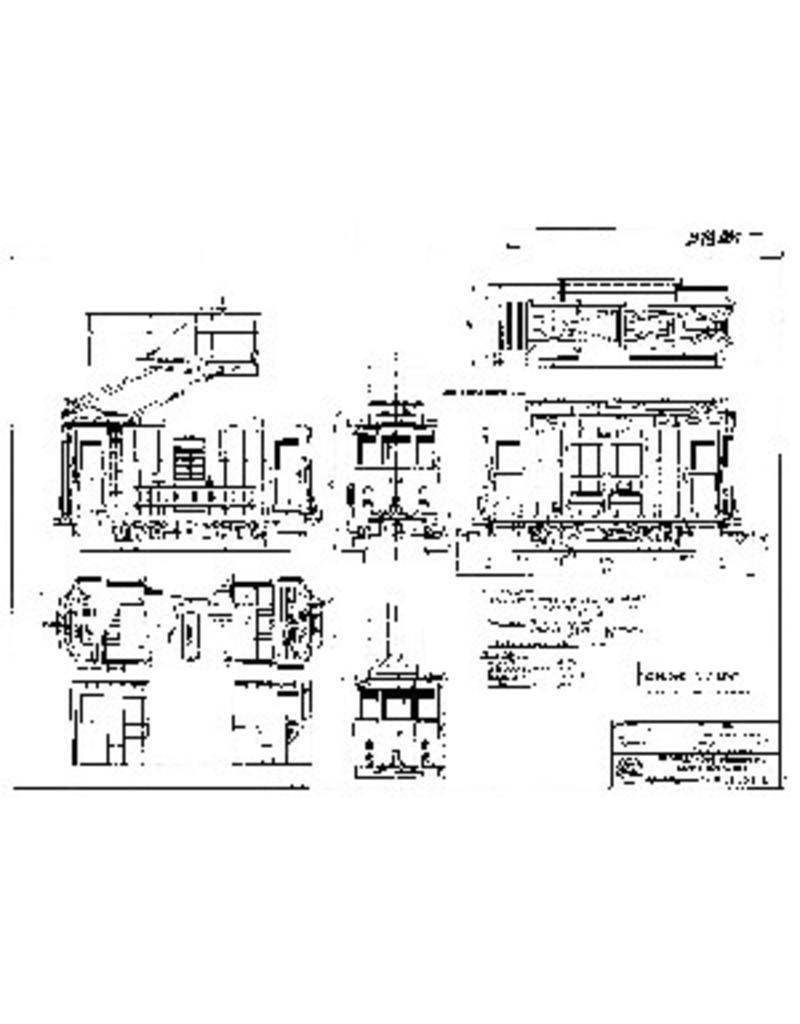

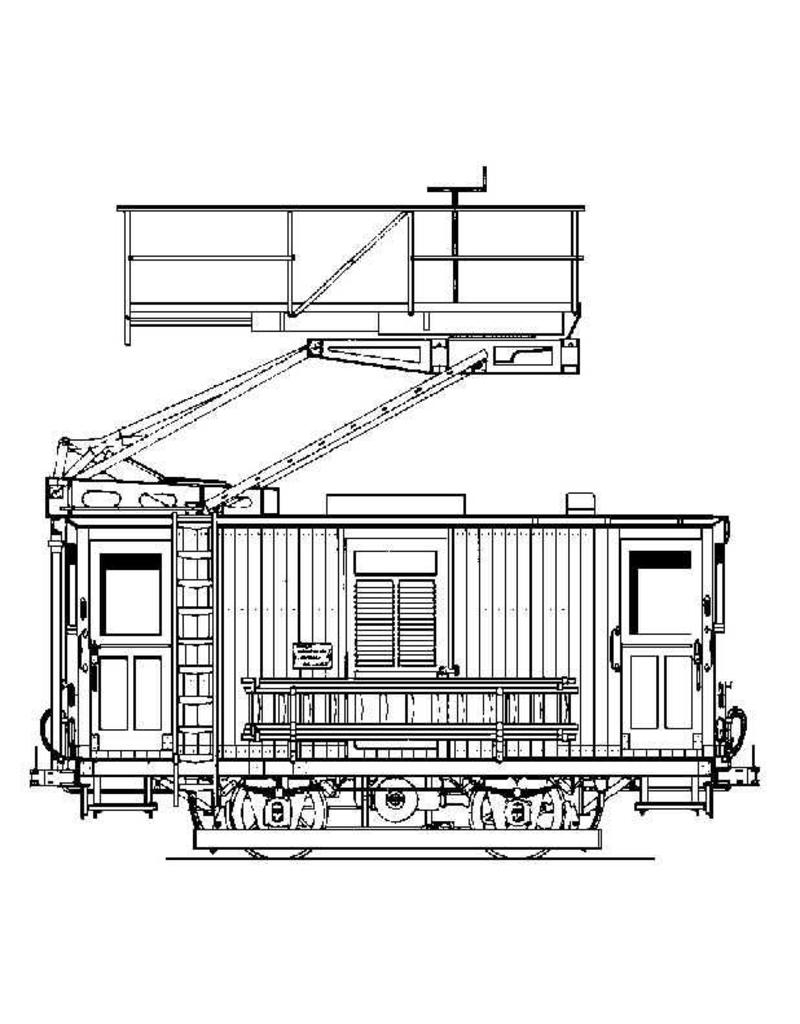

dimensioned sketch with main dimensions prototype |
|
Difficulty level |
C |
|
Scale |
1 : 32 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Special features |
dM 1979/7, 1980/5 |
|
Remarks |
