| Article number: | 21.03.002 |
Specifications :
|
Drawing number |
21.03.002 |
|
Author |
A.J. Horden |
|
Description |

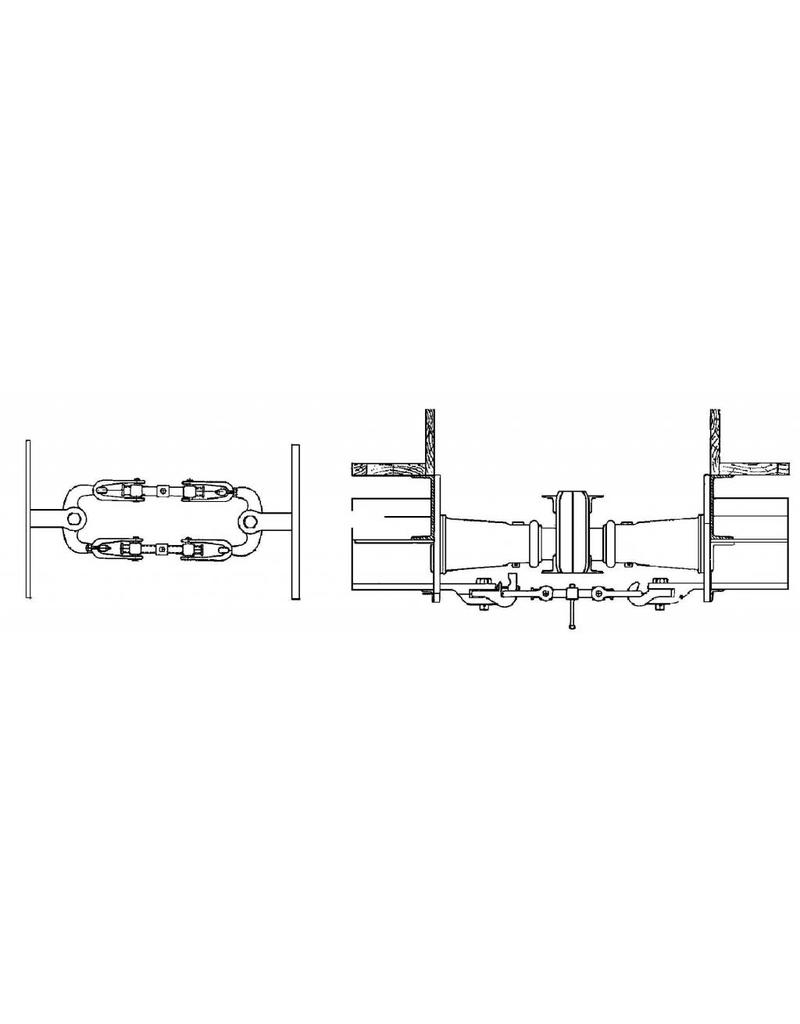

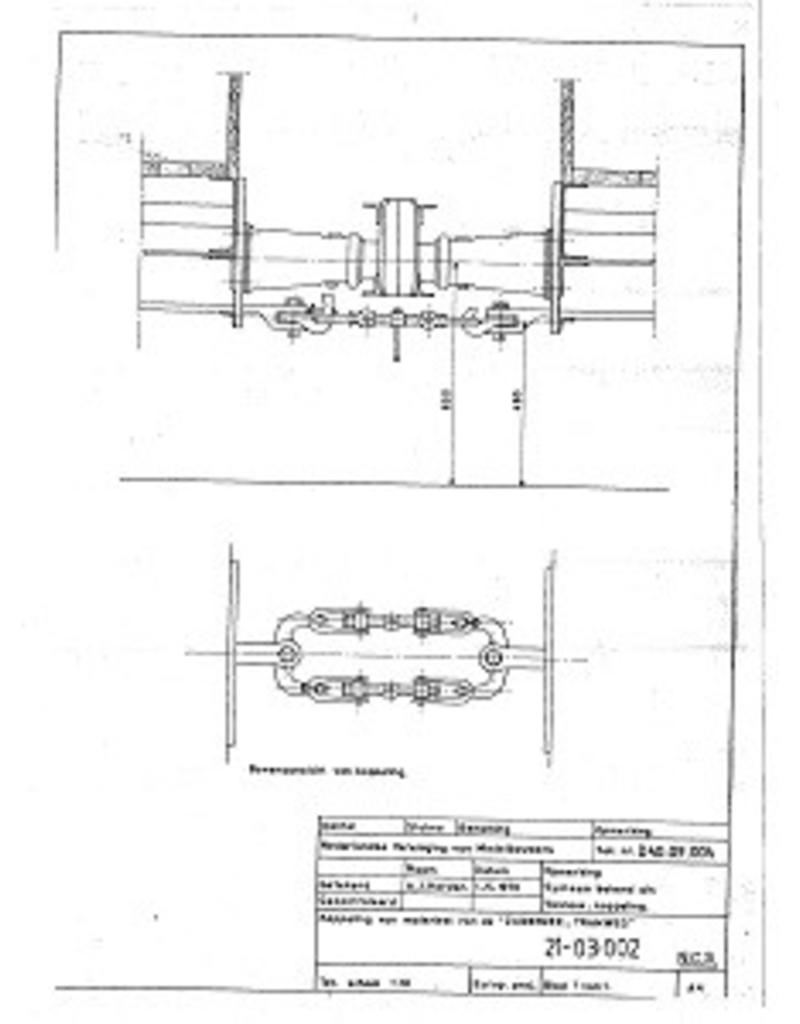

draw gear for Zuiderzee Tramway rolling stock; Vicinaux coupling |
|
Quality |
detailed drawing with main dimensions prototype |
|
Difficulty level |
B |
|
Scale |
1 : 10 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
1 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
30 |
|
Particulars |
dM 1970/9, 1971/2 |
|
Remarks |
