| Article number: | 29.03.061 |
|
Drawing number |
29.03.061 |
|
Author : |
J.J.B. Vellekoop |
|
Description |

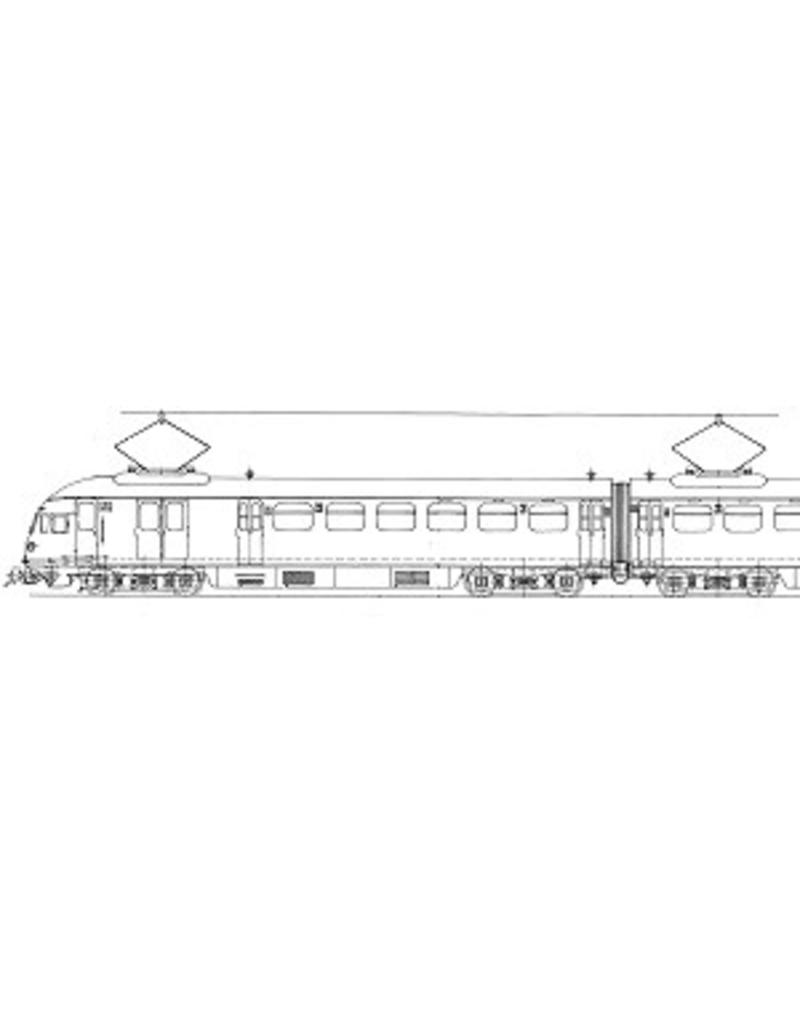

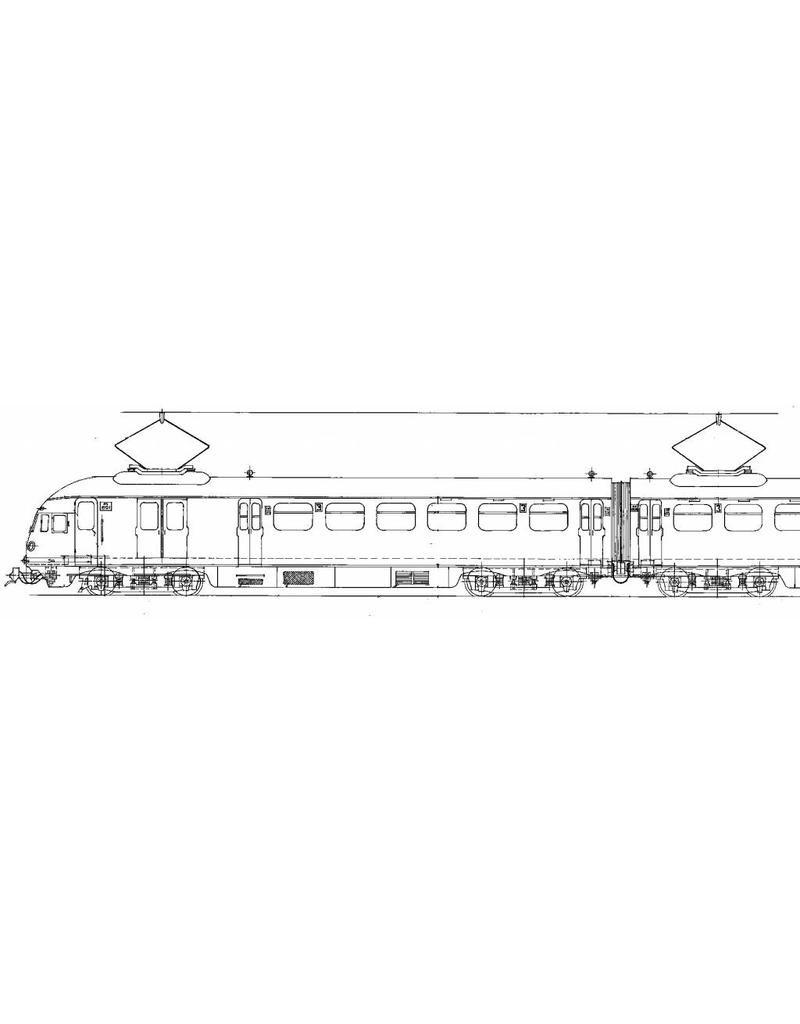

Electric 3-car train type 1938 No. 601-637 for Gauge 0 |
|
Quality |
detailed dimensioned sketch with carriage body layouts |
|
Scale |
1 : 40 |
|
Number of A00 sheets |
1 |
|
Number of A0 sheets |
1 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
265 |
|
Details |

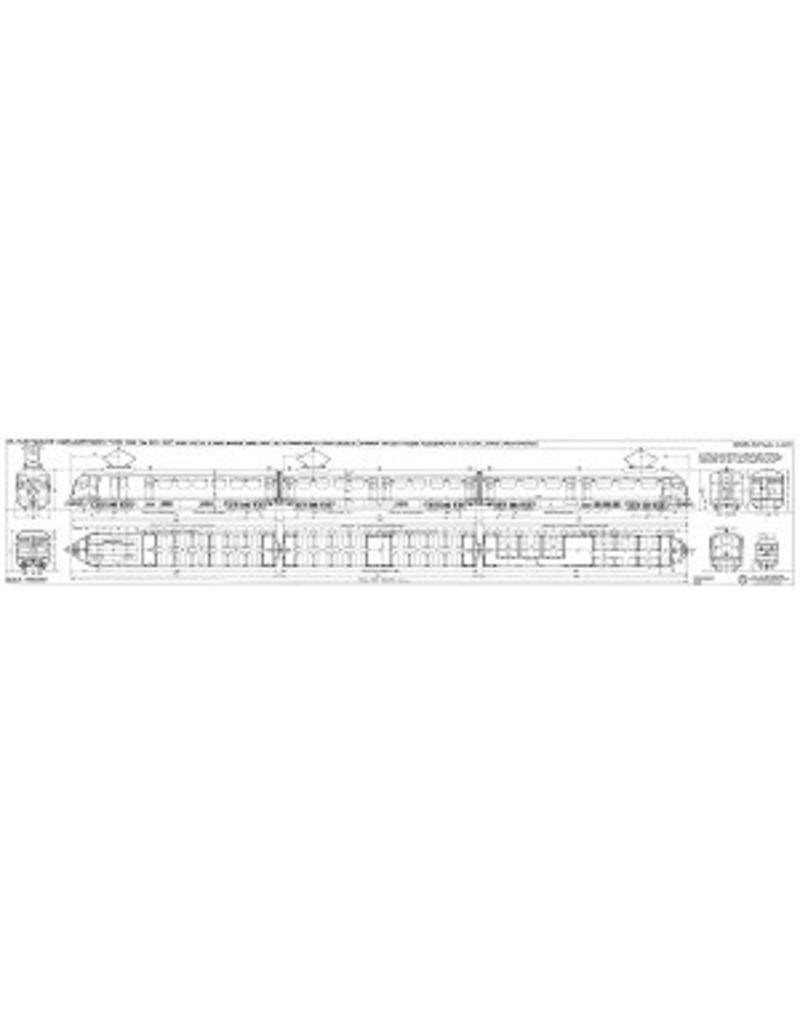

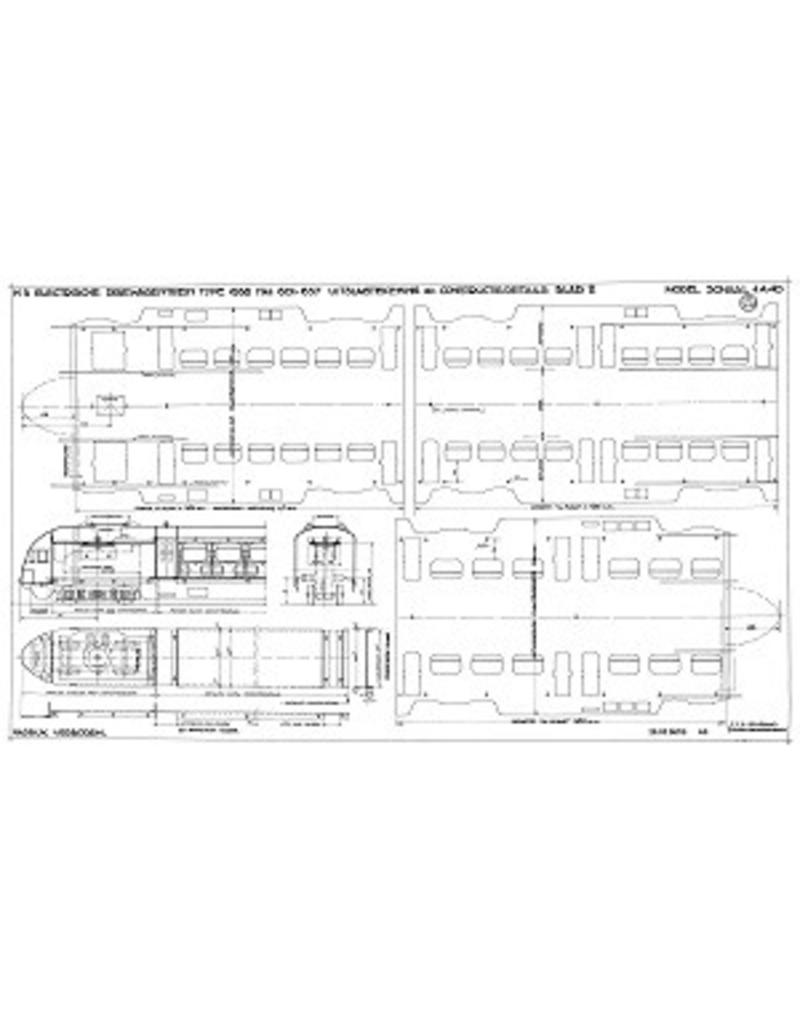

Extensive dimensioned sketch with model dimensions and some cross-sections and views. The 2nd sheet contains layouts of the carriage bodies. This model has been shortened to allow for running on small radius curves. It is indicated what and where something has been omitted |
|
Remarks |
