| Article number: | 29.03.062 |
|
Drawing number |
29.03.062 |
|
Author |
J.J.B. Vellekoop |
|
Description |

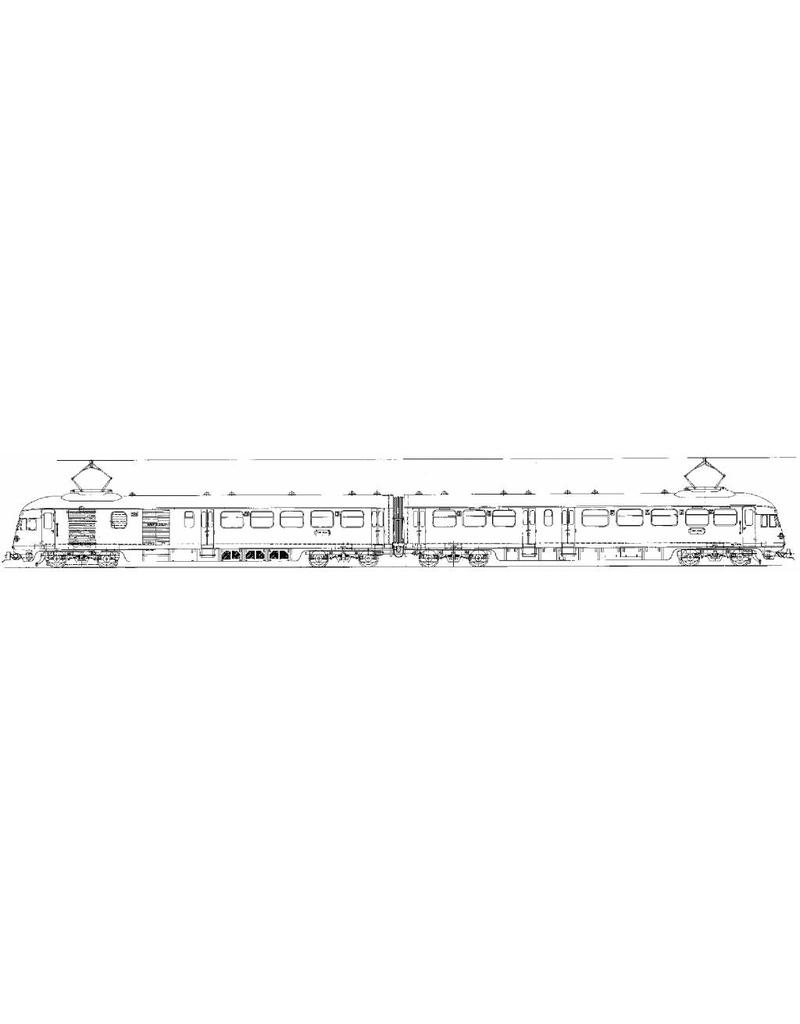

Elec. 2-car train type 1943, Series 301-315 for Gauge 0 |
|
Quality |
detailed dimensioned sketch |
|
Scale |
1 : 40 |
|
Number of A00 sheets |
1 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Details |

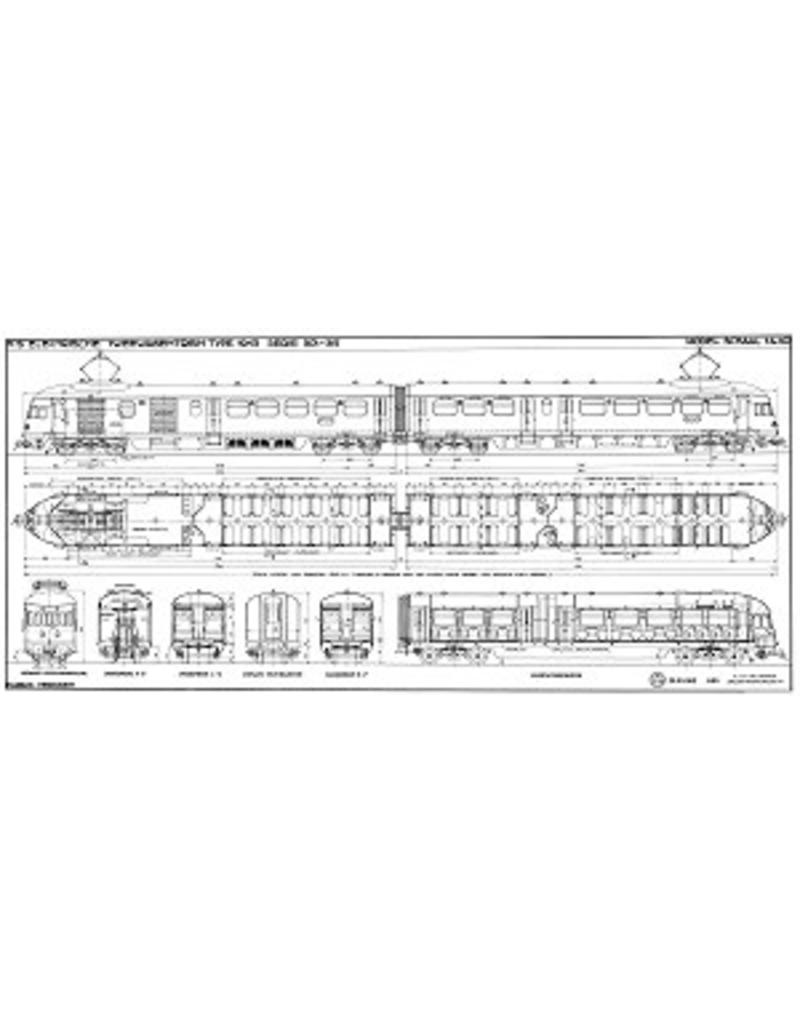

Extensive dimensioned sketch with model dimensions and some cross-sections and views; The model has been shortened to allow negotiation of small radius curves. It is indicated what and where something has been omitted. |
|
Remarks |
