| Article number: | 29.03.221 |
|
Drawing number |
29.03.221 |
|
Author |
J.J.B. Vellekoop |
|
Description |

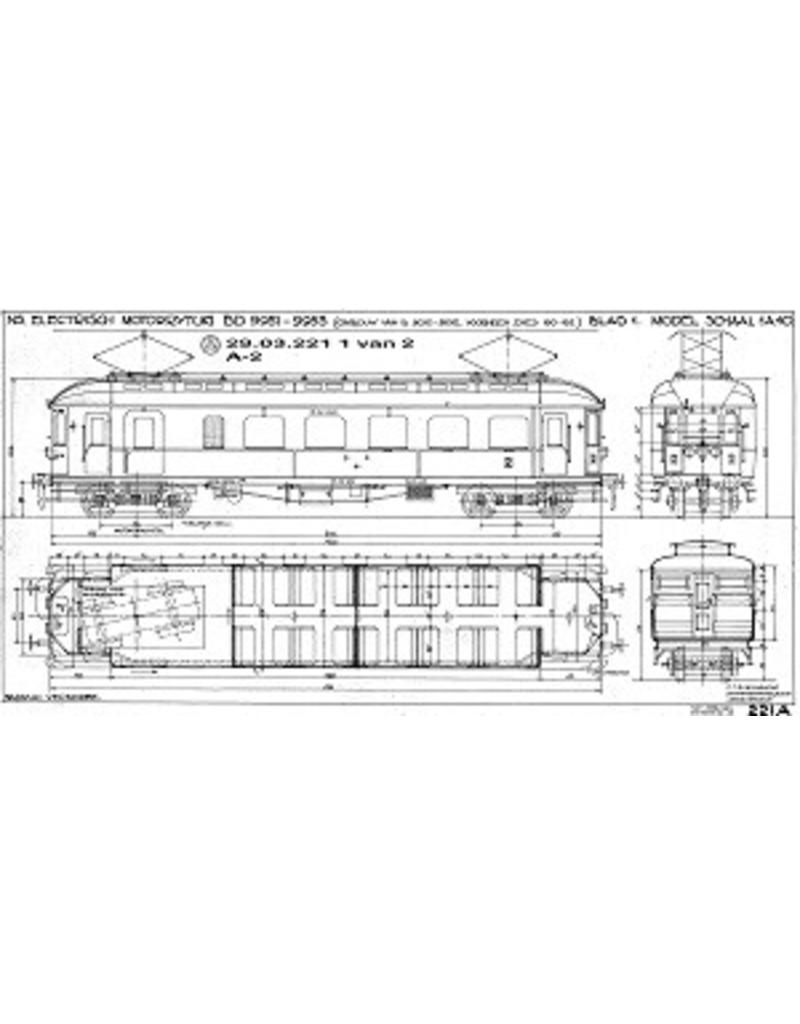

Electric railcar BD 9951-9953 (formerly ZHESM 60-62) for Gauge 0 |
|
Quality |
detailed dimensioned sketch with cut-outs of the carriage body |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Special features |

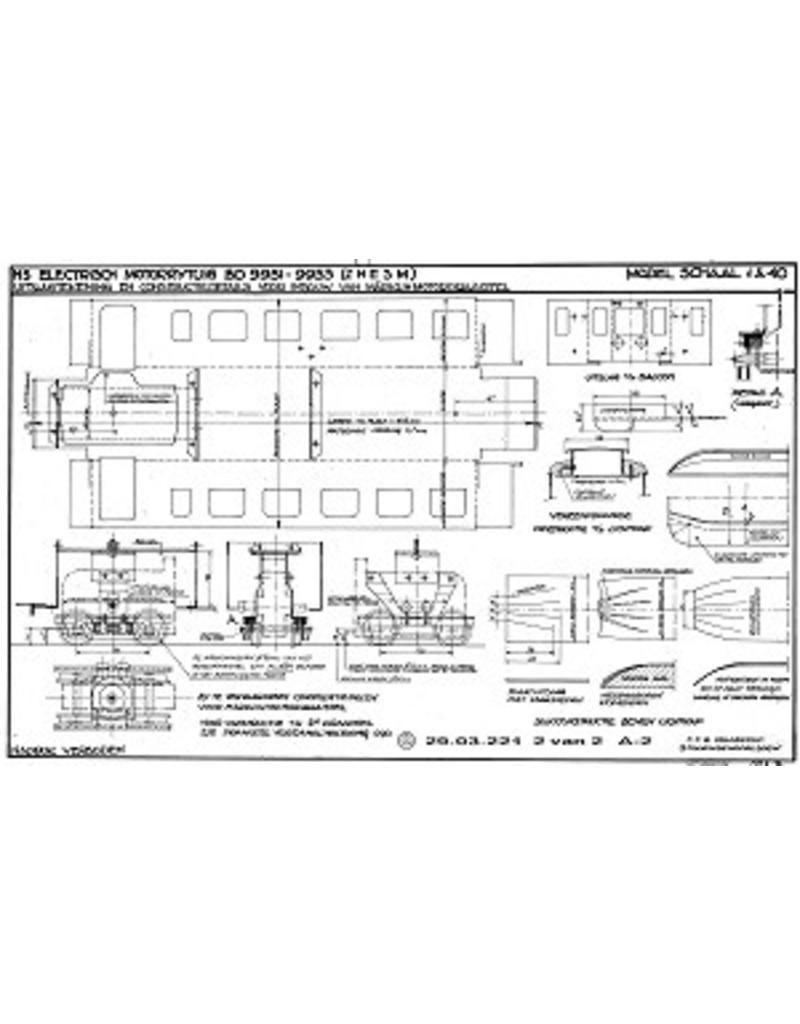

detailed dimensioned sketch with model dimensions and some views and cross-sections; sheet 2 contains cut-outs of the carriage body |
|
Remarks |
