| Article number: | 29.03.222 |
|
Drawing number |
29.03.222 |
|
Author |
J.J.B. Vellekoop |
|
Description |

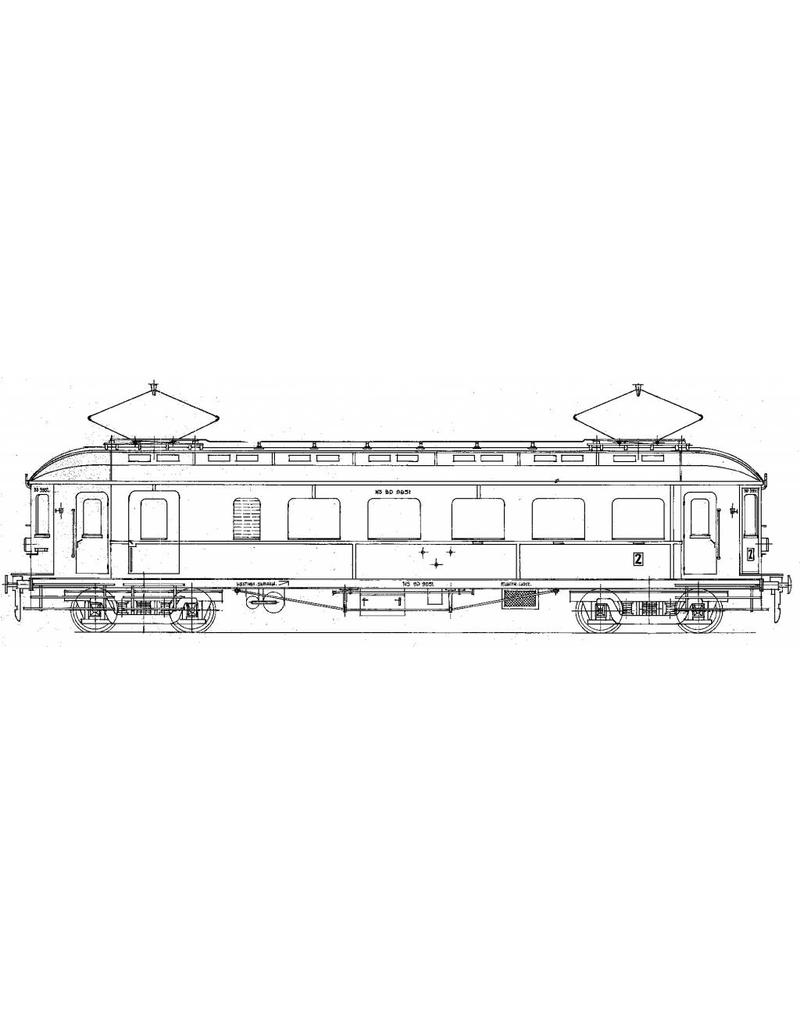

Electric railcar 2nd/3rd class BC 9910, 9911 (formerly ZHESM 5, 6) for Gauge 0 |
|
Quality |
detailed dimensioned sketch |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Special features |

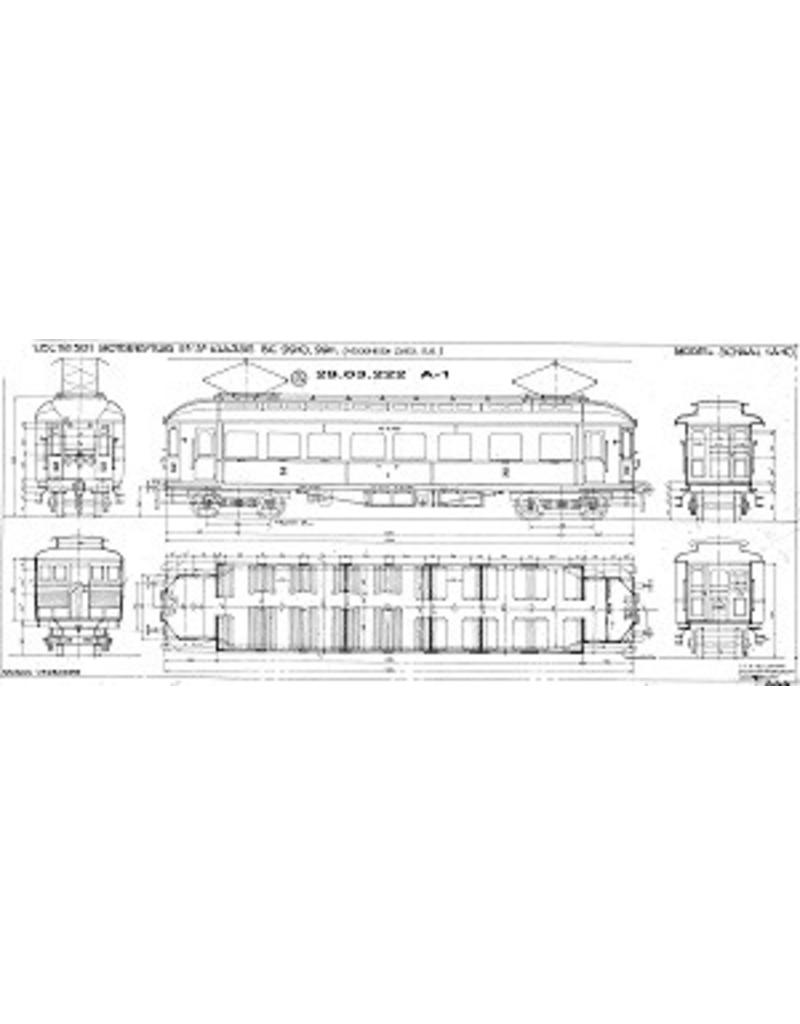

detailed dimensioned sketch with model dimensions and some views and cross-sections |
|
Remarks |
