| Article number: | 30.09.032 |
|
Drawing number |
30.09.032 |
|
Author |
G.J. Volgers |
|
Description |
Spierings folding crane SK 488 AT4 |
|
Difficulty level |
D |
|
Quality |
view and dimensions of crane and folding arm |
|
Scale |
1 : 14.5 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Details |

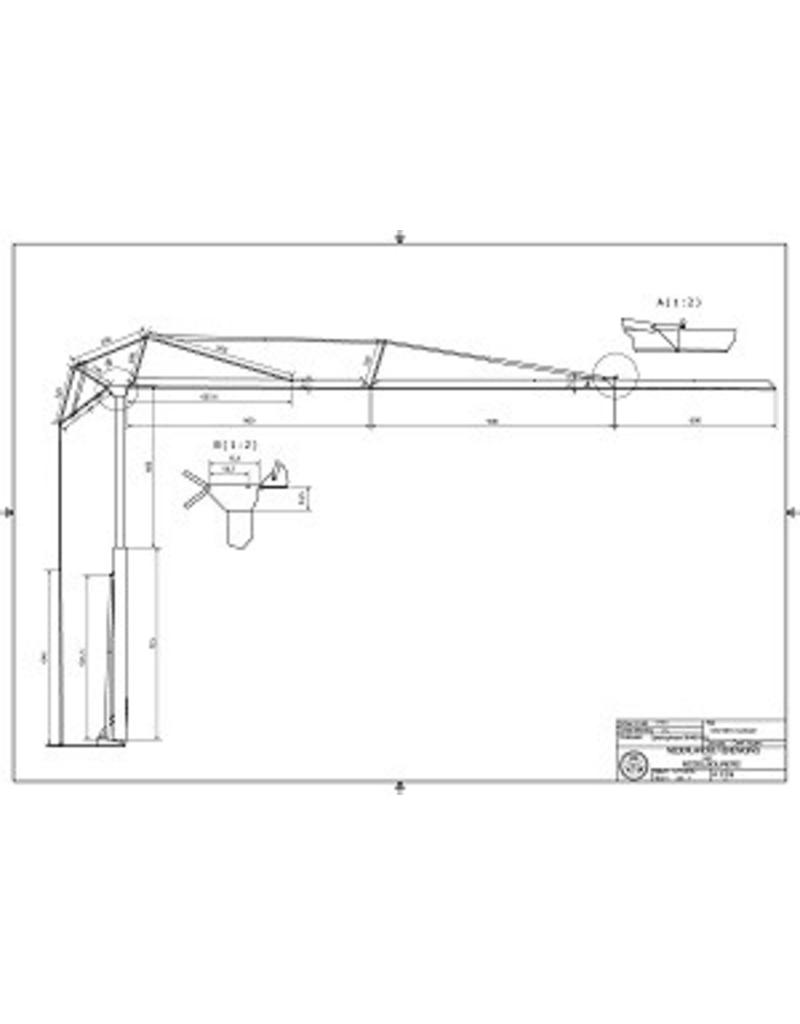

the drawing shows the geometry of the tower and arm and the dimensions of the individual parts. |
|
