MBT 40.04.022 crash tender Kaelble KVW900F

Drawing number

40.04.022

Author

G.J. Volgers

Description

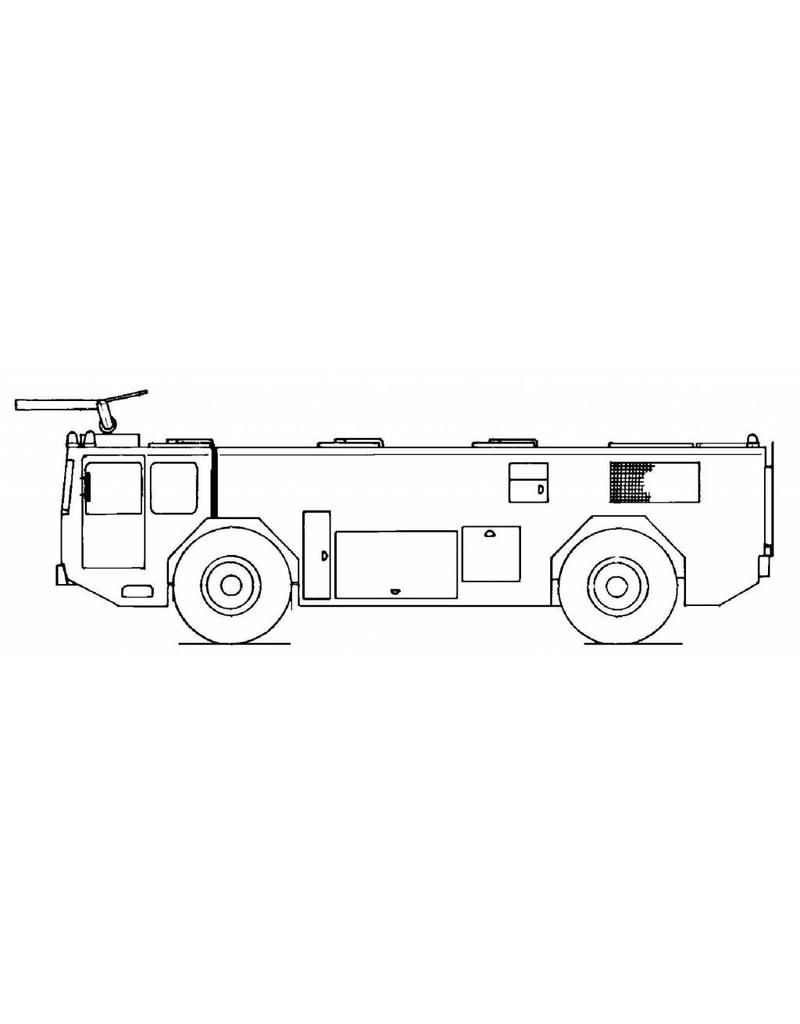

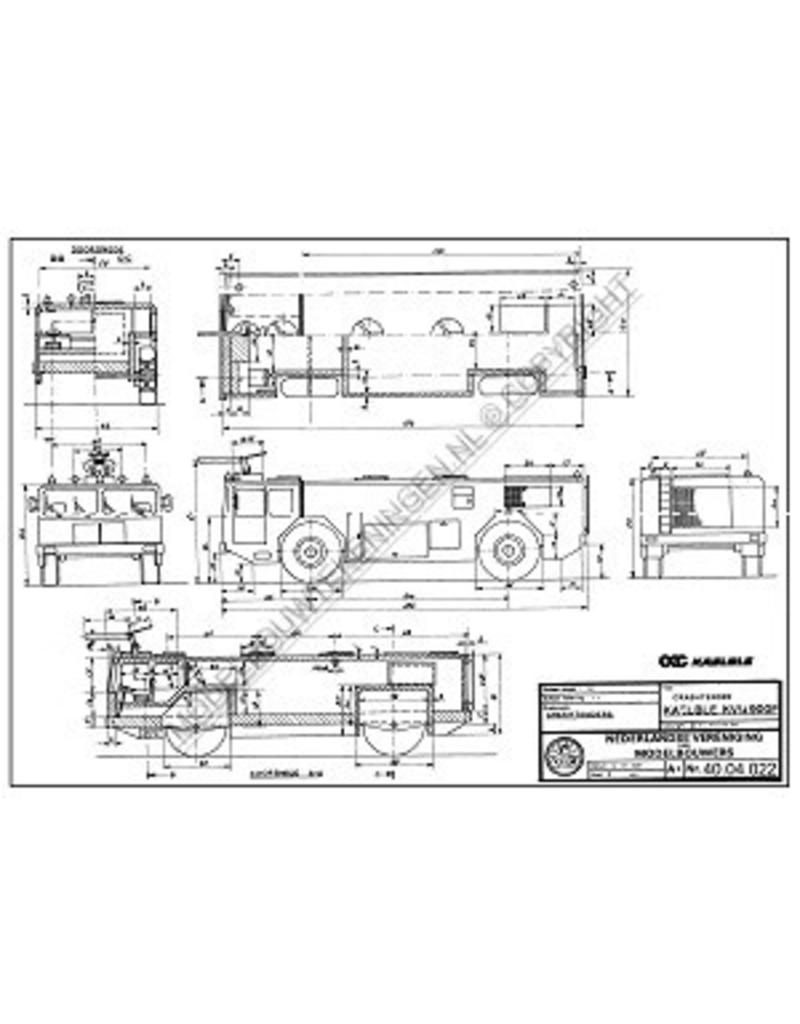

crash tender  Kaelble KVW900F

Quality

Difficulty

Scale

1 : 50

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

0

Number of A3 sheets

1

Number of A4 sheets

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

35

Details

dM 1982/2,4

Copy of article: 42.04.022 (9 pp)

see also 40.04.025 and 40.04.026. The entire series covers the construction of crash tenders in plexiglass (14 pp)

Remarks
