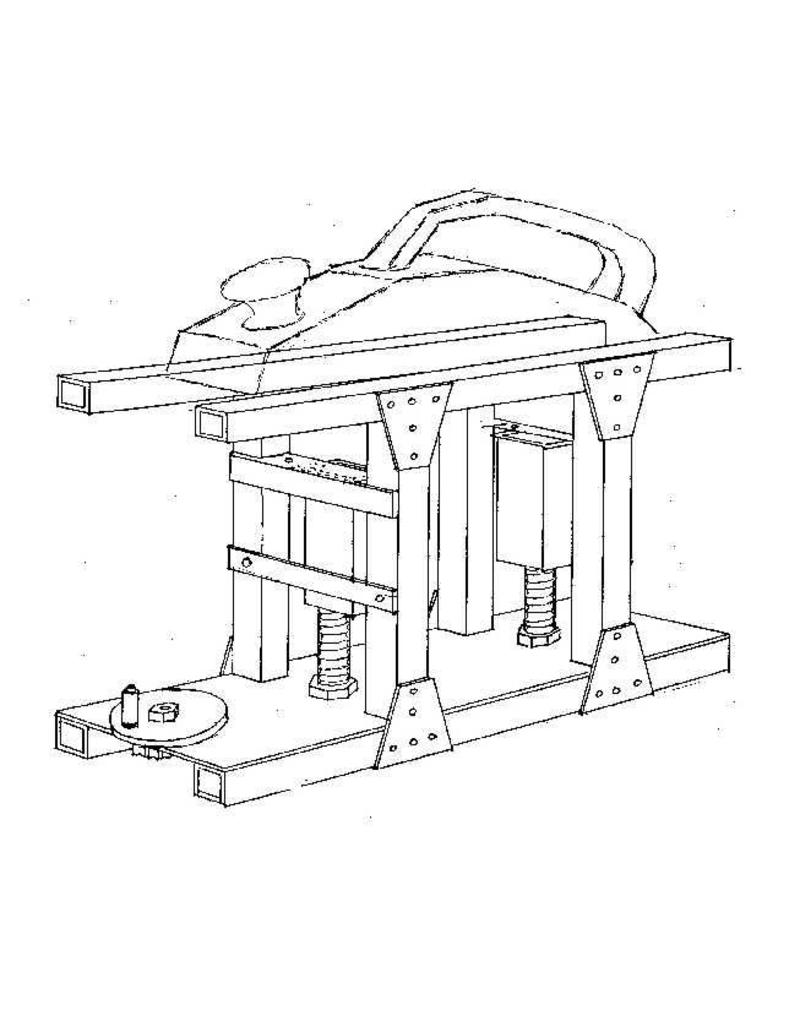

MBT 80.00.013 Thicknesser

Drawing number

80.00.013

Author

C. Nierse

Description

Thicknesser

Quality

(including construction description)

Difficulty level

B

Scale

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

2

Number of A3 sheets

0

Number of A4 sheets

0

Total number of drawing sheets

2

Number of A4 text sheets

2

Weight in grams

80

Particulars

and F.P.J. Zwartjes

dM 1994/8

Type 1 timber feed max. 75 mm

Type 2 timber feed max. 40 mm

The 1994 article describes an improvement for the screw spindles of type 2

Remarks

consider adding a copy of the 1994 article to the construction description
