| Article number: | 10.01.011 |
Specifications:
|
Drawing number |
10.01.011 |
|
Description |

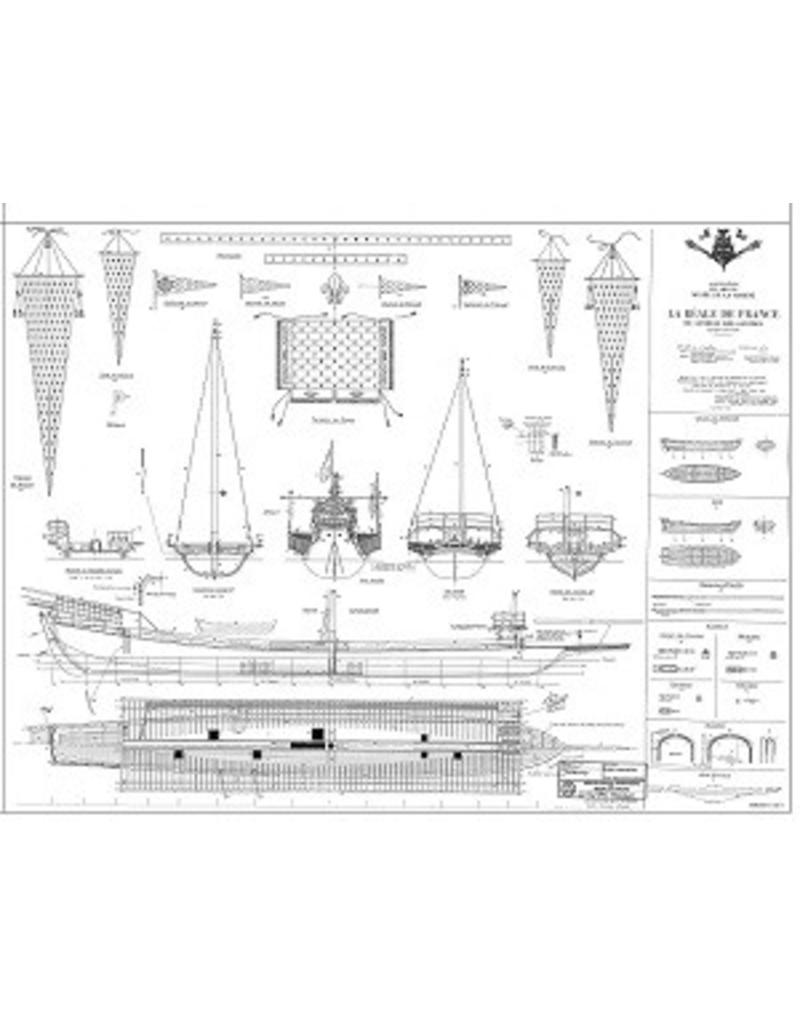

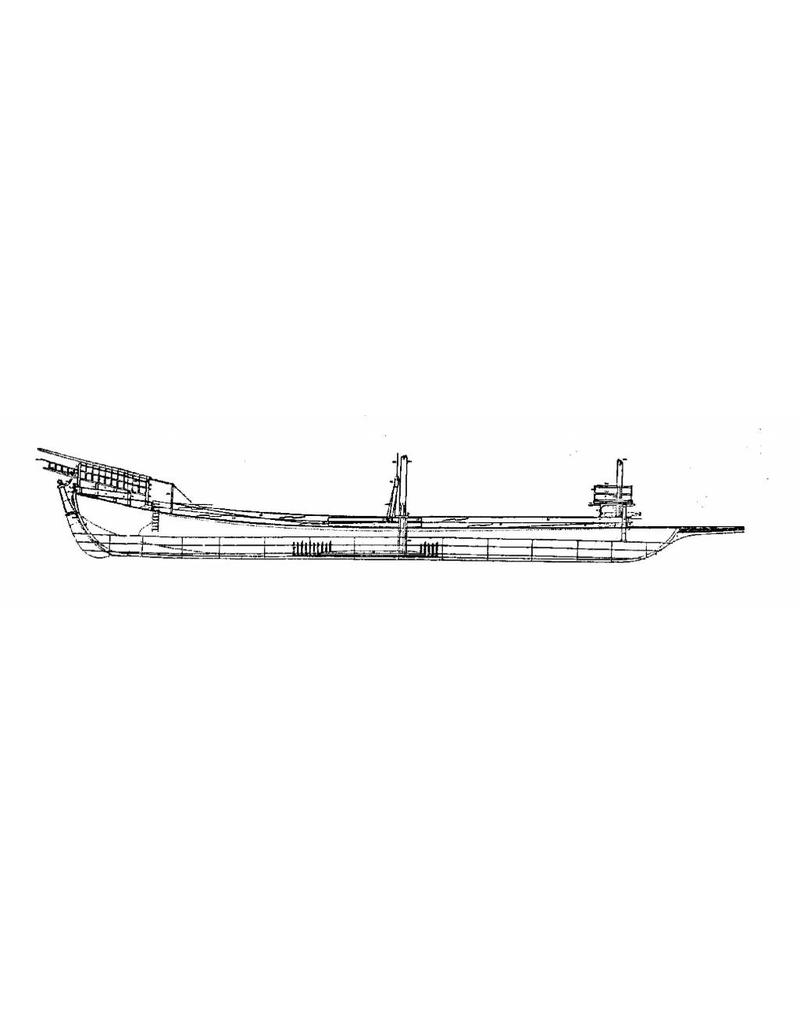

Galley (Louis XIV period) |
|
Quality |
views; cross-sections; details; drawing contains French text |
|
Scale |
1 : 75 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
1 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Special features |
drawing from Musée de la Marine, Paris |
|
Remarks |
