| Article number: | 10.06.009 |
A Lemsteraak yacht is a type of flat-bottomed yacht that was developed from the traditional Frisian fishing smack. These vessels were originally built for fishing on the Wadden Sea and the Zuiderzee, but were later converted into yachts for recreational use. Characteristic of this type of vessel are its egg-shaped hull, the larger volume of the foredeck, and the presence of a well for storage.
Specifications :
|
Drawing number |
10.06.009 |
|
Author |
G. van Schaik - Zillesen |
|
Description |

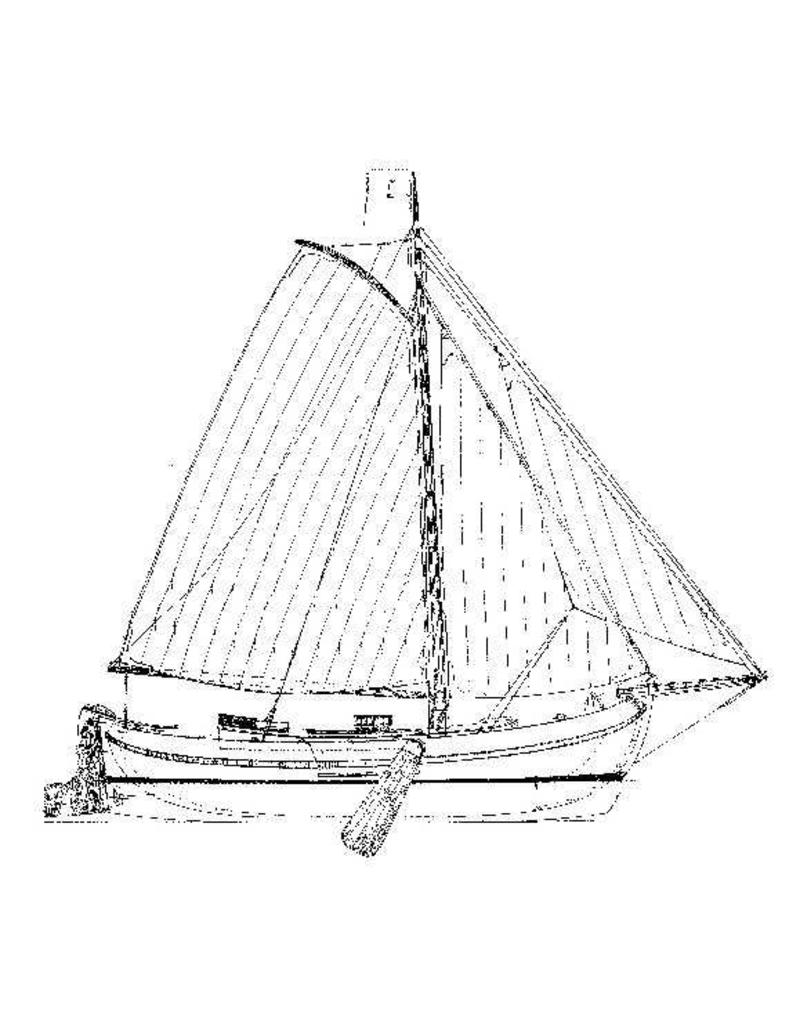

Lemsteraak yacht "Grutto" |
|
Quality |

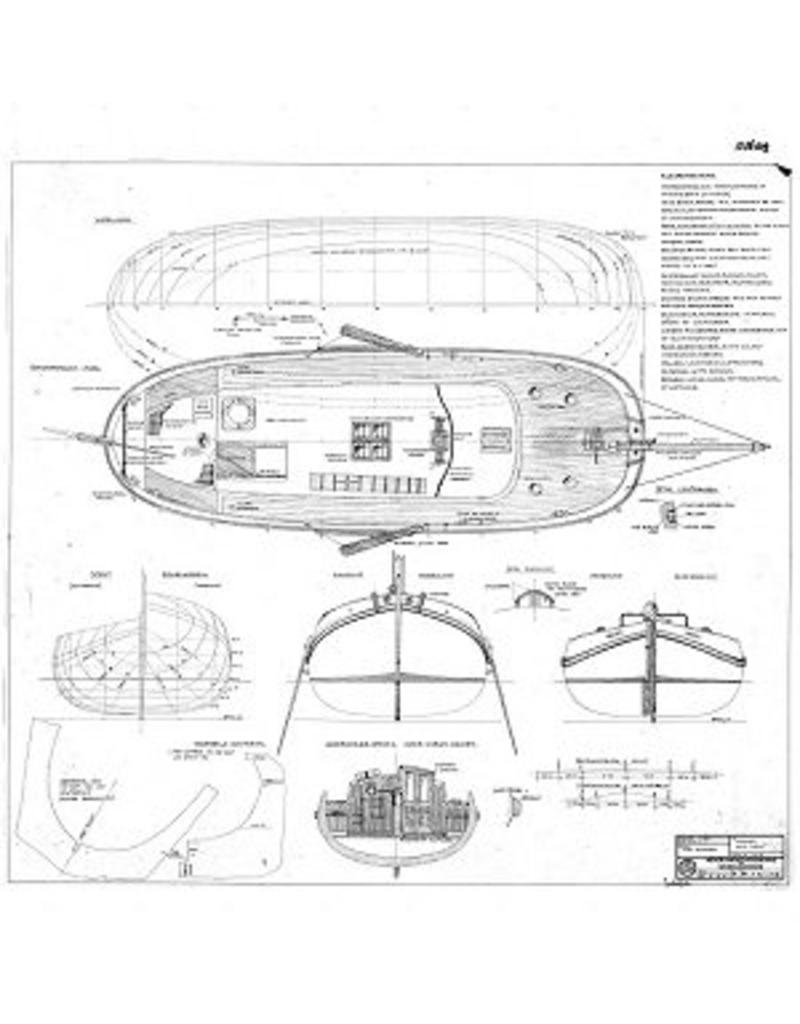

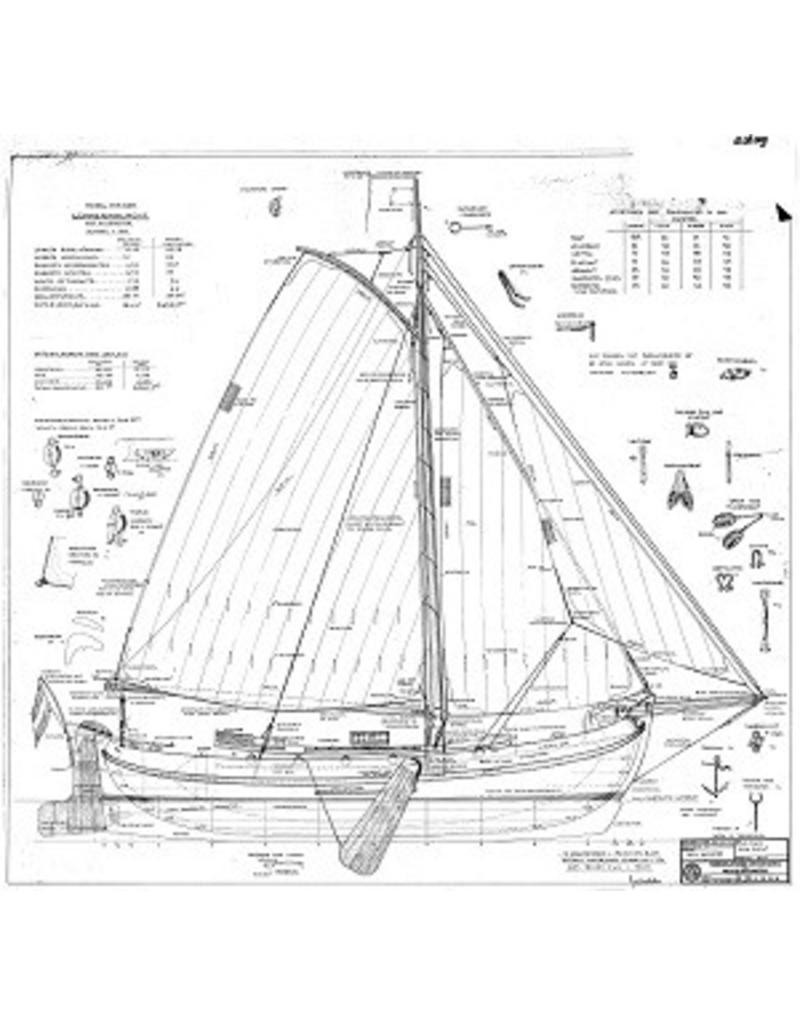

frames/lines; deck plan; views; sections; rigging plan; details |
|
Scale |
1 : 20 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
2 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Remarks |
l.o.a. 80 cm |
