| Article number: | 10.15.020 |
Specifications :
|
Drawing number |
10.15.020 |
|
Author |
A.F.J. Dunweg |
|
Description |
luxury motor vessel ms "Janna Helena" (1928) |
|
Quality |

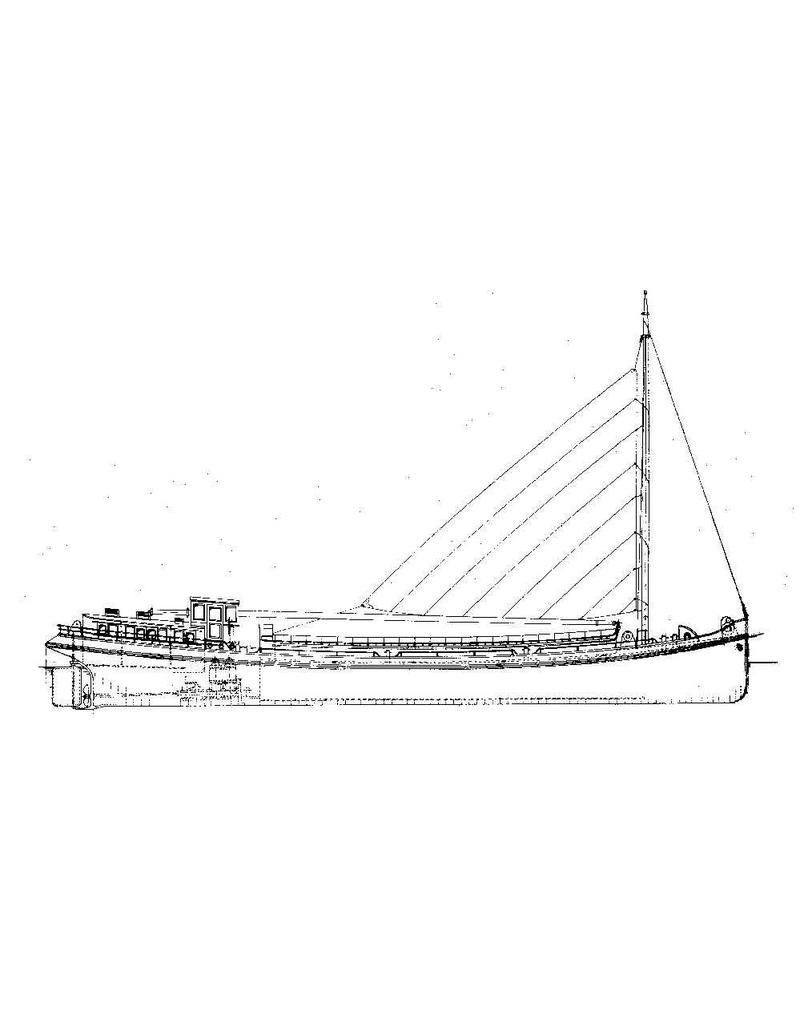

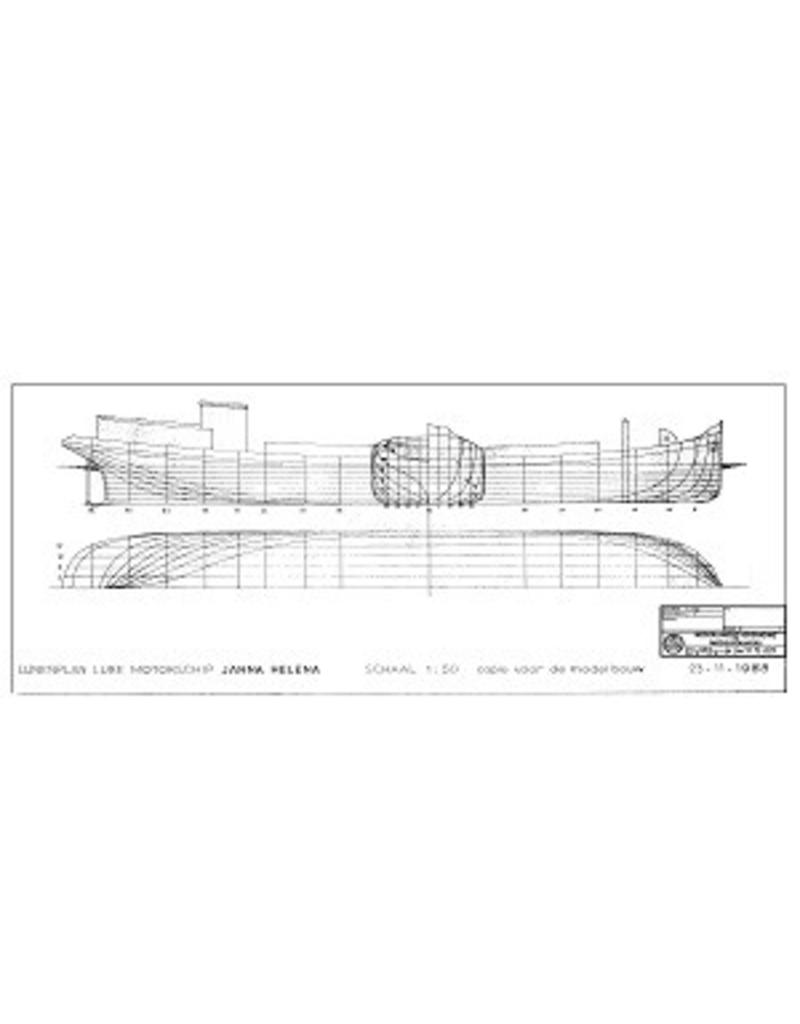

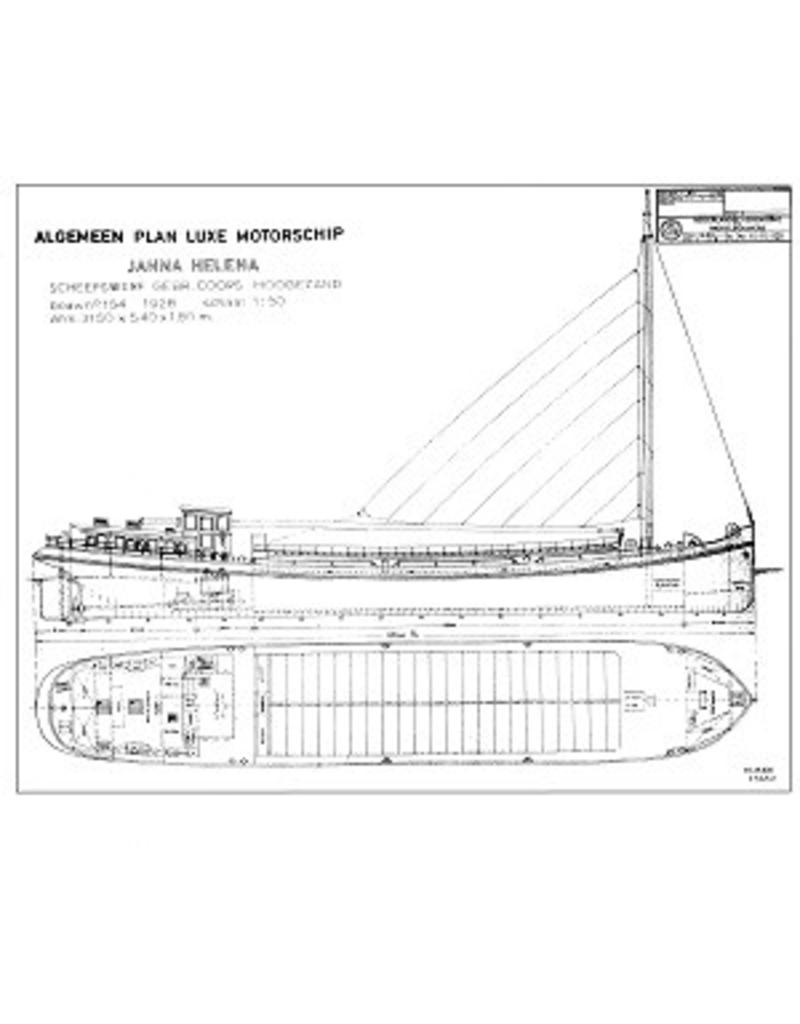

frames/lines; side view/rigging; deck plan |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Particulars |
l.o.a. 64 cm |
|
Remarks |
