| Article number: | 10.15.021 |
Specifications :
|
Drawing number |
10.15.021 |
|
Author |
A.F.J. Dunweg |
|
Description |

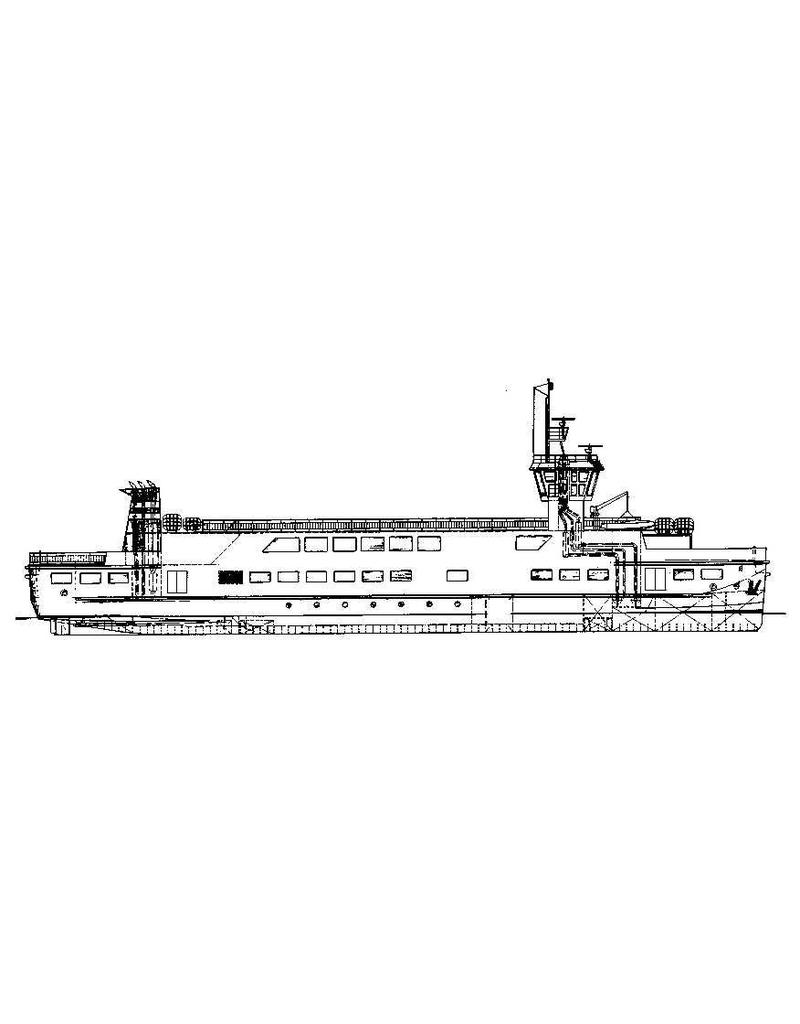

ferry ms "Sier" (1985) -Wagenborg Shipping Company; after 1995 "Rottum" |
|
Quality |

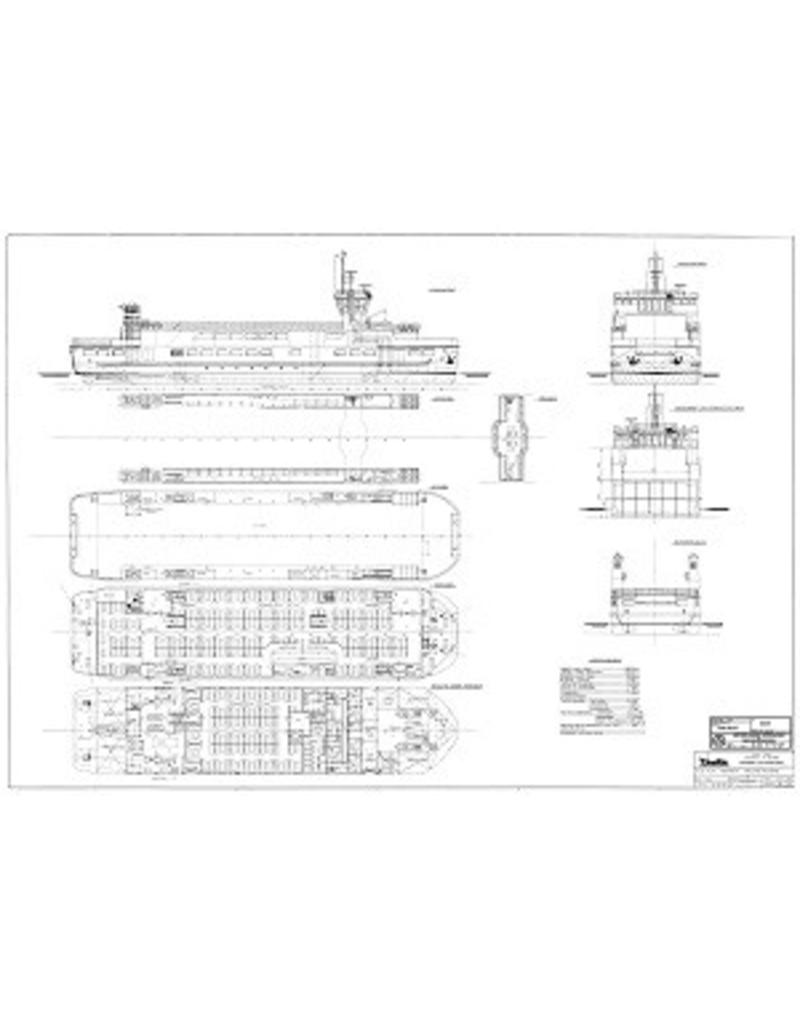

frames; side view; deck plans; cross-sections |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Details |
l.o.a. 57 cm |
|
Remarks |
