| Article number: | 10.15.026 |
Specifications :
|
Drawing number |
10.15.026 |
|
Description |

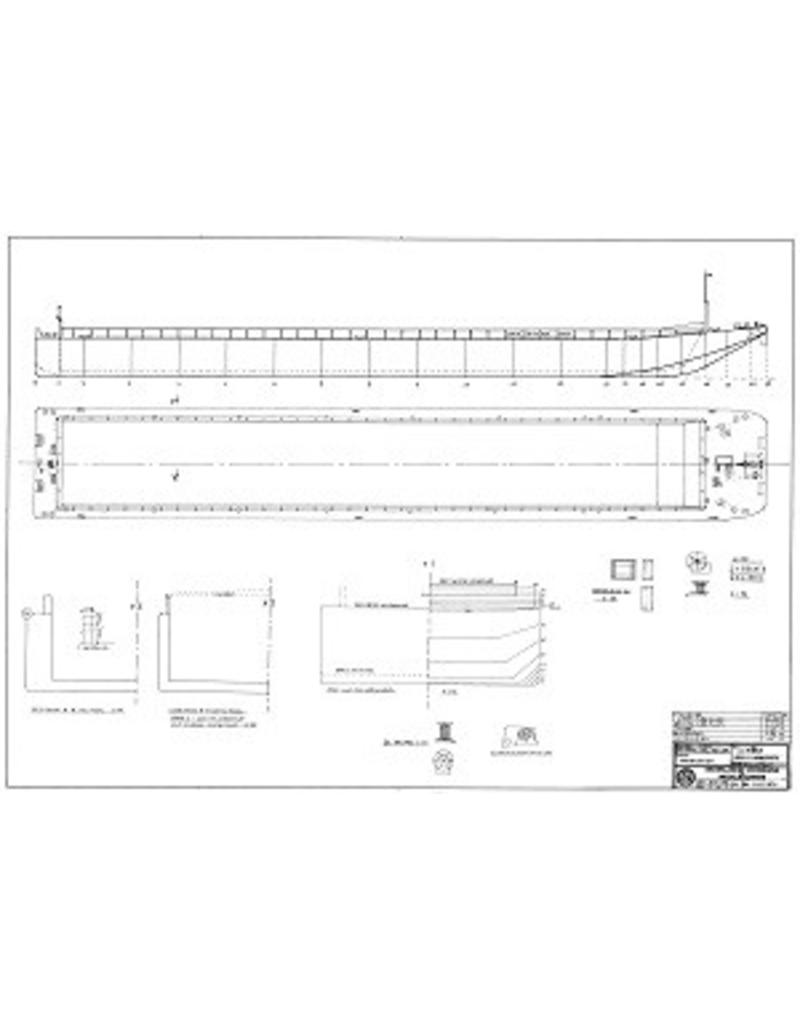

push barge with wide catwalk |
|
Quality |

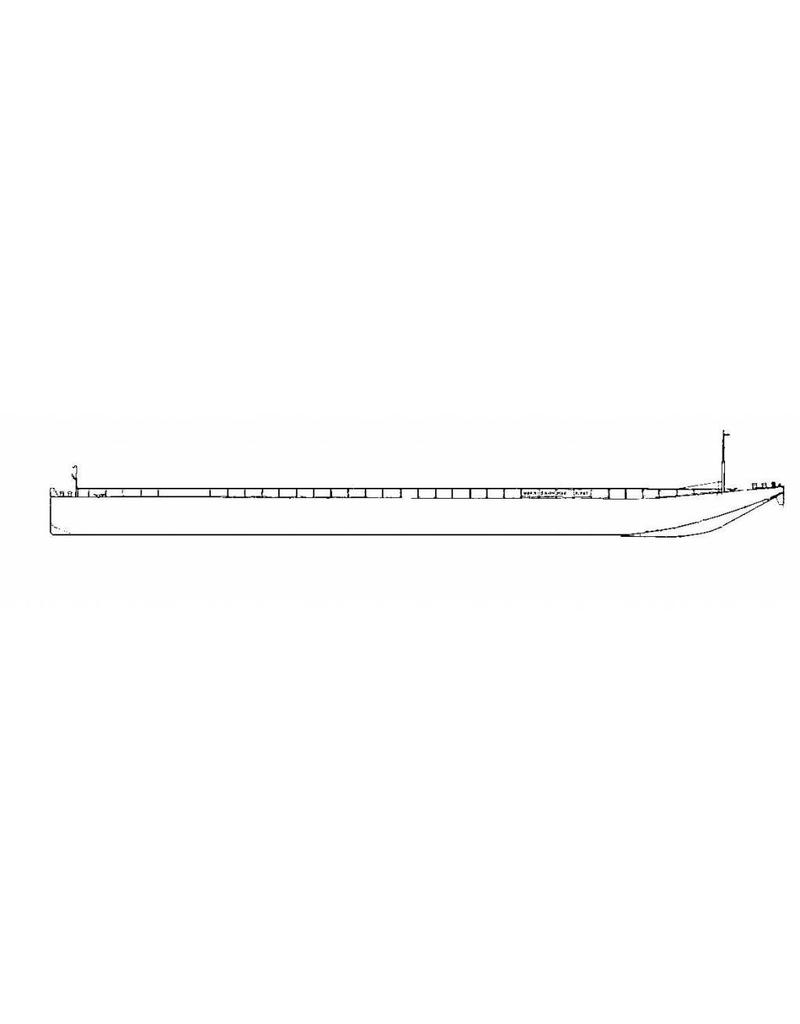

frames; side view; deck plan; details 1:50 and 1:20 |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
l.o.a. 76 cm |
|
Remarks |
