| Article number: | 10.15.037 |
Specifications :
|
Drawing number |
10.15.037 |
|
Author |
J.TH.M. Buter |
|
Description |

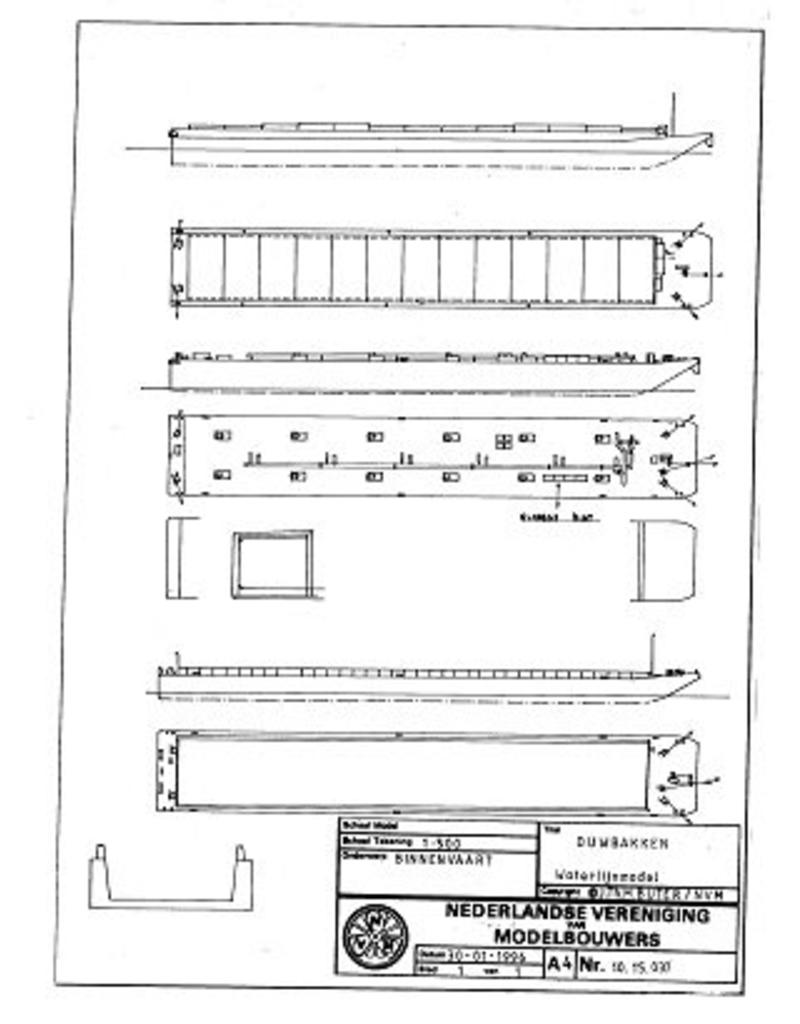

push barges |
|
Quality |

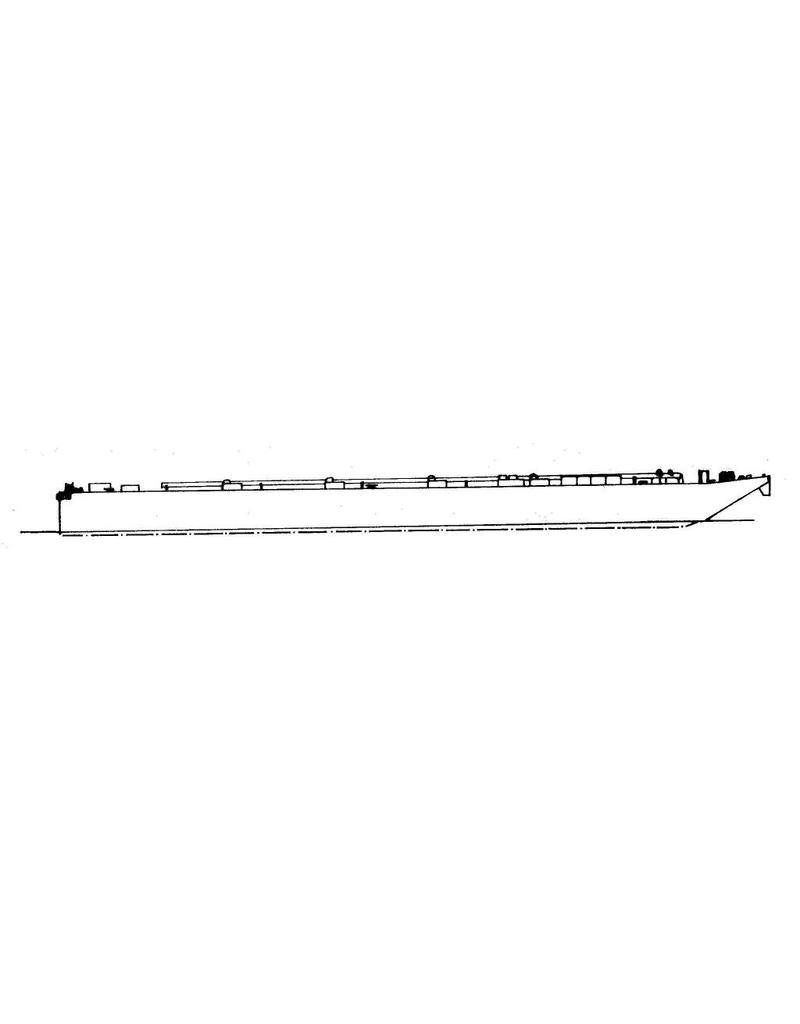

side view; deck plan; cross-section |
|
Scale |
1 : 500 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
30 |
|
Particulars |
l.o.a. 15.6 cm |
|
Remarks |
