| Article number: | 10.15.041 |
Specifications :
|
Drawing number |
10.15.041 |
|
Description |

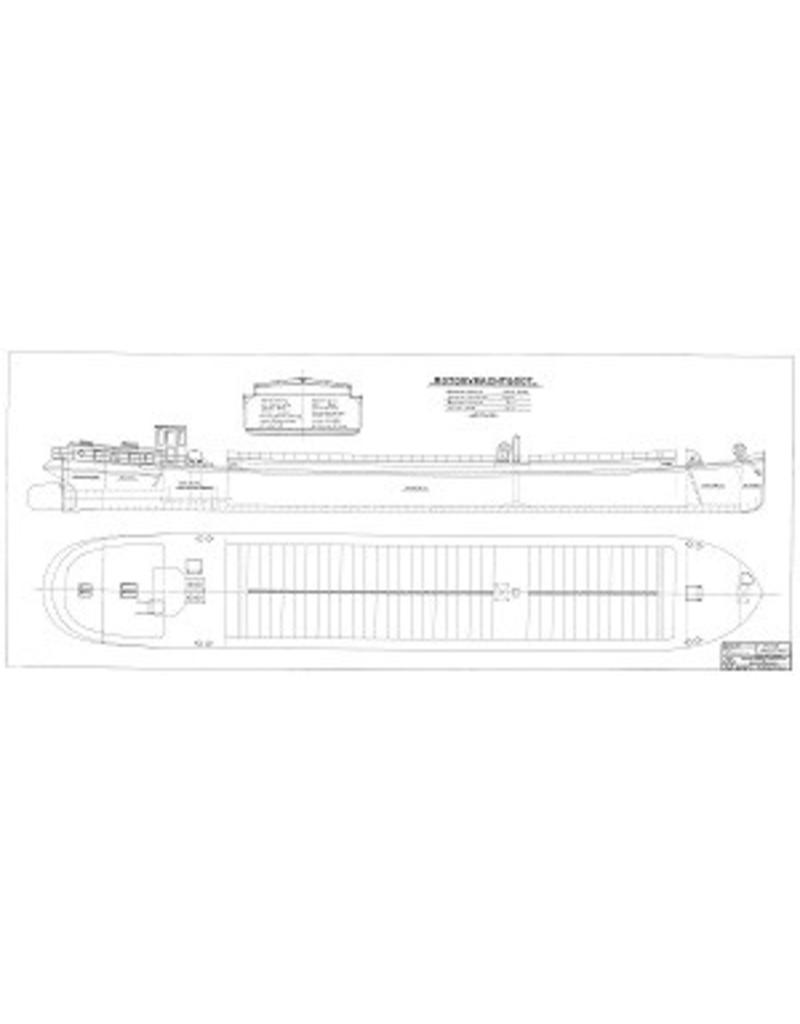

motor cargo boat |
|
Quality |

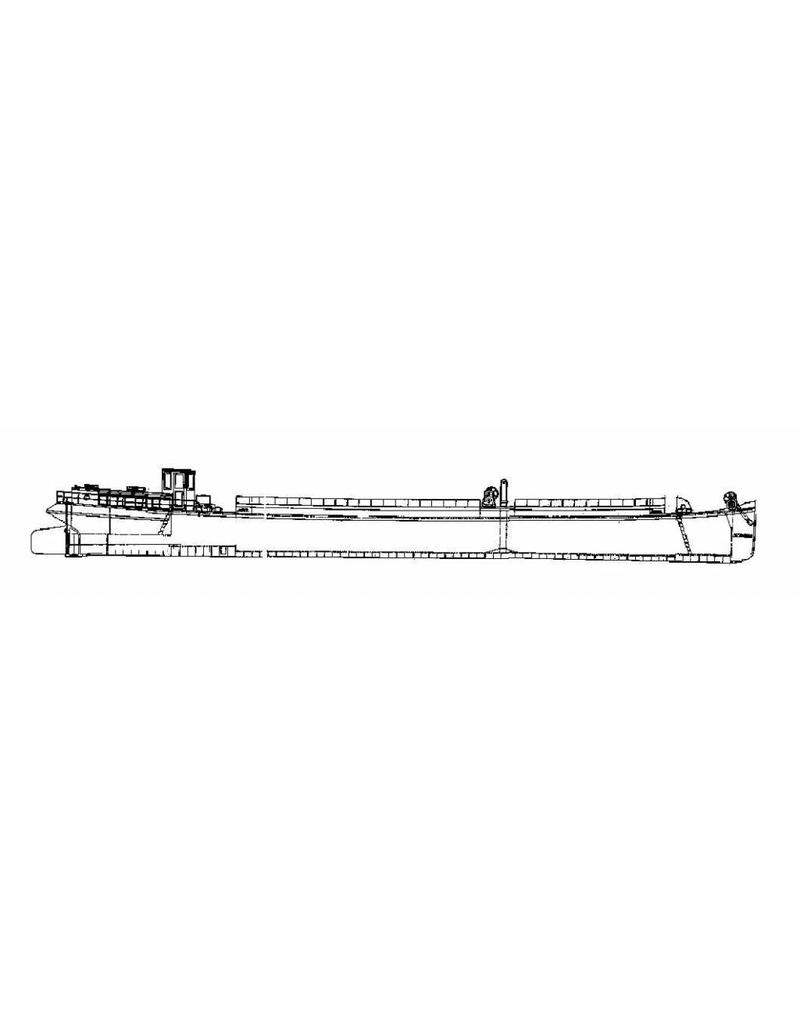

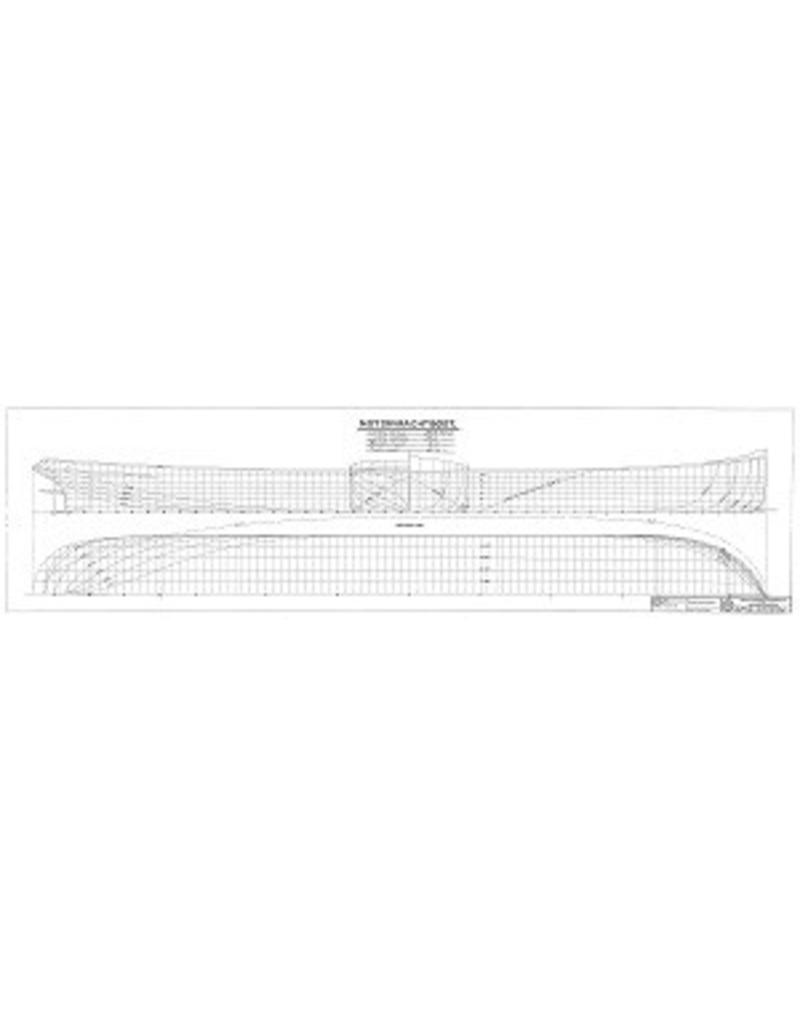

frames/lines; side view; deck plan |
|
Scale |
1 : 30 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
2 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Particulars |
l.o.a. 125 cm |
|
Remarks |
