| Article number: | 10.15.042 |
Specifications :
|
Drawing number |
10.15.042 |
|
Description |
flat-bottomed tugboat for inland navigation |
|
Quality |

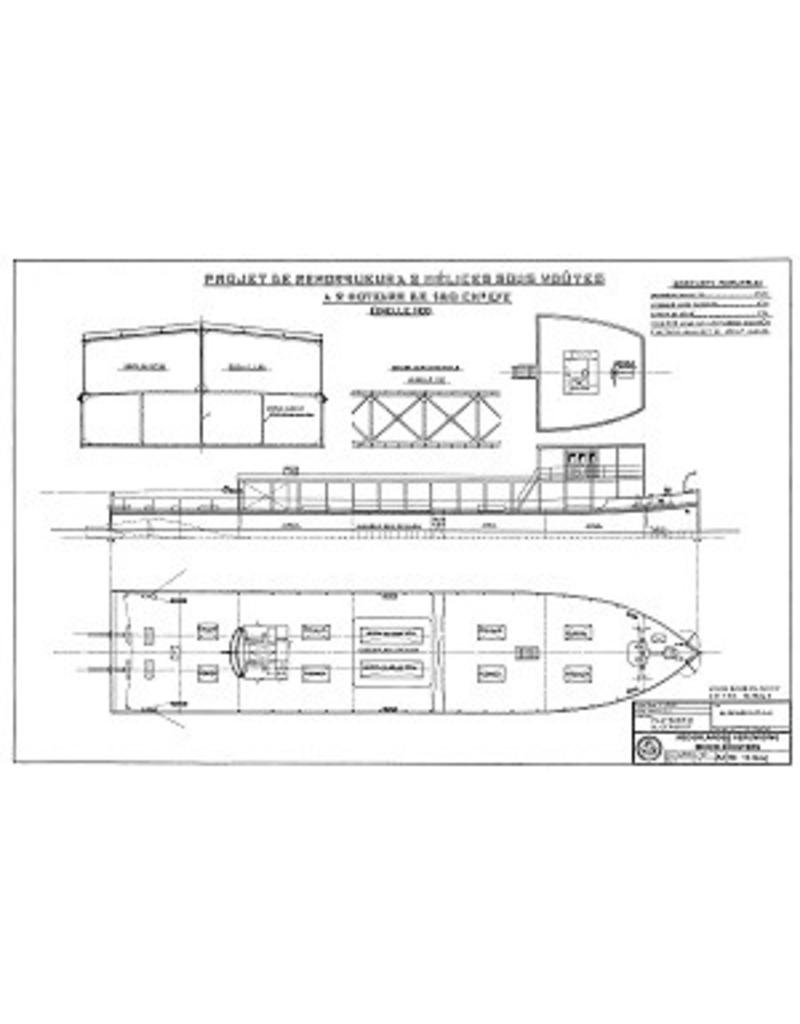

side view; deck plan; cross-section 1:50 |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Details |
l.o.a. 44 cm |
|
Remarks |
