| Article number: | 10.15.045 |
Specifications :
|
Drawing number |
10.15.045 |
|
Author |
H. Tjaberinga |
|
Description |
motor launch |
|
Quality |

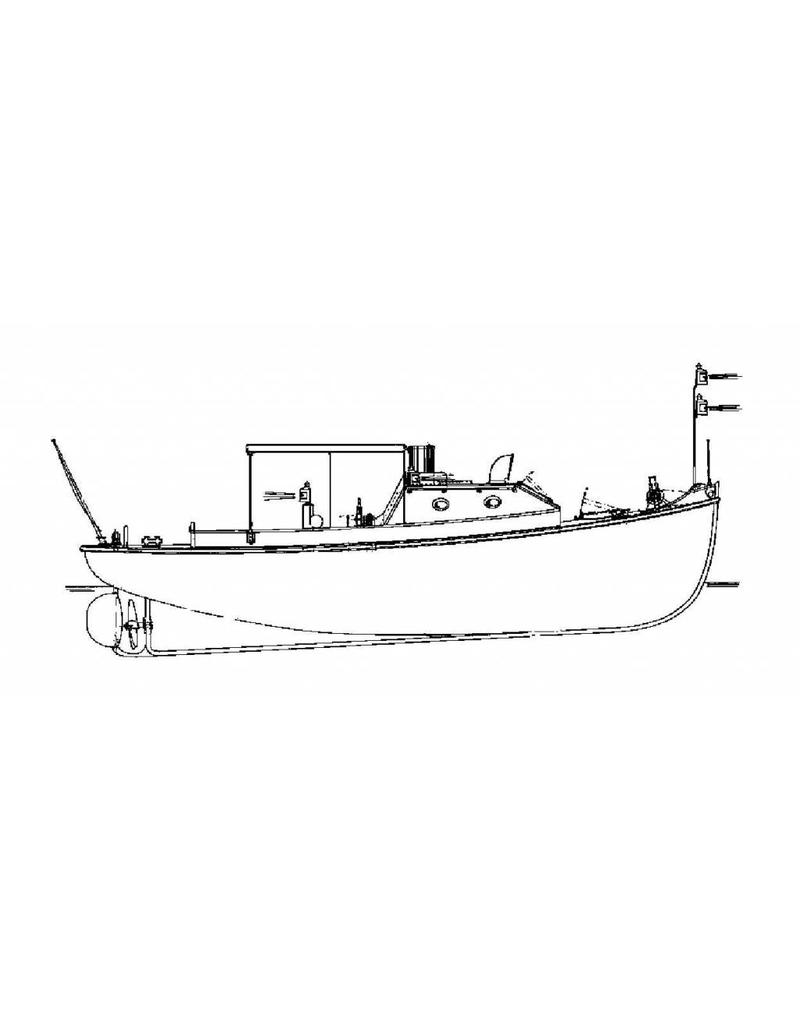

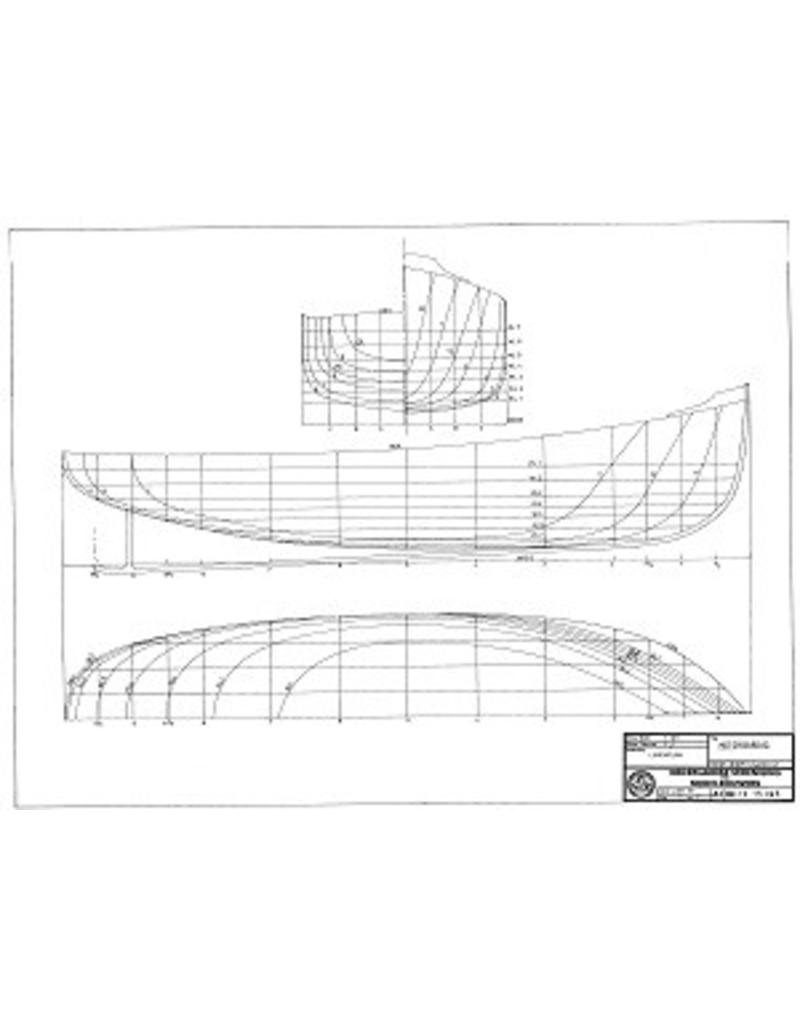

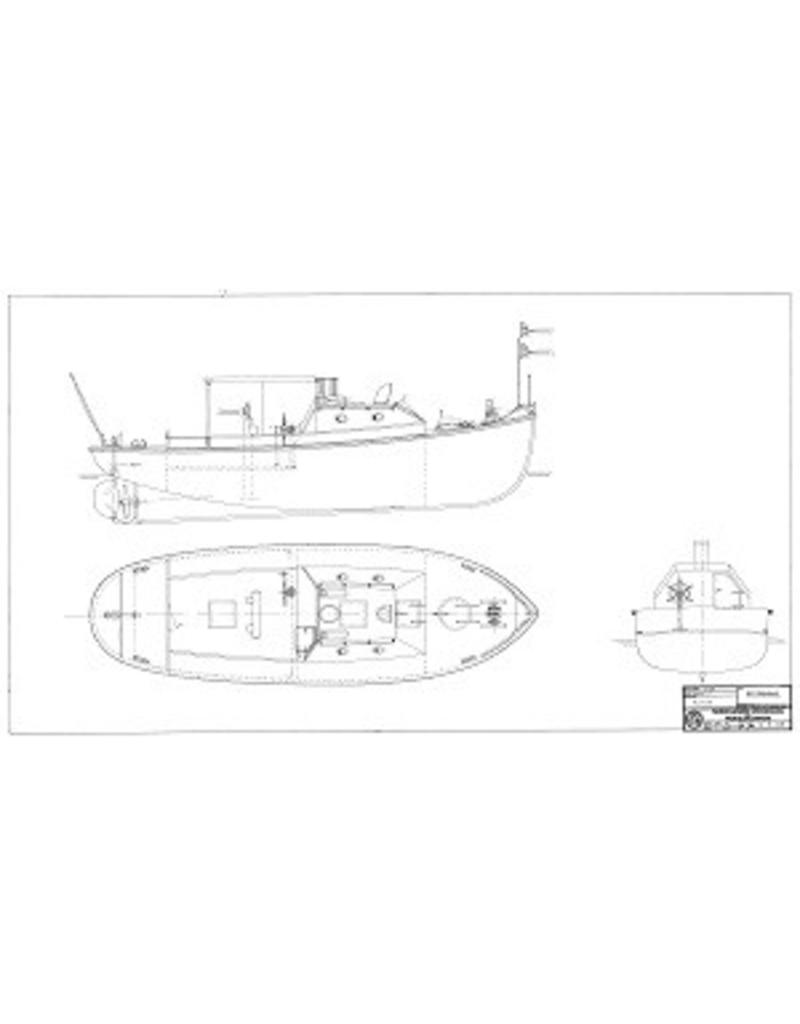

sp/lines; side view; deck plan |
|
Scale |
1 : 20 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
1 |
|
Number of A2 sheets |
1 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Details |
from TTC archive |
|
Remarks |
