| Article number: | 10.15.047 |
Specifications :
|
Drawing number |
10.15.047 |
|
Author |
K. Hegemans |
|
Description |
inland waterway vessel ms "Oder" (1937) - NV Vola; ex ss "Werner" |
|
Quality |

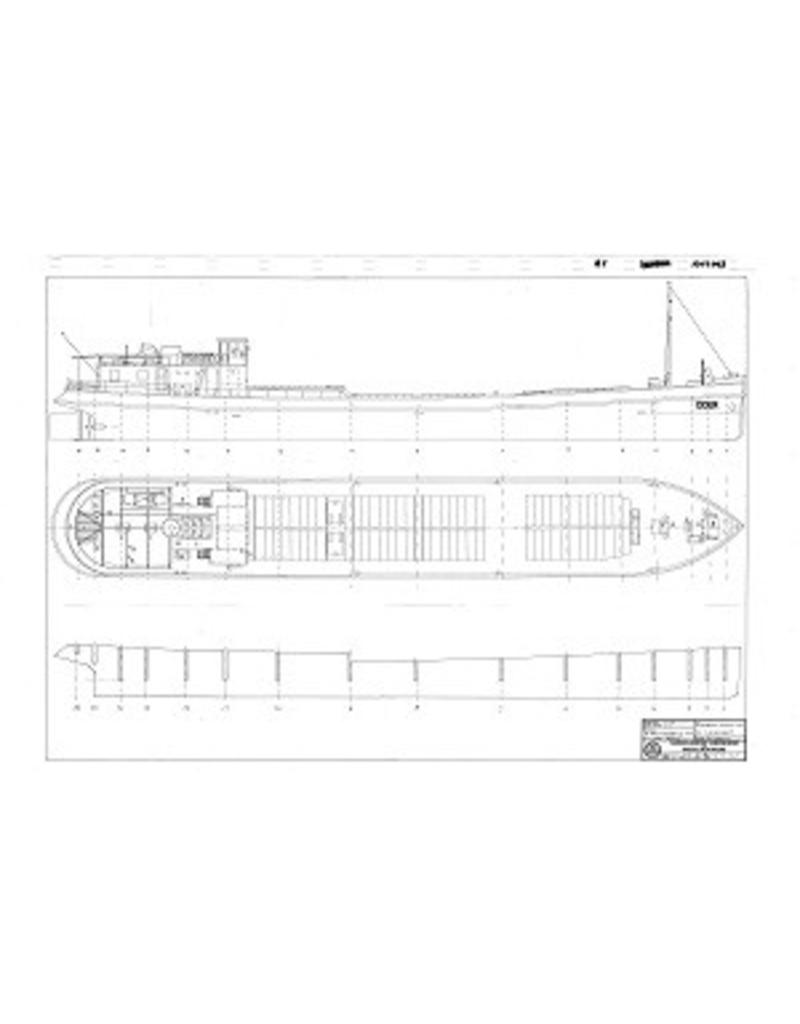

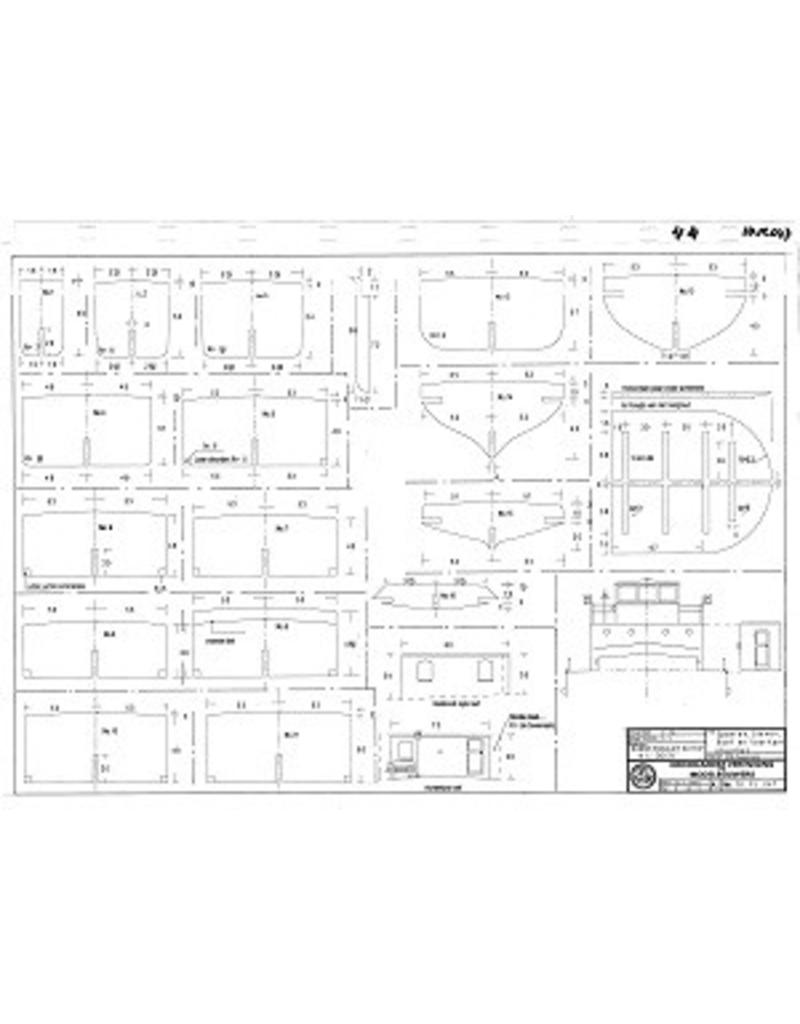

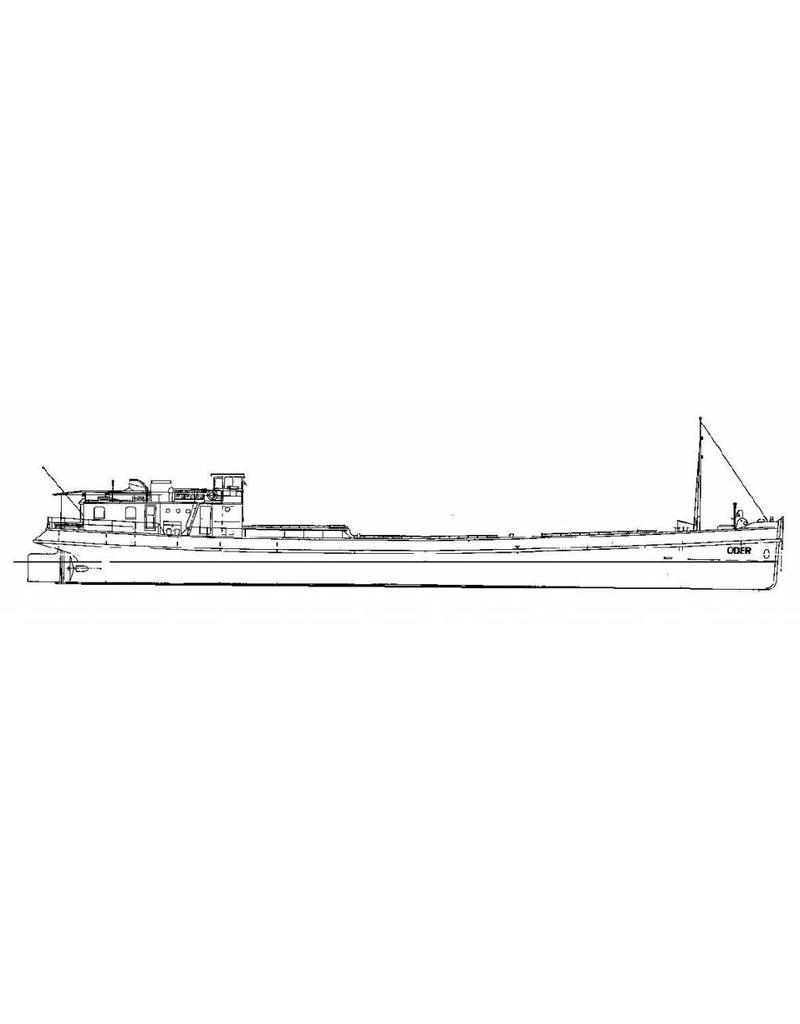

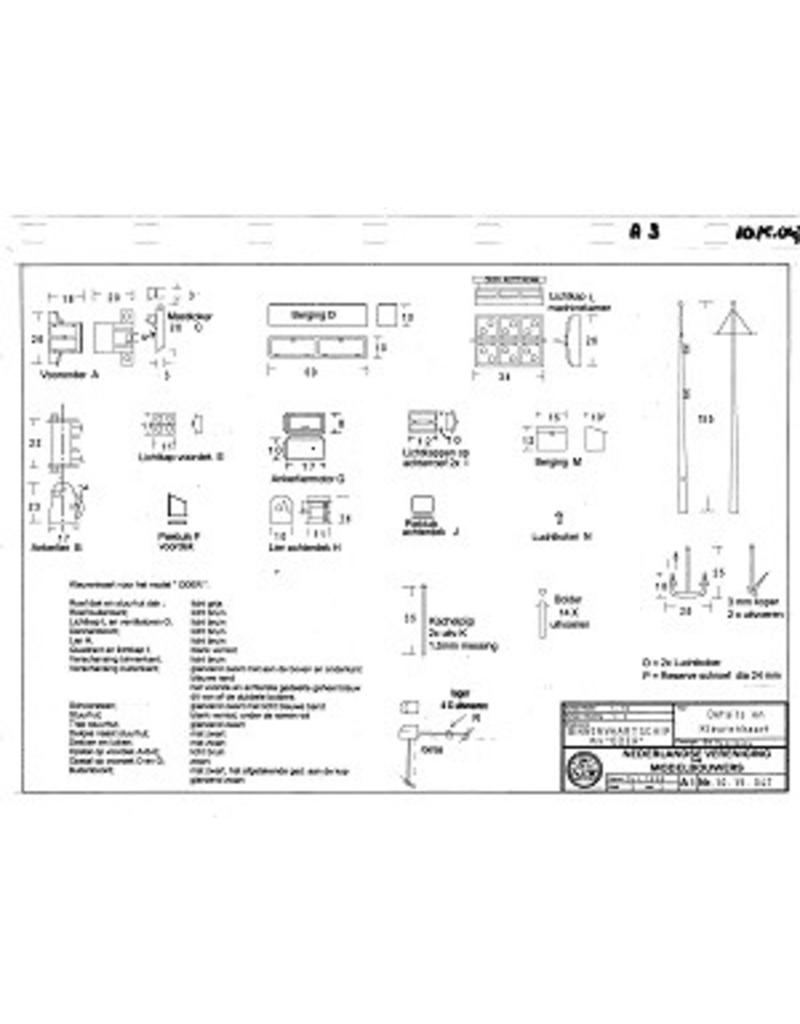

construction frames; side view; deck plan; details |
|
Scale |
1 : 70 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
95 |
|
Particulars |
l.o.a. 79 cm |
|
Remarks |
