| Article number: | 10.15.051 |
Specifications :
|
Drawing number |
10.15.051 |
|
Description |

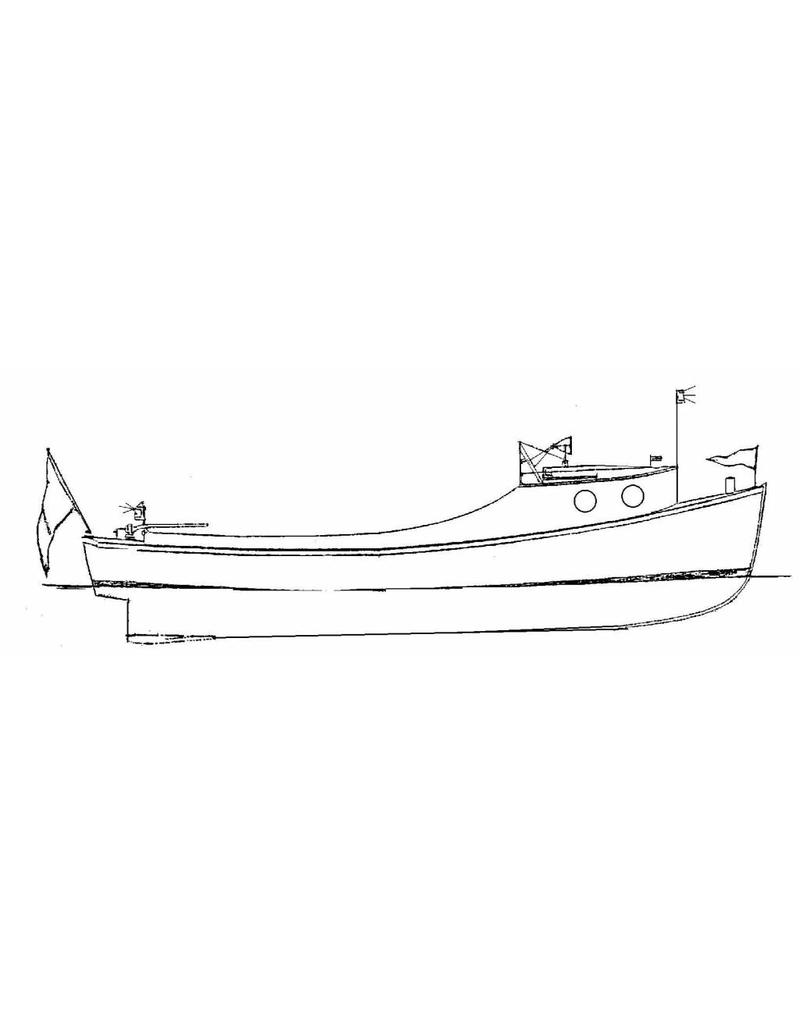

harbour service boat, boarding launch |
|
Quality |

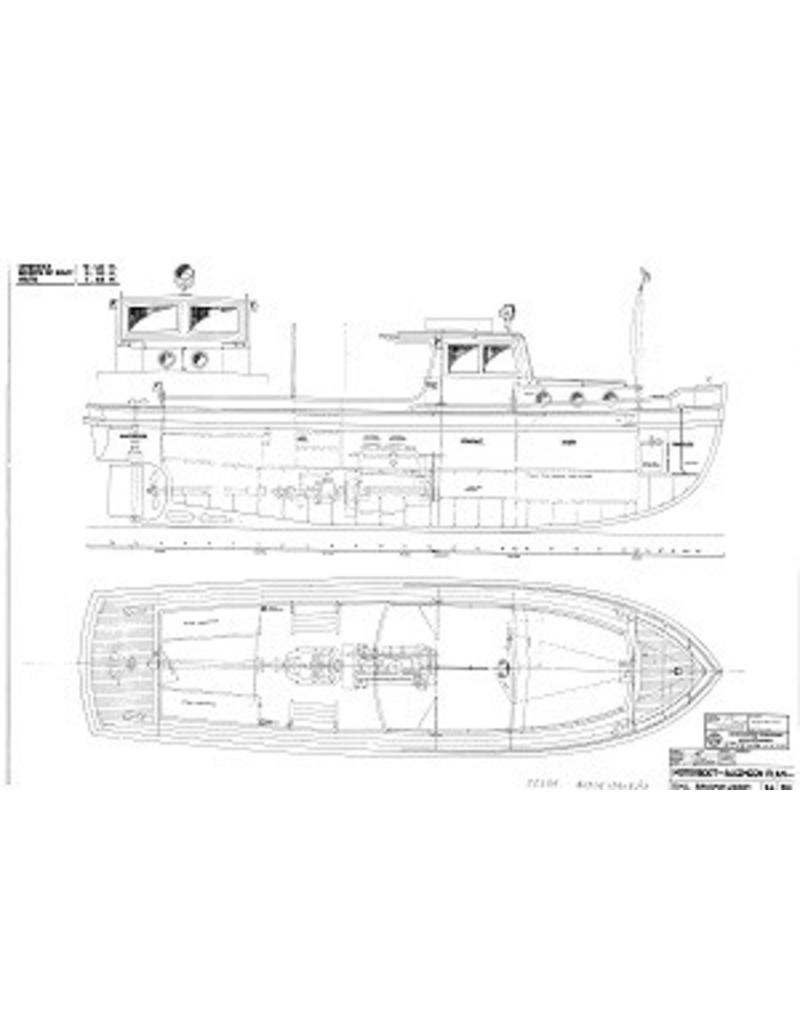

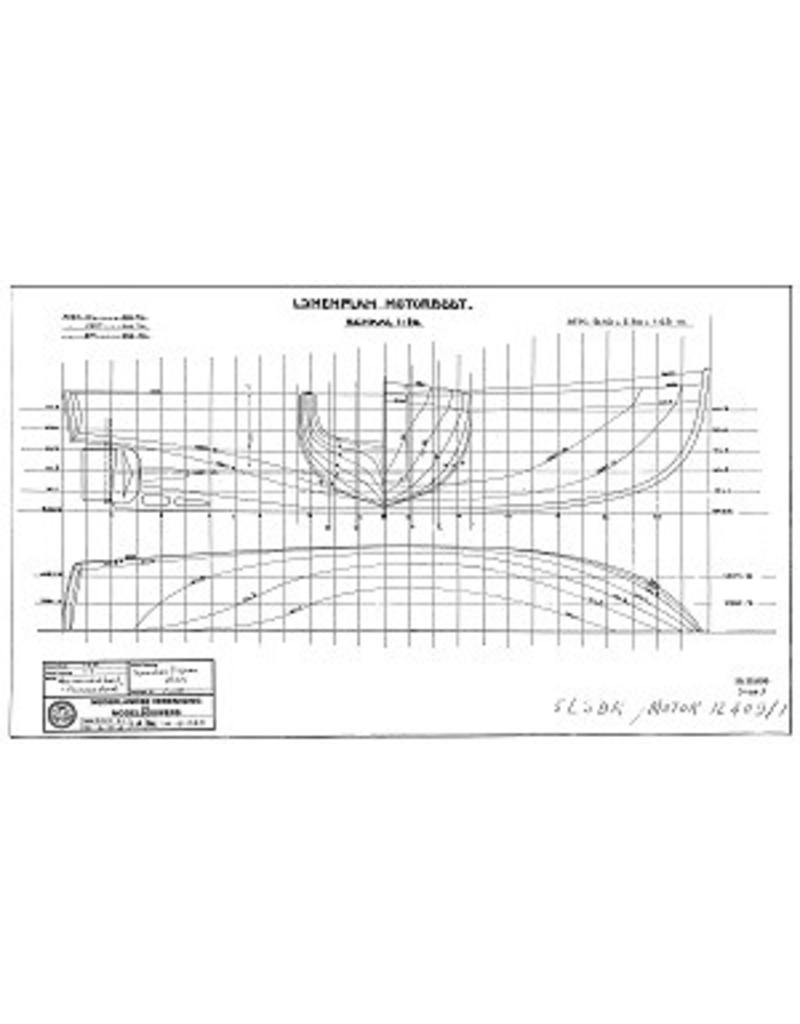

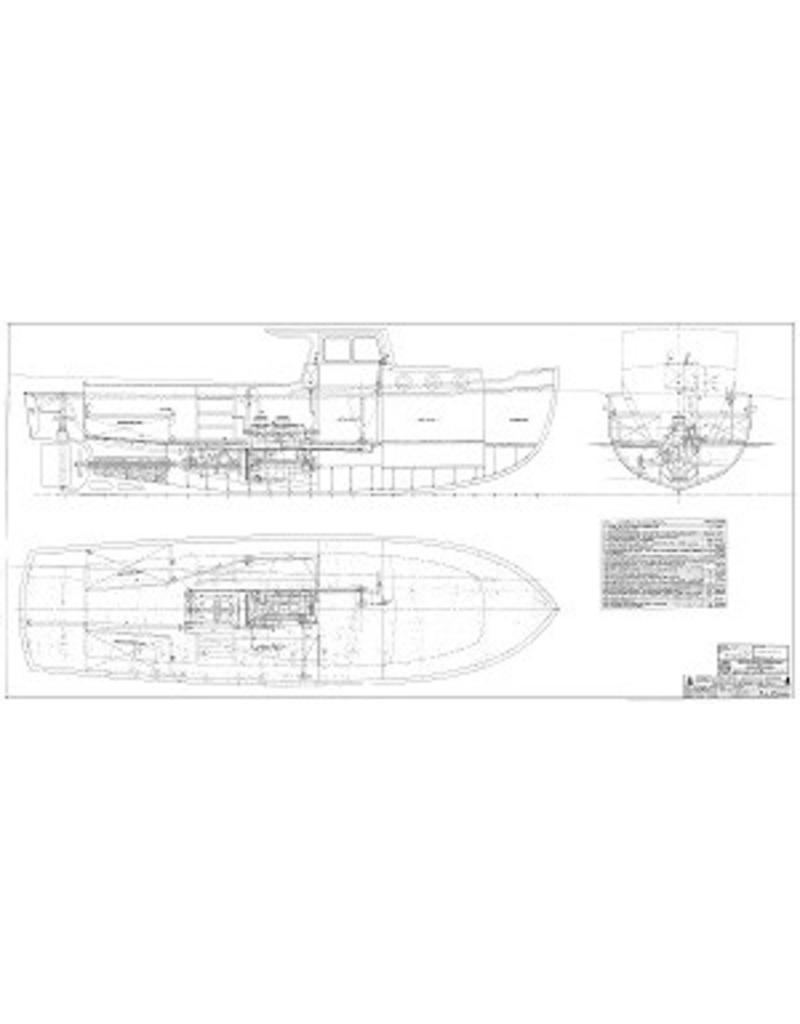

construction frames; side view/cross-section; deck plan |
|
Scale |
1 : 10 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
2 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Particulars |
l.o.a. 87 cm |
|
Remarks |
