| Article number: | 10.15.052 |
Specifications :
|
Drawing number |
10.15.052 |
|
Description |

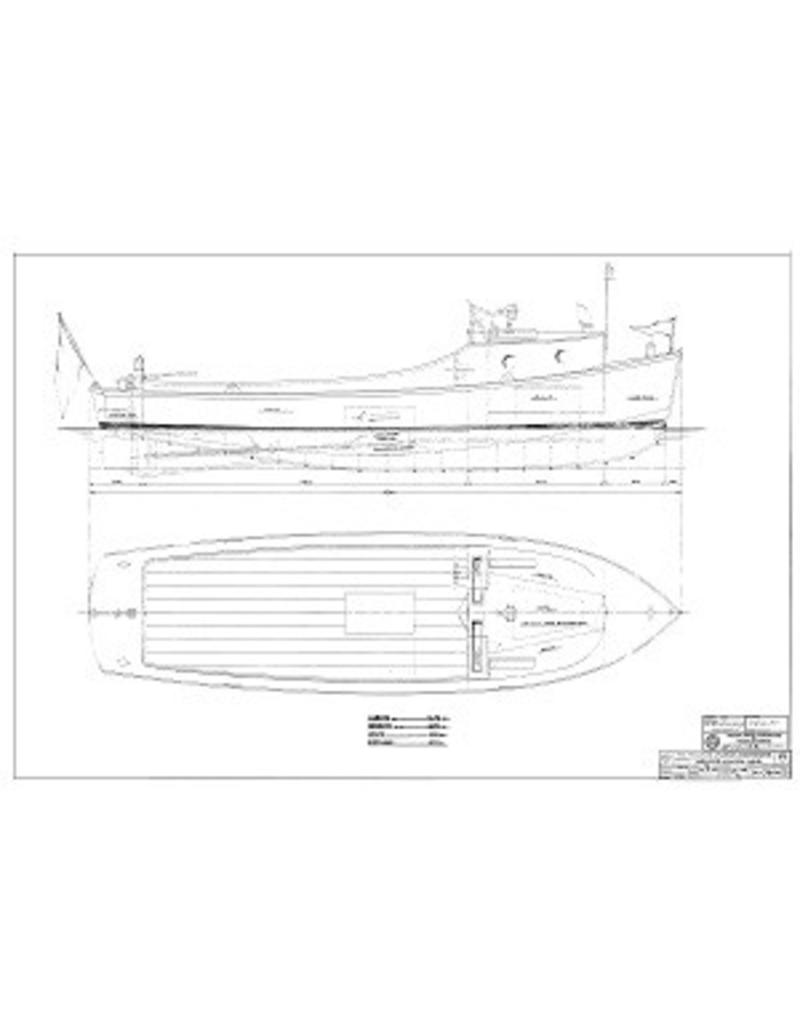

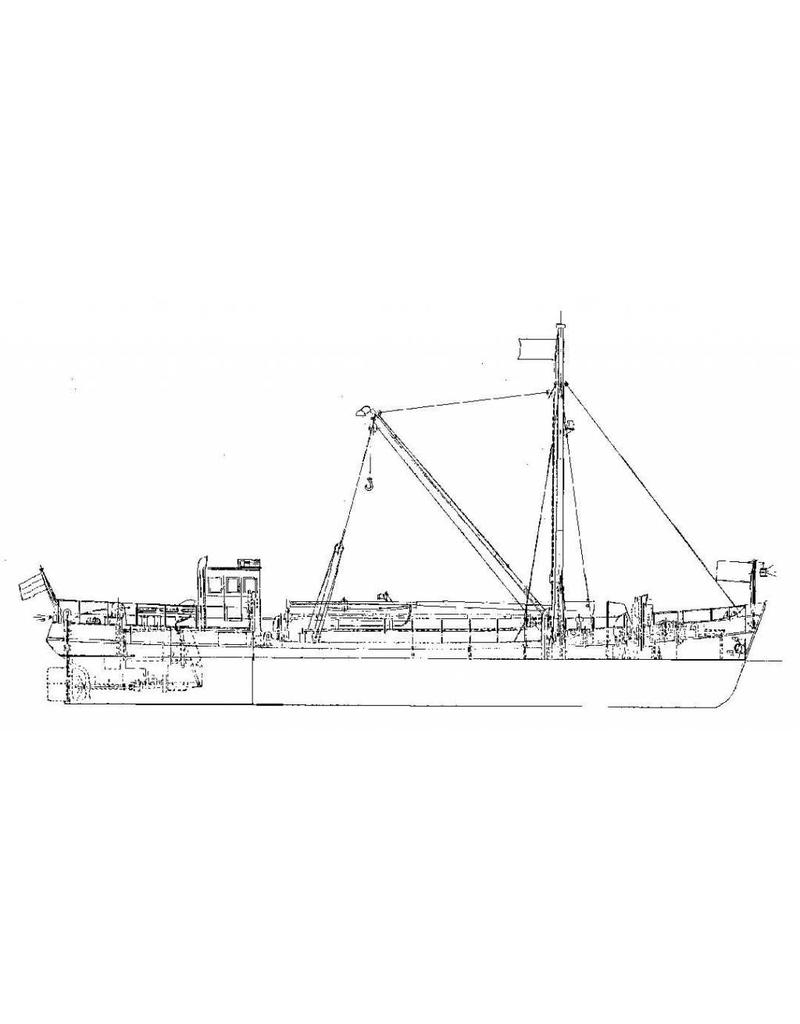

motorised ammunition lighter (1950) |
|
Quality |

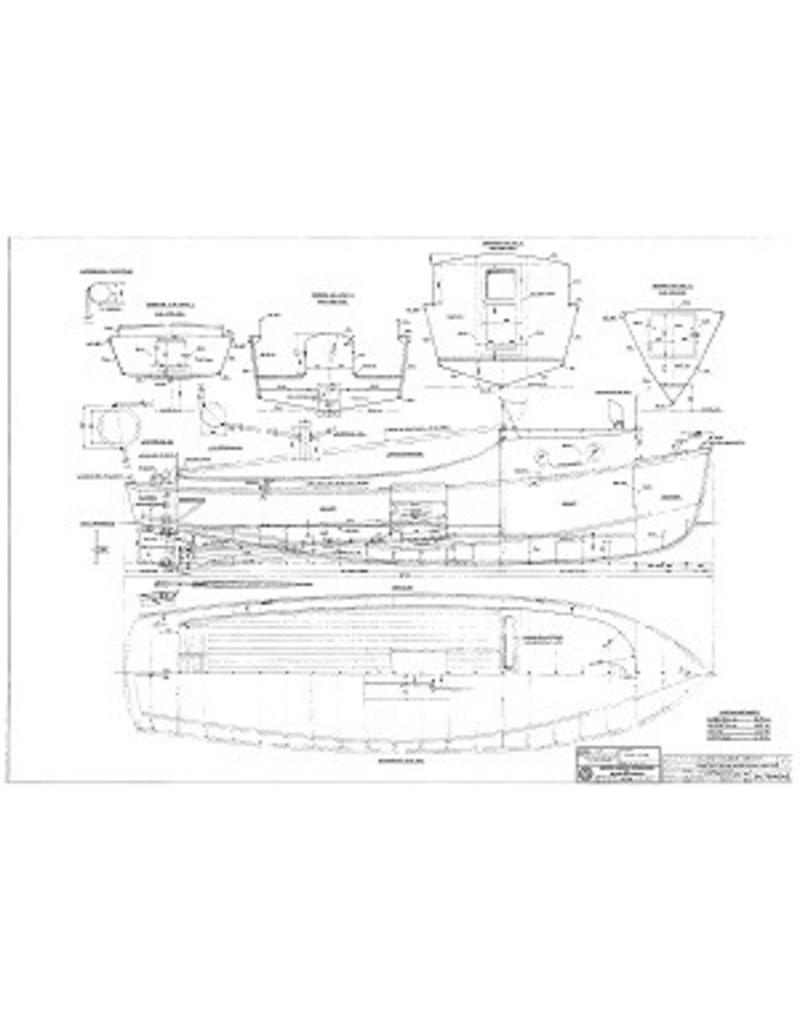

frames/lines 1:10; side view/cross-section; partial deck plans |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
4 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
6 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
385 |
|
Particulars |
l.o.a. 52 cm |
|
Remarks |
verify for whom?? |
